CE Certificate Liquid Nitrogen Generator Container Micro Integrated Liquid Nitrogen Generator Machine

Share on (1600533907818):


Price:

Quantity:


Product Overview

Description





Product Description


 Micro Integrated Liquid Nitrogen Generator Machine features :


1.  High quality compressors from famous brands, high efficient shell condensers and evaporators  -- excellent cooling, quiet with low electric consumption.


2. Microprocessor control--easy to operate;


3. Special open type reservoir tank with stainless steel--easy to clean and maintain;


4. Well designed and reasonable Pipelines-ensures power supply and saves energy;


5. Precise electronic thermostatic controller--accurately maintains temperature range from 0-60 degree


6. Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system--Safe and durable;


7. Liquid crystal display showing temperatures of outlet and inlet chill water--provides visualized and direct setting;


8. Single, double or quadruple compressors combination available--economic and efficient;


9. Industrially designed--elegant and economic with friendly connections between human & machine.













































































































































order number



Configure the name



8L-15L technical parameters



operative norm



1



working power supply



AC220V 50HZ










2



Refrigerator power consumptionand air compressor



Power consumption is about 1500W







3



Built-out nitrogen generator



Nitrogen purity was> 98.% with dew point temperature <-60℃,pressure 6barg,flow rate 5L-8L /min



domestic



4



External air compressor



oil free air compressor



domestic



5



refrigeration compressor



Cold head refrigerator







6



Pre-cooling time



120min







7



Built-in Duwa Tank



20L, 304Stainless steel



independent research and development



8



Liquid nitrogen production



≥16L /day







9



Liquid nitrogen pressure



1-6bar







10



Liquid level display



Capacacitive liquid nitrogen level sensor



Mike



11

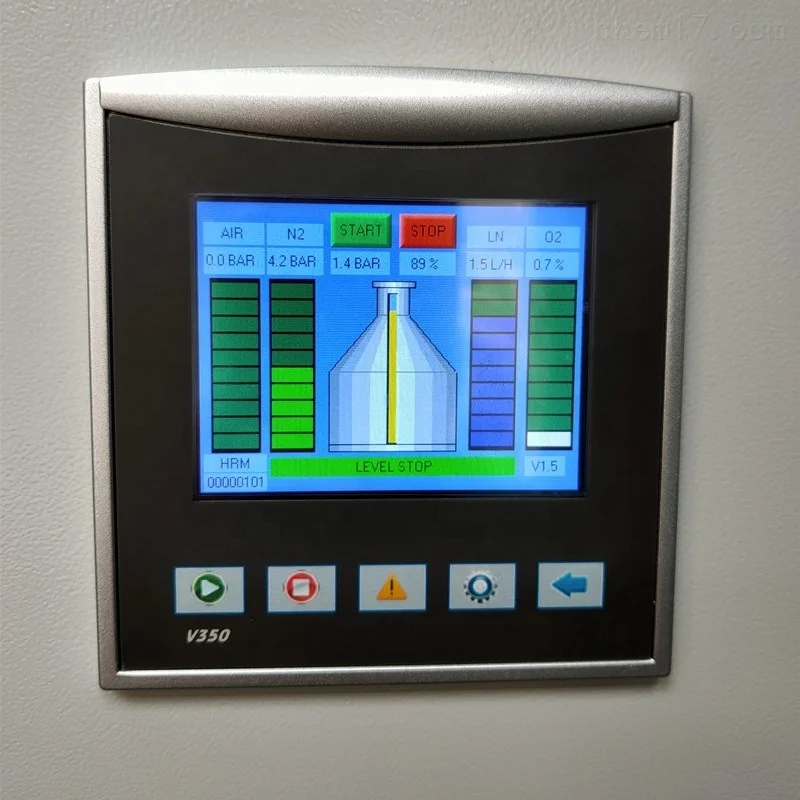

touch screen



One-key type fully automatic control system



independent research and development



12



Net size value of the liquid nitrogen machine



Depth 400mm * Width 700mm * Height 1300mm







13



Nitrogen  generator



620mm*720mm*1500mm







14



Weight of liquid nitrogen machine



200kg







15



Foma wheel (universal wheel)



Equipment with universal wheel (lockable)







16



hull



Cold rolled steel spraying







17



noise



<70DBA







18



Environmental temperature range



4°C-35°C







19



Use the altitude



<1000M







20



Liquid nitrogen purity



>99.9%







21



sterilization



sterilizing filter



sterilization






















Company Information







Packaging & Shipping







FAQ




Q1: Can I get samples from your factory?


A: Due our compressor is high value machine ,we do not provide free sample for the customer





Q2: If products have some quality problem, how would you deal with?


A: our equipment is high quality design,few equipment has problem, in case of quality happened in the Guarantee time,we will provide parts to customer for free ,we customer can replace it by our internet technical instruction or by video instruction





Q3. Our delivery date


A:Generally, 3-10days





Q4. What is the standard of package?


A:Export plywood packing ,attached pictures





Q5. Do you accept OEM business?


A:Yes, we accept OEM business





Q6. what kind of certificate you have ?


A:We have ISO9001, CE approval





Q7.How to maintain and repair


A:Our compressors have operation and maintenance instructions, as well as maintenance and repair videos. Customers can follow the maintenance video operation and replace the accessories. If you are not sure, you can contact our online customer service staff.





Q8.Our warranty


A:For the main components of the compressor, we provide a 12-month warranty period after shipment.If the main parts are damaged under normal use, we will send you an international express to us free of charge, and the customer will complete the installation and maintenance under our guidance.The main components include: motor, crankcase, cylinder, crankshaft, connecting rod, piston, fan, bearing and other major components. Among them, wearing parts, various sealing rings, guiding rings are not included.





Q9. What is the location of your factory?


A:Our factory is located in the Anqing city Anhui Province, China.take 4hours by high speed train From Shanghai ,there is one round flight per day from shanghai to anqing city





Q10. How to solve quality problems?


A:If the compressor met quality problems ,customer will find the faulty reason by our technical person instruction ,and we offer resolution ,in the quality guarantee time ,the parts are free ,if out of warranty date ,we will charge the cost the most problems we meet is how to do maintenance for the compressor ,and normally ,for the compressor we need to replace piston ring ,guide ring ,and valve etcs ,we have compressor maintenance video to teach customer how to do it ,and customer should watch it before do the maintenance ,and also can consult our technical service person Also ,we welcome customer dispatch labor to our factory to get professional compressor repair and maintenance training.
