JPT Raycus Max 30W/50W split type Fiber Laser Marking Machine for Stainless Steel aluminum copper brass iron

Product Overview

Description

Features & Details
[STRONG COMPATIBILITY]- Can be compatible with Windows XP, 7, 8, 10 (Support 32 bit / 64 bit. NOT compatible with the iOS system). The marking software is compatible with CORELDRAW, AUTOCAD, PHOTOSHOP, and other format files.
[MANUAL FOCUS FUNCTION]- This fiber laser engraving machine features laser focusing function, as long as the thickness of the material to be marked entered the software, the device can be manually positioned by red light.
[SCANNING SYSTEM]- The powerful galvanometer system is stable and dramatically enhances the marking speed. Laser engraver metal adopts advanced technology, which is high-efficiency, durable, and reliable.
[WIDELY USED]- The fiber laser 30W is widely used in many industries: Jewelry, computer and cell phone keyboards, auto parts, electronic components, buckles, integrated circuits, and so on.

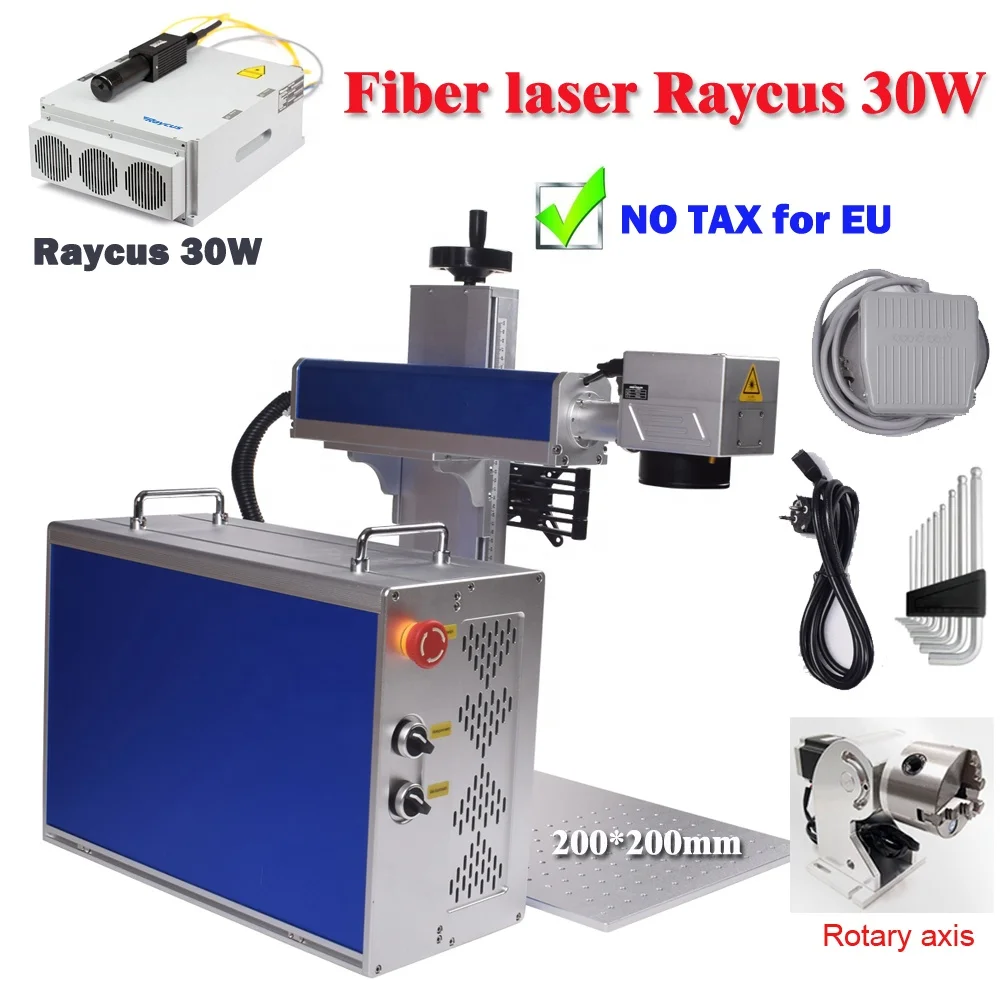

Package include:
1 x Fiber Laser Machine
1 x Power Cable
1 x Foot Switch
1 x USB Cable
1 x Ground Wire
1 x Software CD
1 x110*110 lens
Optional 200*200 or 300*300 lens

Optional Rotary Axis

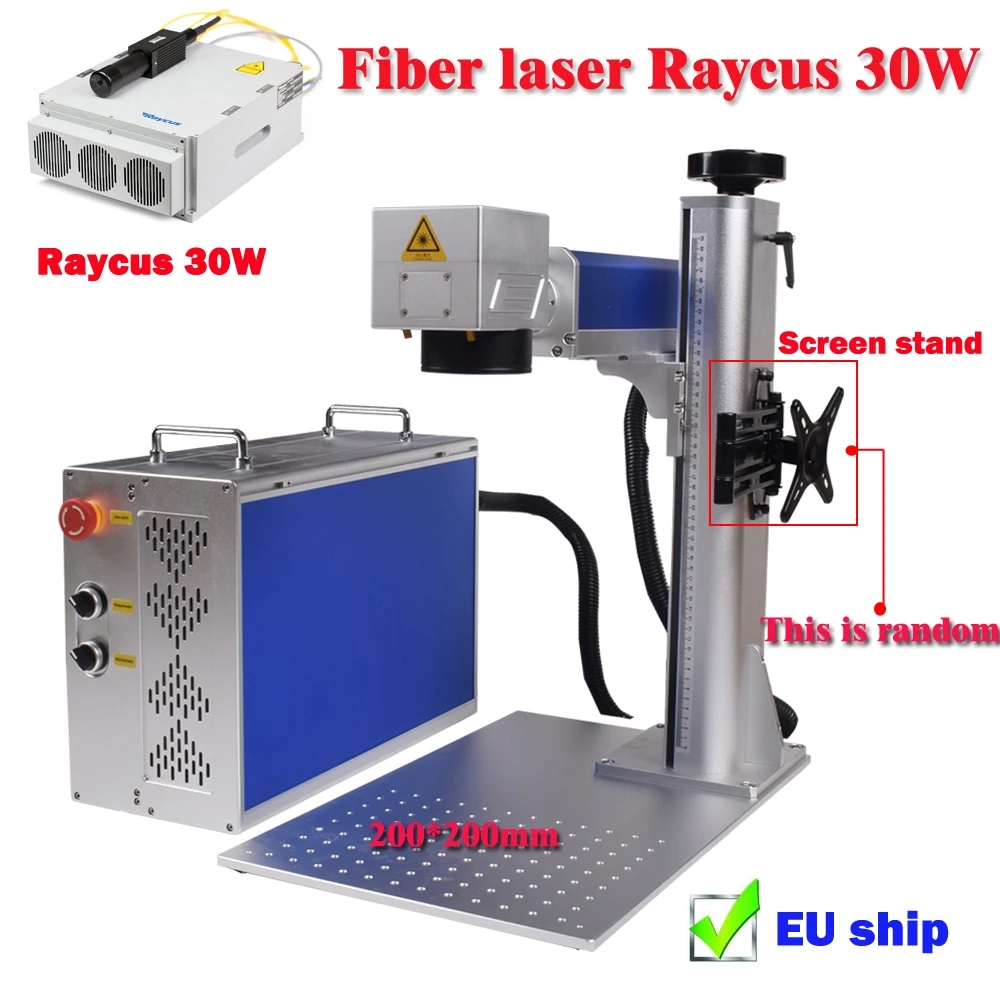

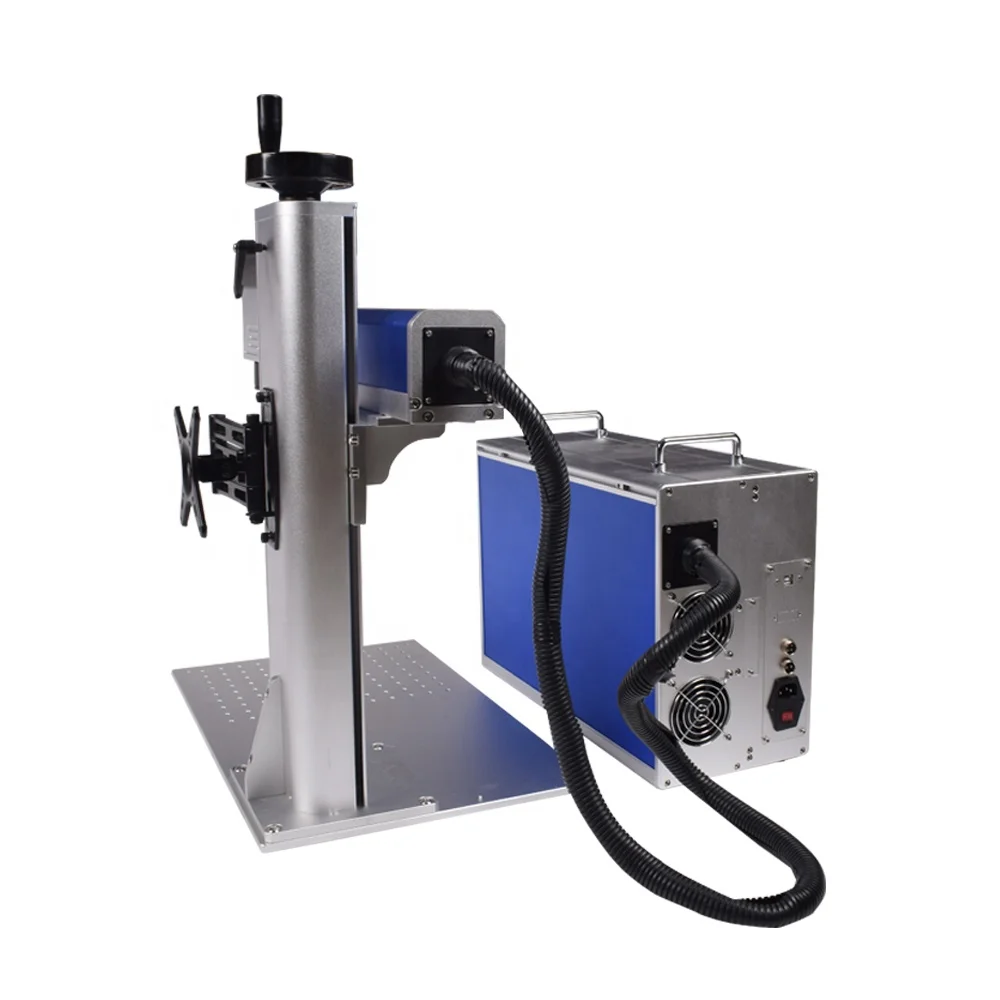

30/50W Portable Fiber Laser Marking Machine
The  portable fiber laser machine can mark on both metal and non-metal, which has the characteristics of sturdy, high efficiency, durable, and reliable. It is widely used for marking jewelry, keyboards of cell phones, auto parts, electronic components, electronic appliances, communication apparatus, sanitary wares, buckles, kitchenware, sterile equipment, hardware tools, knife, glasses, clock, cooker, stainless steel products, etc.



Technical Parameter:

Model
Laser power	30W/50W
WorkingArea	200*200mm (Initial field lens specification.)
Cooling Mode	Air Cooling
Laser Wavelength	10.64 um
Frequency of pulse	20-100 KHz
Marking Depth	≤0.3 mm
Marking Speed	≤8000 mm/s
Marking Lines	1-10 lines
Minimum Line Width	0.01 mm
Minimum Character	0.15 mm
Repeatability Accuracy	±0.002 mm
Resolution Ratio	0.1 mm
Marking Content	Text, pattern, date,bar code, etc
Operation System	Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10

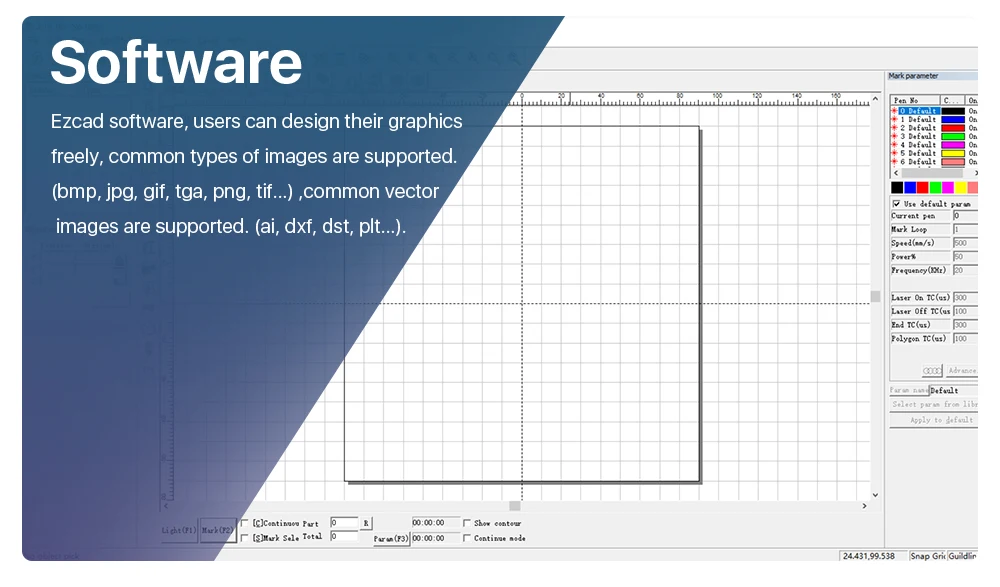

Control Software	EZCAD ENGLISH Control Software
Graphic Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power	≤0.9 KW
Operation Temperature	5°C-40°C
Relative Moisture	≤ 90%, no fog
Dimensions(L*W*H)	780*780*450MM (Cartoon)
Power supply requirements	220V/110V(Optional)
Weight	Gross Weight 38KG (Other factory wooden package 60KG+)
Warranty	24 months



Fiber laser marking machine mainly consists of four parts:fiber laser, galvanometer scanning system, computer control system and the worktable.



Name	Origin(brand)	Remarks
Optical maser	Maxphotonics(Raycus,IPG fiber laser optional)	Long service life, high reliability, fine beam quality
Galvo mirror	Galvo-tech(digital)	Fine marking, more quick and high reliability
F-θ lens	wavelength	High quality optical device
Marking software	Special marking Software (Ezcad2 software)	Powerful, simple and convenient operation, Auto-cad, CorelDraw, Photoshop software compatible form
Control cabinet	China	Optical fiber special cabinet, all the mold production, high seal









About shipping:

1/For EU:
NO tax&VAT from our EU Warehouse to your door, fast and safe, 5-10 days shipping. (PS: Please select ship from China option)
(Germany/ France/ Spain/ Italy/ Poland/ Austria/ Belgium/ Czech Republic/Denmark/ Lithuania/ Bulgaria/ Estonia/ Greece/ Romania/ Slovenia/ Croatia/ Luxembourg/ Finland/ Ireland/ Portugal/ Sweden/ Slovakia/ Hungary/ Latvia)

2/Other country buyers address ship from China by express.



After-sales service process:

1/ After-sales service contains:
a.    Machine installation and adjustment
b.    Software Settings and using (not include G code programming)
c.    Machine quality problem
d.    the machine using problem

2/ When the machine have problem:
a.    Machine problem pictures or video is asked.
b.    General problem solve way will be supplied in 1~2 days,
Complex problem solve way will be supplied in 2~3 days.

3/ General problem solve way: (Machine warranty is 1 year, Cutters don’t have warranty, they are consumables)
a.    Machine operation and installation problem, we will supply video or pictures to show you.
b.    Machine quality problem, machine parts will be resent free.
