Auto Electronics RV Cargo Van 7 Inch Screen AHD 1080P Mirror Car Monitor

Share on (1600533923470):


Price:

Quantity:


Product Overview

Description


Auto Electronics RV Cargo Van 7 Inch Screen AHD 1080P Mirror Car Monitor





Model No:LW-070M-B





Note: Because the price of express delivery to different countries is somewhat different, if you need to place an order, please leave a message to us to consult the specific shipping cost. Thank you~

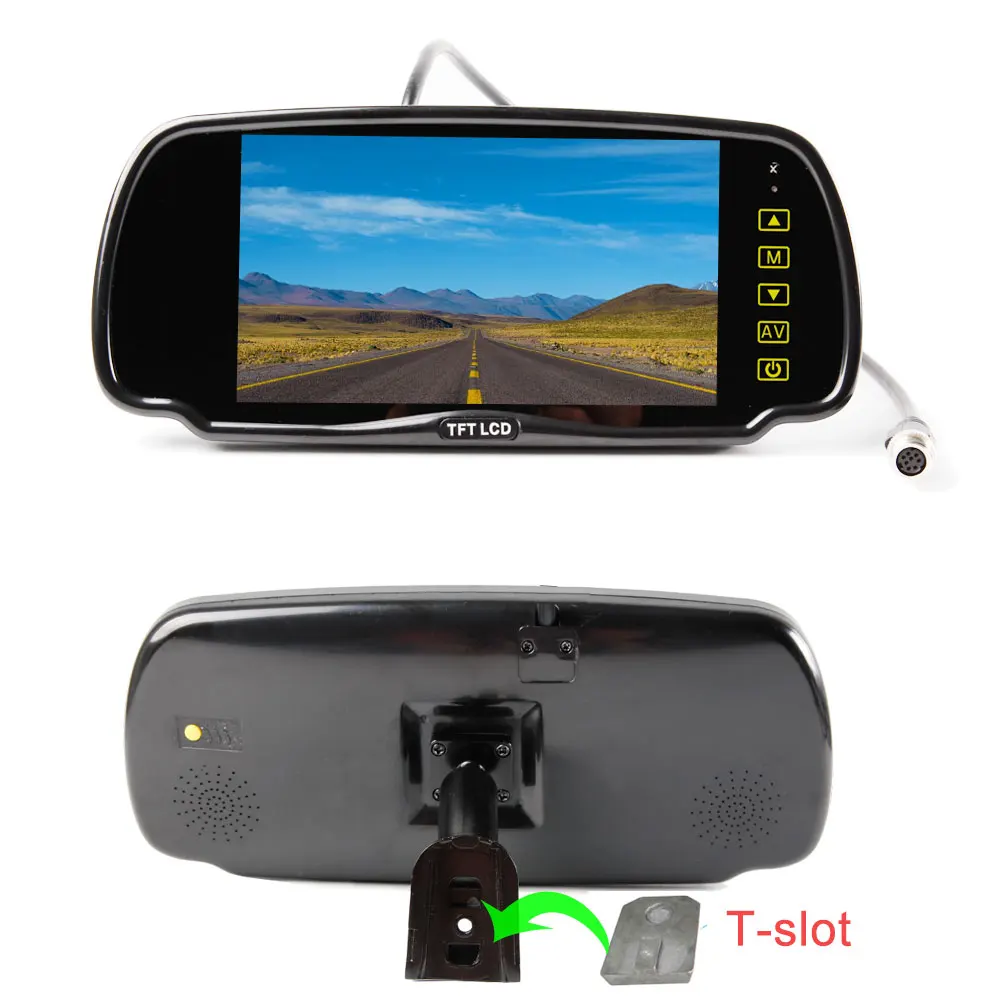

7 Rearview Mirror Monitor.jpg

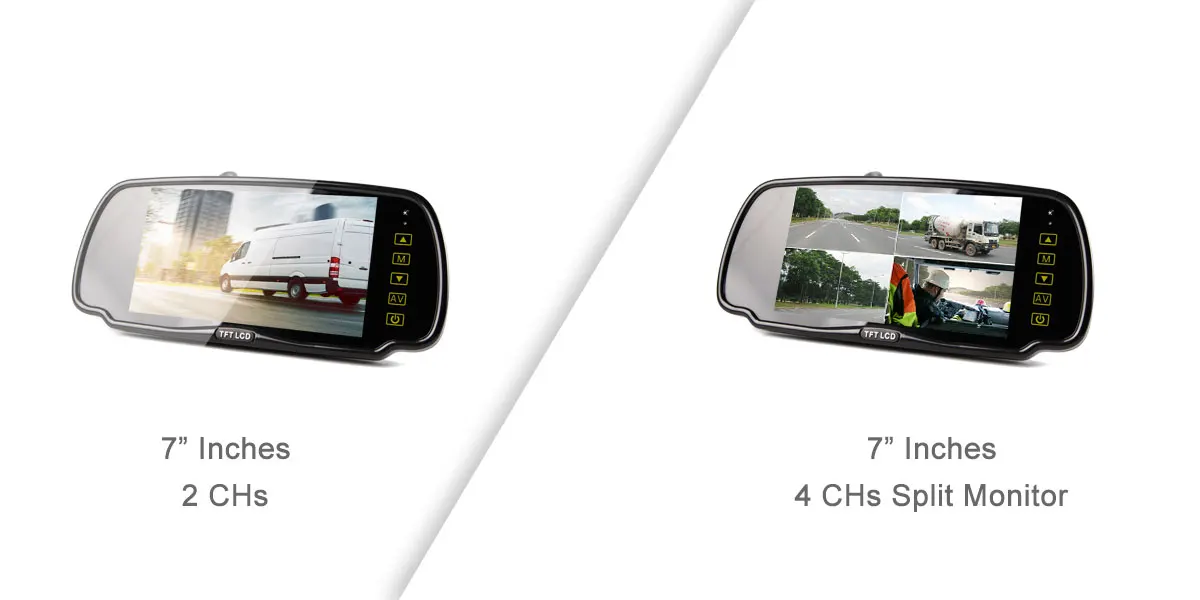

 back mirror split screen.jpg





Cer Mirror Monitor Features:






  • High brightness 500:1(You can still see the image on the screen in the refracted sunlight.)

  • The display with 2 video frequency input Automatic/manual switcher.

  • Improved wide voltage:surpport 10~32V power input

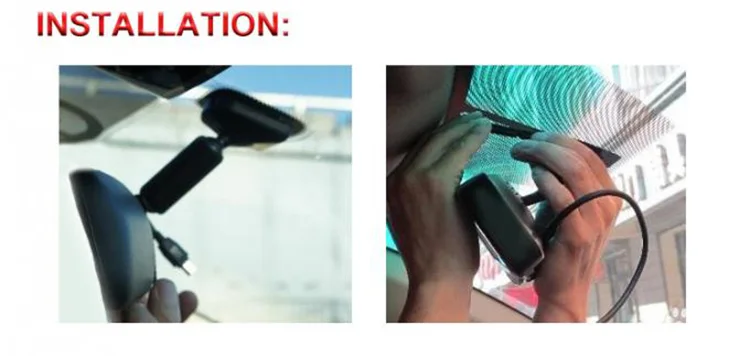

  • Easy to install, just clamp it to the old mirror on your car or Heavy duty Metal bracket for windscreen installation

  • Built in parking guide line adjust ON / OFF



  • Anti-reflective clear vision rear view mirror

  • Automatically shows rear view when reversin

  • Resolution : Digital :800 x 3 (RGB) x 480 AHD:1024 x 3 (RGB) x 600

  • Rearview mirror monitor will serve as your rearview mirror, you can view the back of your car clearly just like before

  • Front panel controls with on-screen menu

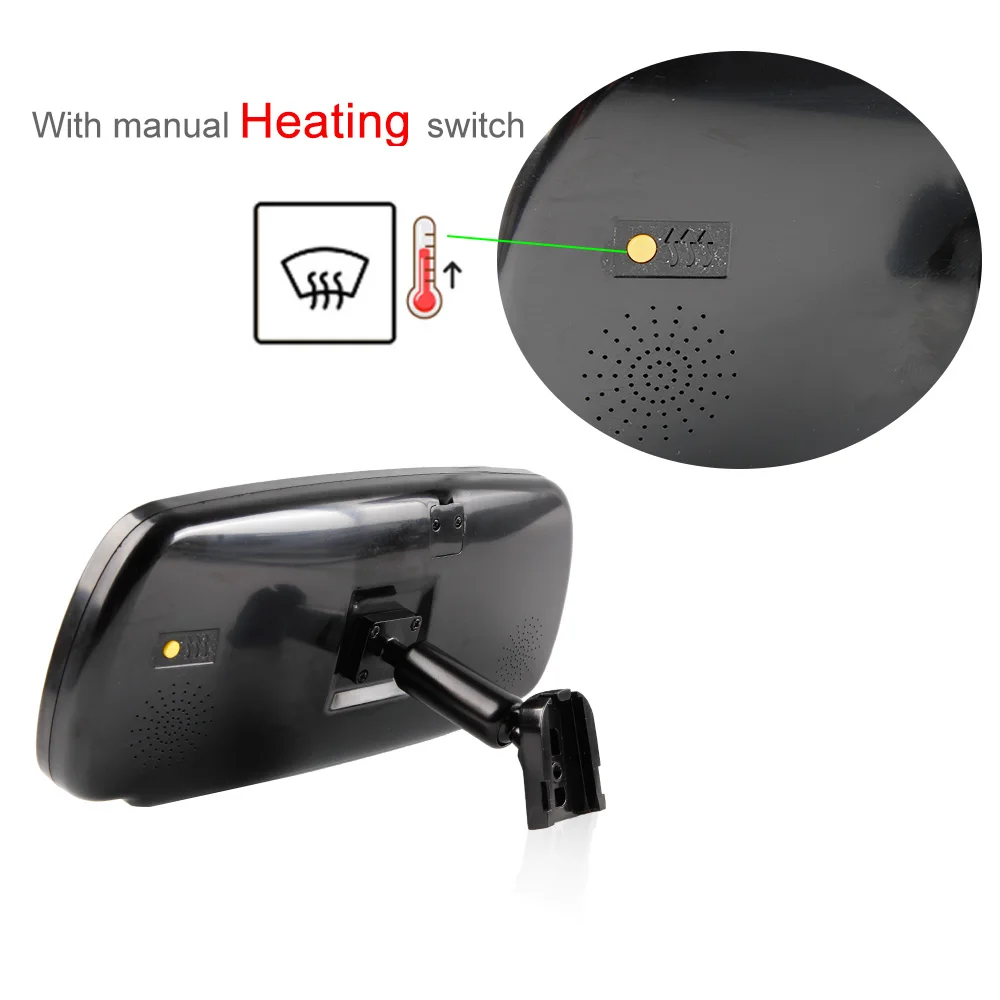

  • The back of the display is designed with manual Heating camera function that can control the use of the heated camera in winter or rain to remove fog. If you need heating camera please leava a message to us.

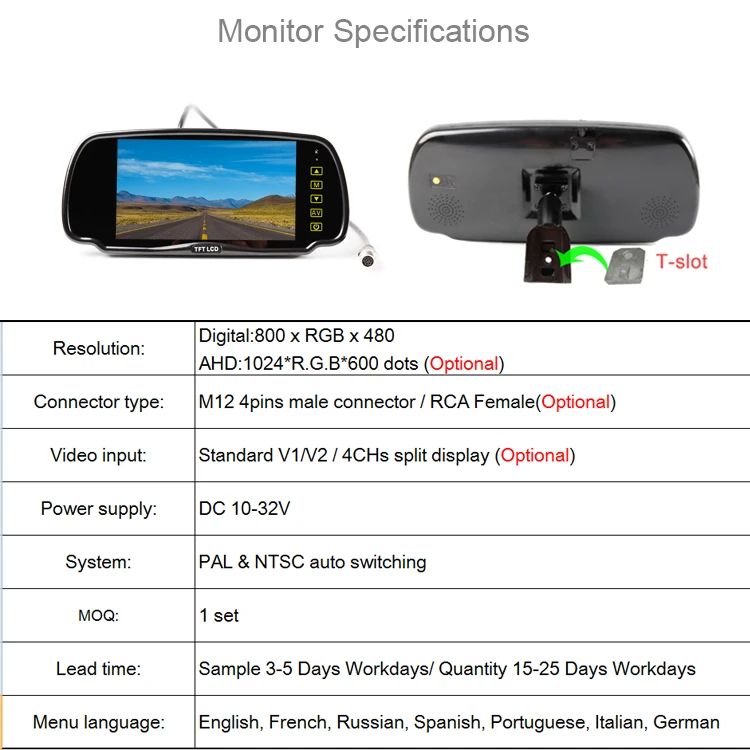

7 inch Rear view Mirror Car Monitor Spec:
Screen size:7" LCD mirror car monitor
Brightness:500 (CD/M2)
Resolution:CVBS: 800(W) x RGB x 480(H) / AHD:1024*R.G.B*600 dots optional
System:PAL/NTSC
Connector typeM12 4pins male connector / RCA Female(optional)
Type:Mirror monitor (16:   9) display
Parking line:Menu operation ON/ OFF
Video input:Standard V1/V2 / 4CHs split display (optional)
System:PAL & NTSC auto switching
Power supply:DC 10-32V
Power   consumption:less than 7W
Operating   temperature:(-)10 to +65 C-degree
Viewing angle: U:50/D:60 L/R:70
Storage   temperature:(-)20 to +65 C-degree

Menu language:English, French, Russian, Spanish, Portuguese, Italian, German























LEAD TIMESample 3-5 Days Workdays/ Quantity 10-25 Days Workdays
MOQ1set
PAYMENT TERMST.T / D.P / L.C / PAYPAL / WESTERN UNION
OEM SERVICEWelcome ( Special Price For Big Order)

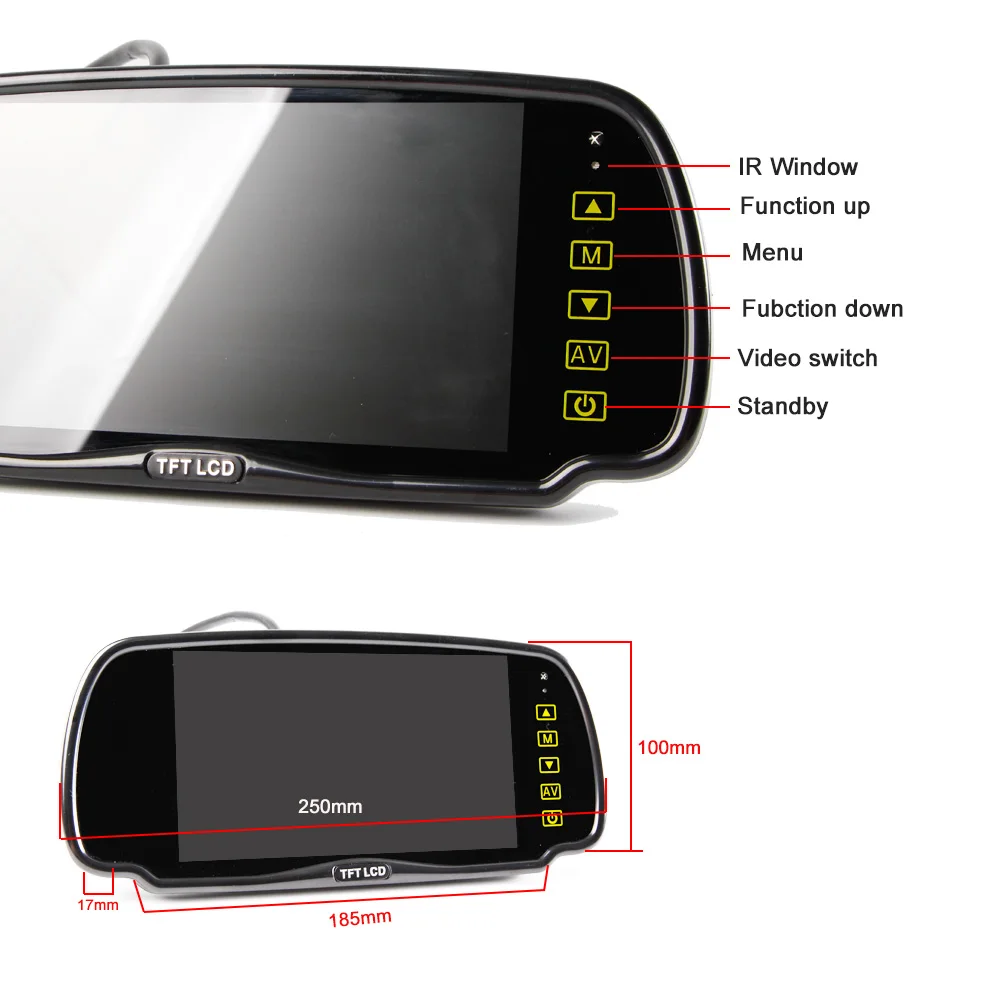

 mirror monitor 7.jpgMONITOR 7.jpg















Optional Bracket:


 Rearview Mirror Monitor.jpg

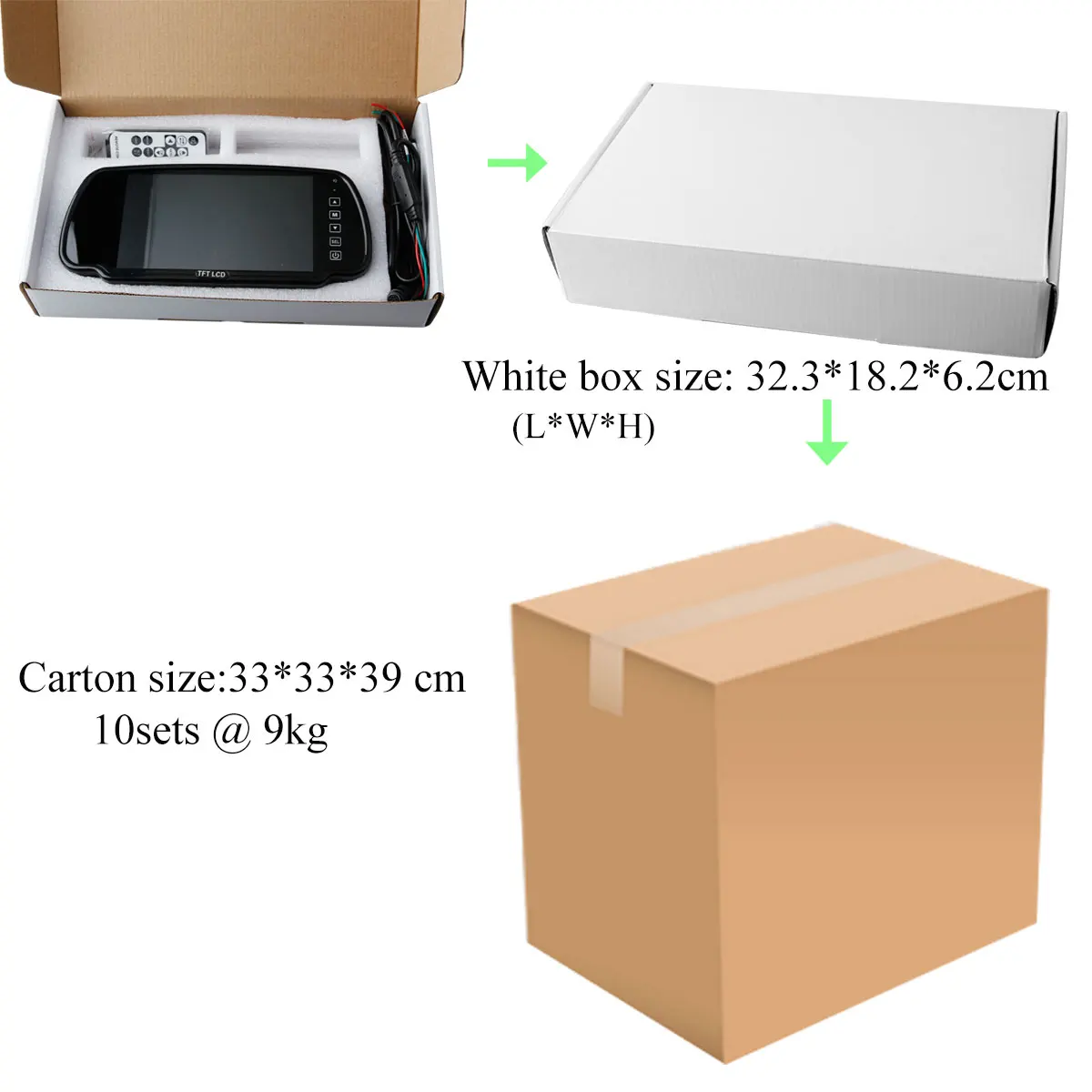

car monitor package.jpg

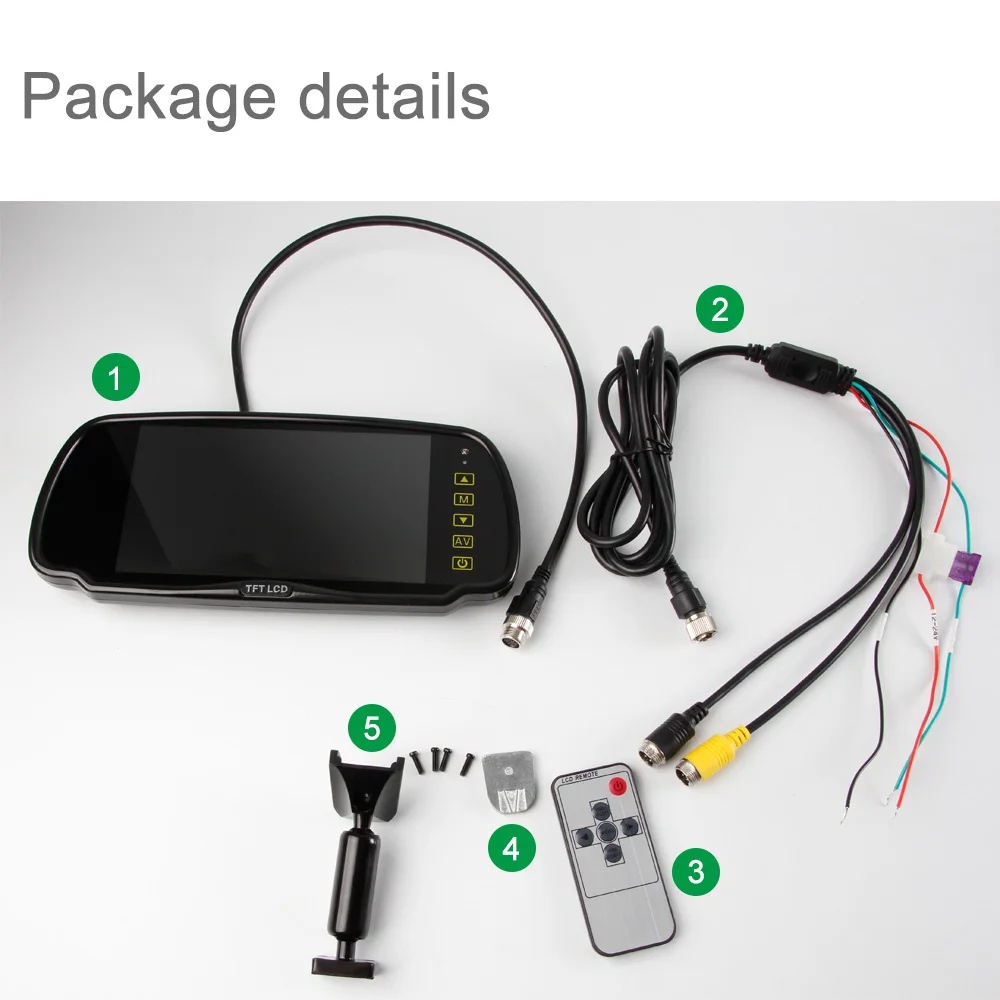

Car mirror monitor package include:





--7 inch monitor *1


--User manual *1


--Power cable *1


--Remote control *1


--Metal brackt *1
