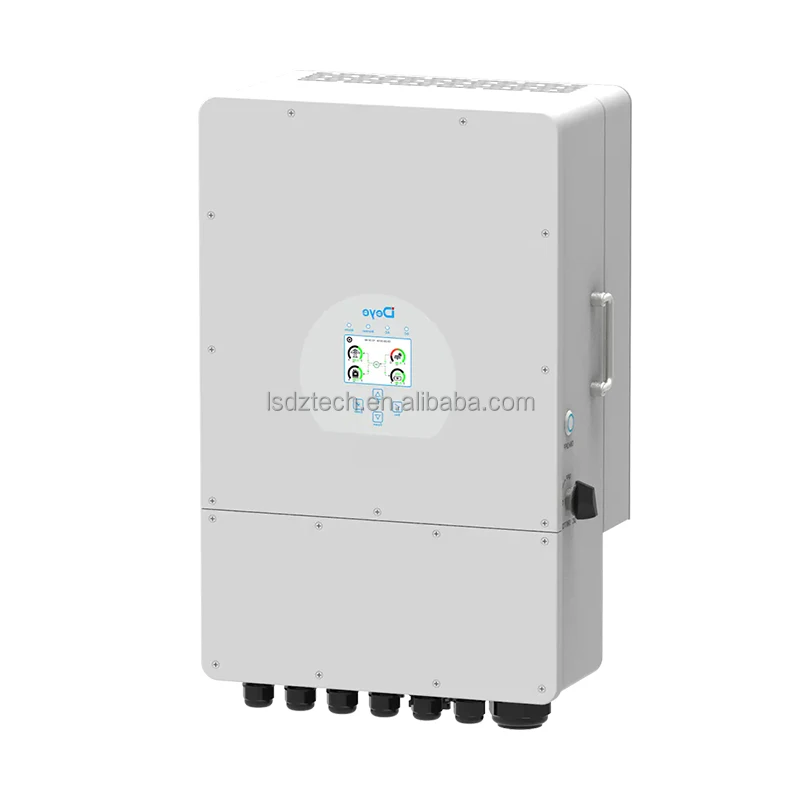

12kw Deye hybrid inverter 8kw solar inverter power charger system single 3 phase 10kw inverter solar
- Category: >>>
- Supplier: Shenzhen Lanshi Electronic Technology Co. Ltd.
Share on (1600533931483):
Product Overview
Description
12kw Deye hybrid inverter 8kw solar inverter power charger system single phase 10kw 3 phase inverter solar
| Technical Datasheet | ||
| Model | 7.6KW | 8KW |
| Battery Input Data | ||
| Battery Type | Lead-acid or Lithium-iron | |
| Battery Voltage Range (V) | 40-60V | |
| Max.Charging Current (A) | 190A | 190A |
| Max.Discharging Current (A) | 190A | 190A |
| Charging Curve | 3 Stages/Equalization | |
| External Temperature Sensor | Optional | |
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |
| PV Strings Input Data | ||
| Max.DC Input Power (W) | 9880W | 10400W |
| PV Input Voltage (V) | 370V(100V~500V) | |
| MPPT Range (V) | 125-425V | |
| Full Load DC Voltage Range | 240-425V | |
| Start-up Voltage (V) | 150V | |
| PV Input Current (A) | 18A+18A | |
| No.of MPPT Trackers | 2 | |
| No.of Strings Per MPPT Tracker | 2+2 | |
| AC Output Data | ||
| Rated AC Output and UPS Power (W) | 7600W | 8000W |
| Max AC Output Power (W) | 8360W | 8800W |
| Peak Power(off grid) | 2 times of rated power,10S | |
| AC Output Rated Current(A) | 33A | 35A |
| Max.AC Current(A) | 38A | 40A |
| Max Continuous AC Passthrough(A) | 50A | |
| Power Factor | 0.8 leading to 0.8 lagging. | |
| Output Frequency and Voltage | 50/60Hz; 230(single phase) | |
| Grid Type | Single Phase | |
| Current Harmonic Distortion | THD<3%(Linear load<1.5%) | |
| Efficiency | ||
| Max.Efficiency | 97.60% | |
| Euro Efficiency | 97.00% | |
| MPPT Efficiency | 99.90% | |
| Certifications and Standards | ||
| Grid Regulation | VDE 0126,AS4777,NRS2017,G98,G99,IEC61683,IEC62116,IEC61727 | |
| Safety Regulation | IEC62109-1, IEC62109-2 | |
| EMC | EN61000-6-1, EN61000-6-3 | |
| General Data | ||
| Operating Temperature Range (℃) | -25~60℃, >45℃ Derating | |
| Cooling | Fan | |
| Noise (dB) | <30 | |
| Communication with BMS | RS485; CAN | |
| Weight (kg) | 32 | |

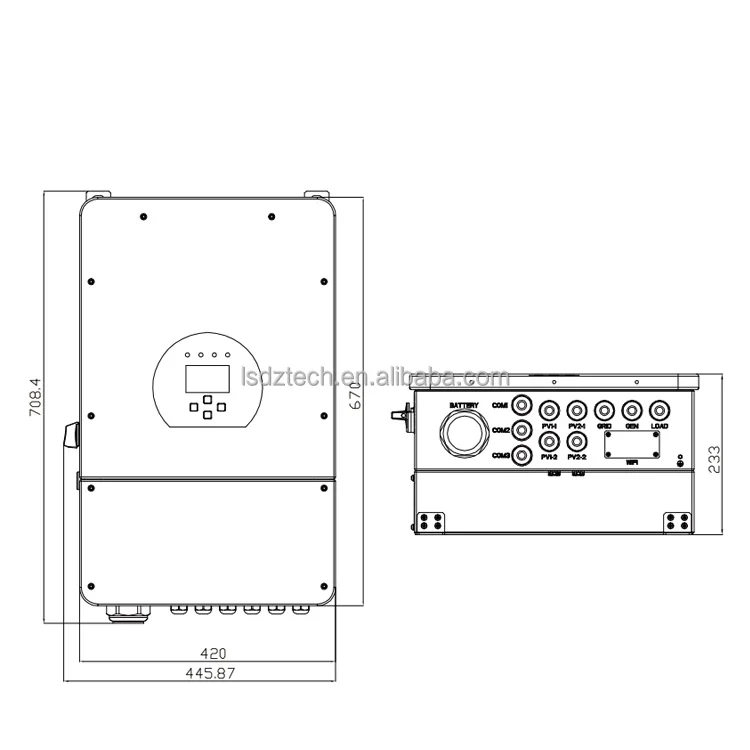

| Size (Length*Width*Height mm) | 670×420×233mm | |
| Protection Degree | IP65 | |
| Installation Style | Wall-mounted | |
| Warranty | 5 years | |
