AELAB LED Light Illumination Biological Microscope LCD Biological Binocular Trinocular Olympus Microscopes
- Category: >>>
- Supplier: AELAB GUANGZHOU CO. LTD
Share on (1600533931624):
Product Overview
Description
Product Description
AE-XSZ-2108,2108A
AE-XSZ-2108III
Excellent optical Objective
Infinity optical objective,Best quality with high resolution when viewing
Brightness Adjustable
LED Illumination, Brightnesss Adjustable

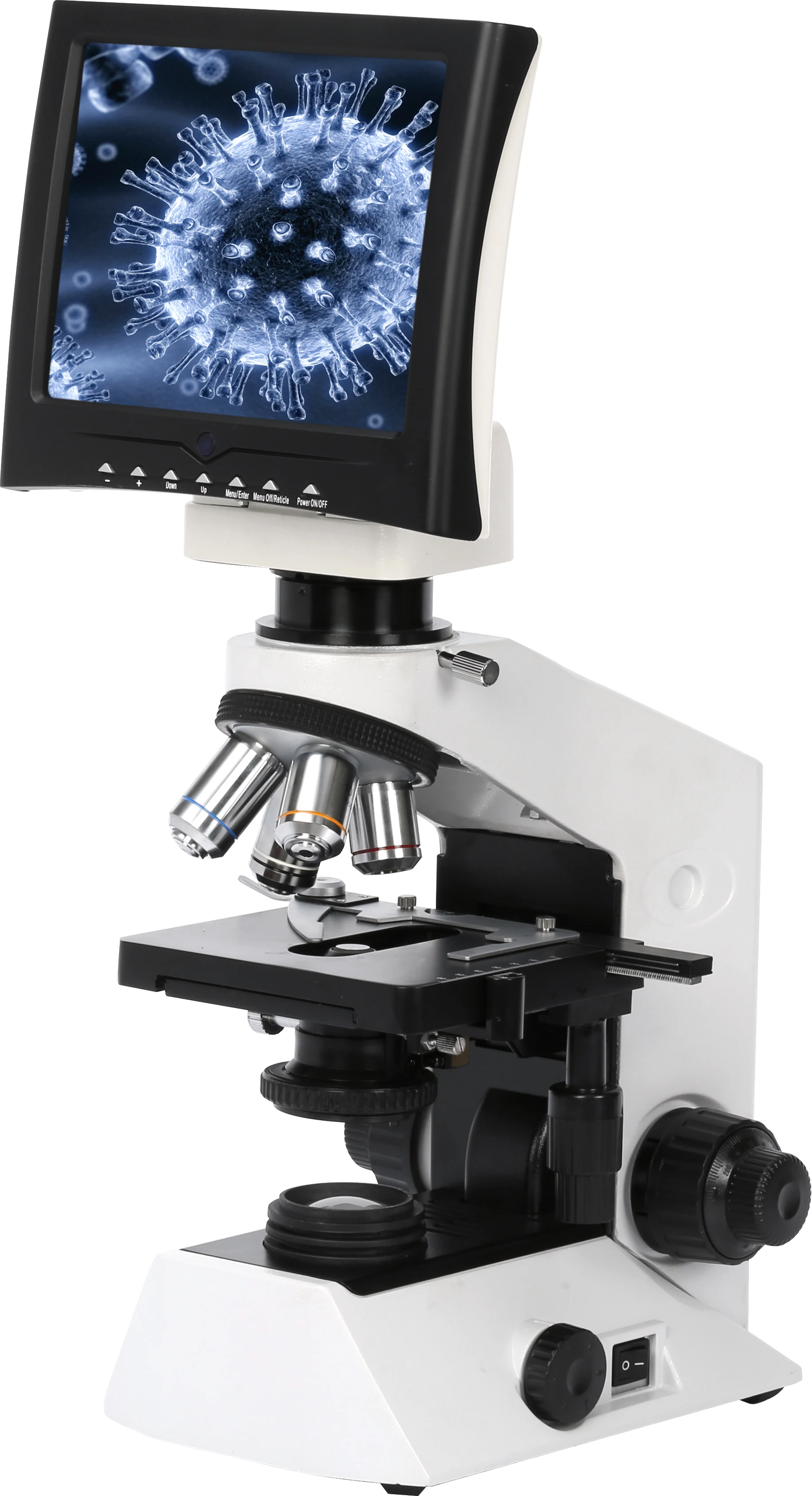

Smart LCD screen head
Can set with screen immediatly,without the eypiece head,viewing the image from screen.
Features & Specification
Technical Specifications:
AE-XSZ-2108 | ||
Achromatic objective | 4X,10X,40X,100X(S,OIL) | |
Plan Objective | 4X,10X,40X,100X(S,OIL) for optional | |
Eyepiece | WF 10X/18mm or 20mm,WF16X/11mm for optional | |
Eyepiece head | Binocular Head, Sidetop type 30 degree inclinded, 360 degree Rotatable | |
Stage | Double Layer Mechanical Stage Size 140X140mm, Moving Rang 70x50mm | |
Condenser | Abbe NA=1.25 with Iris Diaphragm &Filter | |
Illumination | LED Illumination 110-240V/50-60Hz | |
Package | Foam packing & Out carton | |
AE-XSZ-2108A,2108III | ||
Optical System | UIS(Universal optical system) | |
Illumination | Epi-kohler illumination 6V20W,Halogen lamp 100-240V 50/60Hz | |
Focusing | Stage height adjustment mechanism Fine adjustment Scale:0.001mm per turnCoaxial Coarse range 14mm | |
Nosepiece | Quadruple | |
Viewing Head | Binocular Head,inclined at 30°Interpupillary distance 48-75mm | |
Stage | Size:140x140mm, moving range 75x45mm | |
Condenser NA=1.25 | Abbe Condenser, NA=1.25(when immersed in oil) | |

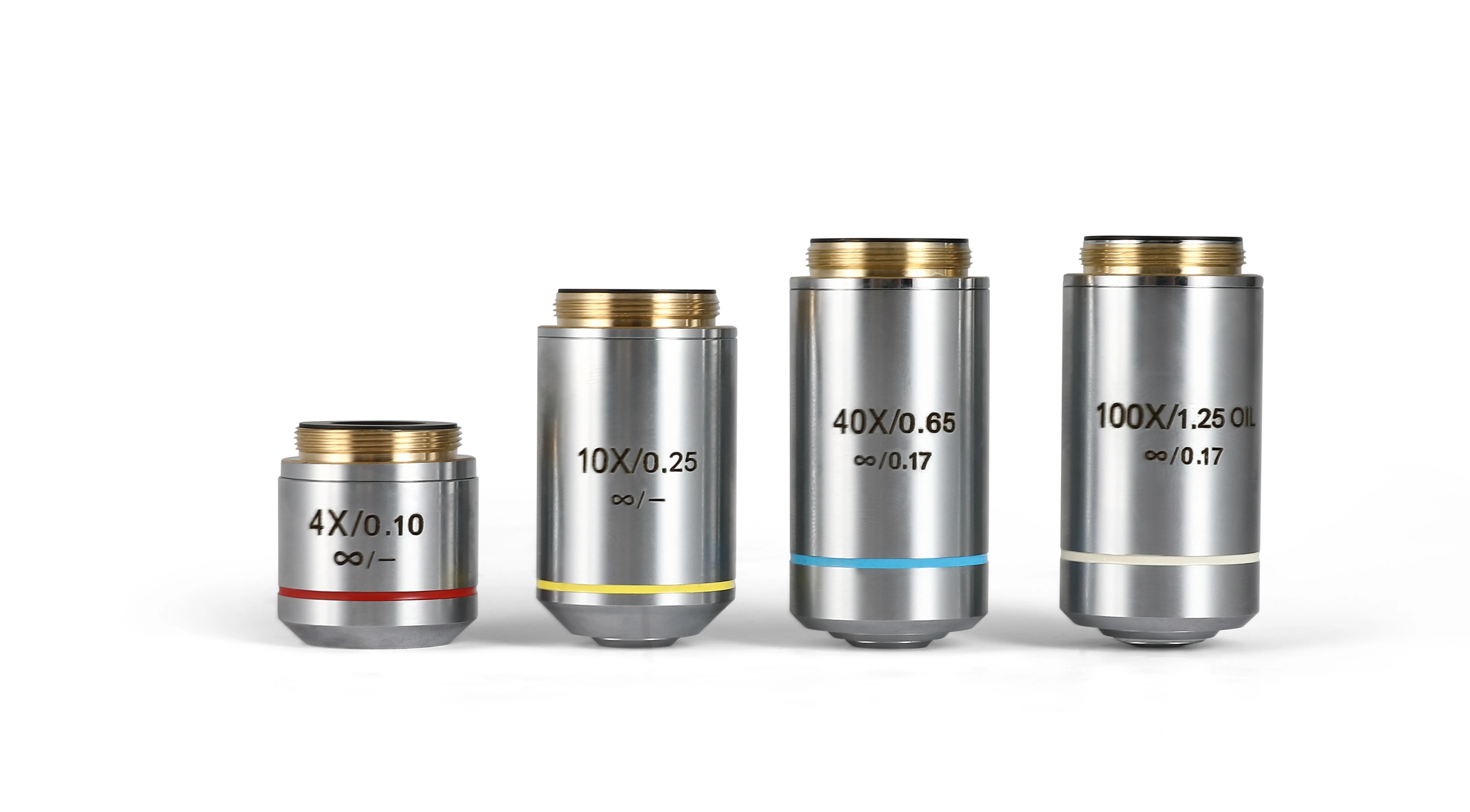

rObiectives | Plan-achromatic 4*N.A.0.10W.D.18.5mm 10*N.A.0.25W.D.10.5mm 40*N.A.0.65W.D.0.56mm 100*N.A.1.25W.D.0.13mm | |
Recommend Products
Packing & Shipping
Company Information
AELAB GUANGZHOU CO.,LTD is a company that has many of manufacturing and selling wide range of science & laboratory instruments. The main product include liquid handing, nucleic acid and protein analysis instruments, general instruments, cleaning machines. Over 15 years international sales experience and already provide service over 100 countries. We are able to provide installation,debugging, training service onsite. For general machines we are providing online training service or telephone call training service to distributors. The machine basic information and brochure customers can download from our website directly.
Please do not hesitate, AELAB products are worth a try! Welcome to join us!
FAQ
Q: How about the warranty for your products?
Q: Can you do OEM?
A: Yes, we can do OEM/ODM as you required.
Q: Can you offer the technical support, online or site training or other
A: All of our products have 1-2 year warranty. During the guarantee period, if there are any problem with our instrument, we will help you to solve it by sending pictures, videos or free spare parts until things get fixed. Out of guarantee, we will also help you solve the problem,but not including send free spare parts to your country.
Q: Can you do OEM?
A: Yes, we can do OEM/ODM as you required.
Q: Can you offer the technical support, online or site training or other
A: We will offer technical support like operating manual, operating videos to support or provided training material of the detailed products you are interested in. If you have chance to come to Guangzhou, welcome to our office, we have samples here, and we can show you how to operate them.
