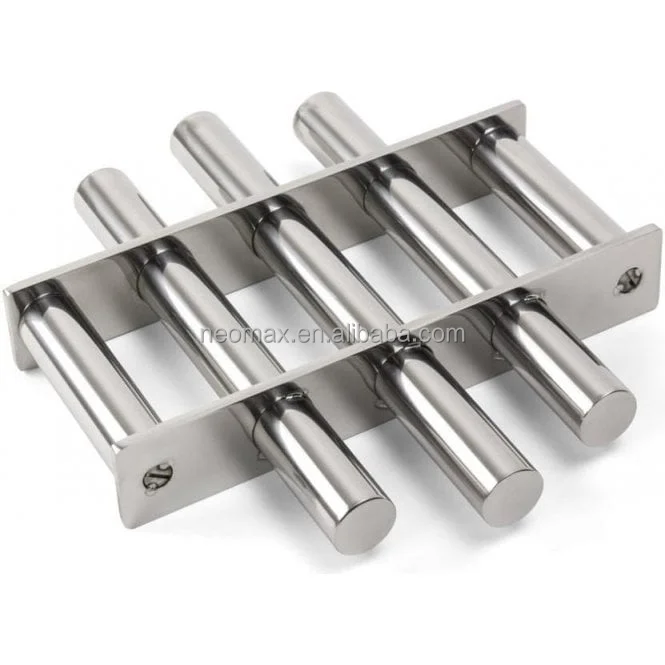

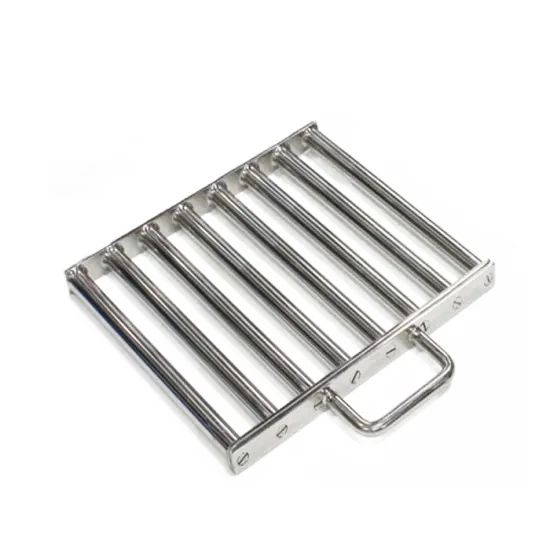

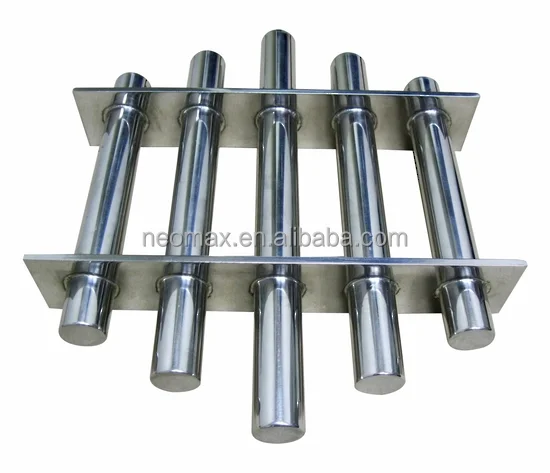

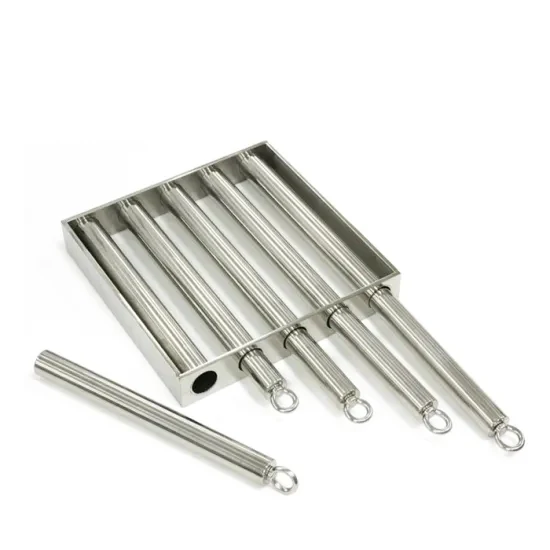

Customized 1000 Gauss 12000 Gauss Magnetic Grates Filters Strong Neodymium Magnetic Rod
- Category: >>>
- Supplier: Ningbo Newland Magnet Industry Corporation Limited
Share on (1600533939614):
Product Overview
Description
Product Description
Qualified 12000gauss Permanent Strong Neodymium Magnetic Rod/Magnetic Filter
Name | Magnetic Bar/Magnetic Rod/Magnetic Filter |
Material | Neodymium Magnets, SUS304/SUS316, Metallic Gasket, etc. |
Packaging | Air Packing, Sea Packing, Express Packing, etc. |
Size | See table below |
Application | Food, Lithium Battery, Mining Industry, Salvage of Waste Material, etc. |
DETAILED:
* Magnetic grates are constructed by a row of magnetic bars which are fixed by frames in various shape. It can be square, rectangle, round, oval, triangle, rhombus or irregular polygon, to suit for different position. Center distance of bars is usually 2 inches.
* Magnetic grates are designed for product purity of free flowing materials such as carbon black, drugs, chemicals, cosmetics, plastics, food industries and so on. These units are easily installed in any hopper or floor opening, chute or duct.
* It makes product stream free flowing products to come in directly contact with the grate. When anything containing iron substances passes through the framework, Iron particles are attracted to the bar magnets by magnetic fields.
* By this solution, your equipment and facilities will be protected, while your products will be safe for consumption.
* It makes product stream free flowing products to come in directly contact with the grate. When anything containing iron substances passes through the framework, Iron particles are attracted to the bar magnets by magnetic fields.
* By this solution, your equipment and facilities will be protected, while your products will be safe for consumption.
Other models can be customized according to your needs
333

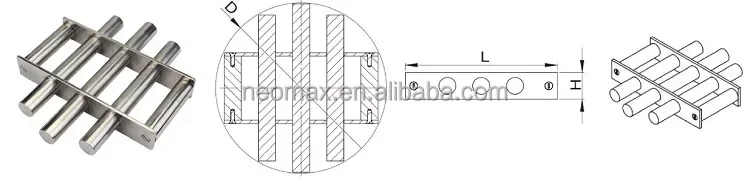

Model | Diameter (mm) | Length (mm) | Height (mm) | Quantity of Magnetic Rod | Weight (kg) |
NEW150 | 150 | 125 | 40 | 3 | 1.5 |
NEW200 | 200 | 175 | 40 | 4 | 2.6 |
NEW250 | 250 | 225 | 40 | 5 | 4 |
NEW300 | 300 | 275 | 40 | 6 | 5.7 |
NEW350 | 350 | 325 | 40 | 7 | 7.8 |
NEW400 | 400 | 375 | 40 | 8 | 9.9 |
NEW450 | 450 | 425 | 40 | 9 | 12.2 |
NEW500 | 500 | 475 | 40 | 10 | 14.9 |
NEW550 | 550 | 525 | 40 | 11 | 19.5 |
NEW600 | 600 | 575 | 40 | 12 | 23.2 |
Other models can be customized according to your needs
Model | Length (mm) | Width (mm) | Height (mm) | Quantity of Magnetic Rod | Weight (kg) |
NEW150 | 150 | 150 | 40 | 3 | 2.5 |
NEW200 | 200 | 200 | 40 | 4 | 4.1 |
NEW250 | 250 | 250 | 40 | 5 | 6.1 |
NEW300 | 300 | 300 | 40 | 6 | 8.4 |
NEW350 | 350 | 350 | 40 | 7 | 11.1 |
NEW400 | 400 | 400 | 40 | 8 | 14.3 |
NEW450 | 450 | 450 | 40 | 9 | 17.8 |
NEW500 | 500 | 500 | 40 | 10 | 21.6 |
NEW550 | 550 | 550 | 40 | 11 | 25.9 |
NEW600 | 600 | 600 | 40 | 12 | 30.5 |
