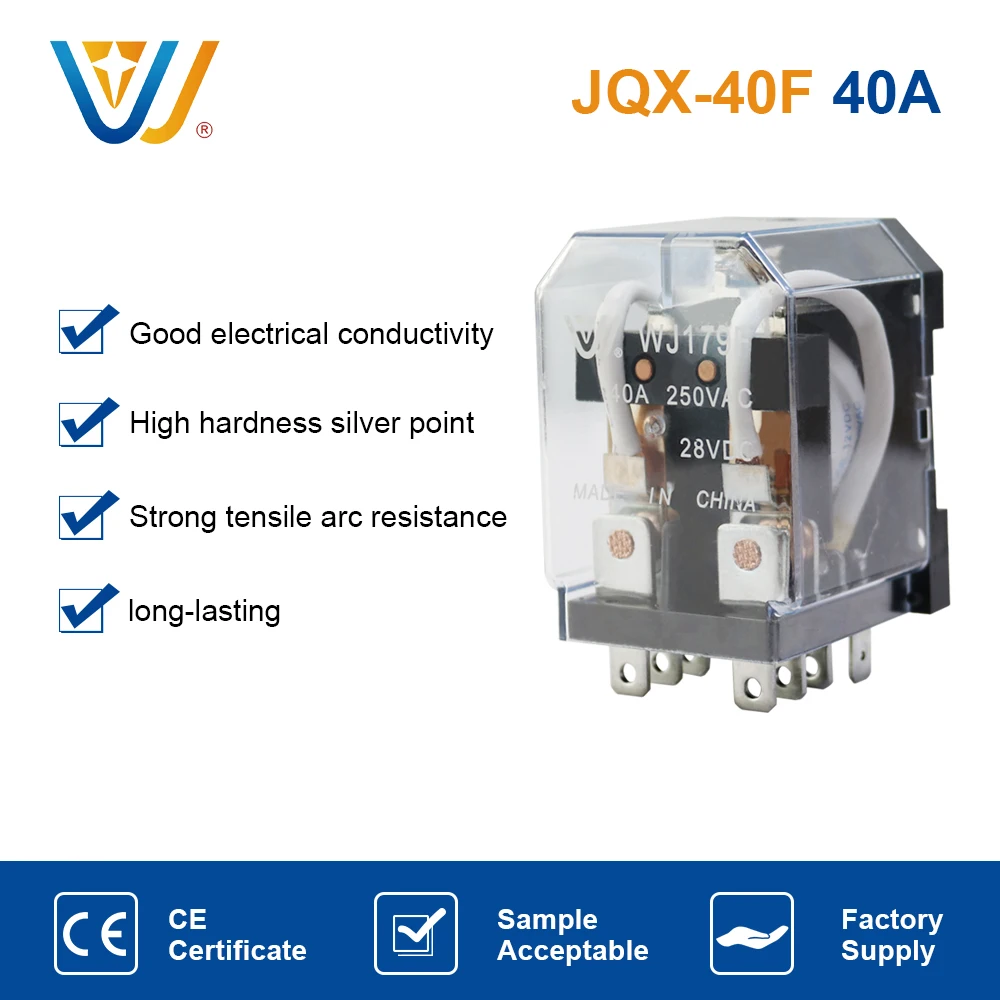

Coil power relay 220V AC jqx-40f Miniature Relay DPDT DPST Pin PCB power rele 40A 240VAC relais 12v 24v With Socket Base
Coil power relay 220V AC jqx-40f Miniature Relay DPDT DPST Pin PCB power rele 40A 240VAC relais 12v 24v With Socket Base
Coil power relay 220V AC jqx-40f Miniature Relay DPDT DPST Pin PCB power rele 40A 240VAC relais 12v 24v With Socket Base
Coil power relay 220V AC jqx-40f Miniature Relay DPDT DPST Pin PCB power rele 40A 240VAC relais 12v 24v With Socket Base
Coil power relay 220V AC jqx-40f Miniature Relay DPDT DPST Pin PCB power rele 40A 240VAC relais 12v 24v With Socket Base
Coil power relay 220V AC jqx-40f Miniature Relay DPDT DPST Pin PCB power rele 40A 240VAC relais 12v 24v With Socket Base

Coil power relay 220V AC jqx-40f Miniature Relay DPDT DPST Pin PCB power rele 40A 240VAC relais 12v 24v With Socket Base

Share on:


Price:$4.87
Price in USD:Details

Quantity:


Product Overview

Description









Main Parameters
Contact Arrangement
2A、2B、2C
Contact Material
AgSnO2
Contact Resistance
Max.50mΩ

Rated Load
40A 250VAC
40A 28VDC
Max. Switching Voltage
28VDC/250VAC
Max. Switching Current
40A
Max. Switching Power
1120W/10000VA
Electrical Life
2×104
Mechanical Life
1×106

Coil Power Consumption
DC
2.6W
AC
5.5VA

Coil Voltage
DC
6～220VDC
AC
6～220VAC


Other Parameters
Pick-up Time
Max.25ms
Release Time
Max.25ms

Dielectric Strength
Coil Contacts
2500VAC,(50/60Hz),1 min.
Open Contacts
2000VAC,(50/60Hz),1 min.
Insulation Resistance
Min. 1000MΩ (500 VDC)
Environment Temperature
-40℃～+55℃
Operation Humidity
45%~85% RH

Shock Resistance
Functional
Min. 10G
Destructive
Min. 100G

Anti-vibration
Functional
1.5mm（DA）10~55 Hz
Destructive
1.5mm（DA）10~55 Hz
Weight
≤180g
