0.22 um Asymmetric Hydrophilic PES 2.5' Capsule Filter for Biotech and Tissue Culture
- Category: >>>
- Supplier: Hangzhou Dute Filter Co. Ltd.
Share on (1600533990209):
Product Overview
Description
With multi patent,our filter can perfectly comply with all applications.
If required, please contact Customer Service for more information(Micron rating / customized connections / shipping address).Then we check best shipping rate and provide better service.
Product Description
PES Capsule Filters
PES disposable capsule filters are absolute-rated, polyethersulfone membrane filters designed to provide greater bacteria and particle removal at high flow rates and extremely low pressure drops. Capsules contain an asymmetric polyethersulfone membrane which offers the greatest assurance of filtration performance, stability and service life for controlling contaminants in demanding environments. The highly porous polyethersulfone membrane is permanently hydrophilic, has exceptional flow rates, and provides excellent compatibility and extremely low extractables in a wide range of fluids and applications.
Specification
Product Name | PES Capsule Filter |
Brand Name | Dute |
Material | PES |
Hardware | Polypropylene |
Dimension | 68mm |
Length | 5″ |
Micron Ratings | 0.1/0.2/0.45/0.65/1μm |
Selection Table
Material of Construction | Filter Membrane | PP PES PTFE PVDF N66 GF |
Housing | PP | |
Inner Support | PP | |
Dimension | Length | 1.5″ / 2.5″ / 5″ / 10″ / Other |
Diameter | 60mm / 68mm / 85mm / other | |
Micron Ratings | PP | 0.1/0.22/0.45/1/3/5/10/20/30/50μm |
PES | 0.1/0.2/0.45/0.65/1μm | |
PTFE | 0.1/0.2/0.45/1/3/5μm | |
PVDF | 0.1/0.2/0.45/1/3μm | |
Nylon | 0.1/0.2/0.45/0.65/1/3μm | |
GF | 0.1/0.2/0.45/1/3/5/10/15/20μm | |

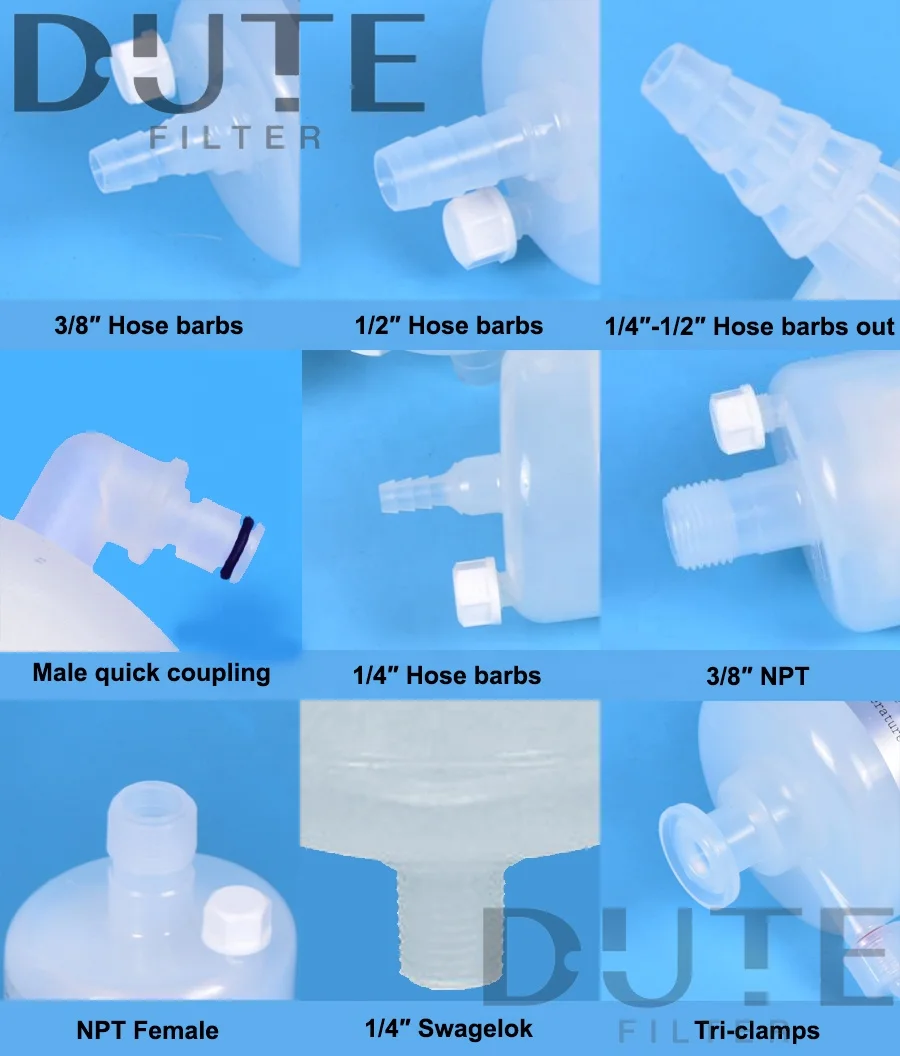

Connections(Inlet/Outlet) | 1/8″，1/4″，3/8″，1/2″ Swagelok | 1/8″，1/4″，3/8″，1/2″ Hose barbs |
1/4″，3/8″，1/2″ NPT Male | 3/8″ NPT Female | |
1/8″，1/4″，Male quick coupling | 1/8″，1/4″，1/2″ Tri-clamps | |
Operation Condition | Normal Working Temperature | ≤60℃ |
Max. Working Temperature | 85℃, Differential Pressure≤0.10Mpa |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
1.OEM service available ?
Yes, OEM service is available, but the DUTE brand price better than OEM
2.Payment Term
We can accept L/C, T/T, Western Union, MoneyGram, Paypal
3.Shipping :
If your order is not big enough , Door to Door Service is the best choice via UPS,FEDEX,DHL,EMS.
For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.
For big quantity, by air or by sea through your forwarder is one Normal Way , we also can provide cost-effective forwarder for your reference.
4.Sample:
1) For our first cooperation, buyer afford the sample fee and shipping cost, and the cost will be refund when made formal order.
2) For our old customer, we will send free sample , even though new designs sample, when have stocks.
3) Sample delivery date is within 3-7days, if have stocks; Customer design is about 5-10days
5. Lead time:
The normal lead time for capsule filter is 5-10days, which depends on your quantity.
