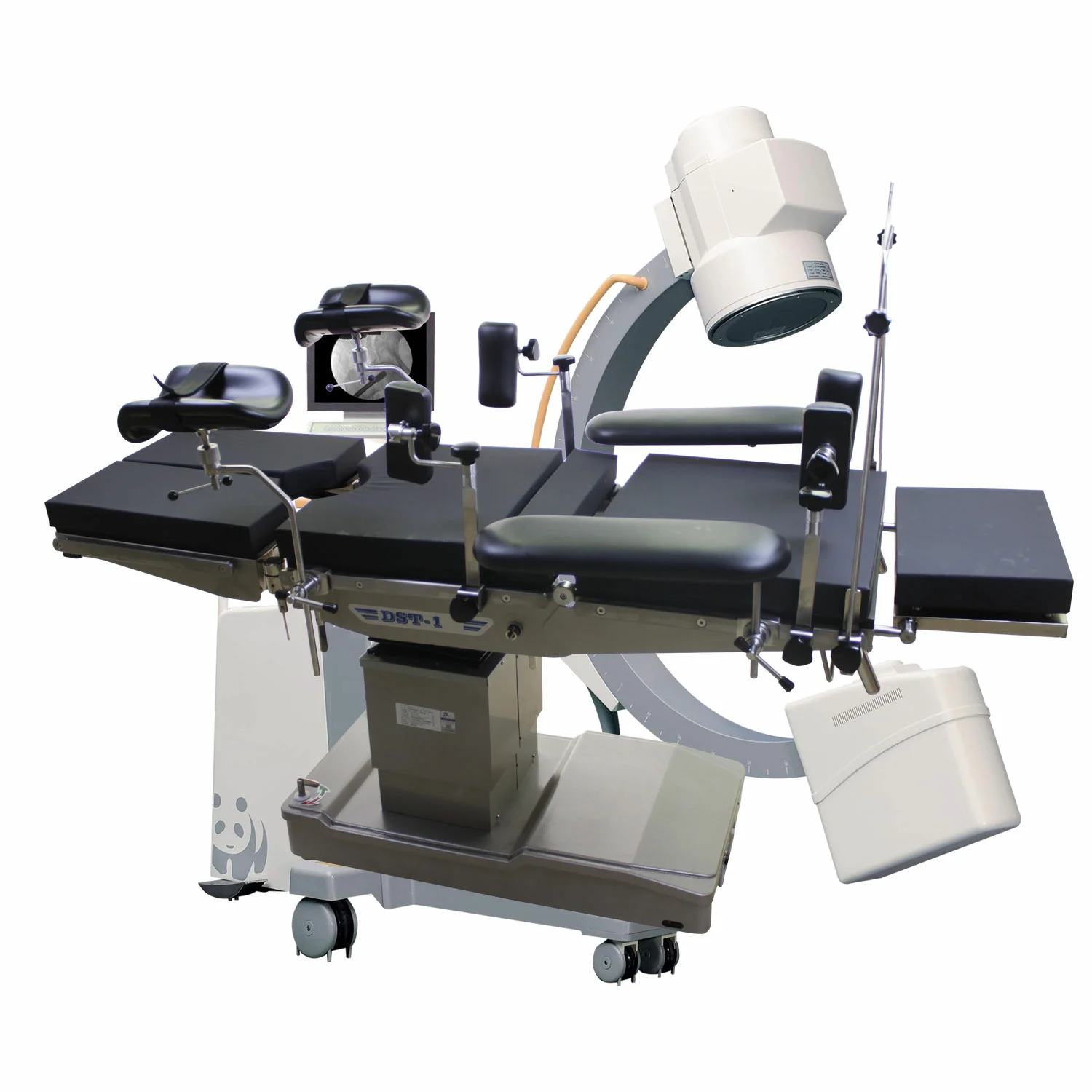

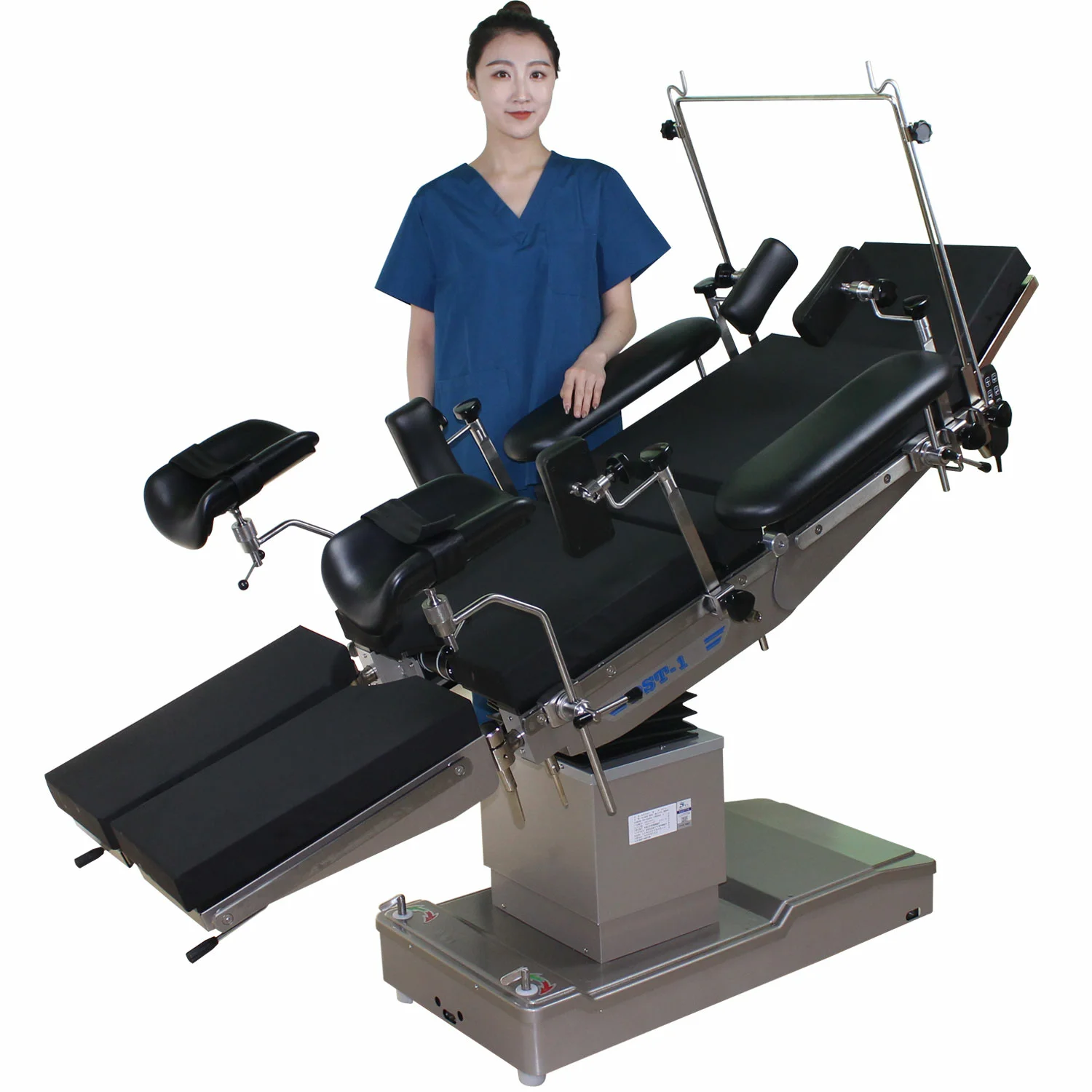

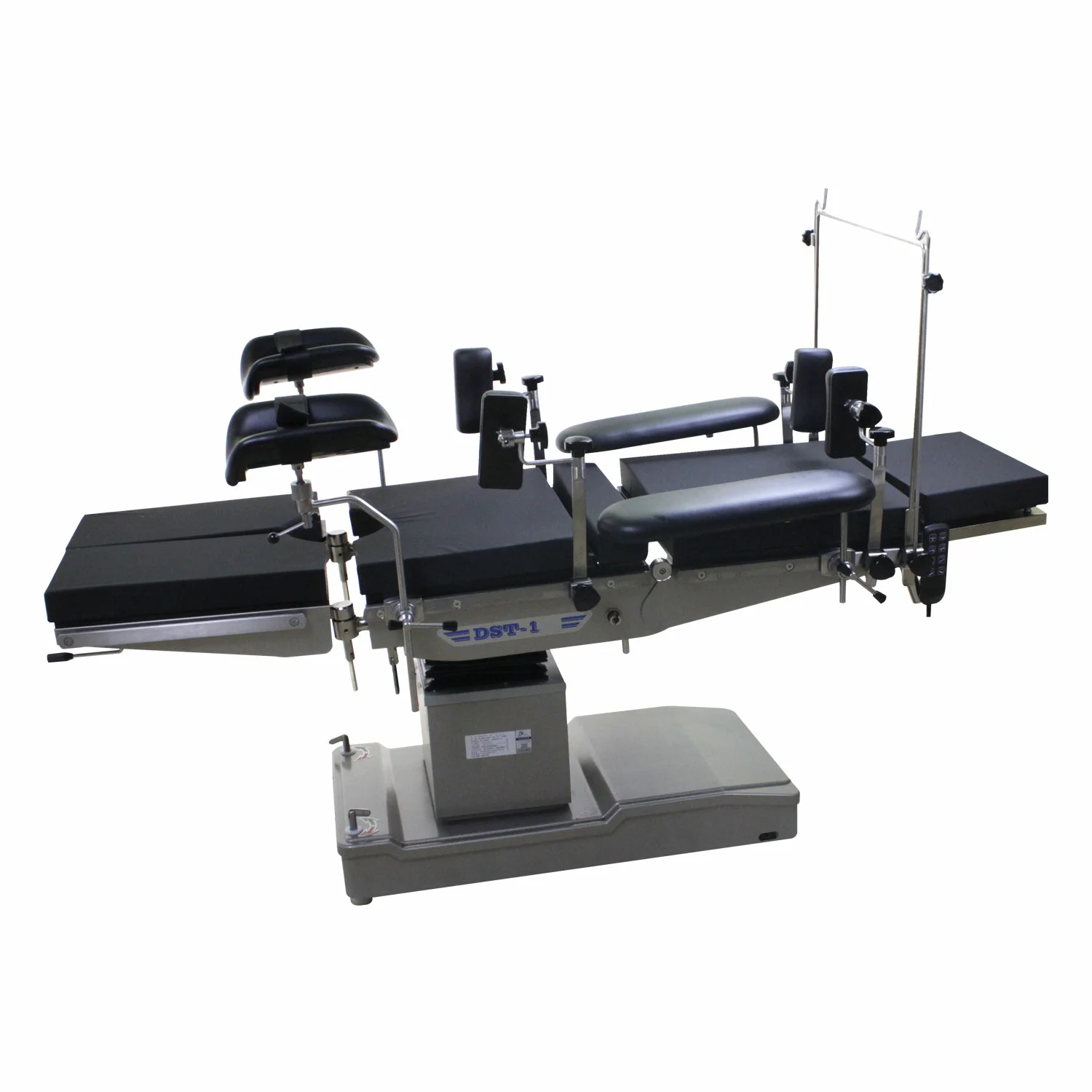

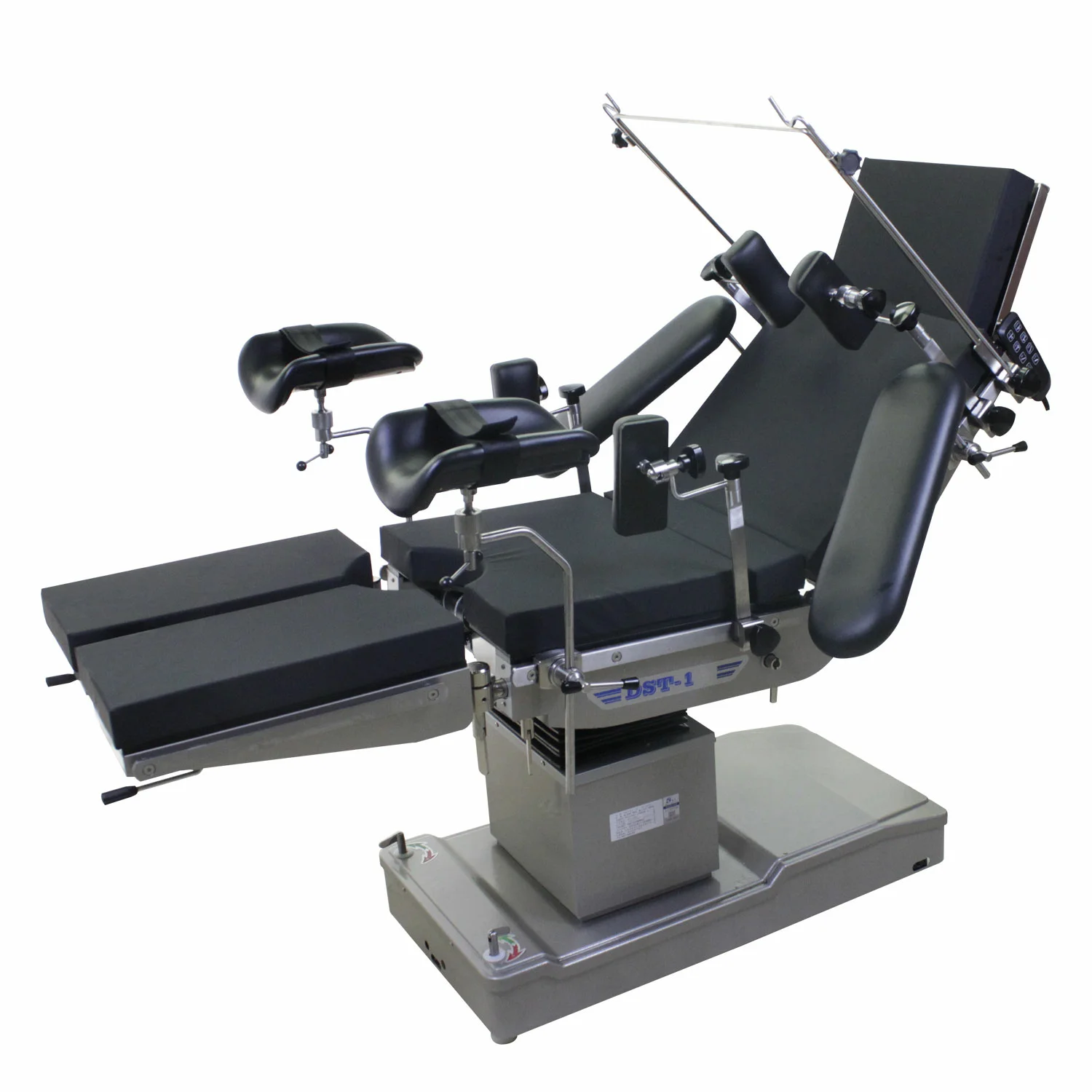

Hot sale Good Quality surgical table operating theater bed surgical operating table radiolucent operating table for C arm

Share on (1600533991122):


Price:

Quantity:


Product Overview

Description

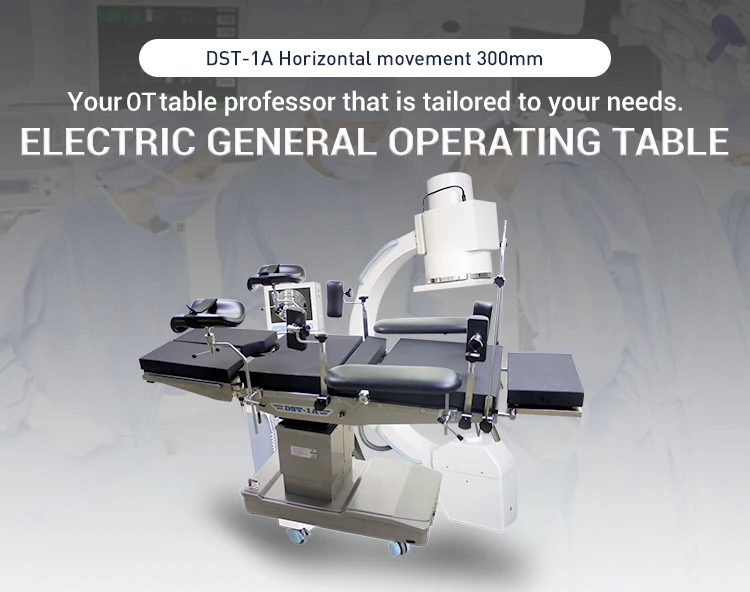

.jpg












Product Description




Introduction


1.DST 1A is electric motorized, which is stable and 0 noise.


2.300mm horizontal movement.It is match up to C-arm and X ray


 imaging of full body without moving the patient.


3.304 stainless steel for the cover of ABS base. 125mm castors can be manually locked.


4.High density memory mattress.


5.Function: low position, high position, horizontal movement, kidney bridge elevation, lateral tilt left and right, trendelenburg, reverse-trendelenburg, anorectum operation, urology operation, E.N.T. position.


6.optional: battery back up, neurosurgery head skull frame, waste basin, orthopedic traction frame, knee crutches, spine shelf.


.jpg












































































Bed Panel Size



1950 x 500mm



Bed height from the ground (without pads)



Min height: 650 mm
Max height: 920mm



Lifting route (electric)



270mm



Horizontal route (electric)



300mm

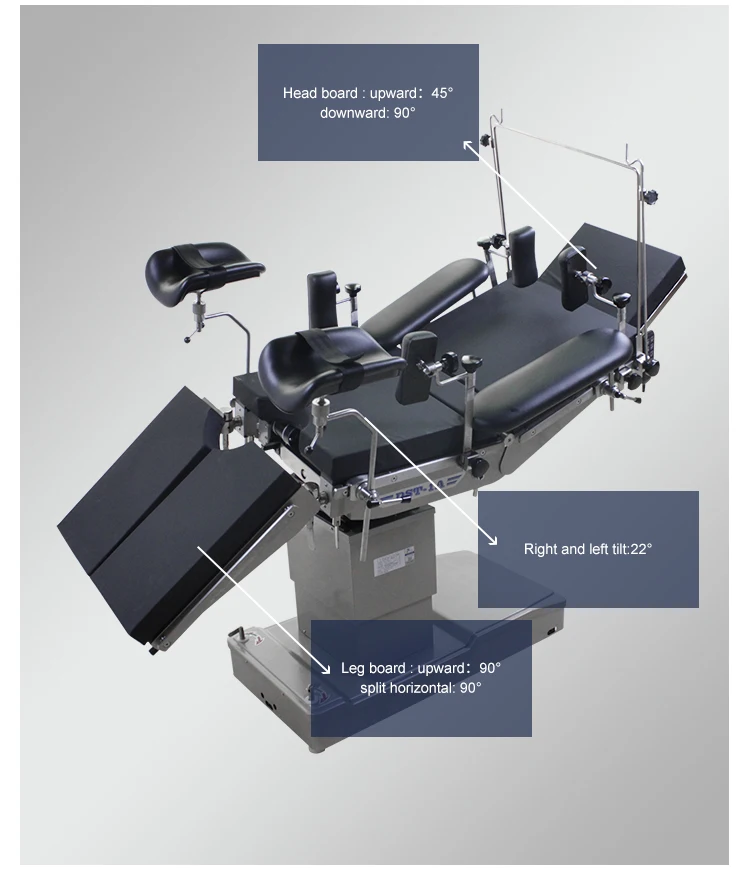

head board (disassemble)



Upward:45°



Downward:90°



Lateral tilt (electric)



Left: 22°



Right: 22°

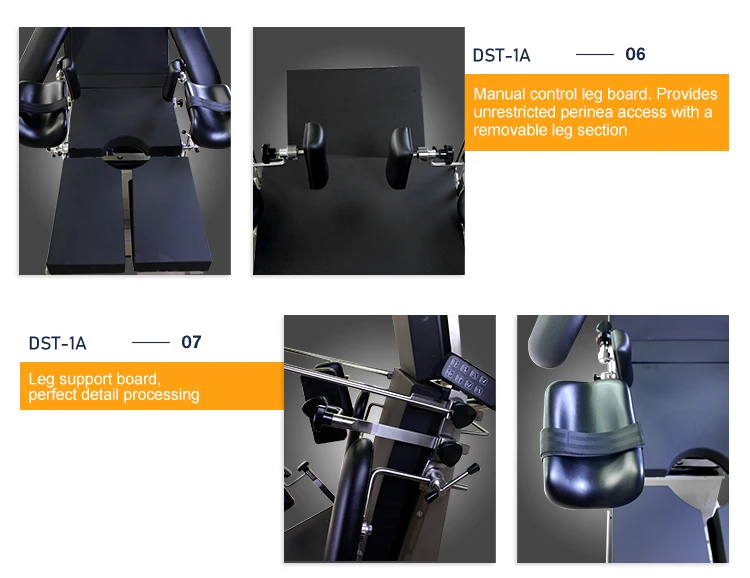

leg plate fold (manual)



downward: 90 °



Horizontal: 30 °

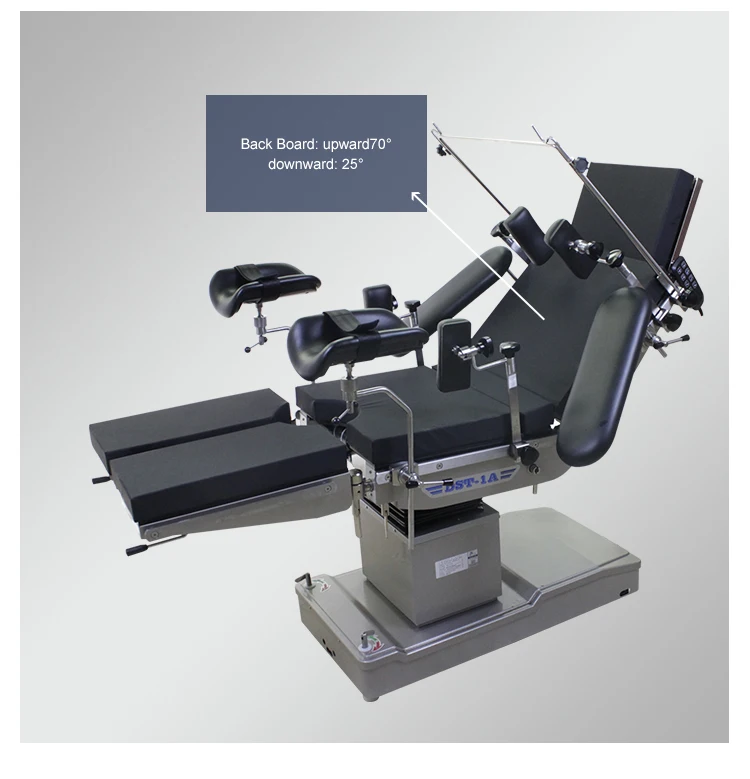

Back board



upward: 70°



Downward: 20°



Trendelenburg



trendelenburg: 20 °



Reverse-trendelenburg: 20 °



External kidney bridge lifting route(manual)



120±10mm



Net weight/ capacity weight



220kg/ 290kg



Table locking



Manual and Electric



Power supply



220V 50Hz

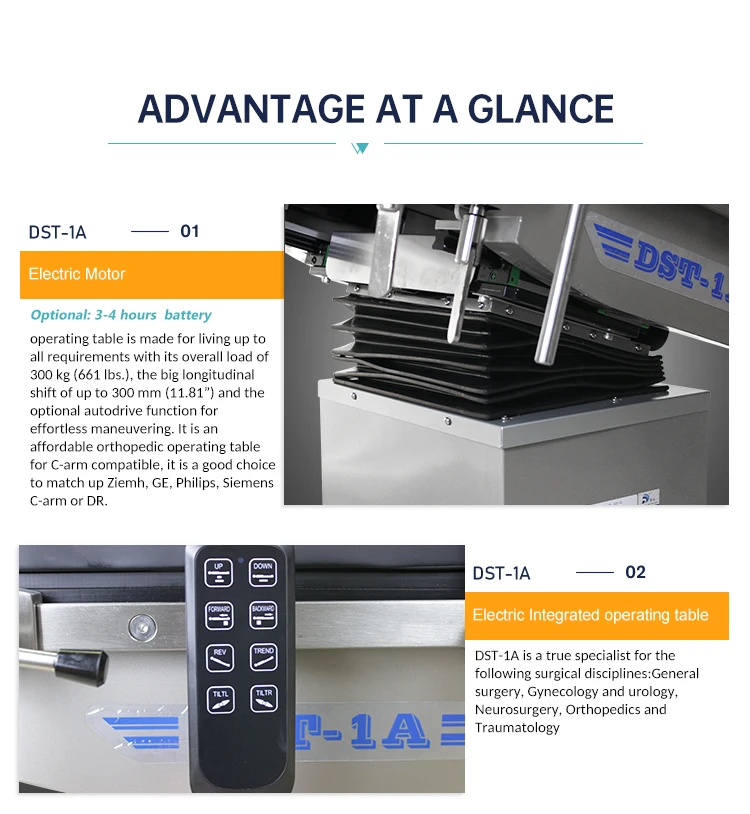

Advantage at a glanc

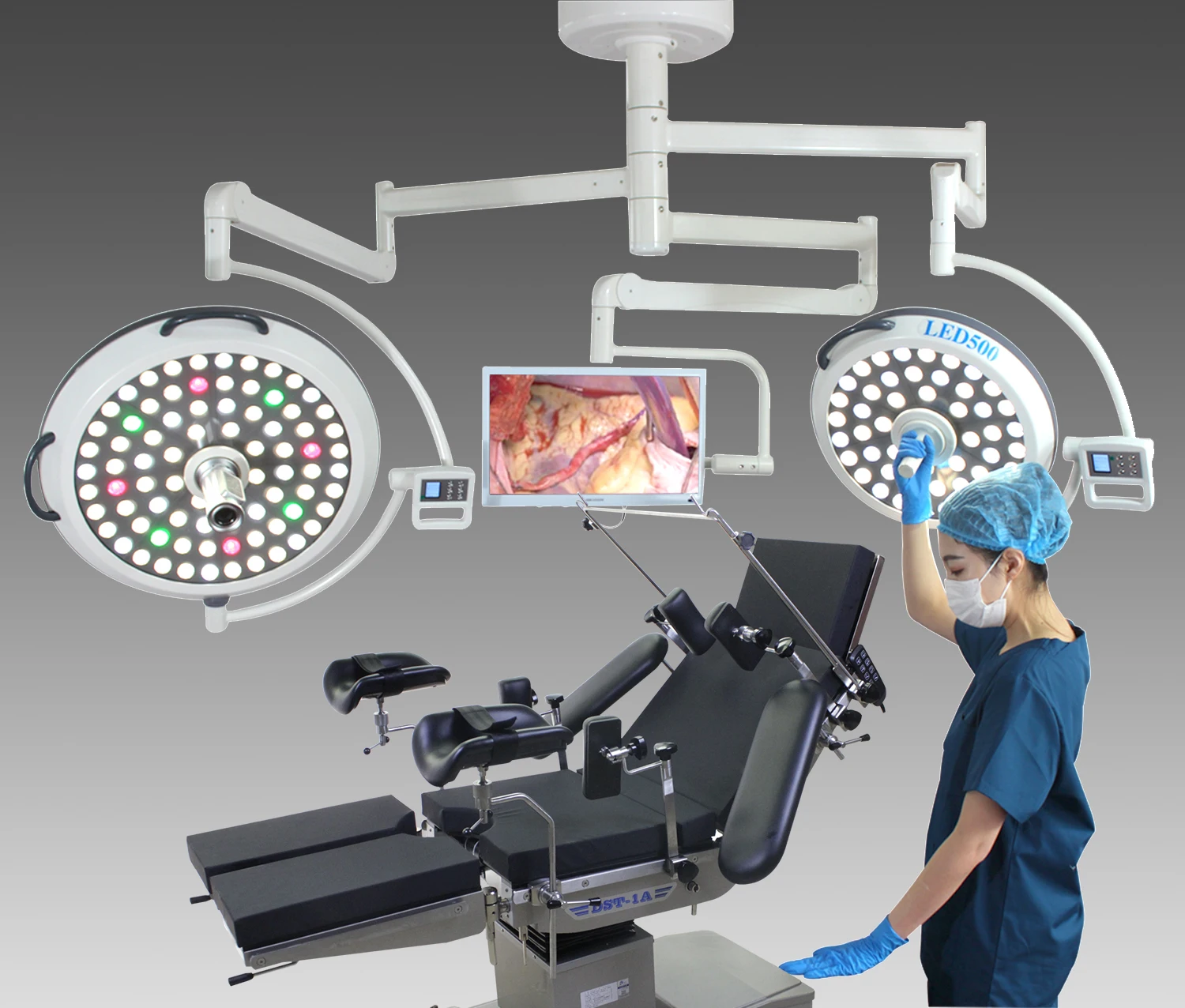

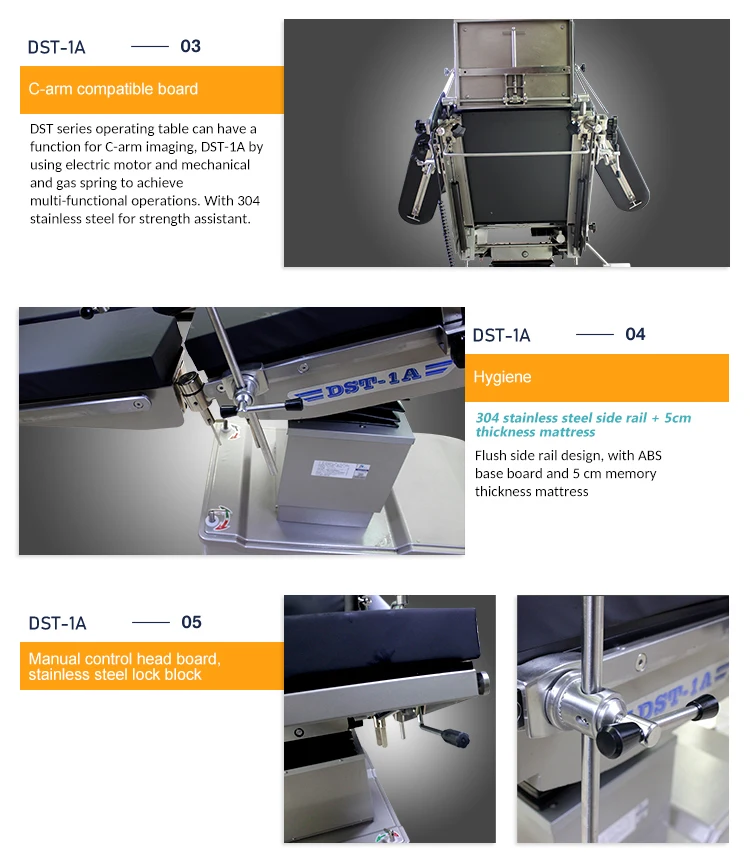

4-4_01.jpg4-4_02_01.jpg4-4_02_02.jpg4-4_03.jpg4-4_04.jpg12.jpg 22.jpg
