Factory Direct Sale Reliable Quality Hzs50 Concrete Mixing Plant With Small Mortar Mixer
- Category: >>>
- Supplier: Qingdao Dex Machinery Co. Ltd.
Share on (1600534000982):
Product Overview
Description
MPC Series Counter-Current Planetary Mixer
Features
Based on the MP planetary mixer, we developed MPC series mixer with new concept of counter-current planetary mixing.
1. Excellent mixing performance
2. High mixing efficiency, low energy consumption
3. Multiple rotated speed configuration
4. Optimized mixing device design
5. Improved cover design
6. Great new-designed discharge door (Option)
7. Comprehensive consideration of handling safety
8. Unique gearing system
8. We can offer customerized mixer for special requirements or applications
Options:
· Hydraulic coupling (Italy)
· Moisture Probe (Germany)
· High Pressure Washout System (Italy)
Specifications
Item | MPC | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 |
Filling Volume | L | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 |
Feeding Capacity | Kg | 120 | 240 | 360 | 600 | 790 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 |
Compacted Concrete | L | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 |
Mixing Power | Kw | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 |
Mixing Star*Mixing Blades | Qty | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 1*3 | 1*3 | 2*3 | 2*3 | 2*3 | 3*3 | 3*3 | 3*3 |
Side Scraper/Discharge Scraper | Qty | 1/- | 1/- | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/2 | 1/2 | 1/2 |
Discharging Power | Kw | Pneumatic Discharging
| 2.2 | 2.2 | 2.2 | 3 | 3 | 3 | 4 | 4 | 4 | |||
Diameter | mm | 750 | 1000 | 1300 | 1300 | 1600 | 1900 | 2200 | 2500 | 2500 | 2800 | 3400 | 3400 | 3400 |
Weight | Kg | 500 | 850 | 1300 | 1500 | 2200 | 2500 | 3500 | 5500 | 6000 | 6500 | 8500 | 10500 | 11000 |
Remark: Technical data may change due to technical progress. Subject to modification without notice.
Excellent mixing performance
The rotated direction of mixing stars is reversed with the revolution direction, and each mixing star's direction is also different. The circulation movement and convective movement make the material severely mixing. The counter-current and impact can avoid material agglomeration and make the material thoroughly mixing and achieve the uniform distribution in microcosm.
High mixing efficiency, low energy consumption
New designed power and gearing system has higher transmission efficiency. Optimized mixing device desigh gives better mixing result. The no-load current and load current with same material can be 15-20% lower than the tranditional planetary mixer.
Optimized mixing device design
The optimized designed shape, size and installation angle of the mixing blade and the improvement of mixing arms' structure make high-efficient mixing, reasonable load distribution of gearing system and fast and thorough discharging.
Improved cover desigh
Large upper port in the cover can help gearbox out directly, no need to disassemble any feeding device, which can also sharply improve the maintenance space.
The huge maintenance gate is convenient for worker's access and wearing parts replacement.
The improved cover sealing structure can improve the dust prevention.
Comprehensive consideration of handling safety
The key-operated emergency stop in the junction box can stop the mixer immediately in case of emergency. Take off the key in maintenance to ensure the safety.
The observe port on the maintenance gate can help to observe the mixing condition during mixer running. The high-reliable and high-sensitive safety switch equipped on the maintenance gate, guarantees the motor can not be powered with gate open.
Unique gearing system
The new and compact designed gearbox is more sturdy and durable. The gearbox volume is 30% smaller than MP planetary mixer, which can provide more maintenance space in the trough.
Improved shaft sealing device and electric greasing pump can increase the gearbox's service life and reduce the routine maintenance.

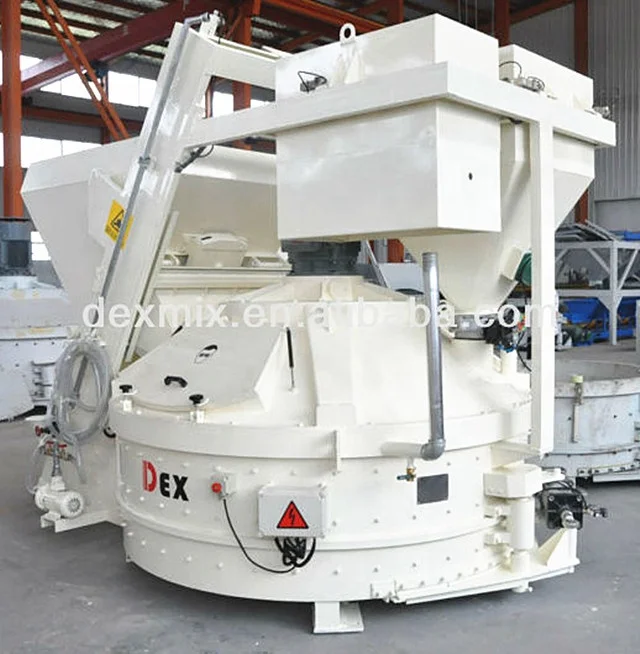

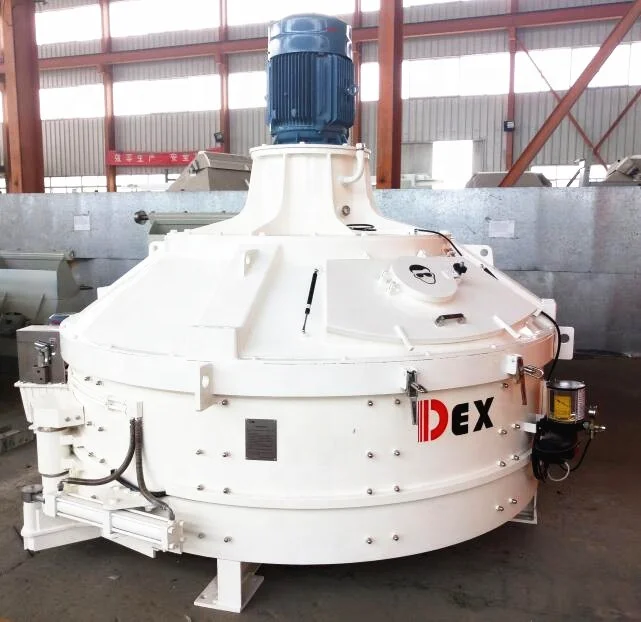

Product Photos
Job Site

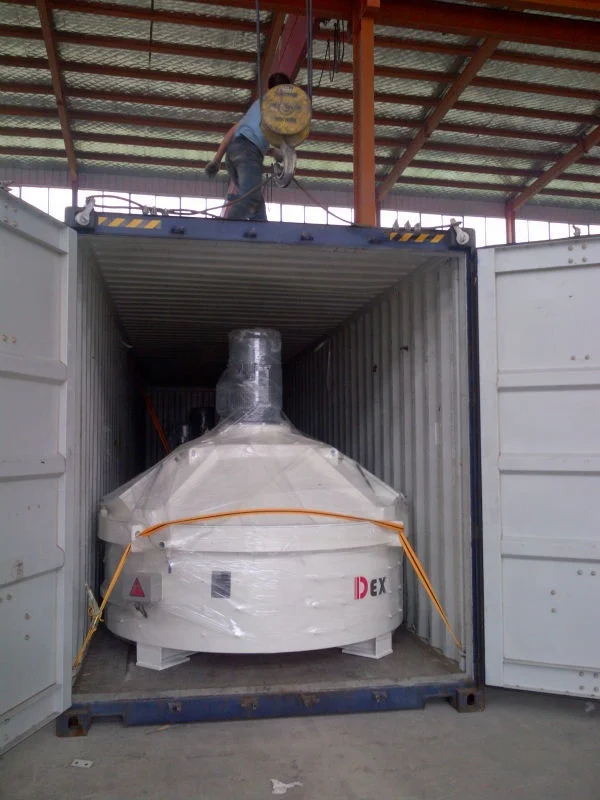

Packing and Shipping
Application
About Us
Qingdao DEX Machinery Co., Ltd is a professional manufacturer in design and research, manufacturing, sales and service on mixing equipment. We owned many national patents and registered trademarks.
In the manufacture process, we adopt integrated quality control, and have passed ISO9001 international authentication. We adopt world-famous brand for the key electronic elements, pneumatic and hydraulic systems to ensure high quality and reliable of the mixing equipment. Now, DEX has developed a complete range of mixing equipments with independent intellectual property to meet different customers' requirement.
Our equipments are widely used in various fields of China and also exported to more than 30 countries in Southeast Asia, Europe, South America, Africa and Middle East.
Factory Show
Certification

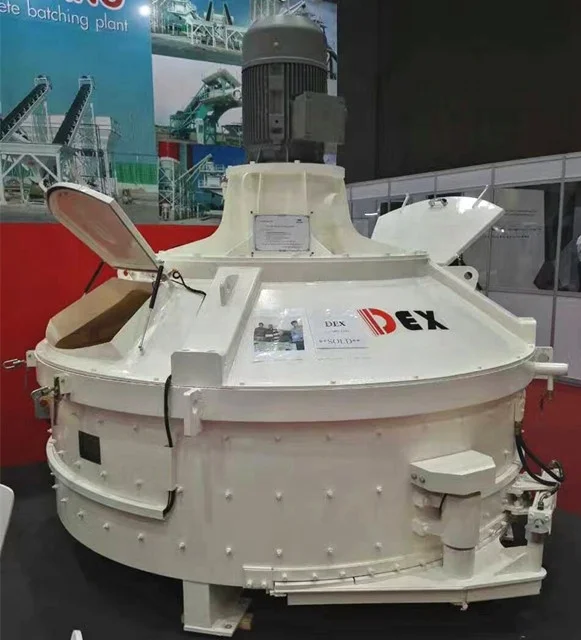

Exhibition
Why choose us
*We are factory, not trading company.
Which means we can control the producing better and communicate with our clients in time.
*We always keeping growing, and have the top technology in our field.
Dex is the first company to adopt counter-current technics.
*We have a big excellent team to service you.
Top design team, sales team, producing team, shipping team and after-sales team.
*Can supply special design for different requirements.
For example, some clients don't have enough space for all machines, we can make a special design and supply a best solution.
*We confirm the drawing with our clients before producing.
Which make sure all details are correct.
