Customers Customized Downdraft Automotive Car Spray Booth for Vehicles With CE
- Category: >>>
- Supplier: Qingdao Hua Yushun Commercial Co. Ltd.
Share on (1600534002219):
Product Overview
Description
Product Description
We have a strong R&D team to ensure the quality and accuracy of products. Outline the most spiritual space with minimalist lines. Our simple and durable design concept and exquisite workmanship will not only be products, but also bring you aesthetic artistic enjoyment.
Captain have gained trust and favor from clients by means of their superior quality, prompt delivery time and considerate best quality service.
Details
Want to read more? Contact us.
Specification

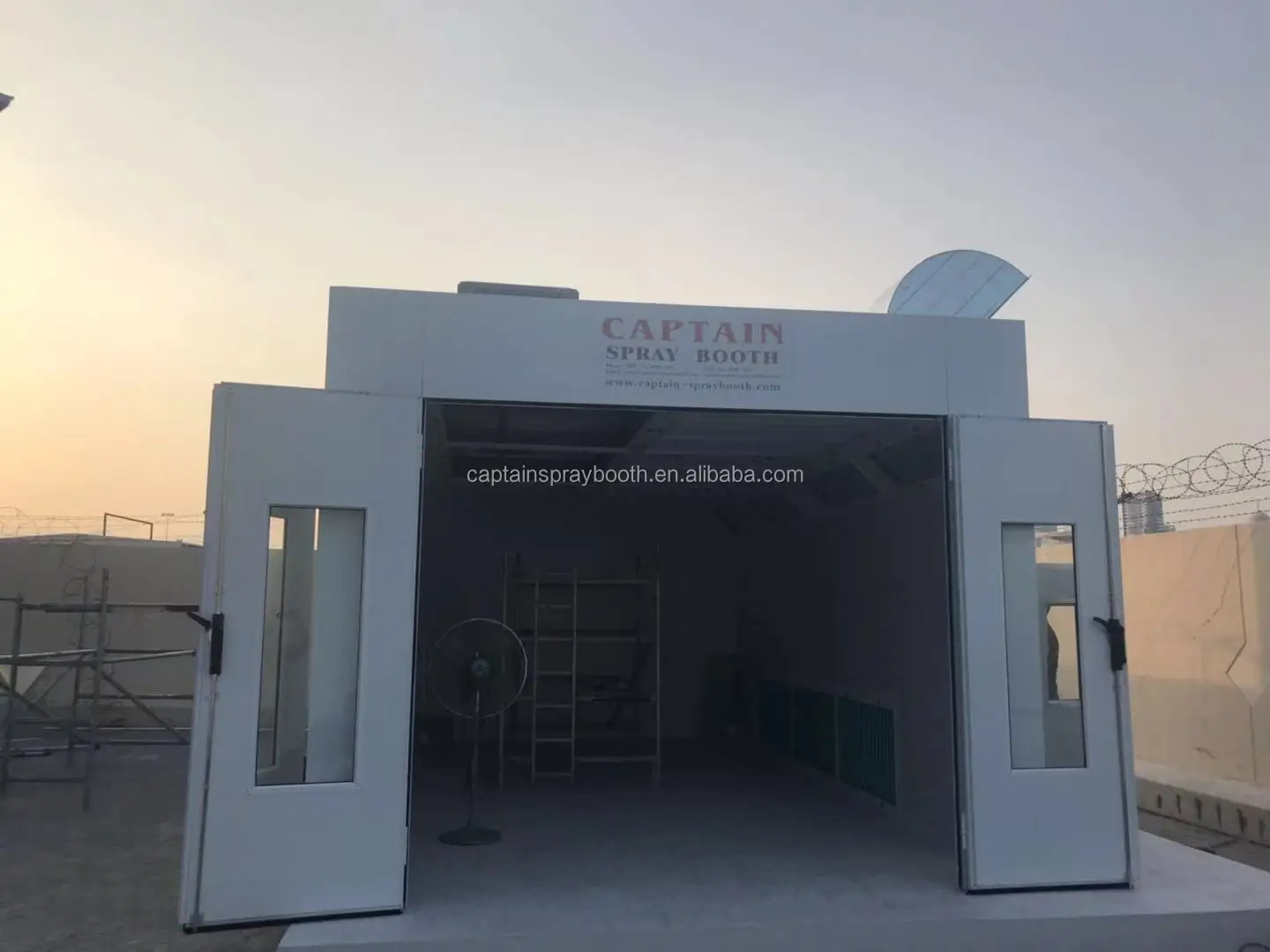

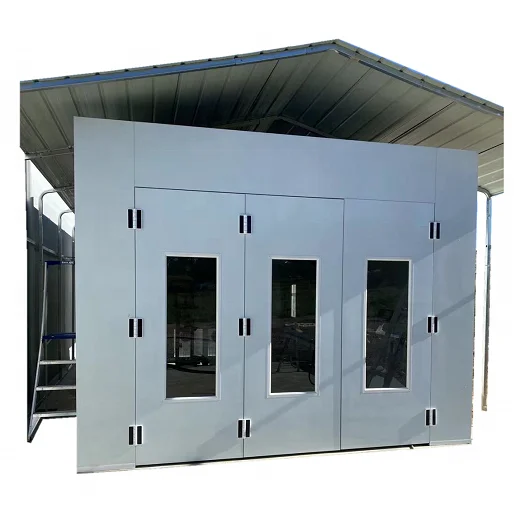

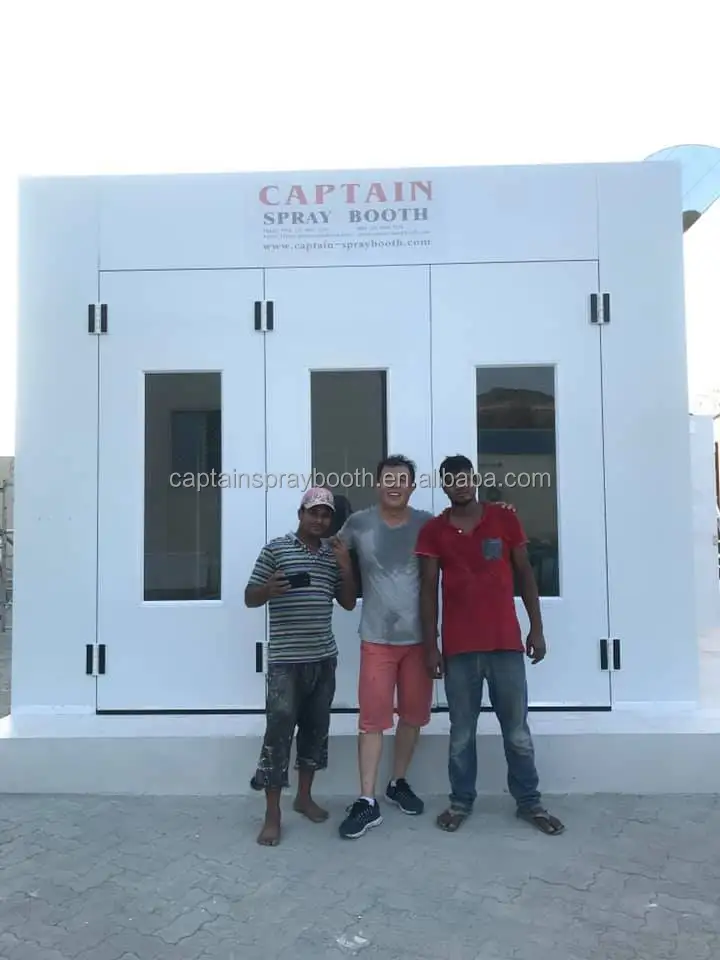

Cabin System | Front Door | Size: 3000×2600 mm(W×H), 3 folds Material: double sides 0.5mm galvanized color steel, without aluminum frame, pressed sheet metal inside to stengthen. 5mm tempered glass for watching window color: white, blue, red, orange |
Service Door | Size: 700×2000mm(W×H), 1 fold Material: same as wall panel, 50mm thick EPS sandwich panel, density is 14kgs/m², flame retardant Mountings: with 2 sets pressure lock, 2pcs handles, 5mm tempered glass for watching window | |
Wall Panel | Material: 50mm thick EPS for insulation, density is 14kgs/m², 950 or 1150mm wide. It is with double sides 0.4mm thick color steels, tongue and groove interlock structure. Advantages: High strength, flame retardant, easy installation | |
Basement System | Basement | The landing leg is welded by 80x40mm galvanized square tube, 1.5mm thick. 8pcs in lengthways and 2pcs in lateral. The coaming is made of galvanized steel, 1.5mm thick, inner strengthen. The grills are made of 30x4mm flat bar with painting and 2.5mm thick diamond plate. The whole basement is totally 300mm high, standard equipped with 2 rows of grilles and 3 rows of diamond plate. |
Ramp | If your space is limited to have the outside ramp, then inner ramp is a good choice. It is same using as outer ramp, you will not feel space smaller. | |
Ventilation System | Air Intake | 2sets 4kw centrifugal fan for air intaking, air capacity is 25000 m³/h; The frame is soldered by 50mmx50mm square tube and wrapped by galvanized steel with powder coating. It is in diamond shape, stronger and less noise. |
Air Exhaust | 1set 5.5kw centrifugal fan for exhausting, air capacity is 20000 m³/h; The frame is soldered by 50mmx50mm square tube and wrapped by galvanized steel with powder coating. It is in diamond shape, stronger and less noise. Standard air duct is 3m. $50/m for extra. | |

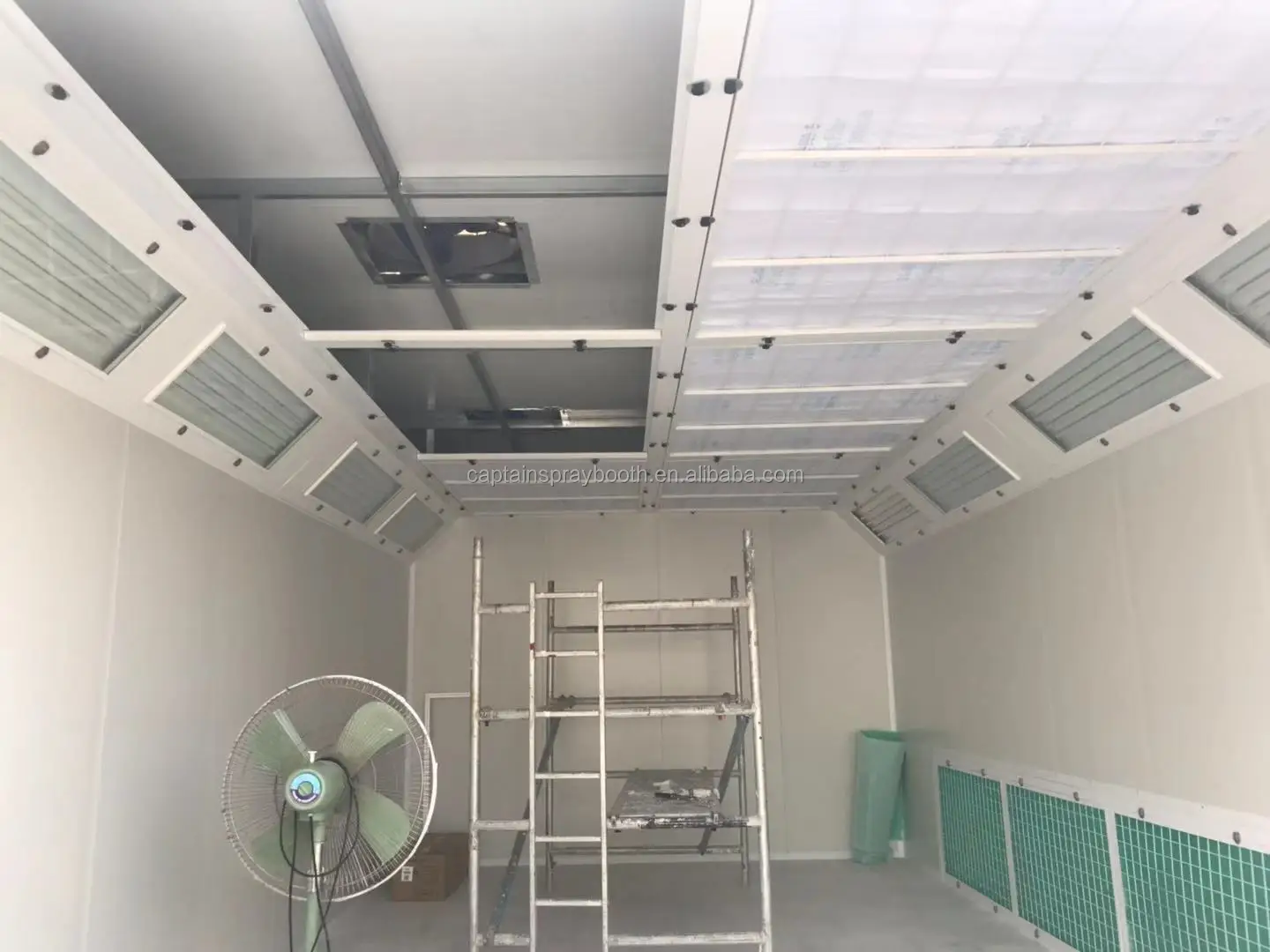

Lighting System | Ceiling Lights | Ceiling Lights: 8units×4pcs=32pcs×16W LED lights. illumination≥800Lux. Side lights are as option. |
Heating System | Diesel Burner | Italy Riello G20 diesel burner, 200000Kcal/h. max temperature: 80℃. The burner need the diesel as resource to heat air and then the hot air go throught heat exchanger to the room. Gas burner is also availabe, need $500 extra. |
Heat Exchanger | Material: 2.0mm thick #201 stainless steel Manufactured by argon arc welding with good sealing and work effect. | |
Purification System | Pre-filter Cotton | Pre-filter: installed on the air inlet to prevent large dust particles larger than 10µm and other impurities; Recommended time for changing: 60-80 working hours |
Ceiling Filter Cotton | Ceiling filter: installed on the ceiling frame to prevent much smaller dust, make sure the air is clean. Recommended time for changing: 400-450 working hours | |

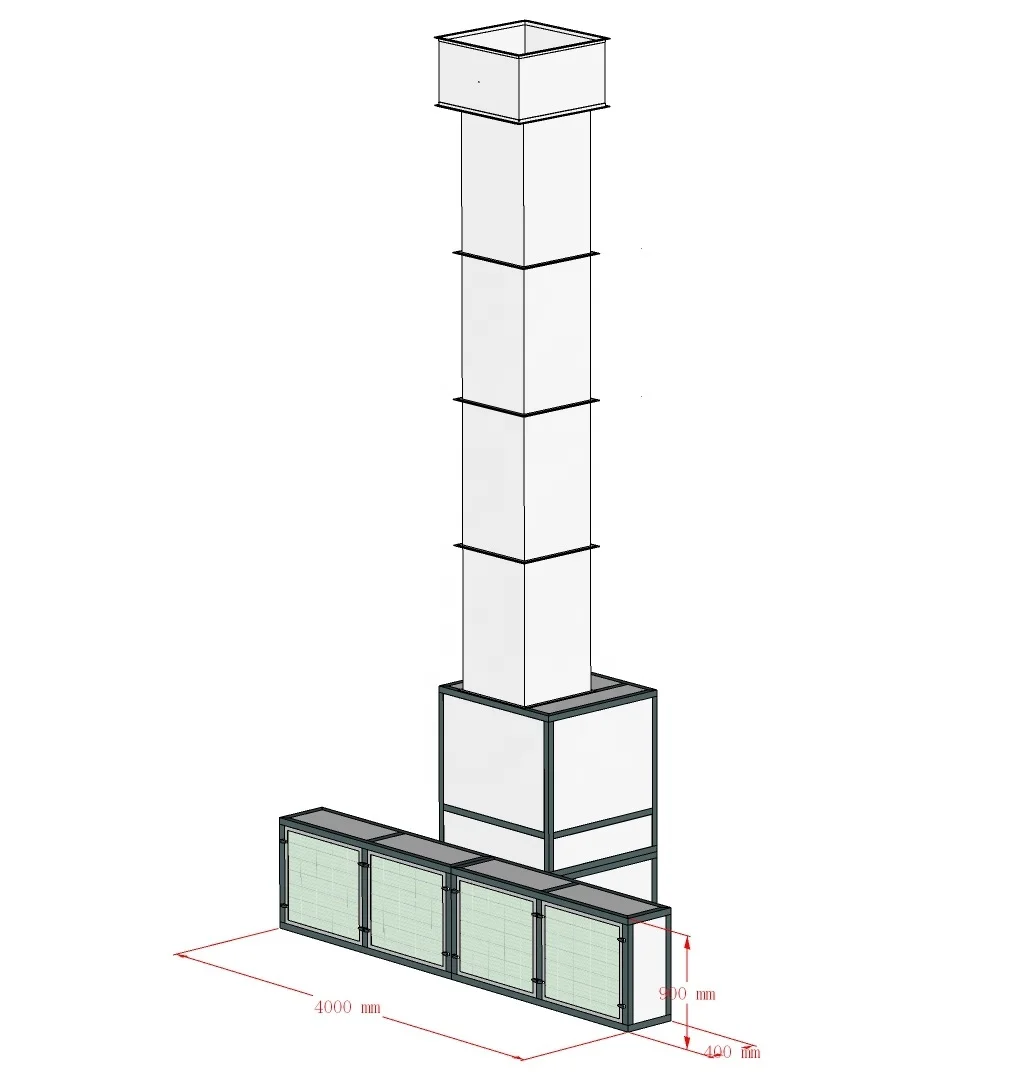

Floor Filter Cotton | Fiberglass floor filter: installed under grilles for full downdraft spray booth; installed on exhaust cabinet for semi downdraft spray booth. It is used to prevent paint mist going outside. Recommended time for changing: 40-60 working hours | |
Controlling System | Control Panel | It includes the button: spray&baking switch, time setting, lighting switch, temperature controller, power supply switch, emergency stop, breakdown alarm, etc. All electrical parts are from SCHNEIDER. Function: Spraying, Baking, Heat Spraying, automatic temperature control Protection: Overload protection, phase-break protection |
Packing & Delivery
suitable for ocean shipping
Company Profile
Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
` After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.
` After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.
Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
