Product Overview
Description
Machine Descriptions

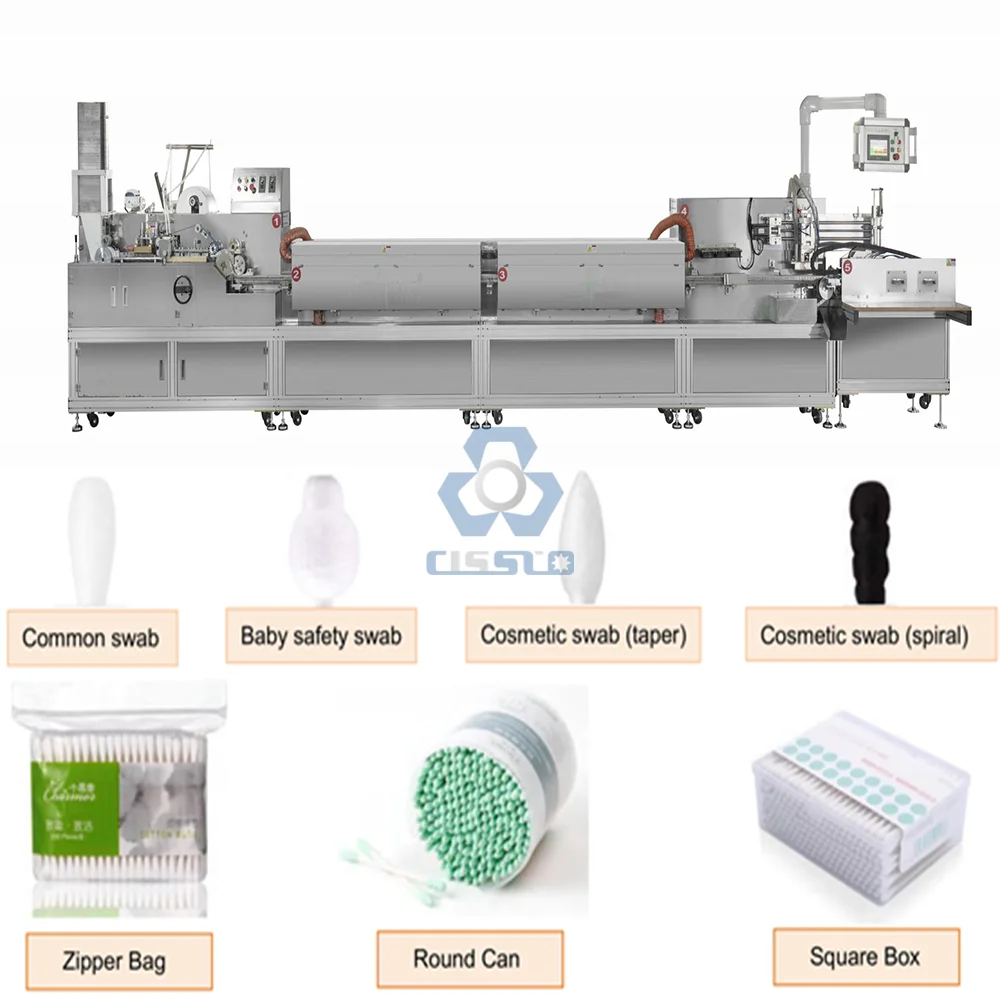

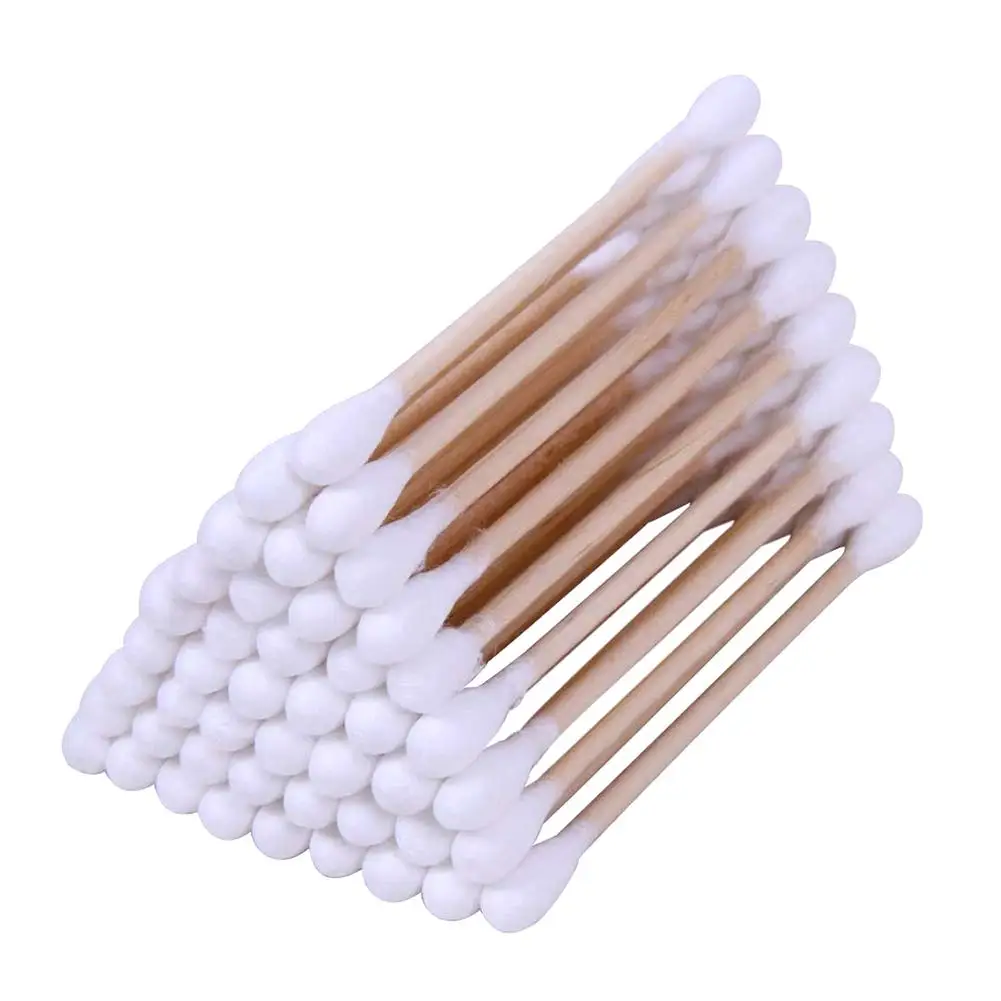

Fully automatic cotton swab making machine
All of our cotton swab machine are including making, drying unit and packing unit in same machine.We have ISO9000, CE certificate.
Machine Parameters
Max. speed | 1200pcs/min |
Total power | 13kw |
Power consumption | 7--8kw/hour |
Suitable Stick size | length 70mm (±1mm) diameter: 2.3—2.5mm |
Suitable stick | plastic stick, paper , wooden , bamboo stick (need change the machine parts) |
Type of swab | single head, double head |
Suitable Cotton sliver | 1.5gram/meter (according to the size of tip) |
Voltage | 380V,3P, 50Hz |
Air compression | 6~8kg/cm3 |

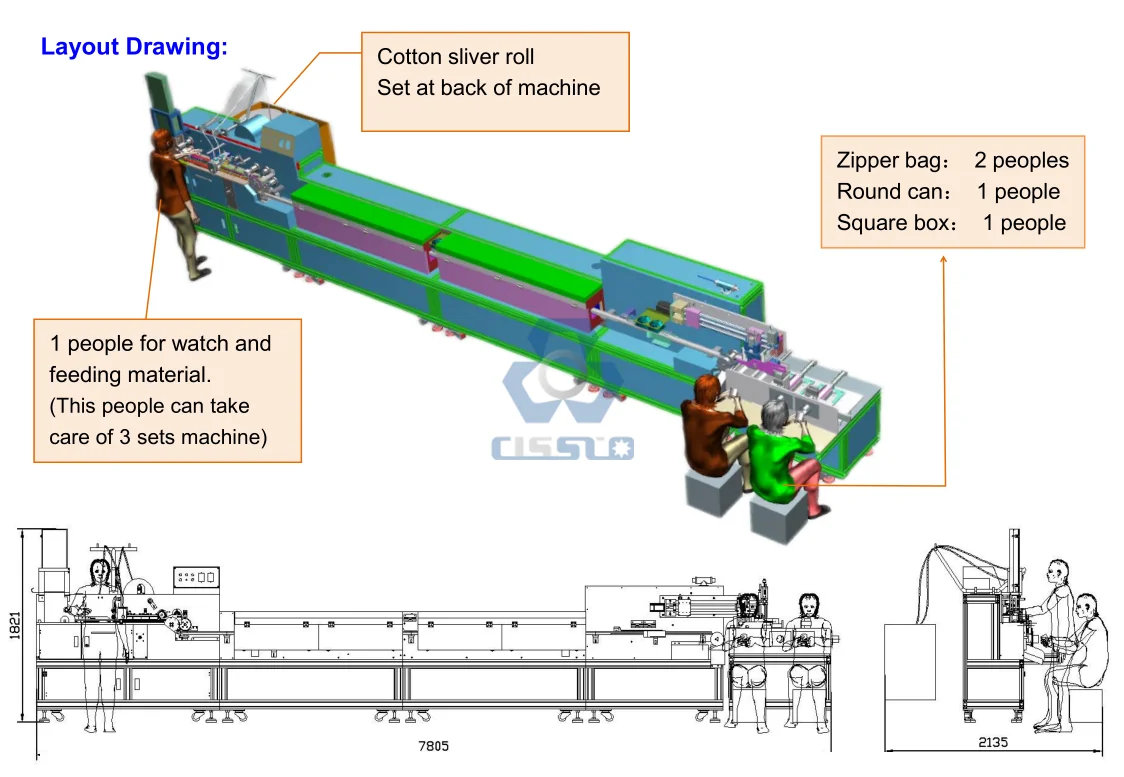

Machine Overall dimension | 7806 x 940 x1790mm |
Machine weight | 1800kgs |
Video show
Machine details Images

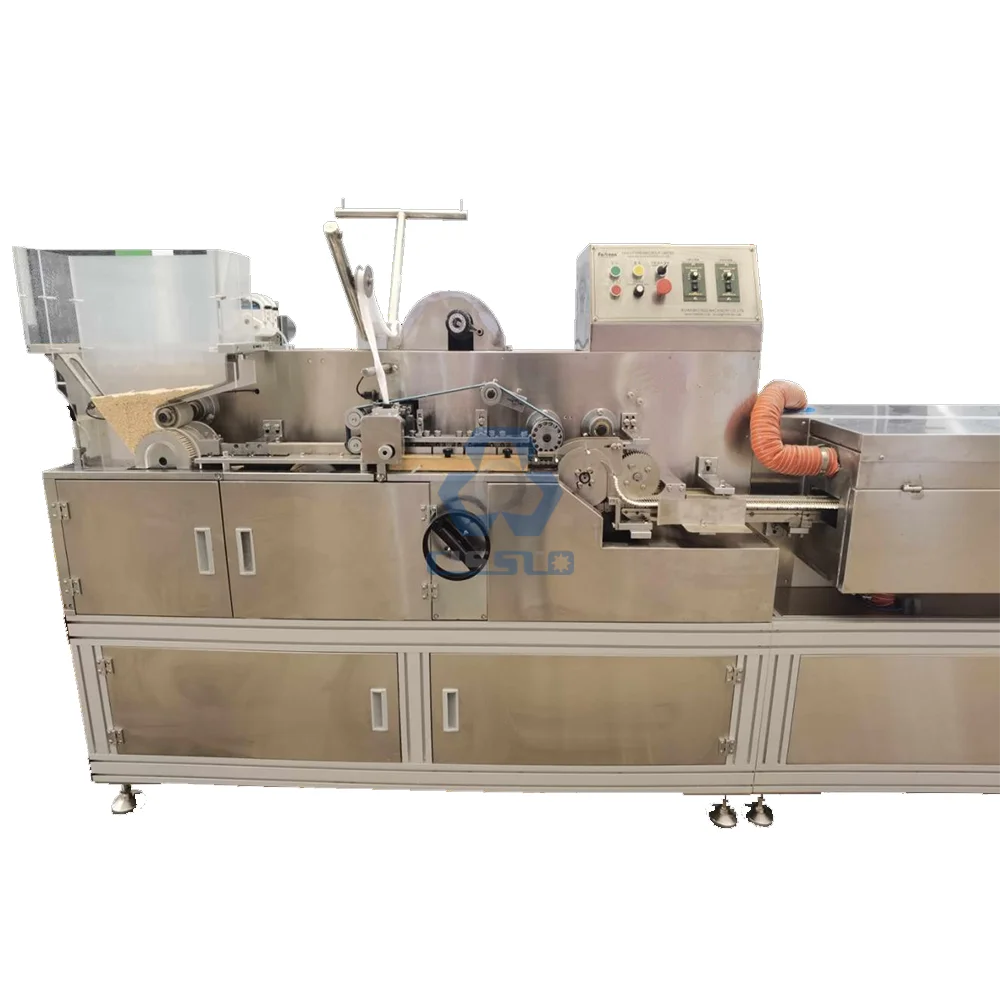

Main machine:
Hopper for stick, cotton feeder, gluing device, notch heater, Swab mould

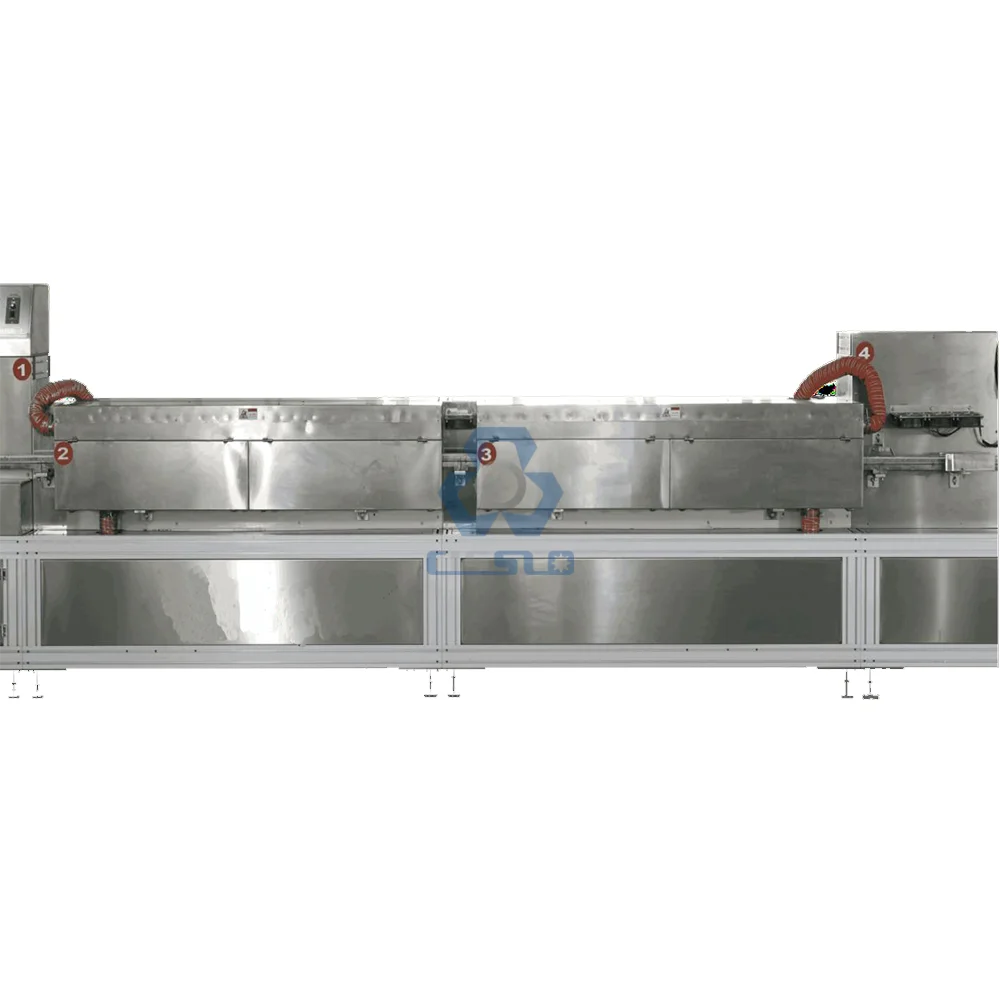

Drying oven
SS304, closed cycle type. Save power and high
Hopper
Stick storage
Gluing
Use for roll the glue on the paper, bamboo, wooden stick
Notch Heater
this parts is use for make notch on the both end side of plastic stick.
this parts is use for make notch on the both end side of plastic stick.
Mould
change mould to produce different shape of tip by one machine. Common Swab, Baby Safety Swab, Cosmetic Swab
Transport the cotton swab from mould to drying chain smoothly.
The drying chain sending the swabs to drying oven.
Manipulator adsorption automatic
Automatically arrange and stack according to PLC setting program
Manipulator automatic adsorption device
Transport the cotton swab to packing table by suction automatically

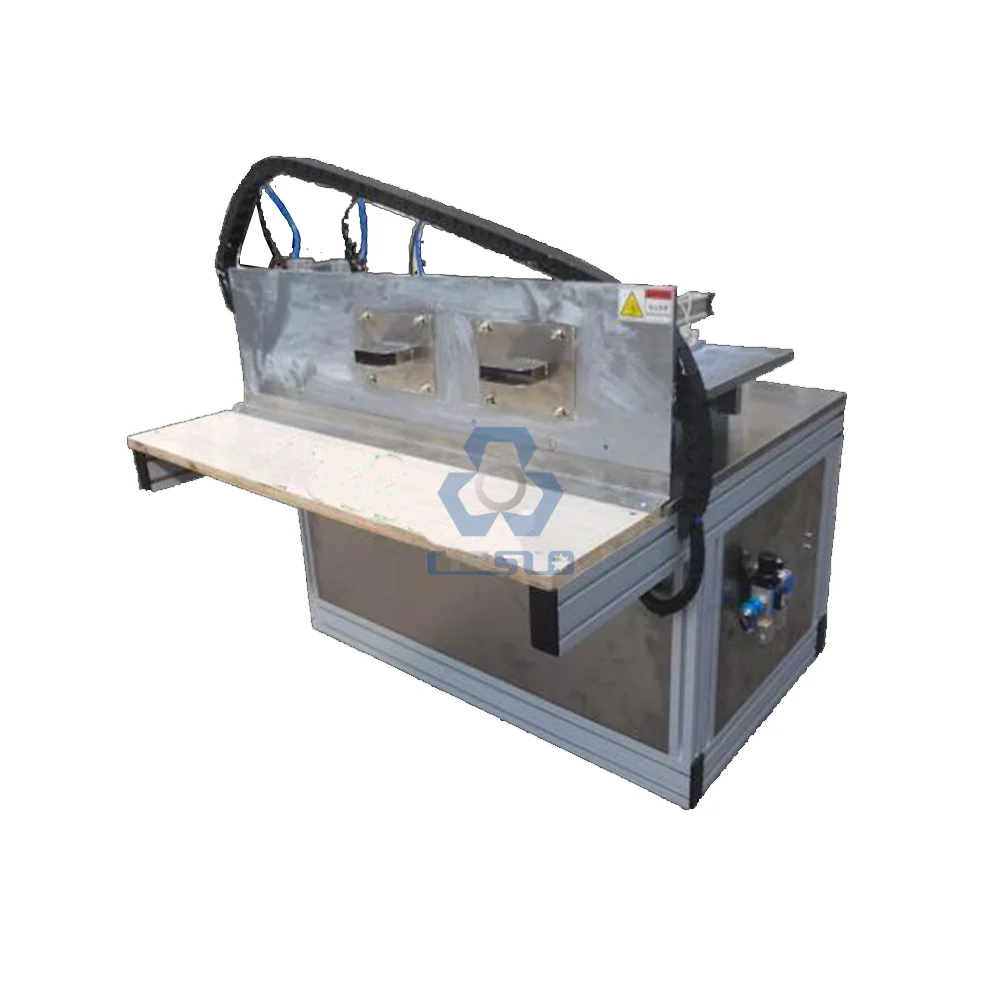

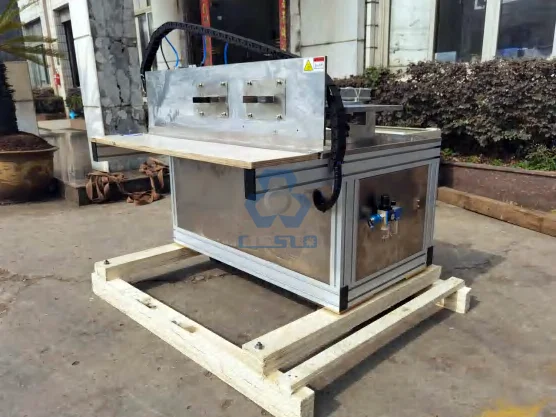

Packing table
Optional mode:Zipper bag, Round can, Square box

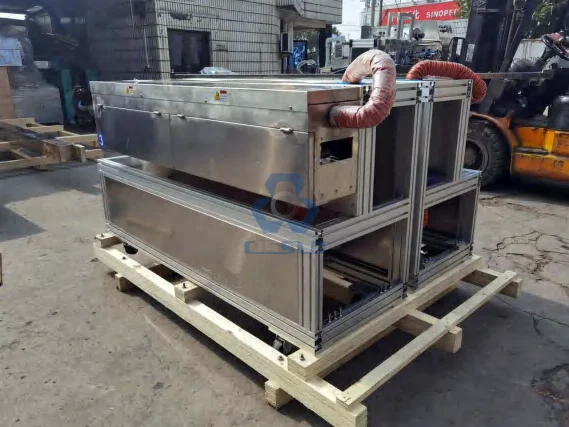

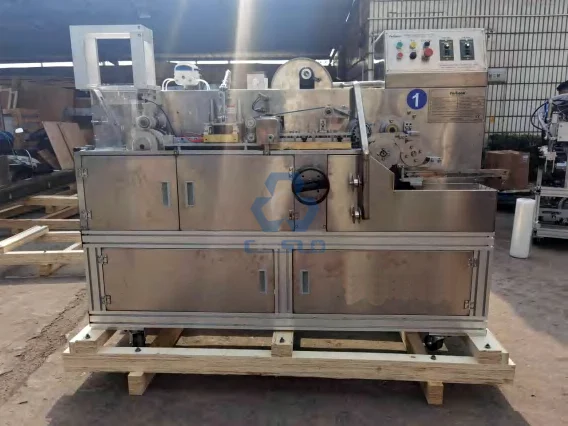

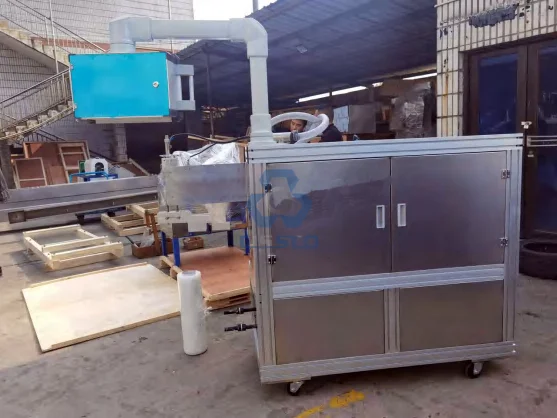

Packaging and delivery
FAQ
1. What is the maximum capacity of the machine?
Ans:1000~1200pcs/min
2. Can the machine be customized?
Ans:Yes, We provide customized services
2. Can the machine be customized?
Ans:Yes, We provide customized services
3. Product use?
Ans: household or medical
4. Cotton head?
Ans:Single head, double head
5. Cotton swab shape?
Ans:Common, baby safey, taper, spiral
6. what kind of stick to use？
Ans:Plastic, paper, wood, Bamboo
7. Packing type?
Ans:Zipper bag, Round can, Square box
