Electrospinning Machine Peristaltic Pump,Electrospinning Peristaltic Pump

Work Mode:Push-pull mode(Perfuse - Extract)

Execution unit amount:2

Stroke resolution:0.156μm

Linear speed range:"5μm/min-130mm/min

(Flow=linear velocity*cross-sectional area inside the syringe)"

Stroke control accuracy:Error≤0.5%(when Stroke≥30% Max. stroke )

Flow correction:Get more accurate liquid volume through calibration procedure

Syringe selection:With major syringe manufacturers and models for selection

Applicable power supply:AC90-265V 50/60Hz

Status signal output:2-channel OC gate signal output, used to indicate start-stop and direction status

Working Environment:Temperature 0-40℃, Humidity <80%

Drive weight:4.5kg

Flow range:0.831nl-150.5ml/min

Communication Interface:RS485

Maximum stroke:140mm

Display parameter setting:Liquid volume, flow or linear velocity

Linear speed adjustment resolution:5μm/min

Rated linear thrust:>180N

Operation parameter setting:Dispensed liquid volume, injection time, etc.

Syringe customization:Can be directly input into the syringe

Control model input:2 start-stop control inputs, 1 falling edge trigger signal to control start and stop; 1 TTL level signal to control start and stop

Dimension (L×W×H):280x250x140(mm)

Power Consumption:20W

Main Features

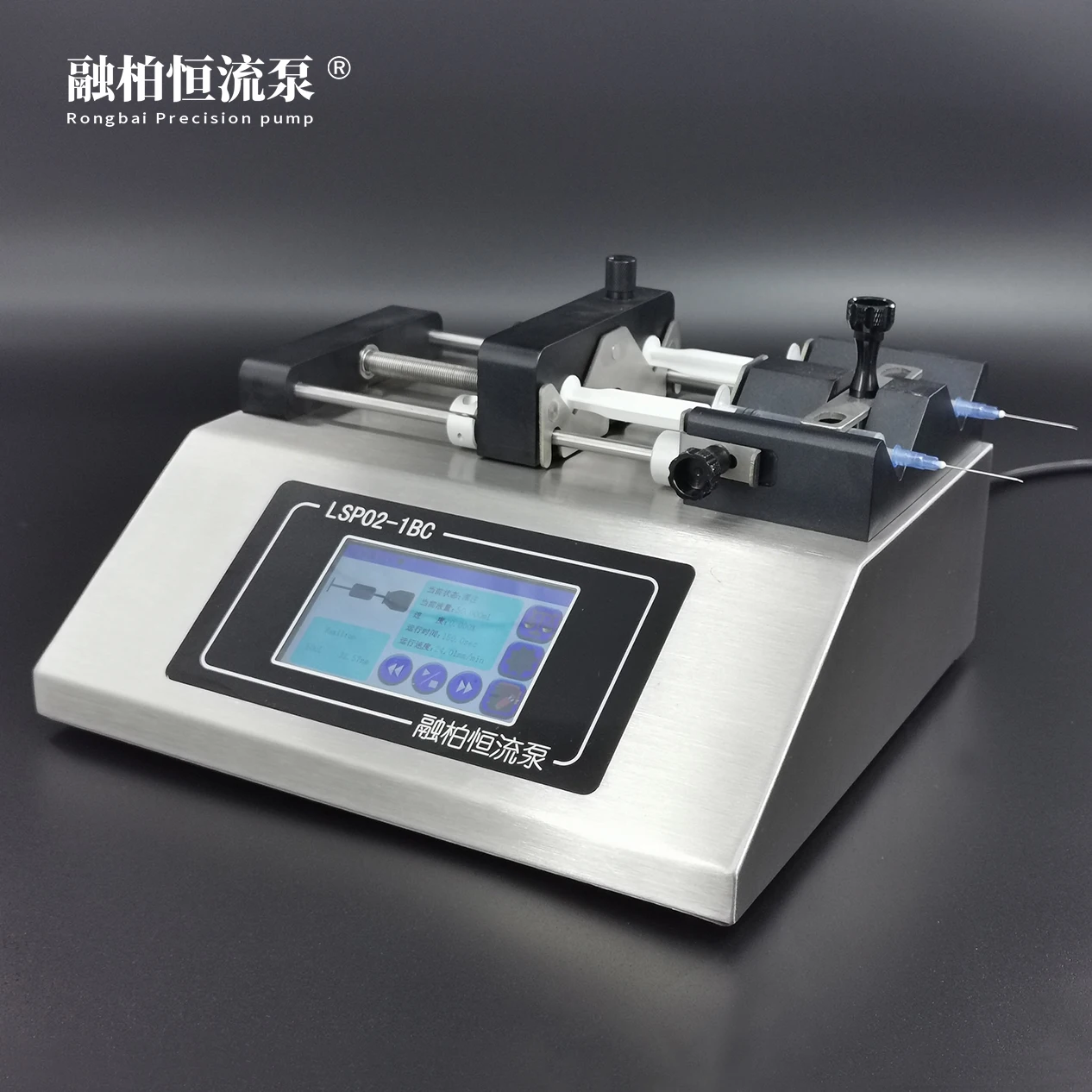

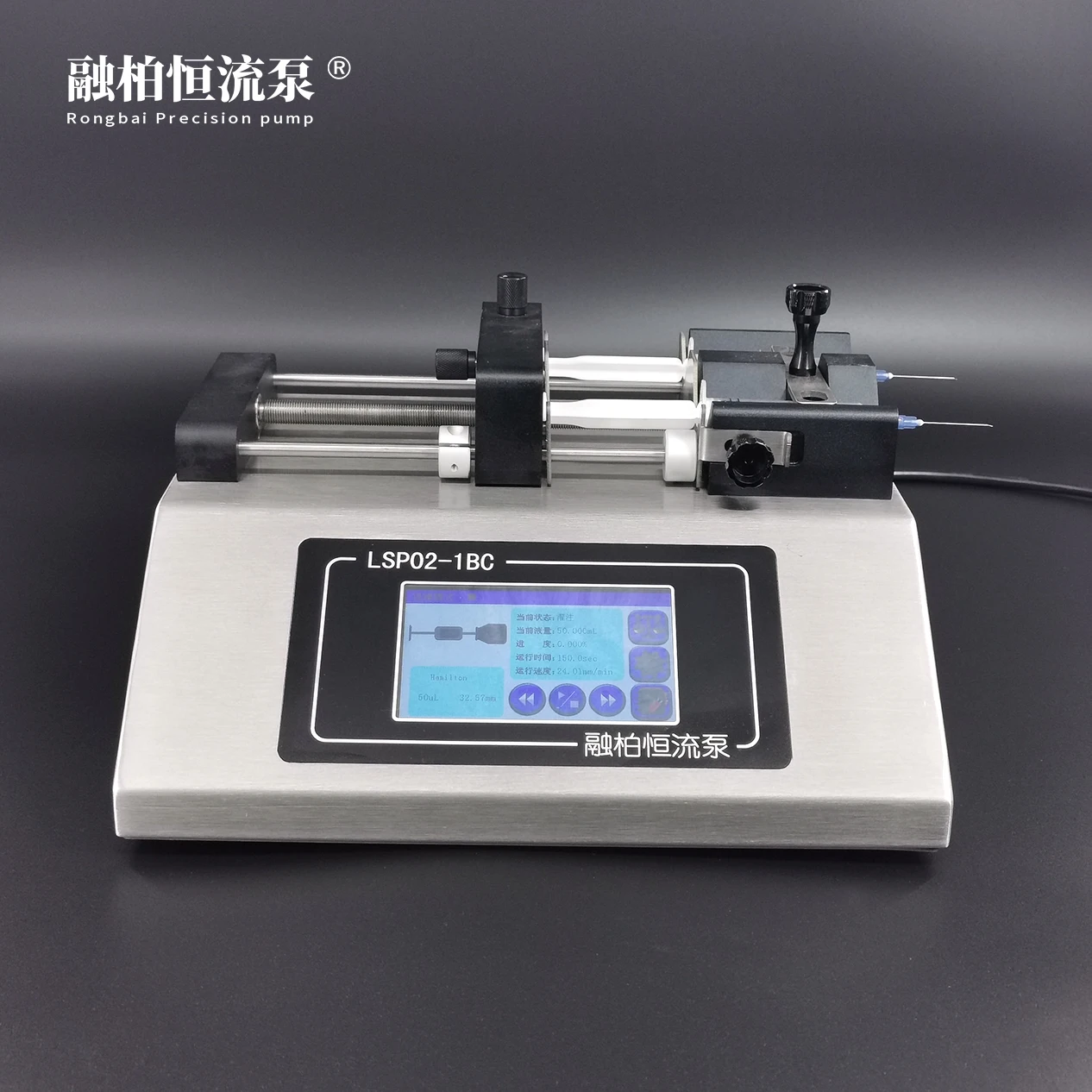

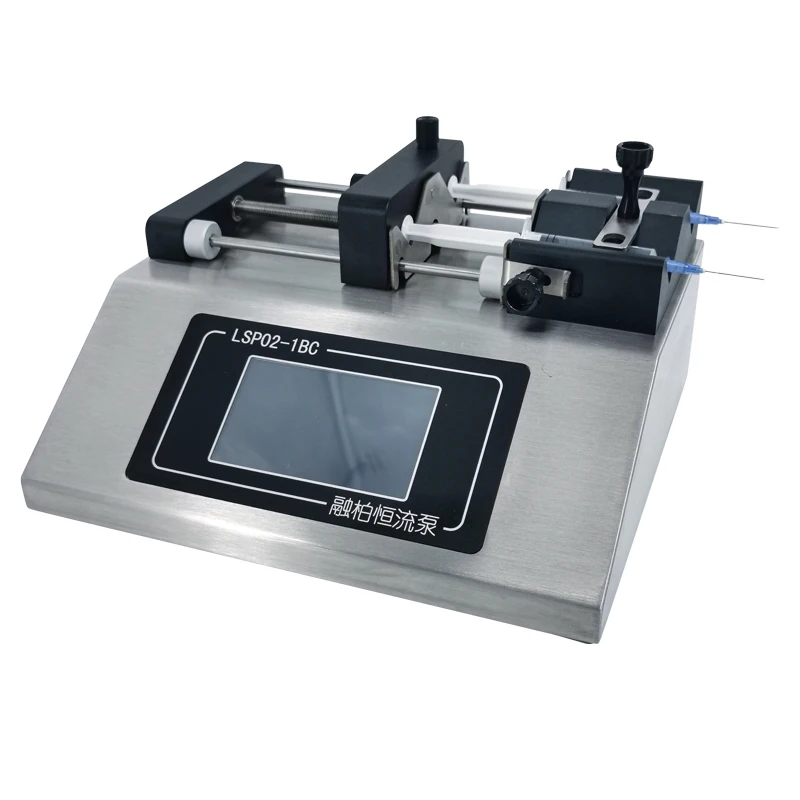

1.Micro syringe pump LSP02-1BY is a dual-channel perfusion/extraction syringe pump, mainly used in biological laboratories, with an integrated structure. (Can be loaded with different specifications of syringes, samplers, LSP02-1BY micro syringe is suitable for high-precision, small-flow liquid transmission.)

2.LSP02-1BY syringe inner diameter input function: you can select the syringe from the list or directly input the inner diameter of the syringe.

3.The human-computer interface is friendly, the large-screen LCD display, digital knob is used in conjunction with film button, the operation is simple and fast.

4.With power-off memory function: 1). ERPROM saves the setting parameters, after power on, no need to reset; 2). When the power is off in flow mode, can continue to run or stop according to the set parameters after restored.

5.Traffic jam protection function: When the propulsion mechanism of the injection pump is blocked during the working process, the injection pump will stop its working and give out a whistle alarm.

6.Using RS485 communication interface, can be connected to the upper computer and controlled by background software.

7.External control interface: with input/output control function.

8.Liquid volume calibration function: can get a more accurate flow.

9.Enable syringe protection function: By adjusting the position of the limit block, the syringe can be prevented from being damaged.


Usually we send the goods by EMS/DHL/SEA, if you want ship by any ways please feel free to contact us.
A tracking number will send to you after your order has been shipped

About Us

Location:

Baoding Rongbai Constant Flow Pump Manufacturing Co., Ltd. is located in Baoding City high-tech enterprise gathering area Diangu Technology Center.

Business philosophy:

Baoding Rongbai Constant Flow Pump Manufacturing Co., Ltd. is a high-tech enterprise with the core of R&D, production and sales of precision fluid transmission technology and equipment, focusing on precision fluid transmission solutions. After years of painstaking research and experience accumulation, with the spirit of craftsmanship, the "Rongbai Constant Flow Pump" brand was created, based in Greater China and gradually entering the global market, determined to become an international first-line brand.

Main products and application areas:

Rongbai company’s main products: peristaltic pumps, laboratory syringe pumps, industrial syringe pumps, micro gear pumps, micro plunger pumps, filling systems, etc. We can customize and design OEM supporting products according to the actual needs of customers. Rongbai series products are widely used in environmental protection engineering, pharmaceutical industry, fine chemical industry, scientific experiment, water treatment, food industry and many general fields.

R & D strength:

Rongbai has strong R&D strength, superb manufacturing technology and strict quality inspection standards to ensure stable product quality, with an annual output of tens of thousands of peristaltic pumps. Rongbai constant flow pump has a number of independent intellectual property rights and self-operated import and export rights, and can maintain the rate of research and development of 3-5 new products per year. It has become an OEM service provider for many domestic benchmarking enterprises, and is involved in precise pumping, transfer, and distribution. The field of process units such as installation has been unanimously recognized by many enterprises and institutions!

Corporate culture: integrate core technology, gather professional talents, and promote craftsmanship

Entrepreneurship: professional, Concentration, focus, dedicated

Conclusion:

We always take "providing high-quality products, non-contact hose transmission technology and professional after-sales service to the market" as our own responsibility, and recommend more cost-effective precision fluid transmission solutions for you. We will strictly follow the ISO9001 standard for design and manufacturing, adhering to the service tenet of “professional, Concentration, focus, dedicated" and wholeheartedly provide every user with cost-effective products, knowledge and services. We will strictly rely on authoritative third-party testing and certification. , Continuously improve product adaptability to meet various demanding application requirements.

Warm tips

(1)Usually we send the goods by EMS/DHL/SEA, if you want ship by any ways please feel free to contact us.
(2) A tracking number will send to you after your order has been shipped
(3) Delivery: Small orders will be shipped within 24 hours if the payment is made before 3 pm on the same day. For large orders, please contact customer service. If you encounter shop activities, generally control the delivery within 48 hours, if there is an extension Please understand.

(4) Return/Exchange: If the product is not in use, it can be returned for 7 days without reason.

(5) Size: The product size is marked, if there is any error, please contact the customer service staff to solve it.

(6) Color: Store products are all actual shots.

(7) Customization: The company accepts orders of various sizes, and can be customized and developed according to customer requirements to ensure quality and low prices. New and old customers are welcome to negotiate business.

Product Maintenance

(1) When the pump is not working for a long time, loosen the pressure block to avoid squeezing the hose for a long time to cause deformation.
(2) The roller of the pump head should be kept clean and dry, otherwise it will accelerate the wear of the hose, shorten the service life of the hose and cause premature damage to the roller.
(3) The surface of the drive and the pump head are not resistant to organic solvents and strong corrosive liquids, so special attention should be paid when using them.

Warranty

(1) The product is guaranteed for one year.
(2) Contact the seller or manufacturer before returning to the factory for repair.
(3) The original packaging or other reliable packaging methods should be used as far as possible for the return to the factory for maintenance and transportation.
(4) When returning to the factory for maintenance, the fault phenomenon and contact information should be found in detail.
(5) During the warranty period, if it is improperly used or damaged by the user, it will not be included in the free warranty.
