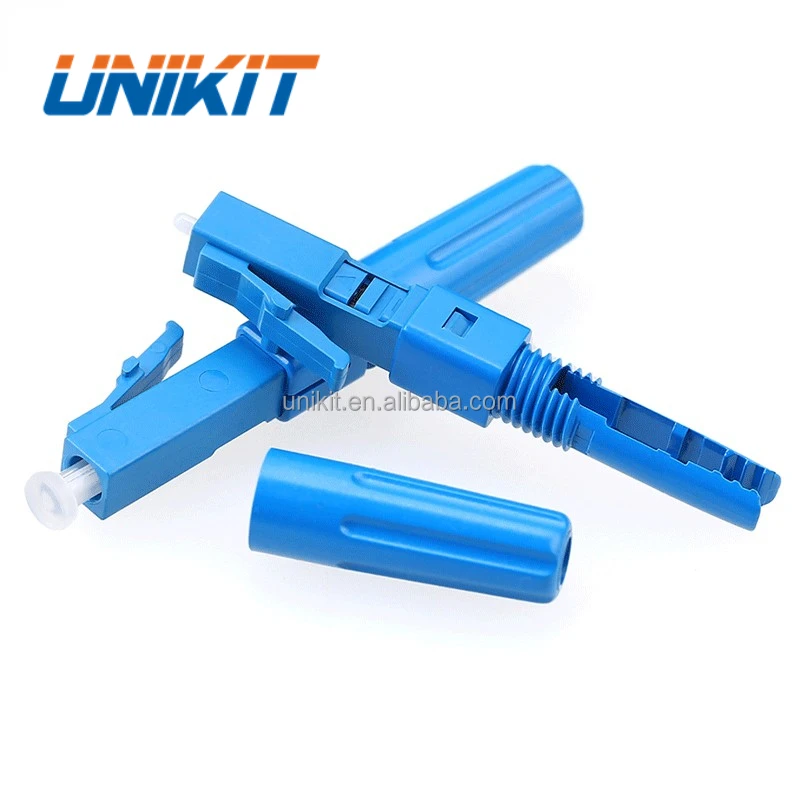

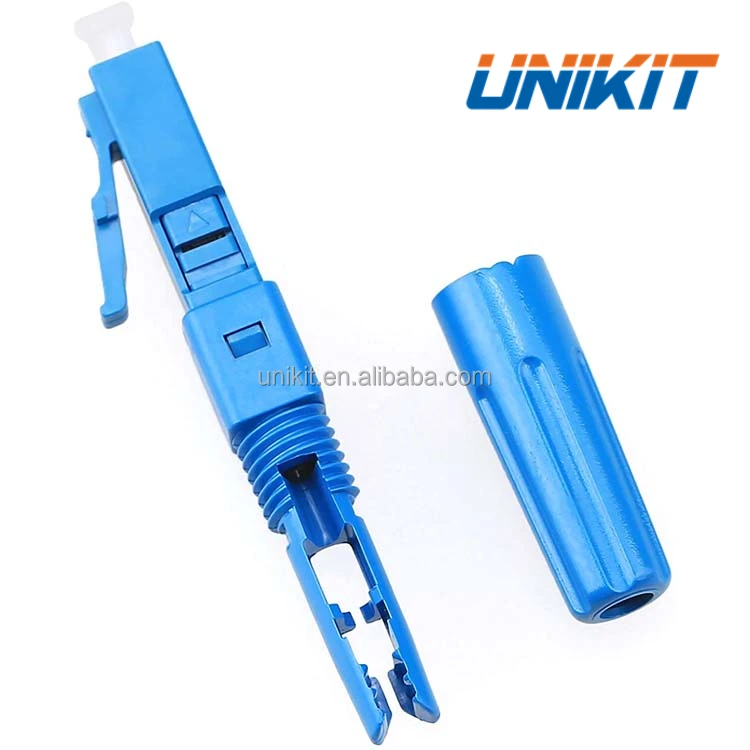

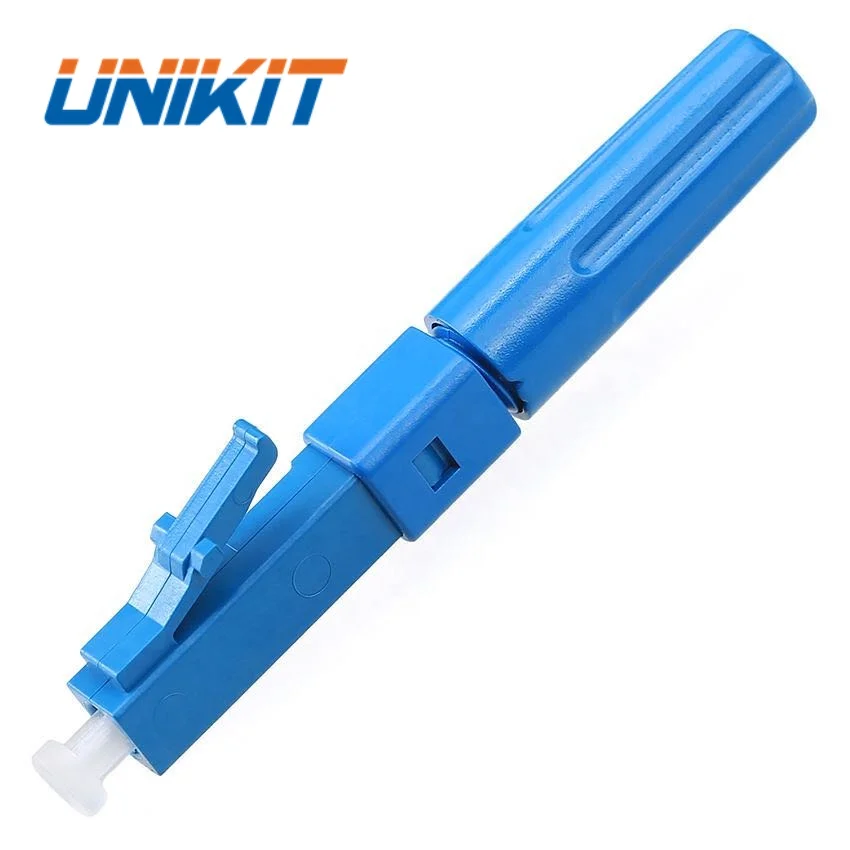

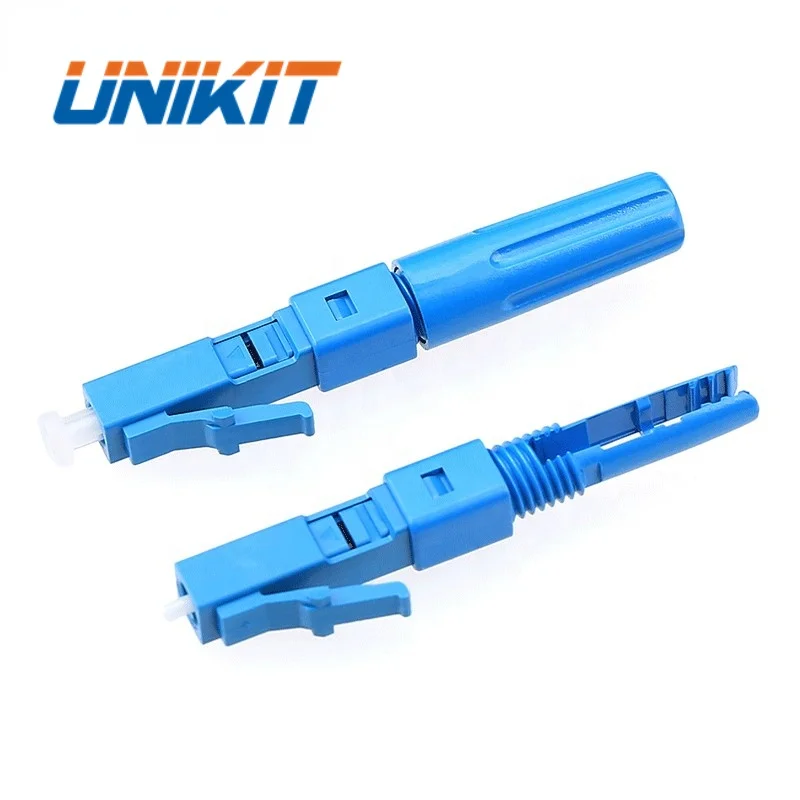

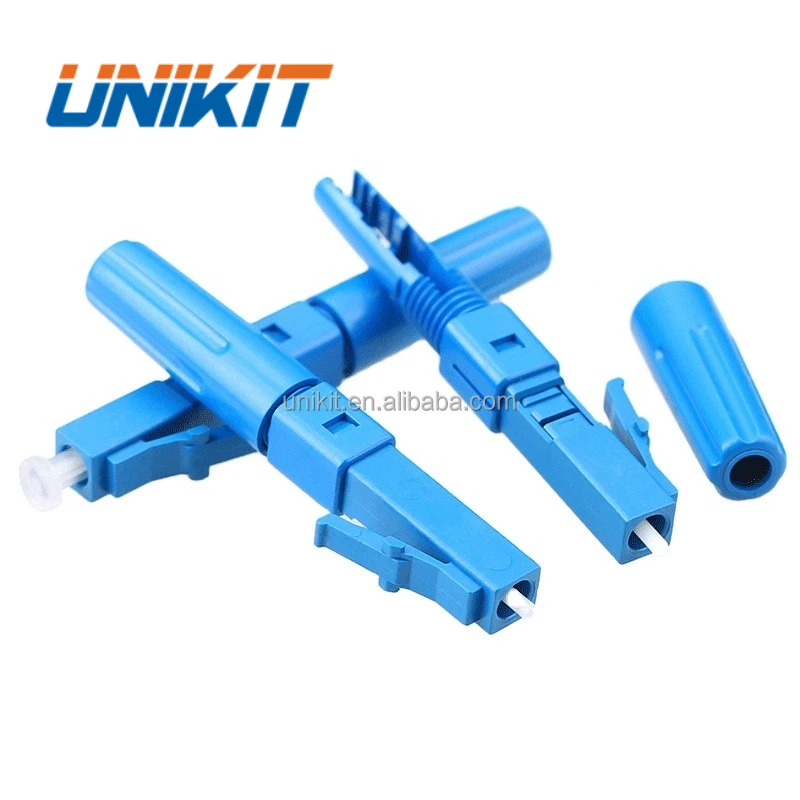

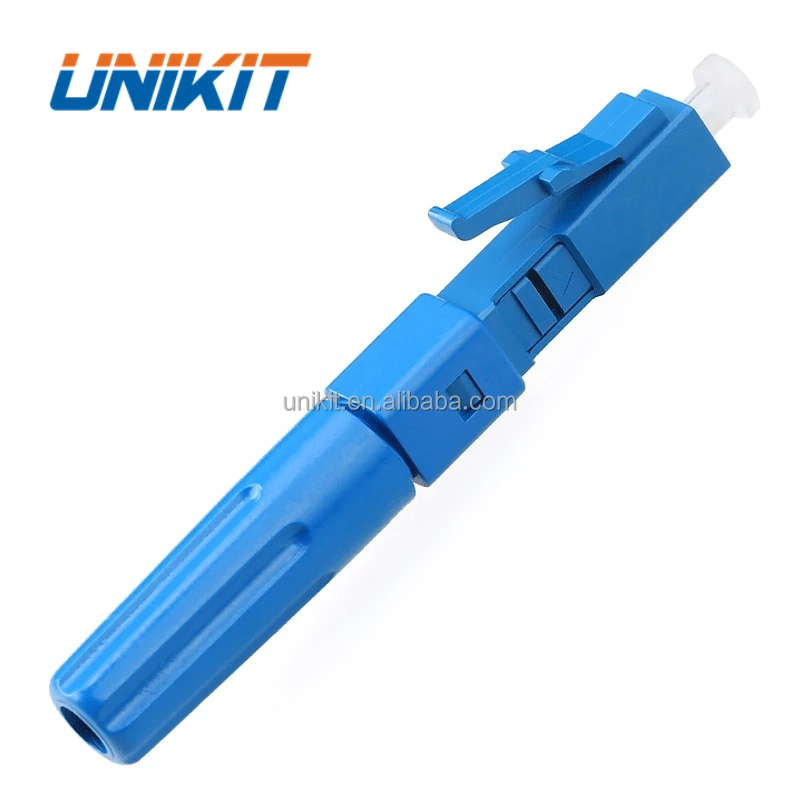

Durable Using FTTH Passive Components SM MM LC Connector for 0.9mm 2.0mm 3.0mm 2*3mm Cable LC UPC APC Fiber Optic Fast Connector
- Category: >>>
- Supplier: Jiangsu Unikit Optical Technologies Co. Ltd.
Share on (1600534093974):
Product Overview
Description
Product Description
High Reliability Optical Passive Components Field Assembly LC Fast Connector
New Design
Universal Type
1). Low insertion loss, high return loss;
2). Reliable optical performance;
3). Good connection stability;
4). Convenient for field installation;
5). Installs fast, Operates easy ;
6). Low cost & Reliability
Specification
◆Product Length: 45mm
◆Fiber: SM/ G657 Bending Insensitive; MM OM3, OM4
◆Factory-installed fiber stub, no epoxy and polishing required, inside with index-matching gel
◆Operating Temperature: -40℃～+80℃
◆Application: FTTH
Item | Parameter |
Model Number | ELC925T-UPC |
Brand Name | UNIKIT/OEM |
Applicable Cable | 2.0*3.0mm & 2.0*1.6mm flat drop cable & 2.0mm & 3.0mm & 0.9mm cable |
Insert Loss | AVG≤0.3dB,Max≤0.5dB |
Return Loss | ≥55dB for APC, ≥50dB for UPC |
Tensile Strength | ≥30N (0.9mm Round Cable≥5N) |
Repeat Assembly | ≥3 Times |

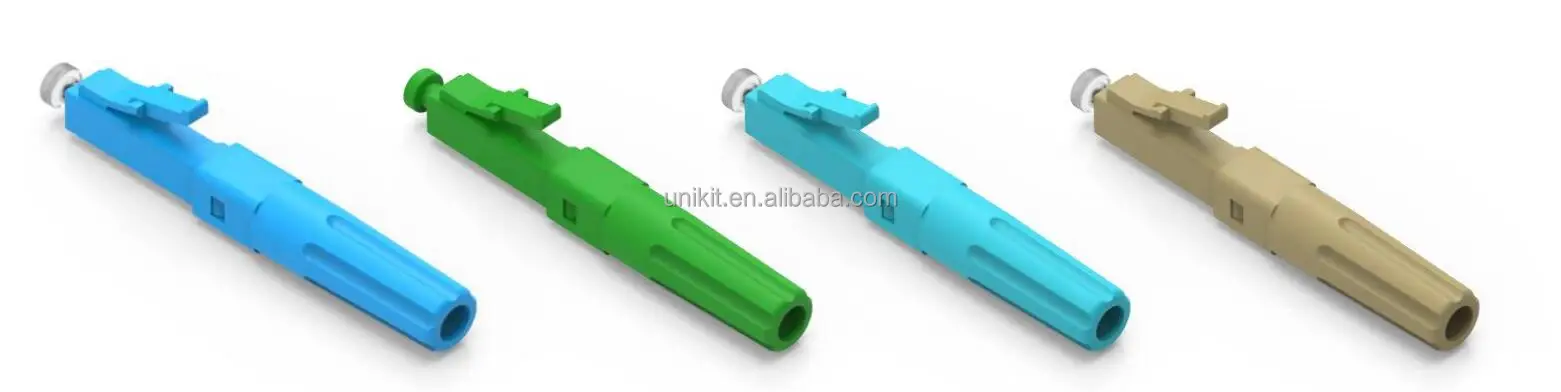

Fiber Mode | SM MM(OM3, OM4) |
Assembly Time | Drop Cable≤2mins Round Cable≤4mins |
Mechanical Endurance | 500 Times |
Operating Temperature | -40℃~+80℃ |
Operating Wavelength | 1310/1550nm |
1. FTTH project usable
2. Field installable3. Insert loss no more than 0.3dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minute
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR
Packing & Delivery
Company Profile
Jiangsu UNIKIT Optical Technologies Co., Ltd founded in 2006, as a state-level high-tech manufacturer, we focus on supplying the whole solution of fiber connection, R&D components, provide production service for telecom operator, system integrator, optoelectronic device company and internet company. As leading manufacturer of field assembly fiber connector, we have obtainedmore than 100 patents, participated in drafting Domestic Standard of Telecommunications Industry, developed the whole set
of ground-breaking theory and design solution for Single Optical Fiber Mechanical Splice.
of ground-breaking theory and design solution for Single Optical Fiber Mechanical Splice.
