Automatic Pallet Stretch Wrapping Wrap Machine Pallet Stretch Wrapper
- Category: >>>
- Supplier: Suzhou Jiajun Packing Machinery Co. Ltd.
Share on (1600534100228):
Product Overview
Description
Product Series
Product Description
Model | Smart Wasp X0-MS | Spare Parts | Brand | |
Maximum wrapping speed | 20-30 loads/hour (1x1.2x1.8 m 2 layer NOT include loading and Unload time) | Turntable Sensor | SICK | |
Maximum pallet size | 1.2*1.2 m | Position sensor | SICK(Germany) | |
Maximum Wrapping Height | 2000mm/2400mm/2800mm optional | PLC | PCB Integrated Circuit Plate | |
Turntable Speed | 0-12RPM(Adjustable) | Inverter | PCB Integrated Circuit Plate | |
Turntable Size | 1650mm(1500mm/1800mm/2000mm optional) | Travel Switch | OMRON | |
Machine Power | 1.2KW | Relay | OMRON(Japan) | |
Film Cut | Manual | Touch screen | X-LINE | |
Max Load Weight | 1500KG/2000KG Adjustable | Switch | Schneider | |
Standard Film Width | 500mm | |||
Constant Film Delivery Force | Standard | |||
Standard Pre-Stretch | 250-300% | |||
Film Capacity | 250mm Diameter | |||
Up&down Drive speed | 0-5.5m/min | |||
Fix Film on Pallet | Manual | OPTIONAL FUNCTION | ||
Roping system | Optional | Ramp | Optional | |
Muti-layer function | Have | weighing scale | Optional | |

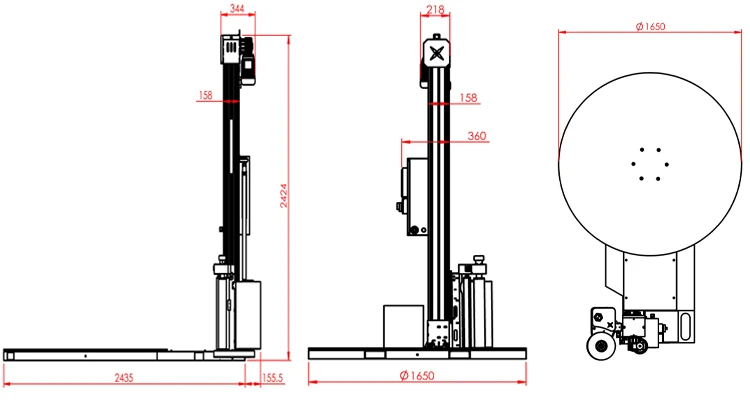

Machine Size | 2.4*1.65*2.4m | Top pressure function | Optional | |
Machine weight | 530KG | |||
Voltage | 110-240V/50HZ/60 HZ 1/3P | |||
Detailed Images

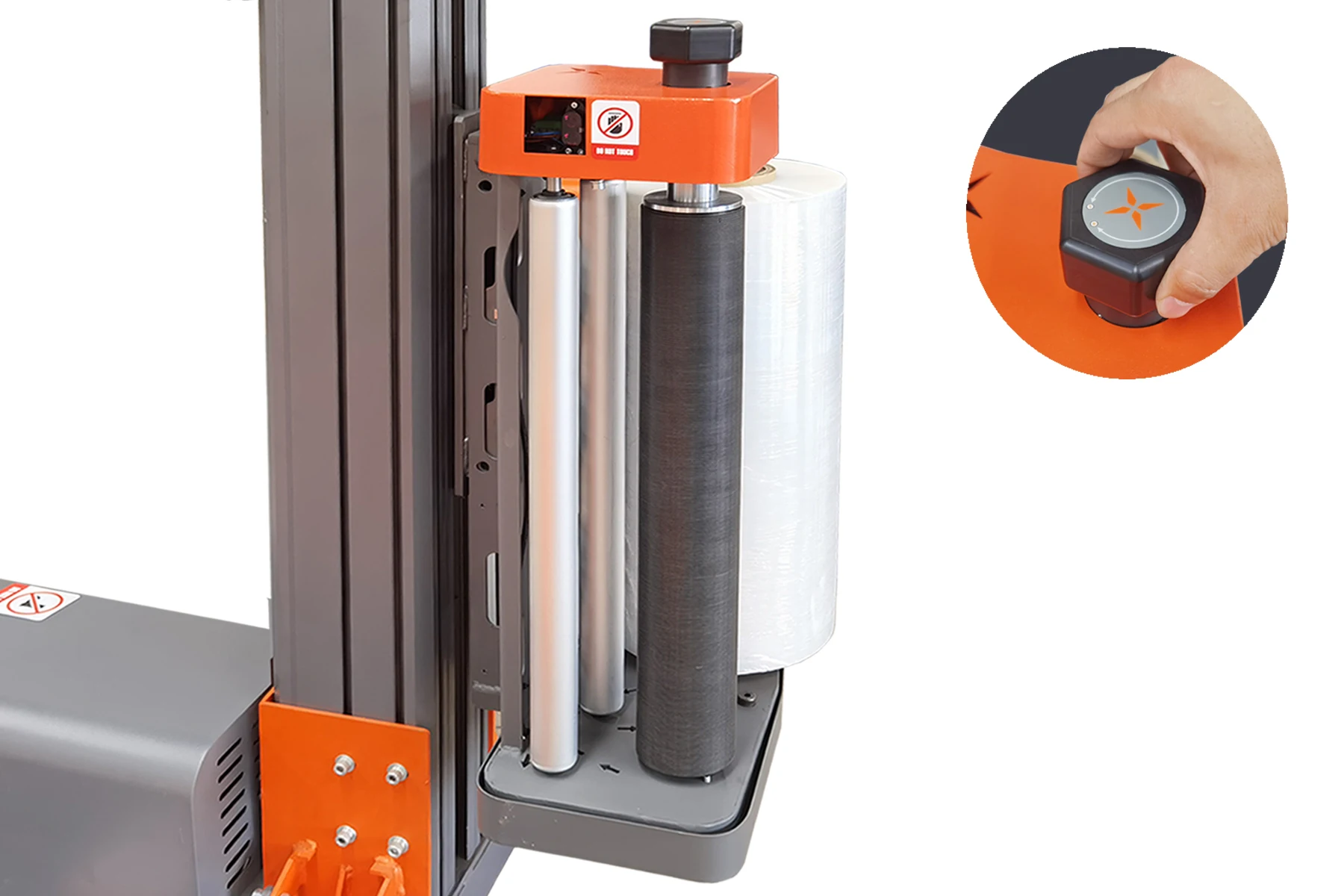

New generation of mechanical resistance film carriage
1. Knob with physical feedback wrapping tension, it is more convenient to adjust.
2. Grading adjustment to release film more evenly.
2. Grading adjustment to release film more evenly.

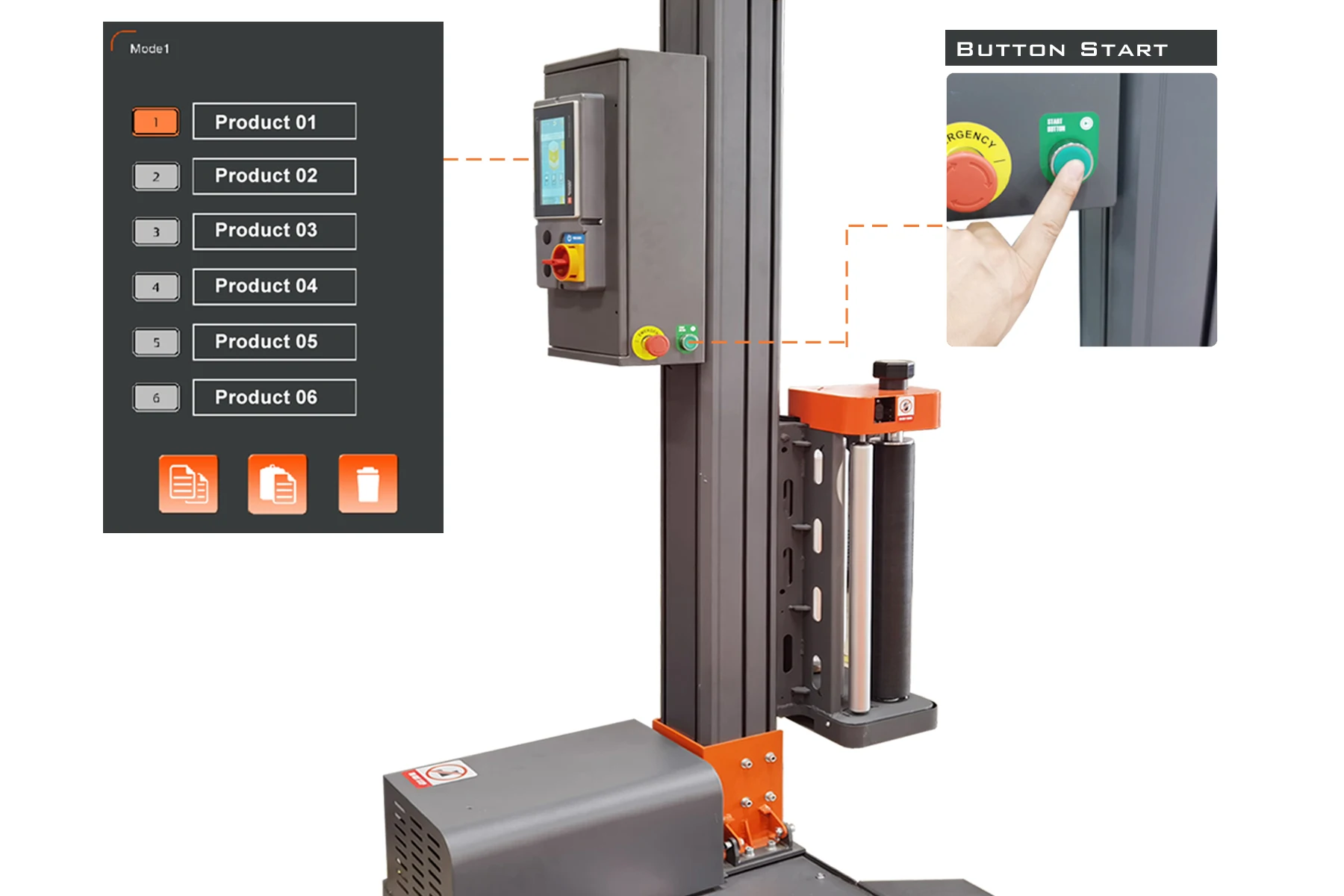

6 kinds of Memory Functions + One Button Start
2.One button start, let the machine operation more convenient.

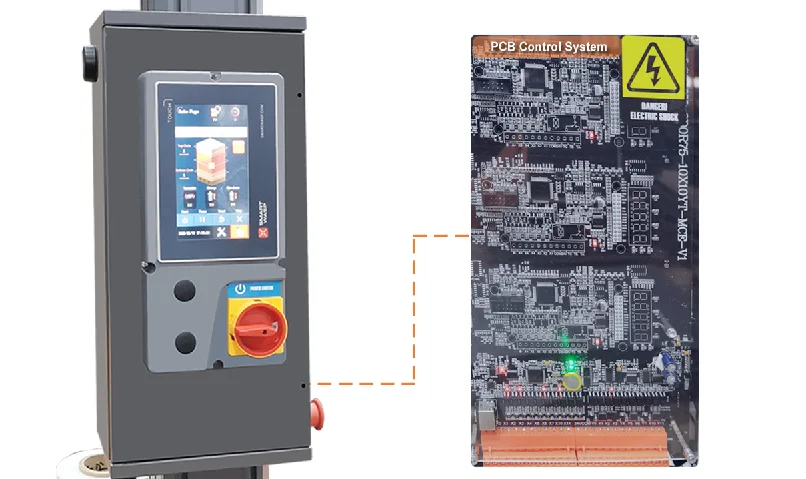

PCB control system
2. Integrated circuit system, maintenance is more convenient.

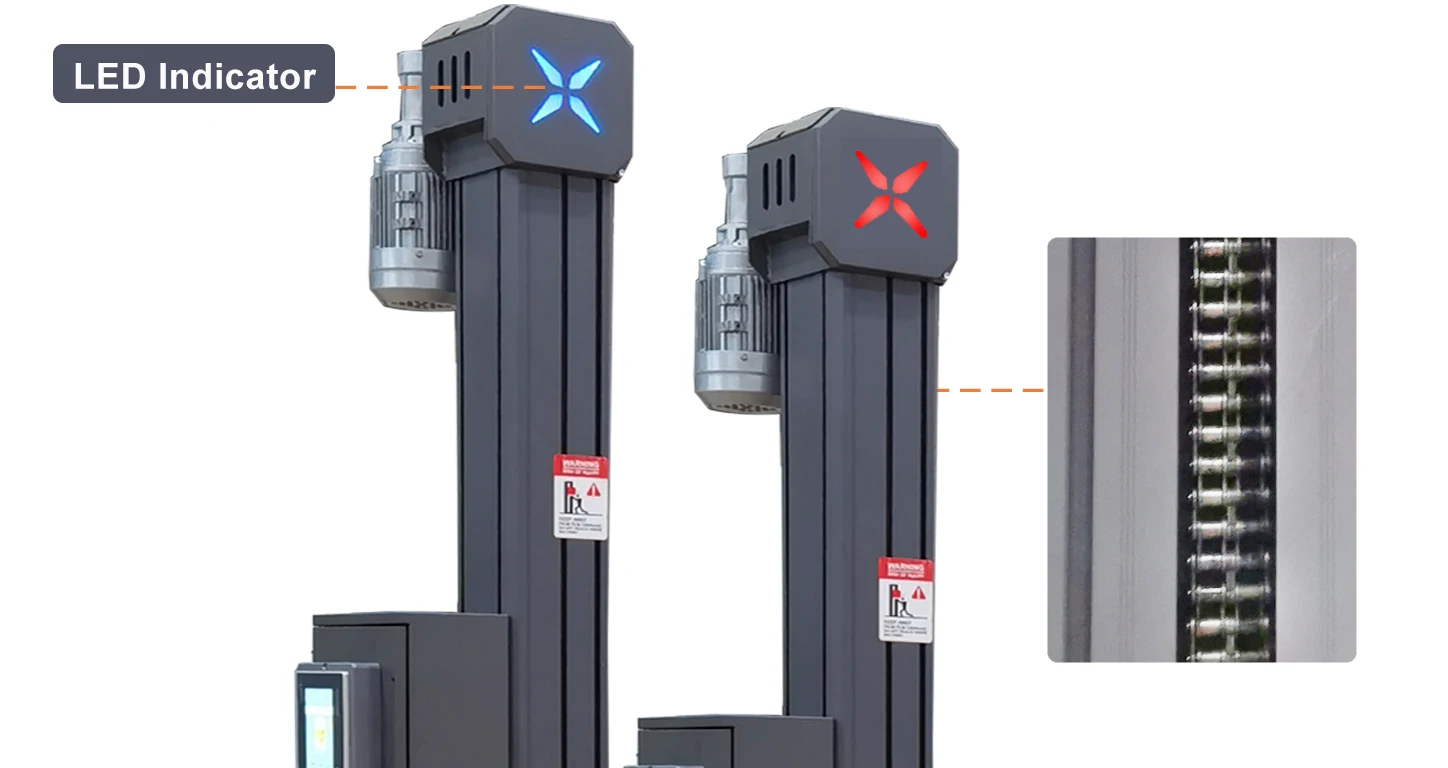

All-in-one alloy Aluminum Column + Lifetime Warranty
2.Modular assembly, easy to install
3.Double chain lifting system, more safety
4.LED tri-color light
CUSTOMER CASES
SMART WASP standard machine series include the x0ms X0ps X1 X100 X3 X300 X5 X500
All series machine will provide you with all the wrapping solution
SMART WASP have provide automatic wrapping solution for LG ,Sharp.Heineken ,china tobacco ,we sue our professional design and rich experience let our customer use reliable automatic wrapping machine
WE PACK MACHINE MORE SAFETY
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Shipping Type | 1set machine/crate (size/weight) | 2sets machines /crate (size/weight) | Mix packing (just for FLC shipping type) |
LCL Shipping | Srandard machine 2.68x1.7x0.8m 600KG | 2.7*1.7*0.95m 1000KG | Turntable /crate Carriage/crate Tower/crate |
Quantity crates in 20 FT | 4sets | 8sets | 12sets |
Quantity crates in 40 HQ | 8sets | 16sets | 24sets |
Exhibition
WELCOME TO VISIT US
SMART WASP Attend Exhibition in JAPAN UKRAINE THAILAND MALAYSIA GERMANY POLAND MEXICO.Over 10 countries And Every Year attend China Professional Exhibition
2022 SMARTWASP EXHIBITION LIST
The 18th China (Qingdao) International Packaging Industry Exhibition CIPI
Time： 7/18/2022 - 7/22/2022
Address: China Hongdao International Convention and Exhibition Center, Qingdao, China
The 23rd Asia International Logistics Technology and Transportation CeMAT
Time： 11/1/2022 - 11/4/2022
Time： 11/1/2022 - 11/4/2022
Address: Shanghai New International Expo Centre (SNIEC), Shanghai, China
The 28th International Processing,Packaging & Printing Exhibition ProPak China
Time：11/8/2022 - 11/10/2022
Address：Shanghai New International Expo Center, Shanghai, China
Address：Shanghai New International Expo Center, Shanghai, China
OUR TEAM
SMART WASP Team have 210 members, we have over 30 mechanical engineers and electric engineers. SMART WASP international team in Ukraine Thailand Mexico Malaysia USA Ireland Poland Panama ..for promoting and doing service for Smart wasp machines. We hope more and more partners to join us .
Smart Wasp Intelligent Technology (Suzhou) Co., Ltd., specializing in designing, researching and manufacturing intelligent pallet
wrapping equipment and providing packaging automation solutions.Smart Wasp has a professional design and development team. The new factory covers an area of 50 acres.Smart Wasp standard pallet wrapping machine series, fully automatic pallet wrapping machine, high speed ring pallet wrapping machine series popular in the United States, Germany, Canada, Mexico, Australia, South Korea, more than 60 countries and regions, and ZF, Kraft Foods, LG, Panasonic, etc. Well-known companies establish long-term cooperative relationships. Smart Wasp is committed to building products with Chinese brands and world-class quality and strives to become a respected company.
wrapping equipment and providing packaging automation solutions.Smart Wasp has a professional design and development team. The new factory covers an area of 50 acres.Smart Wasp standard pallet wrapping machine series, fully automatic pallet wrapping machine, high speed ring pallet wrapping machine series popular in the United States, Germany, Canada, Mexico, Australia, South Korea, more than 60 countries and regions, and ZF, Kraft Foods, LG, Panasonic, etc. Well-known companies establish long-term cooperative relationships. Smart Wasp is committed to building products with Chinese brands and world-class quality and strives to become a respected company.
