Jsdsolar Off grid Split Phase MPPT controller hybrid solar inverter 10000W
- Category: >>>
- Supplier: Shenzhen Jinsdon Lighting Technology Co. Ltd.
Share on (1600534101570):
Product Overview
Description
Product Description
5kw solar hybrid inverter Jsdsolar Off grid Split Phase MPPT controller hybrid solar inverter 10000W

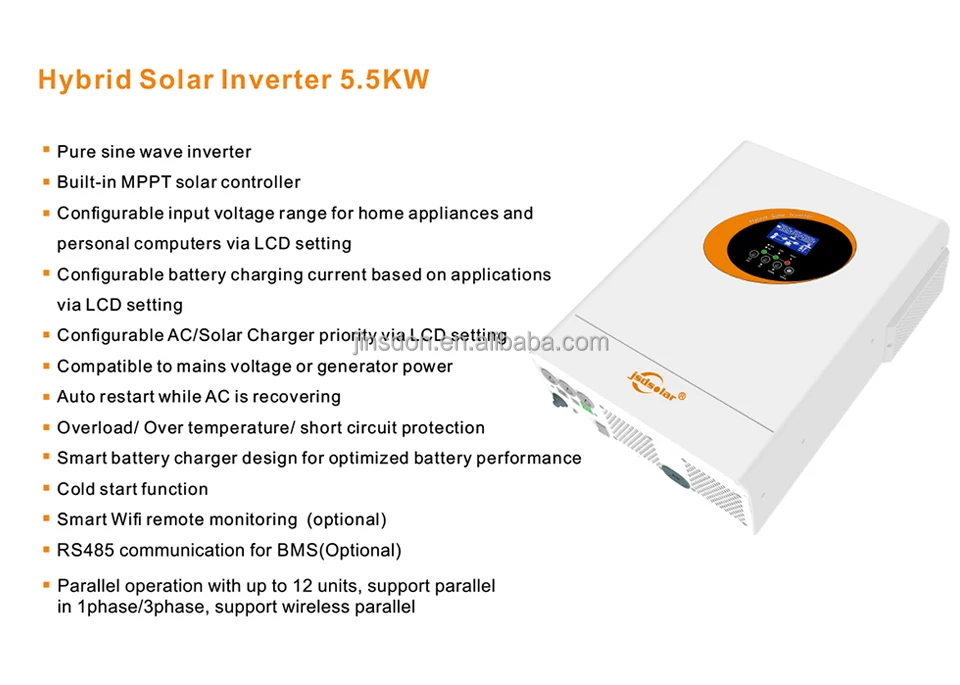

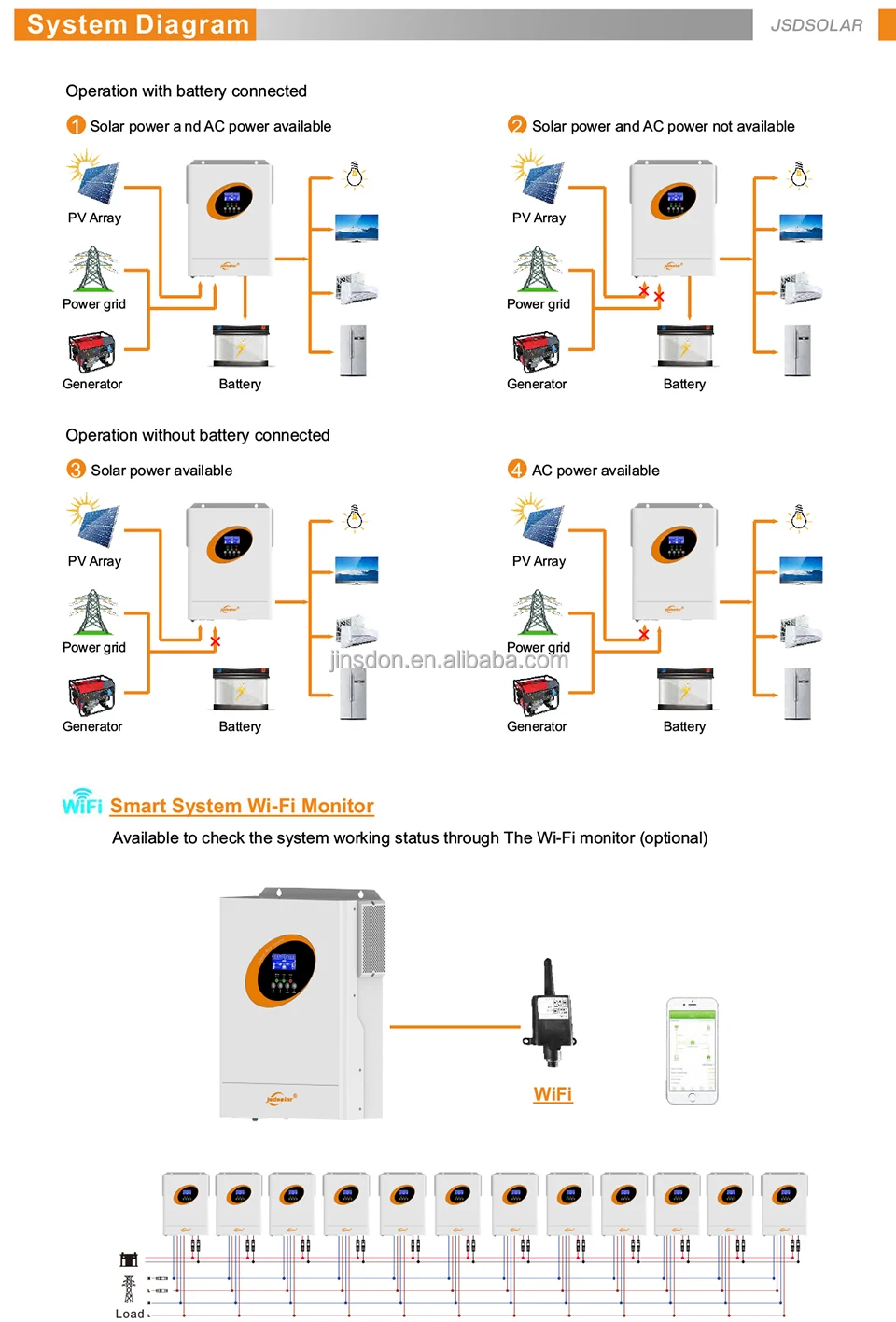

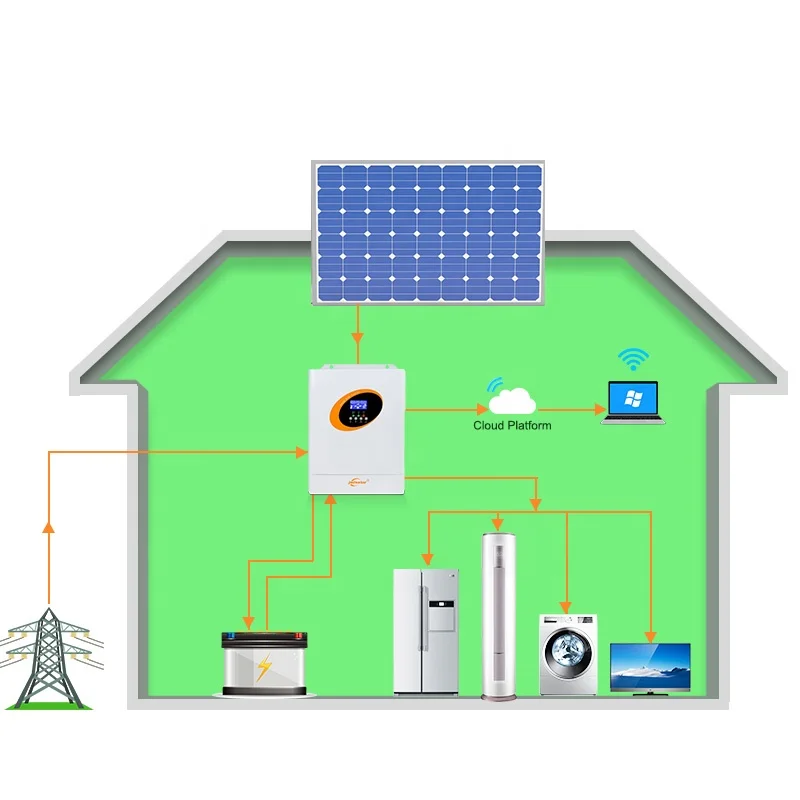

This is a multi-functional inverter/charge, combining functions of inverter, solar charge and battery charge to offer

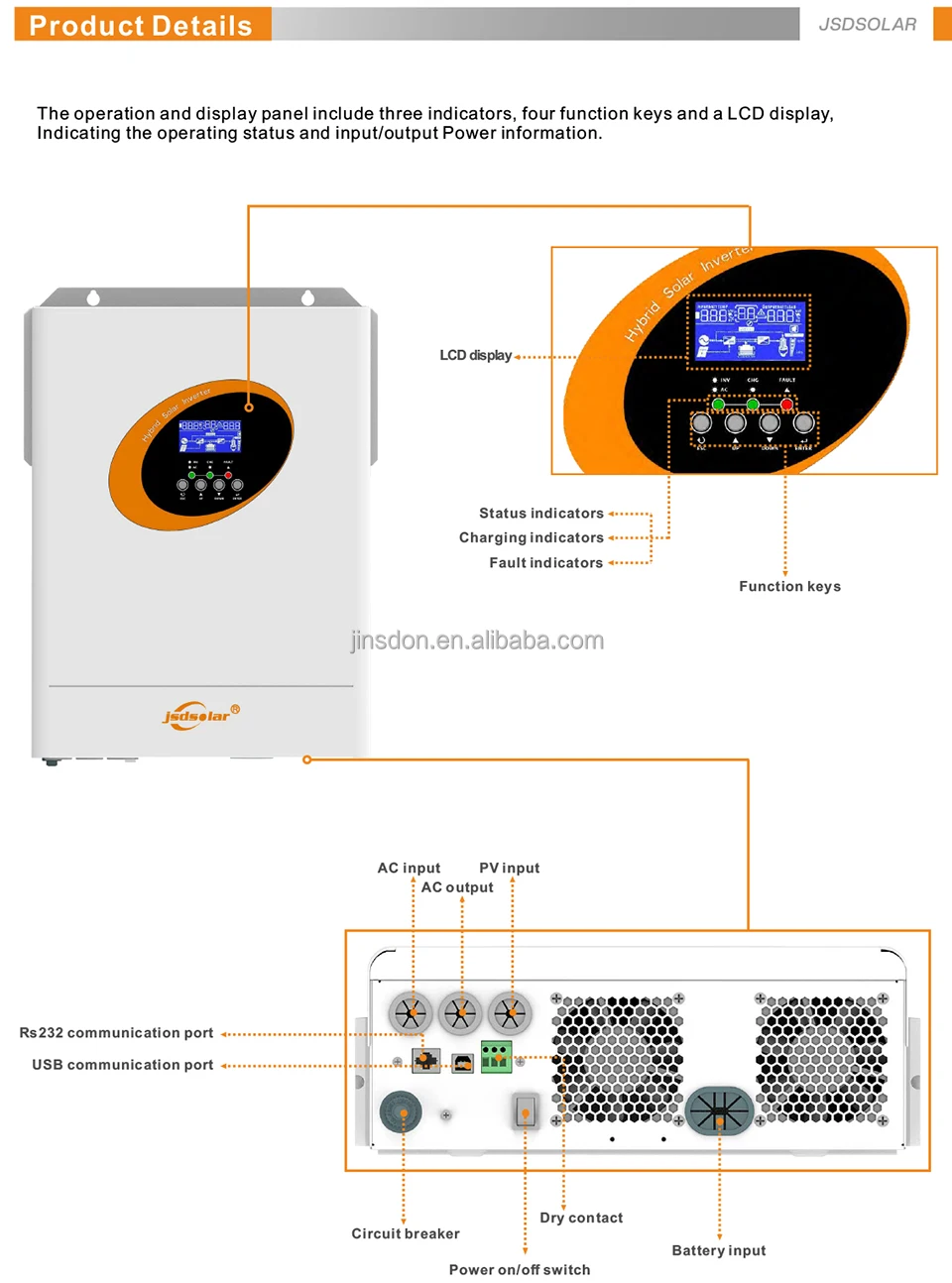

uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
This is a multi-functional inverter/charge, combining functions of inverter, solar charge and battery charge to offer
uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Specification
MODEL | J5500HP |
Capacity | 5.5KW |
Parallel Capability | YES,12units |
Input | |
Nominal Voltage | 230VAC |
Acceptable Voltage Range | 170-280 VAC (For Personal Computers),90-280 VAC (For Home Appliances) |
Frequency | 50/60HZ (Auto sensing) |
Output | |
Nominal Voltage | 220/230VAC ± 5% |
Surge Power | 10000VA |
Frequency | 50Hz/60Hz |
Waveform | Pure Sine Wave |
Transfer Time | 10ms (For Personal Computers) ; 20ms (For Home Appliances) |
Peak Effiffifficiency (PV to INV) | 97% |
Peak Effiffifficiency (Battery to INV) | 93% |
overload Protection | 5s@>=150% load; 10s 110%~150% load |
Crest Factor | 3:1 |
Admissible Power Factor | 0.6~1(inductive or capacitive) |
Battery | |
Battery Voltage | 48 VDC |
Floating Charge Voltage | 54 VDC |
Overcharge Protection | 63 VDC |
Charging Method | CC/CV |
Solar Charge & AC Charge | |
Solar Charge Type | MPPT |
Max. PV Array Power | 5500W |
Max. PV Array Open Circuit Voltage | 500 VDC |
PV Array MPPT Voltage Range | 120VDC~450 VDC |
Maximum Solar Input Current | 18A |
Maximum Solar Charge Current | 100A |
Maximum AC Charge Current | 60A |
Maximum Charge Current | 100A |
Communication Interface | USB/RS232/Dry-contact |
Environment | |
Operating Temperature | (-10℃~50℃) |
Storage Temperature | (-15℃~60℃) |
Humidity | 5% to 95% Relative Humidity (Non-condensing) |
Recommend Products
Company Profile
Headquarter & Factory Location | No68, Baigongao Industrial area, Fucheng Street, Longhua District, Shenzhen, China |
Industry Experience | 12-Year Manufacturer and Trading, Alibaba Supplier |
Product Range | Solar Inverter, Solar Battery (lithium ion battery), Solar System, Solar Street Light, Solar Garden Light, Solar Wall Light, Solar Controller etc. |
Main Market | Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.) |
Department | 2-teams Marketing Dept, 1-team R&D, 1 Manufacturing Center, 6-team producing Dept, After-sale Service Dept. |
Certificate | ISO9001:2008, CE, RoHs, SGS, TUV, EMC, FCC etc. |
Patent | Software Patent, Design Patent, Project Patent. |
