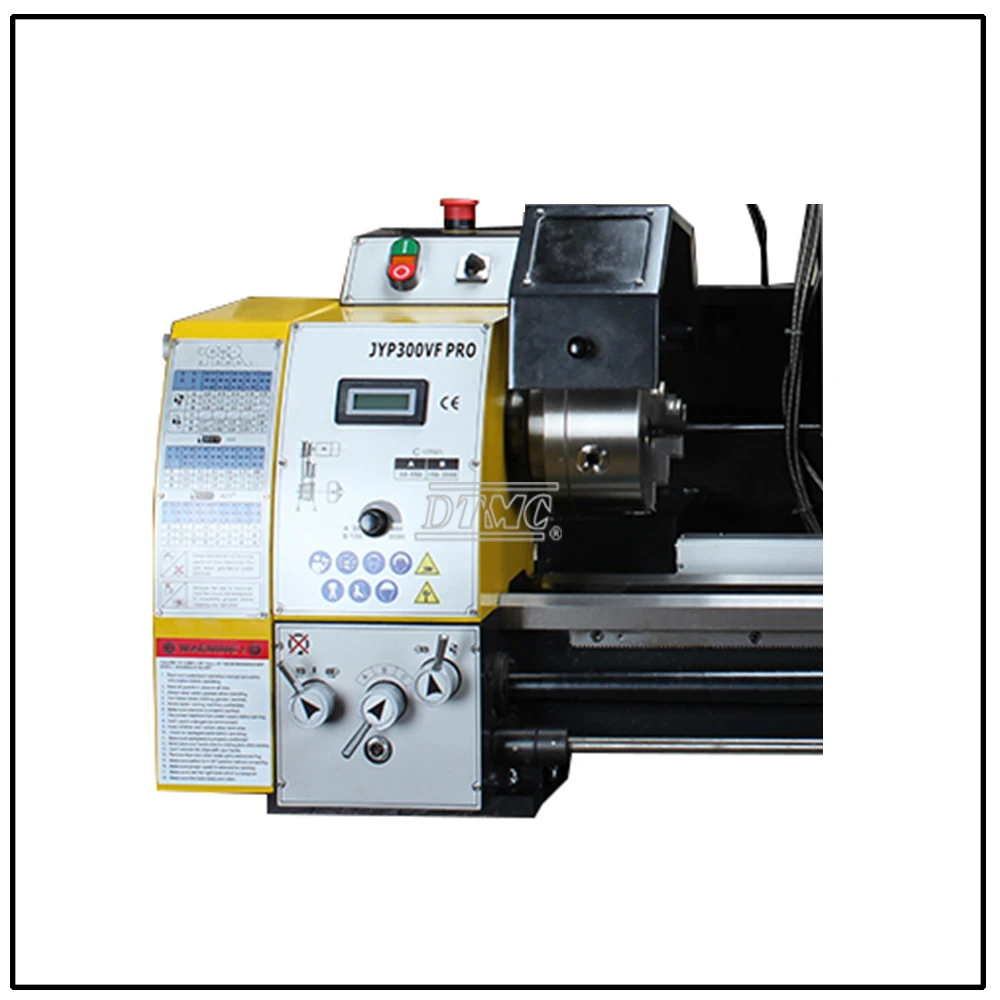

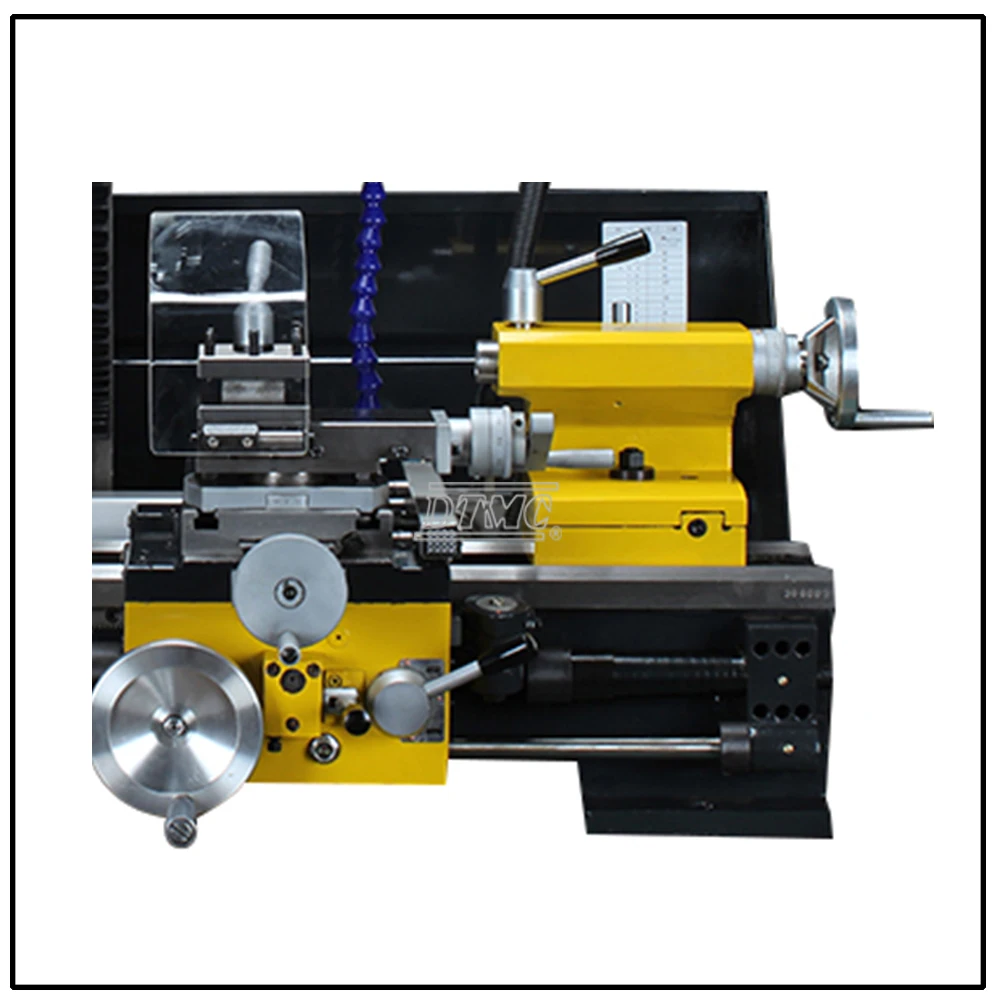

Precision Small Multi function Lathe Combined Mini Metal Lathe Machine JPY300
- Category: >>>
- Supplier: Tengzhou Datong Machine Tool Co. Ltd.
Share on (1600534130737):
Product Overview
Description
DTMC
Product Description
Features
Supersonic frequency hardened bed way.
Spindle speed readout.
Variable Speed.
Precision roller bearing for spindle.
High quality steel, ground and hardened gear inside headstock.
Various threads cutting function available.
Advantages
* Function: cutting ,drilling,Milling etc
* Mass production of a variety of small parts and high-speed machining of complex parts, diversity processing;
* Complex process can be done in one time
* Head tilt 90 degree
* Variable speed
* Metric and imperial thread cutting
* Full range of accessories available
* Converts to a multi-purpose machine with the milling attachment
* High Precision for Model Engineering
* Easy Operation & Convenient Reparations
Supersonic frequency hardened bed way.
Spindle speed readout.
Variable Speed.
Precision roller bearing for spindle.
High quality steel, ground and hardened gear inside headstock.
Various threads cutting function available.
Advantages
* Function: cutting ,drilling,Milling etc
* Mass production of a variety of small parts and high-speed machining of complex parts, diversity processing;
* Complex process can be done in one time
* Head tilt 90 degree
* Variable speed
* Metric and imperial thread cutting
* Full range of accessories available
* Converts to a multi-purpose machine with the milling attachment
* High Precision for Model Engineering
* Easy Operation & Convenient Reparations
Specification
MODEL | JYP300VF |
Distance between centers | 700mm |
Swing over bed | 300mm |
Swing over cross slide | 175mm |
Width of bed | 180mm |
Taper of spindle bore | MT5 |
Spindle bore | 38mm |
Number of spindle speeds | frequency converter |
Range of spindle speeds | 30-3000rpm |
Range of longitudinal feeds | 0.07 -0.65mm /r |
Range of inch threads | 8-56T.P.I 21kinds |
Range of metric threads | 0.2 -3.5mm 18kinds |
Top slide travel | 80mm |
Cross slide travel | 140mm |
Tailstock quill travel | 94mm |
Taper of tailstock quill | MT3 |
Motor | 1.5KW |
Packing size | 1400*750*1010mm |
Net /Gross weight | 208kg/245kg |

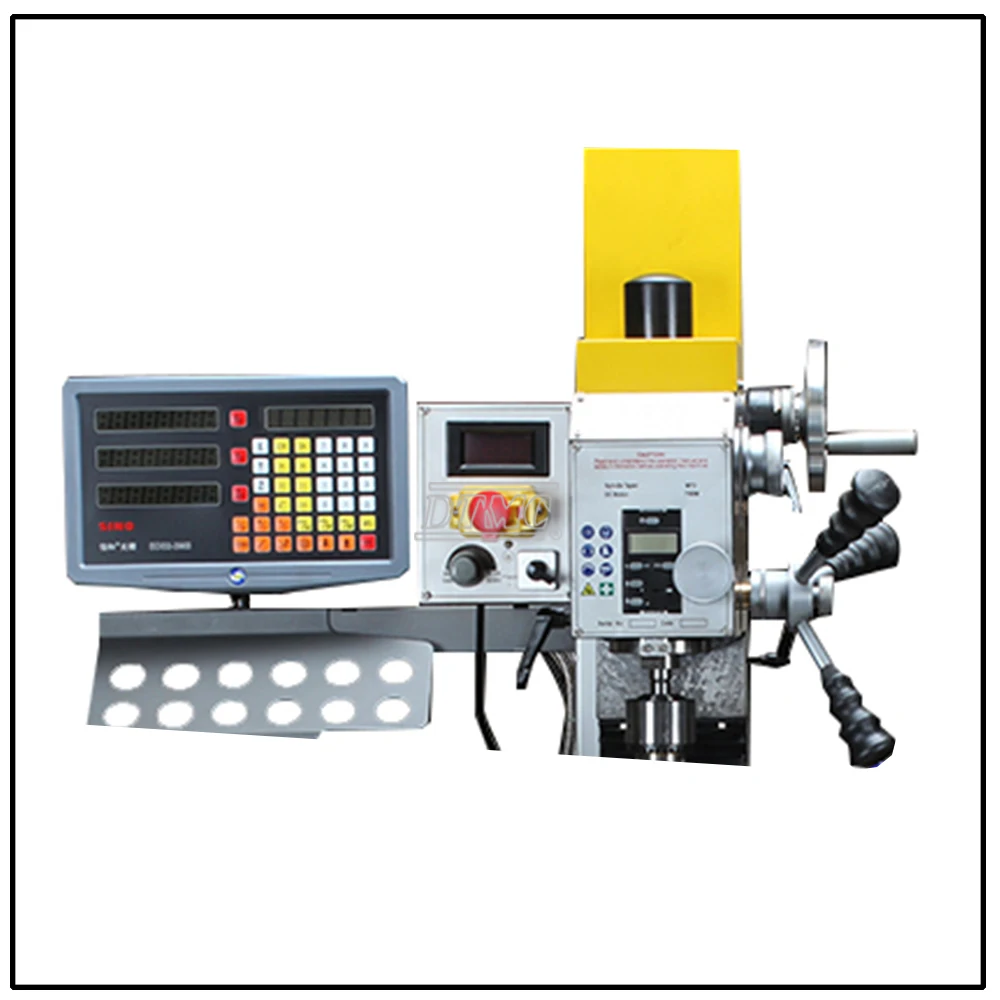

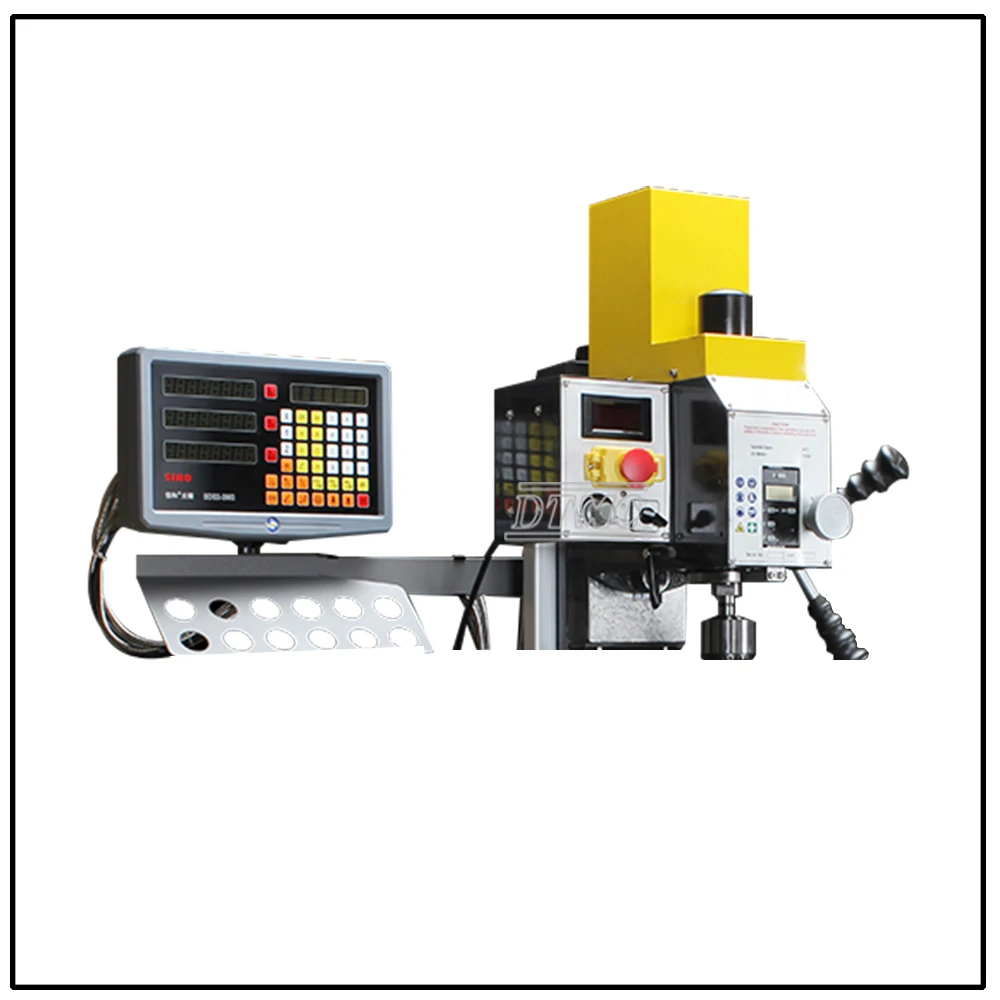

Milling head spindle taper | MT2 |
Drilling capacity | 20mm |
End milling capacity | 16mm |
Face milling capacity | 63mm |
Spindle travel | 50mm |
T-slot width | 10mm |
Spindle speed range | 50-2250rpm |
Motor power | 750W |
Voltage | as your requirements |
N.W./G.W. | 300/340 kgs |
