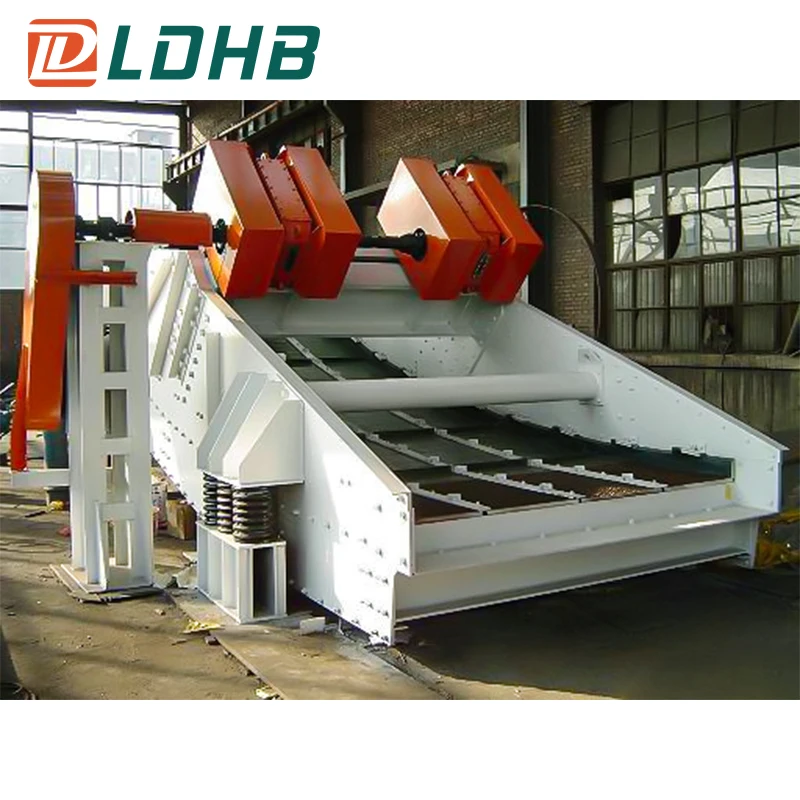

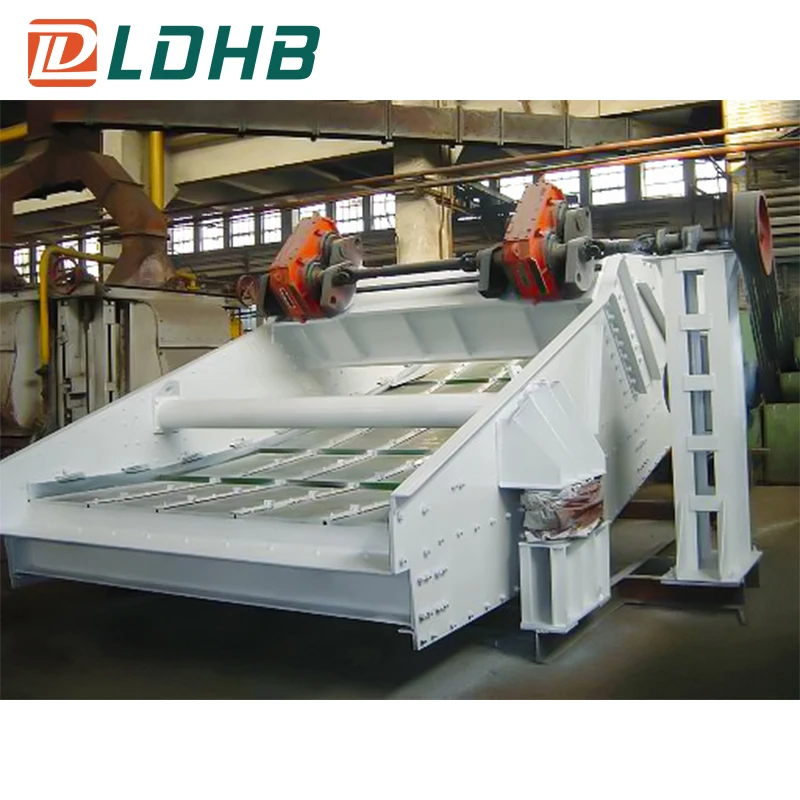

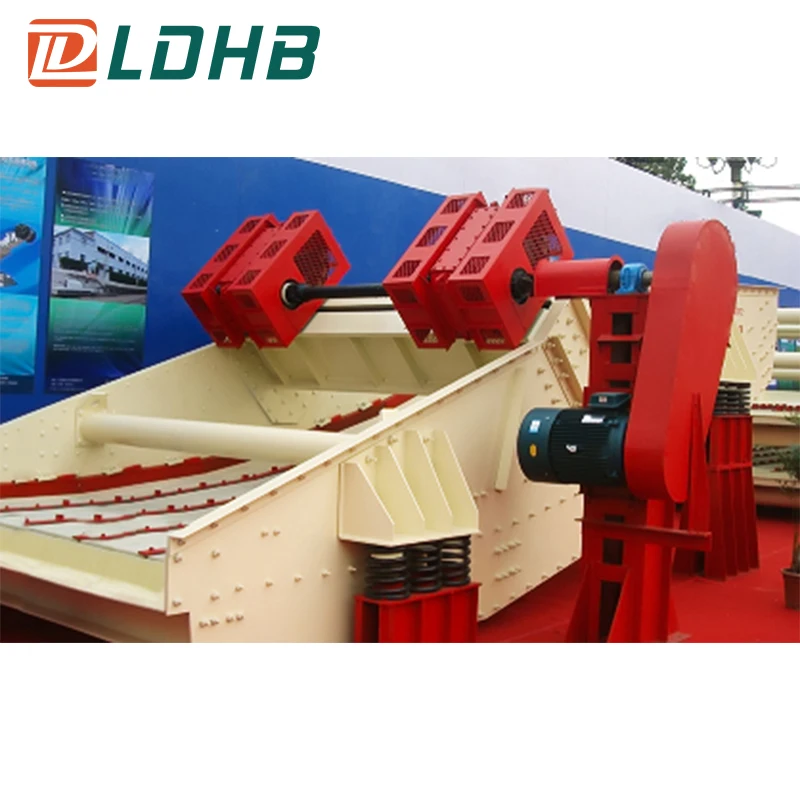

Factory price mining vibrating double deck banana screen
- Category: >>>
- Supplier: Luoyang Longding Environmental Protection Technology Co. Ltd
Share on (1600534132604):
Product Overview
Description
Product Description

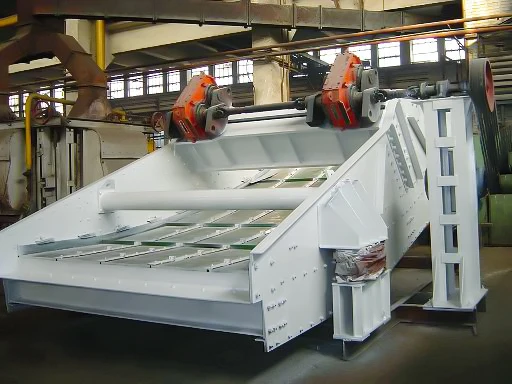

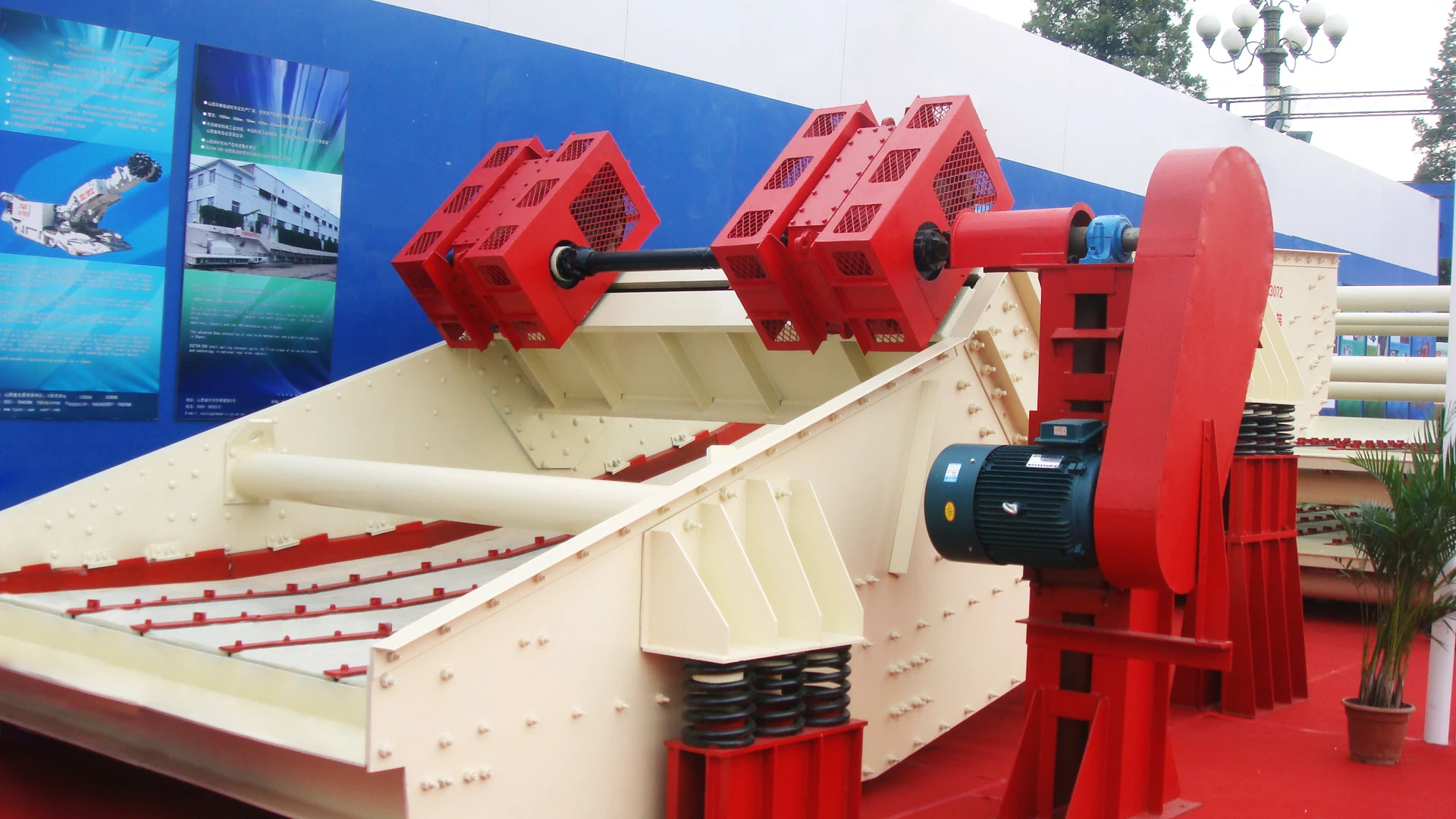

JR banana screen is suitable for screening, dehydration, medium, desliming, and other operations of coal, gravel aggregate, minerals, and other materials. This series adopts different screening areas, screen seam size, number of screen surface segments, and leaning angle of the screen according to the different uses and processing capacity of the screen. It is divided into single-layer and double-layer products. The working area is 5.7㎡~30.2㎡. There are 20 main specifications and models, which can basically meet the production needs of various types of mines and coal preparation plants.
Working Principle
The inlet end of the constant thickness screen has a larger slope screen surface, and then it descends gradually at a certain angle until the discharge port. The sloped screen surface of the inlet port can make more materials pass through the screen surface with higher screening speed and thinner material layering. The bulk material passes through the steep slope faster, this earlier stratification makes the fine particles closer to the screen surface faster and can pass through the screen gap relatively unimpeded. Therefore, the banana screen has the characteristics of higher screening efficiency and much higher processing capacity than the traditional grading screen, and it is an advanced screening machine.

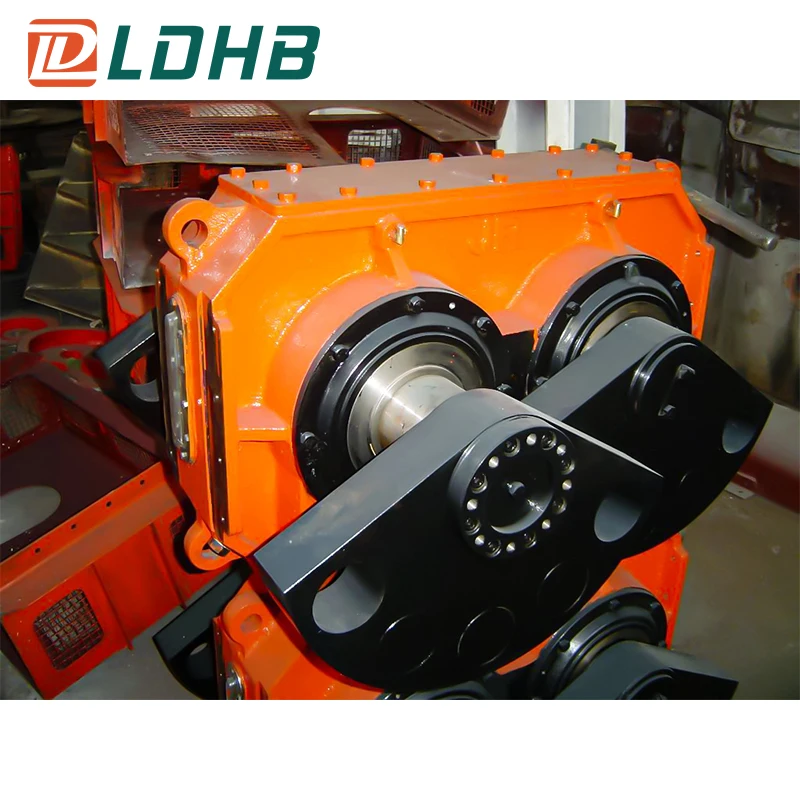

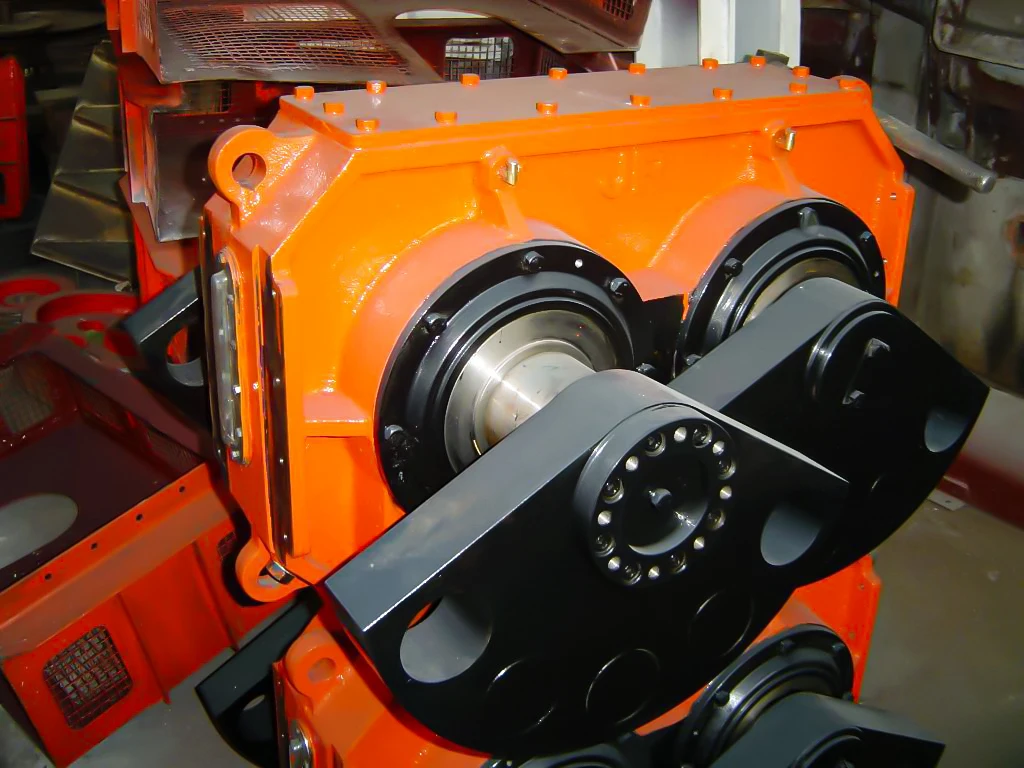

Generator
Specification
Model | Screen layer | Screen size (W*L(m) | Screen Area (m2) | Segment Qty | Model | Screen layer | Screen size (W*L(m) | Screen Area (m2) | Segment Qty |
JR1848 | 1 | 1.8×4.8 | 8.6 | 4 | |||||
JR1861 | 1 | 1.8×6.1 | 10.8 | 5 | 2JR1861 | 2 | 1.8×6.1 | 10.8 | 5 |
JR2448 | 1 | 2.4×4.8 | 11.5 | 4 | |||||
JR2461 | 1 | 2.4×6.1 | 14.4 | 5 | 2JR2461 | 2 | 2.4×6.1 | 14.4 | 5 |
JR2473 | 1 | 2.4×7..3 | 17.2 | 6 | 2JR2473 | 2 | 2.4×7.3 | 17.2 | 6 |
JR2485 | 1 | 2.4×8.5 | 20.1 | 7 | |||||
JR3061 | 1 | 3.0×6.1 | 18 | 5 | 2JR3061 | 2 | 3.0×6.1 | 18 | 5 |
JR3073 | 1 | 3.0×7.3 | 21.6 | 6 | 2JR3073 | 2 | 3.0×7.3 | 21.6 | 6 |
JR3085 | 1 | 3.0×8.5 | 25.2 | 7 | |||||
JR3661 | 1 | 3.6×6.1 | 21.6 | 5 | 2JR3661 | 2 | 3.6×6.1 | 21.6 | 5 |
JR3673 | 1 | 3.6×7.3 | 25.9 | 6 | 2JR3673 | 2 | 3.6×7.3 | 26 | 5 |

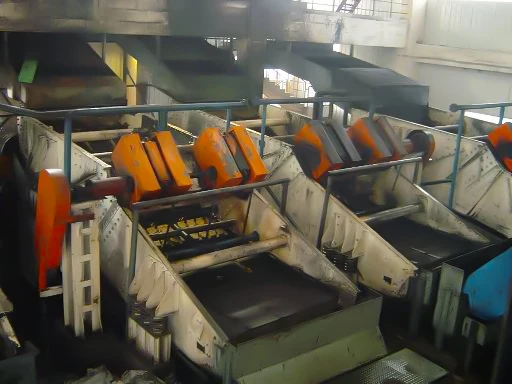

Working Site

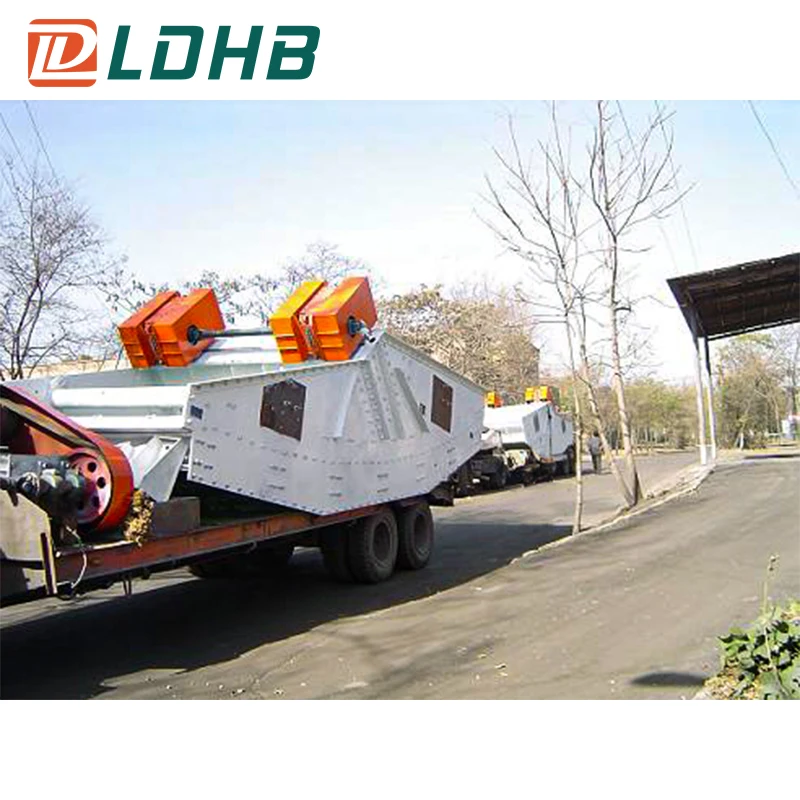

Packing & Delivery
Packaging | ||
Model | JR2461 | |
Weight | 3000KG | |
Packaging Details | The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request. | |
Our Company
Certifications
Exhibition & Visiting
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* 24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.
