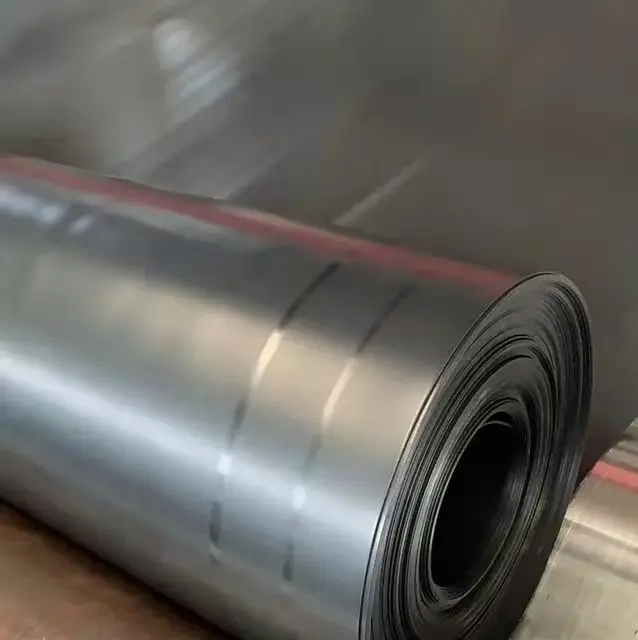

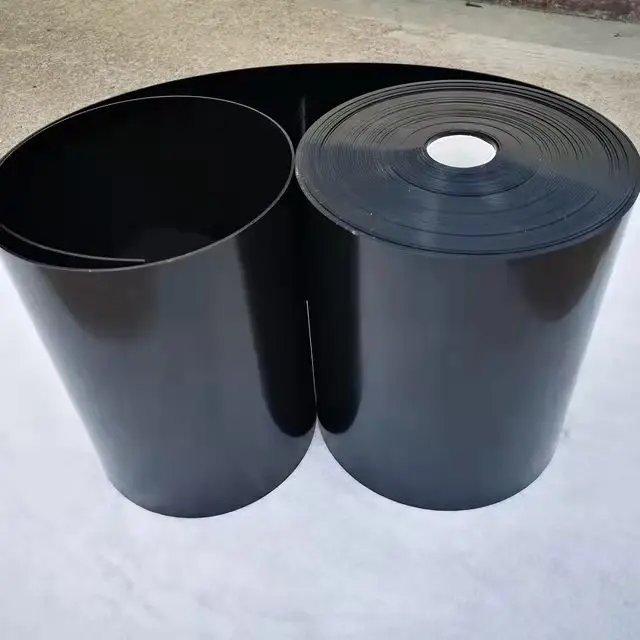

Factory Supply GM 13 Standard Geomembrane Liner 1.0mm 40mil for waterproof pond Lining Project

Product Overview

Description



Affordable High Density Polyethylene(HDPE) Geomembrane

                                                                         China Real Geomembrane OEM Factory since 2005

                                      Quality is our Culture,competitive price is our core



China real geomembrane OEM factory over more than100 countries since 2005.afforadable price ,quality product,geomembrane of all standard from Recycled to GB, CJ and ASTM, GRI - GM13

Trade assurance order is available.

You will receive 100% refund of trade assurance amount for orders not meeting agreed delivery or quality terms.

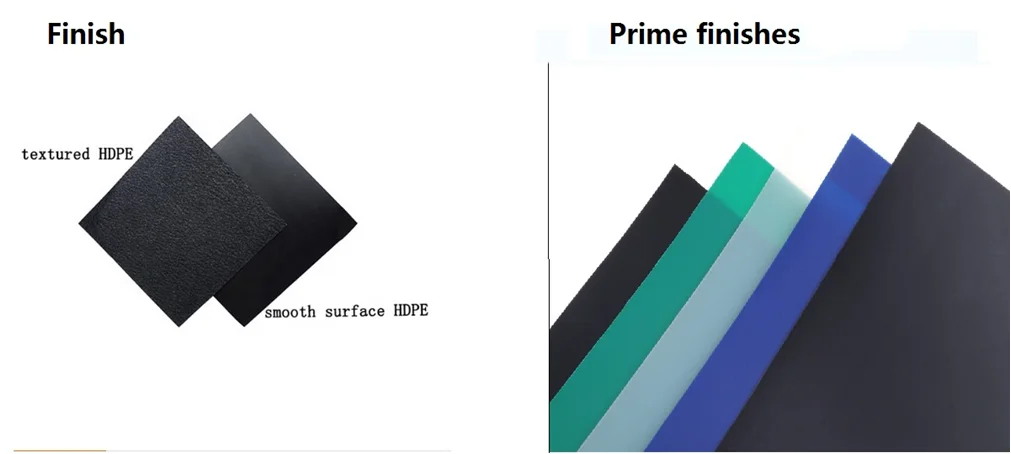

Finish	Smooth or single textured or double textured
Prime finishes	Black, white, green and blue
Width	1m, 2m, 3m, 4m, 5.8m, 6m, 7m, 8m, 12m
Length	50m,100m or as you requested
Thickness	0.1-3mm





ASTM GRI GM13 Geomembrane Parameter
	Thickness (mm)	0.75	1.0	1.25	1.5	2.0	2.5	3.0
1	Density (g/m2)	≥0.94
2	Tensile yield strength (N/mm)	≥11	≥15	≥18	≥22	≥29	≥37	≥44
3	Tensile breaking strength(N/mm)	≥20	≥25	≥33	≥40	≥53	≥67	≥80
4	Elongation at yield(%)	≥12
5	Elongation at break(%)	≥700
6	Tear resistance(N)	≥93	≥125	≥160	≥190	≥250	≥315	≥375
7	Puncture strength(N)	≥240	≥320	≥400	≥480	≥640	≥800	≥960
8	Tensile load stress cracking(h)	≥300(no requirement for 0.75mm thick)
9	Carbon black content(%)	2.0-3.0
10	Oxidative induction time, OIT(min)	Constant pressure OIT≥100
11		High pressure OIT≥400
12	85 ℃ thermal aging	≥55
13	Ultraviolet rays, OIT retention rate after 1600 hours of UV irradiation(%)	≥50
Note	A. The technical performance index of thickness specification not listed in the table shall be implemented according to interpolation method; B. Either constant OIT or high pressure OIT of Item 11 and 13 could be tested.

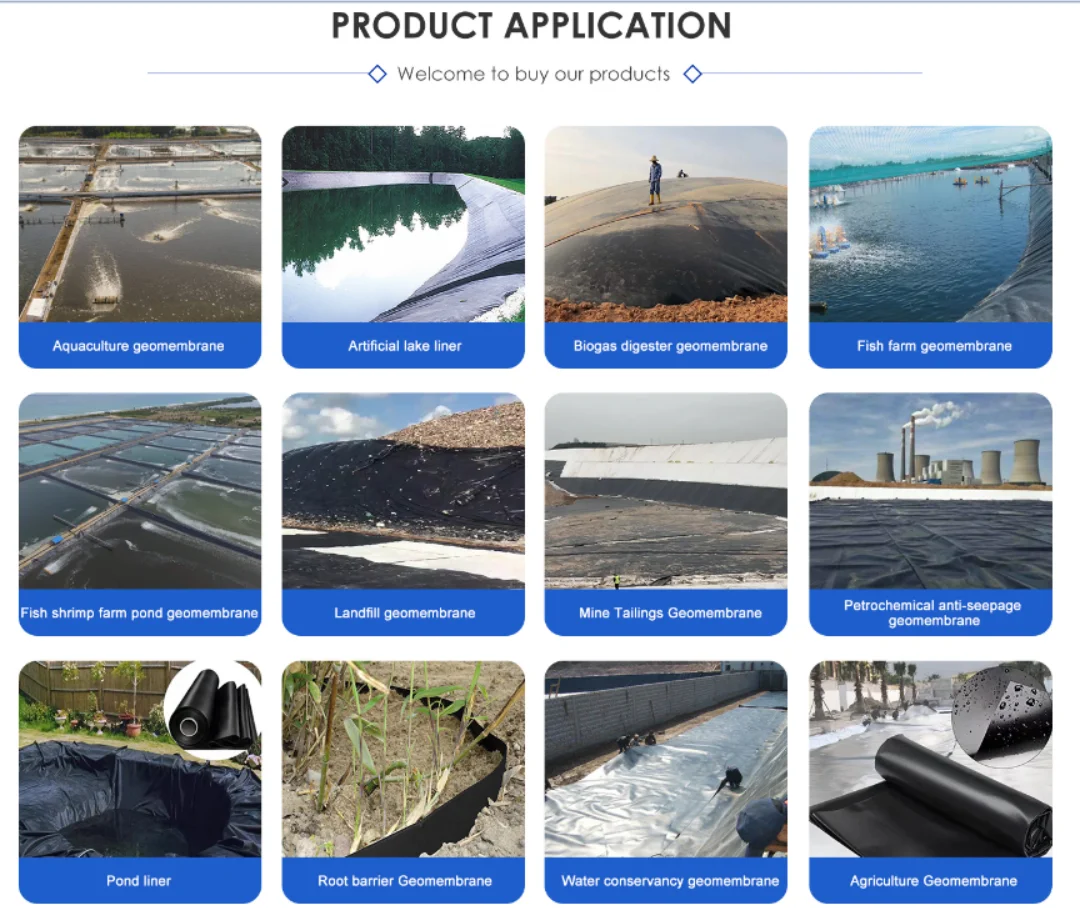

1. The geomembrane is suitable for environmental protection and sanitation, such as landfill, sewage treatment plant, power plant regulating pool, industrial and hospital solid waste, etc;
2. The geomembrane is suitable for water conservancy projects, such as seepage prevention, leakage stoppage, reinforcement, seepage control of water channel, vertical core wall, slope protection, etc;
3. The geomembrane is suitable for Municipal Engineering: subway, building underground engineering, planting roof, roof garden, sewage pipe seepage control, etc;
4. The geomembrane is suitable for Gardens: artificial lake, river course, reservoir, pond bottom of golf course, slope protection, waterproof and moisture-proof of green lawn, etc;
5. The geomembrane is suitable for petrochemical industry: chemical plant, oil refinery, oil storage tank, chemical reaction tank, sedimentation tank lining, secondary lining, etc;

6. The geomembrane is suitable for mining industry: washing pond, heap leaching pool, ash yard, dissolving pool, sedimentation tank, storage yard, bottom lining seepage control of tailings, etc;
7. The geomembrane is suitable for traffic facilities, such as highway and culvert;
8. The geomembrane is suitable for agriculture: anti-seepage of reservoir, drinking pool, storage pond, irrigation system, etc;
9. The geomembrane is suitable for aquaculture industry: intensive and industrialized aquaculture pond, fish pond, shrimp pond lining, sea cucumber enclosure slope protection, etc;
10. The geomembrane is suitable for salt industry: salt field crystallization pool, brine pool, etc.

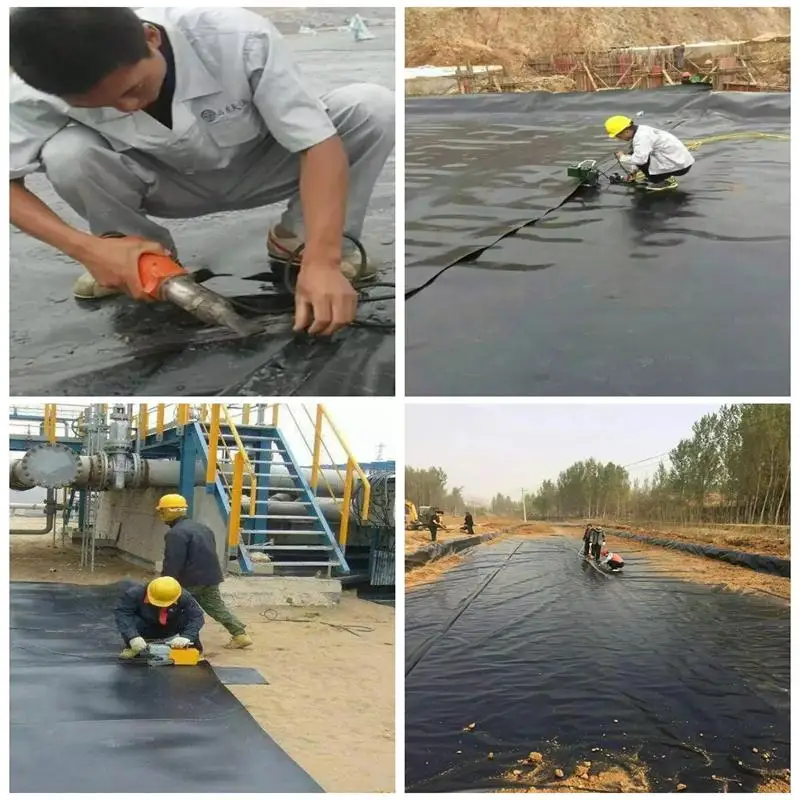

Construction method of Geomembrane:

1. The slope should be laid from the top to the bottom, and should not be pulled too tightly. A margin of 1.50% should be reserved for local subsidence and tension.
2. The longitudinal joints of two adjacent frames shall not be on a horizontal line, and shall be staggered by more than 1m;
3. The longitudinal joint should be more than 1.50M away from the dam toe and bending foot, and should be set on the plane;
4. When the slope is laid, the film spreading direction should be basically parallel to the slope line.
5. In construction, the sand or clay with small diameter should be used to level the base surface, and then the geomembrane should be laid. The geomembrane should not be stretched too tightly. The parts embedded in the soil at both ends are wavy. On the geomembrane, a transition layer of about 10cm is paved with fine sand or clay.
