160kw 2000kw Melting induction furnace 100kg 500kg 1T 2T 3T for copper melting furnace
- Category: >>>
- Supplier: Luoyang Ruixinsheng Industrial Technology Co. Ltd.
Share on (1600534157558):
Product Overview
Description
Products Description

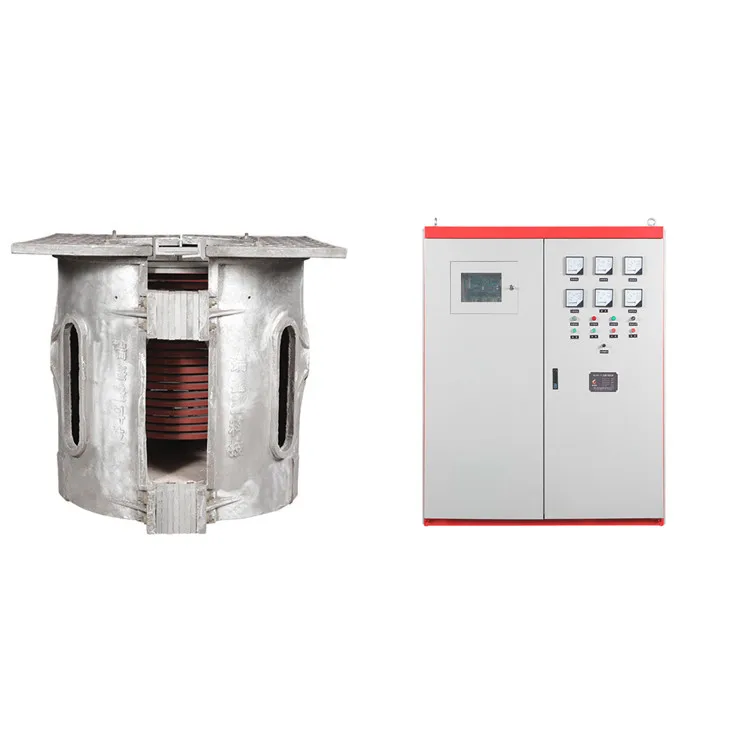

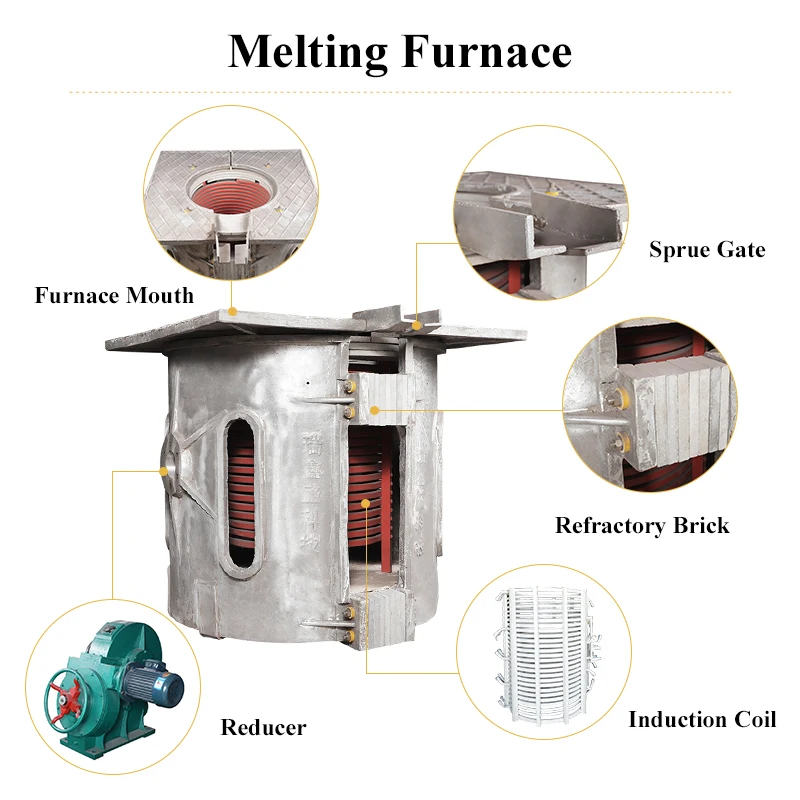

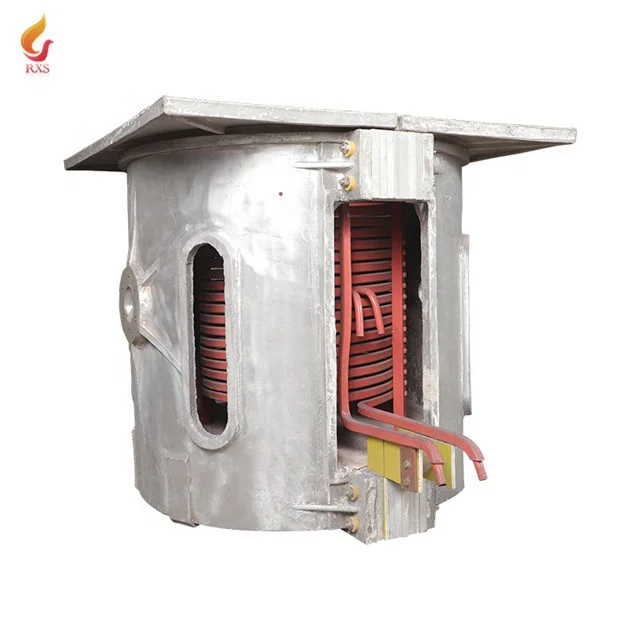

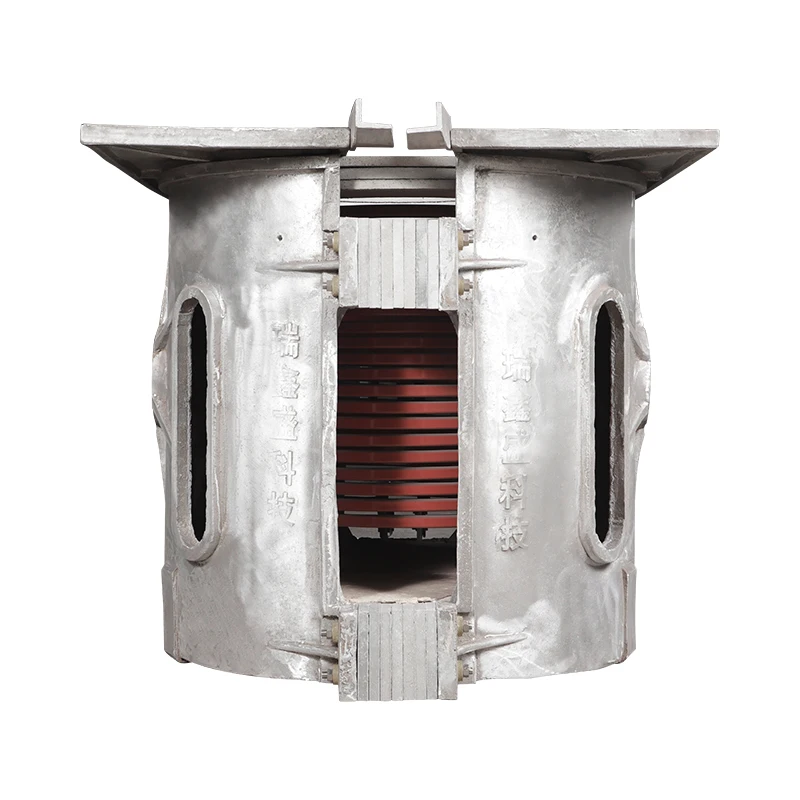

Aluminum Melting Furnace
Adopting reduction gears tilting furnace device.The furnace body is made of alloy aluminum foundry casting. Simple operation, easy maintenance, convenient observation. The aluminum shell furnace is composed of reduction gears, bracket and induction coil,etc.Mainly used for smelting cast iron, stainless steel, alloy steel, non-ferrous metals, including heavy metals (such as copper, lead) and precious metals (such as gold,silver),etc.The equipment is used in metallurgical industry, casting industry, non - metal smelting and other industries.

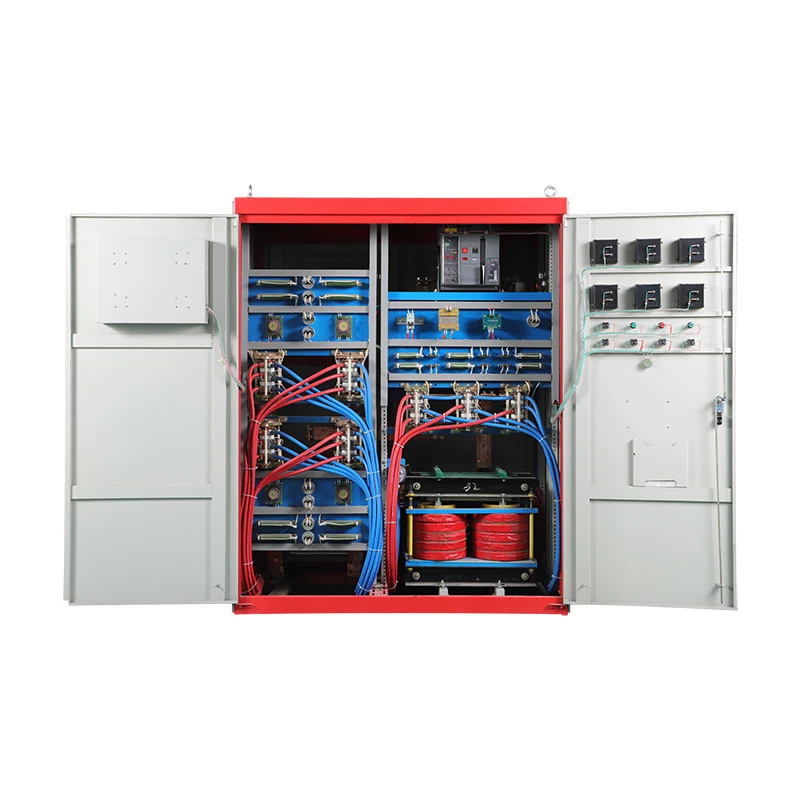

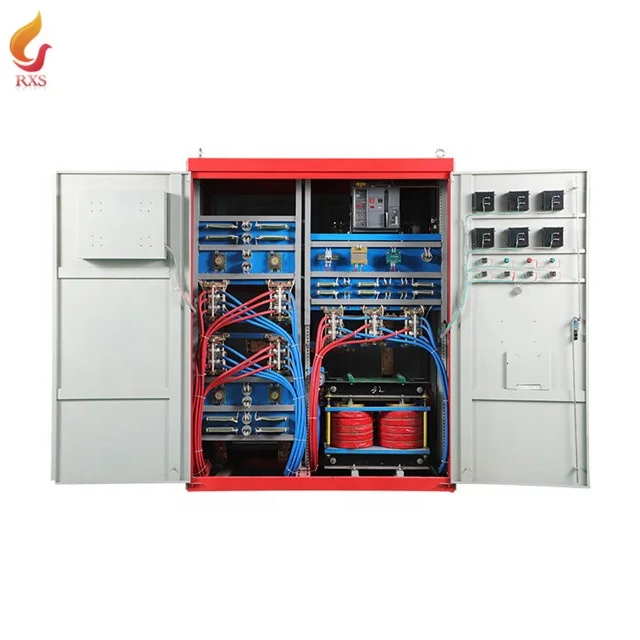

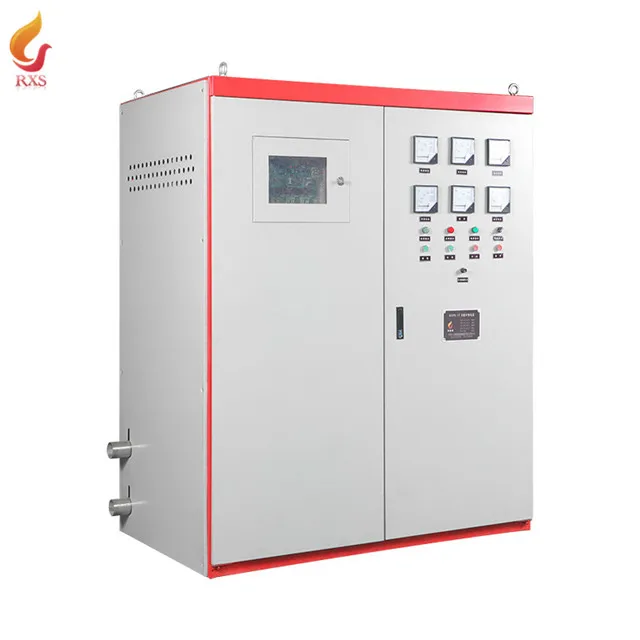

Power supply Cabinet
This set of equipment can realize fully automatic remote control, including PLC programmable controller, HMI man-machine interface or industrial control computer system, industrial control configuration software and various sensors. It can realize automatic operation,such as automatic constant temperature, automatic oven and anti-wearing furnace alarm, which is safer and moreconvenient to use. The power cabinet body is designed with a fully enclosed structure, and the cabinet is made of 3mm steel plate. The protection class is IP54. The main power cabinet adopts a split modular design, which facilitates the installation and transportation of equipment. All the originals used in the whole system are from well-known brands with reliable quality, and they must be rigorously tested and screened after the factory.
Products advantages
Induction furnace for cast iron steel electric furnace 100kg capacity metal melting machine
Overview of the advantages of our company's intermediate frequency electric furnace:
A. Electric furnace is advanced-- Full digital control.
B. Electric furnace has good energy saving-- Low power consumption.
C. Good reliability-- Mature technology, no worries.
D. Low failure rate-- Mature design, continuous improvement, so that the failure rate of equipment is
almost zero.
E. Goodoperability-- Flexible use, reducing operator requirements.
F. Good economy-- Reasonable price.
G. Specific technical performance: Power factor above 0.95, Small harmonics do not require reactive power compensation equipment, two furnaces can work at the same time, making full use of the evening trough time capacity. One set of equipment is equivalent to two sets of equipment. 15% energy saving compared to the same capacity general electric furnace.
Rated Capacity (t) | Rated Power (KW) | Input Voltage (V) | Input Current (A) | DC Voltage (V) | DC Current (A) | IF Voltage (V) | IF Frequency (HZ) |
0.1 | 100 | 3 Phases 380V | 160 | 500 | 200 | 2200 | 100-1000HZ |
0.25 | 200 | 352 | 400 | ||||
0.5 | 400 | 650 | 800 | ||||
0.75 | 500 | 816 | 1000 | ||||
1 | 800 | 3 Phases 660V | 730 | 890 | 900 | 3000 | |
1.5 | 1200 | 1100 | 1350 | ||||
2 | 1500 | 6Phases 750V | 612 | 1000 | 1500 | 3500 | |
3 | 2000 | 816 | 2000 | ||||
5 | 3500 | 1428 | 3500 | ||||
8 | 5000 | 2040 | 5000 |
Relevant Issues
Details Images
cooling tower
Electric furnace coils, yokes, and water-cooled cables, that carry large currents in power cabinets all require water cooling. we have designed a unique medium frequency water cooling closed circulation system.
Copper bars
Inverter copper row uses electrolytic copper T2 copper row，purity is 99.9%，copper row thickness is not less than 6mm. Standard delivery length is 5 meters per set.
Induction coils
The induction coil copper tube is made of Chinalco luoyang copper , which is made of solid, durable and highly conductive TU1 oxygen-free copper tube.

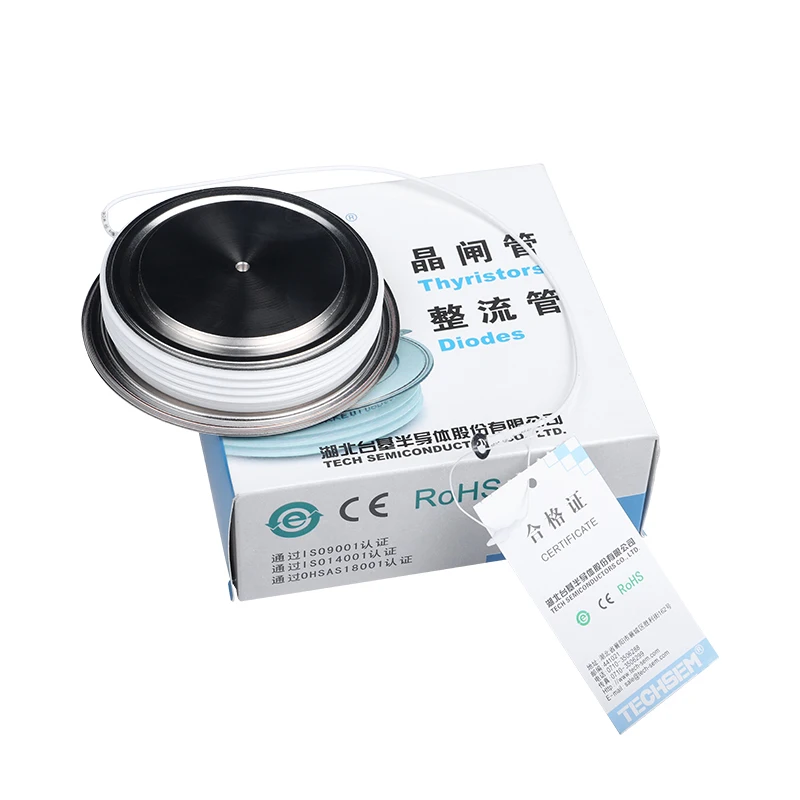

Thyristor + Radiator Components
With high efficiency, no mechanical noise and wear, rapid response, small volume, light weight， Internal use of voltage regulation, power regulation, rectification integration technology.

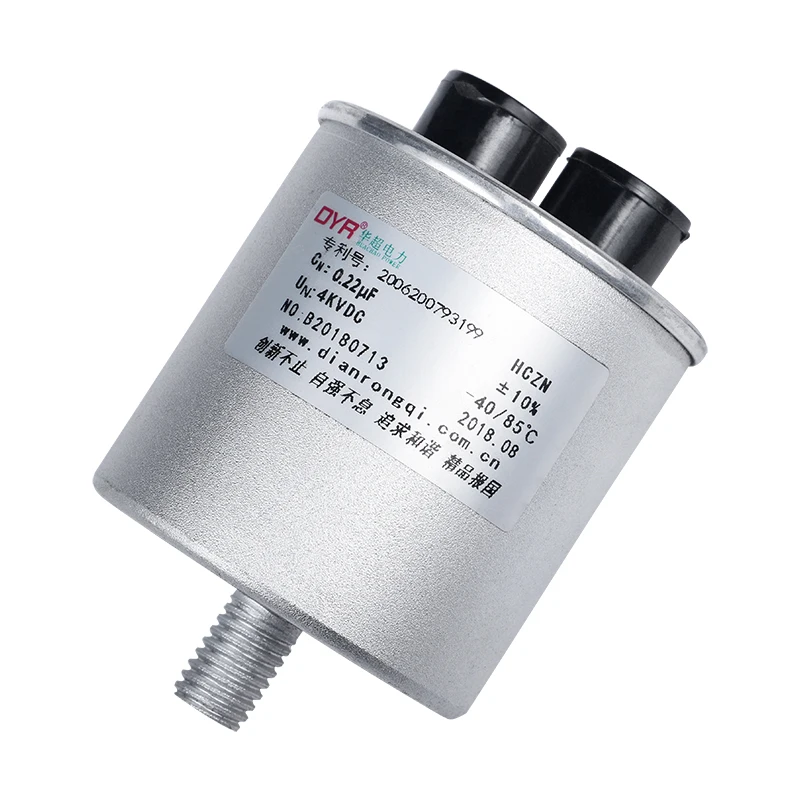

capacitor
It is mainly used to compensate the reactive power of inductive load in power system to improve power factor, improve voltage quality and reduce line loss.
Water-cooled cable
In high temperature working environment, no deformation, good contact, long life, impermeability > 10kg/cm2, easy to replace,
conducive to maintenance.
conducive to maintenance.
Corollary equipment
transformer
Is the use of electromagnetic induction principle to change the ac voltage device, the main components are the primary coil,
secondary coil and iron core .The main functions are: voltage transformation, current transformation, impedance transformation,
isolation, voltage stabilization (magnetic saturation transformer) and so on
secondary coil and iron core .The main functions are: voltage transformation, current transformation, impedance transformation,
isolation, voltage stabilization (magnetic saturation transformer) and so on
Accessory Supply
About Us
Our Services
Professional service staff at any time to answer your phone 7x24 hours, to provide you with professional product problem solving. also have professional network online customer service for you to answer questions.
After-sales service commitment
We provide fast and reliable emergency service. When traffic permits, we can respond quickly within 1 hour after receiving the maintenance notice, and send professional maintenance personnel to arrive at the scene within 24 hours.Professional service staff at any time to answer your phone 7x24 hours, to provide you with professional technical guidance, help you remote diagnosis of problems, minimize downtime, we always provide you with a full range of after-sales support.
Packing & Delivery
Packing: Usually machine is packed with wooden case and standard export carton, plywood carton or as your requirement.
Ship: By sea/air/train/car
Lead Time :
Quantity(Set) | 1 | >1 |
Est. Time(days) | 15 | To be negotiated |
