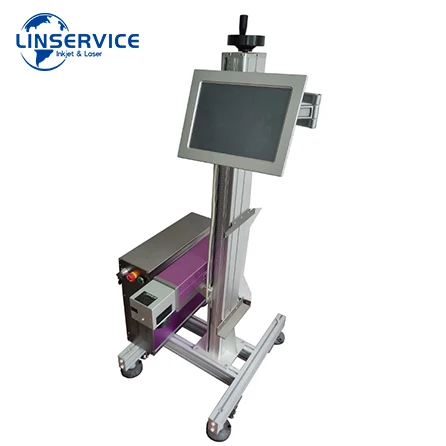

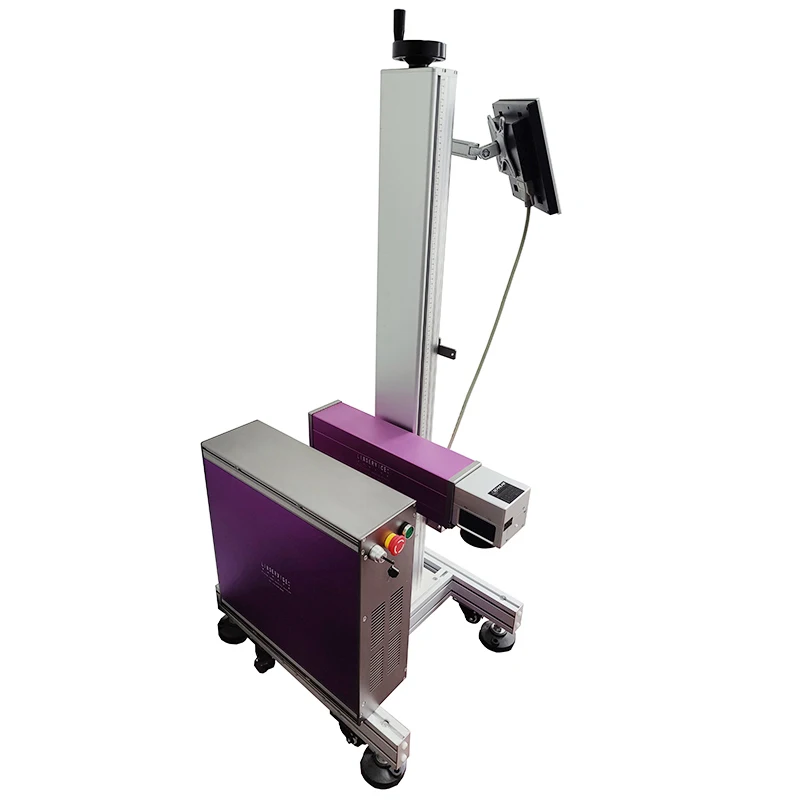

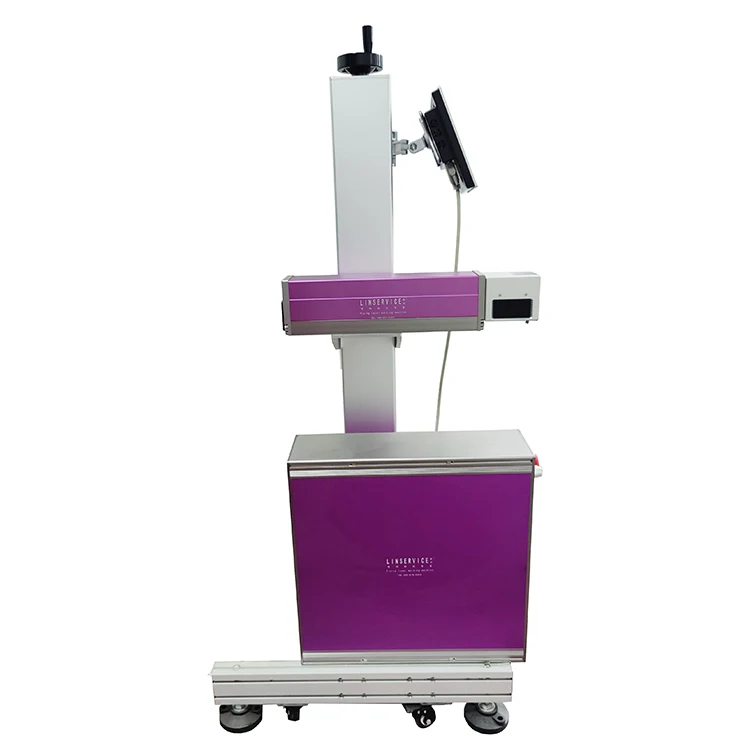

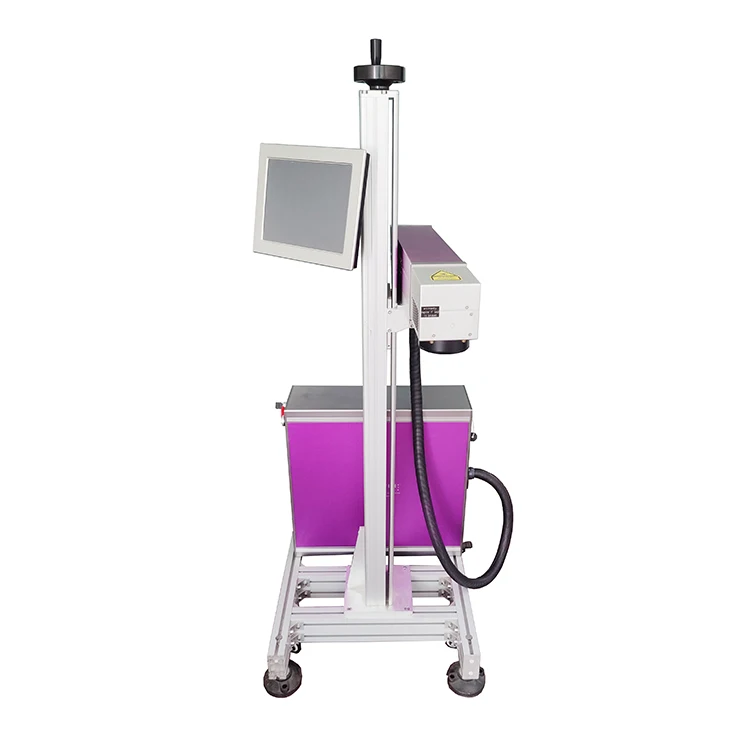

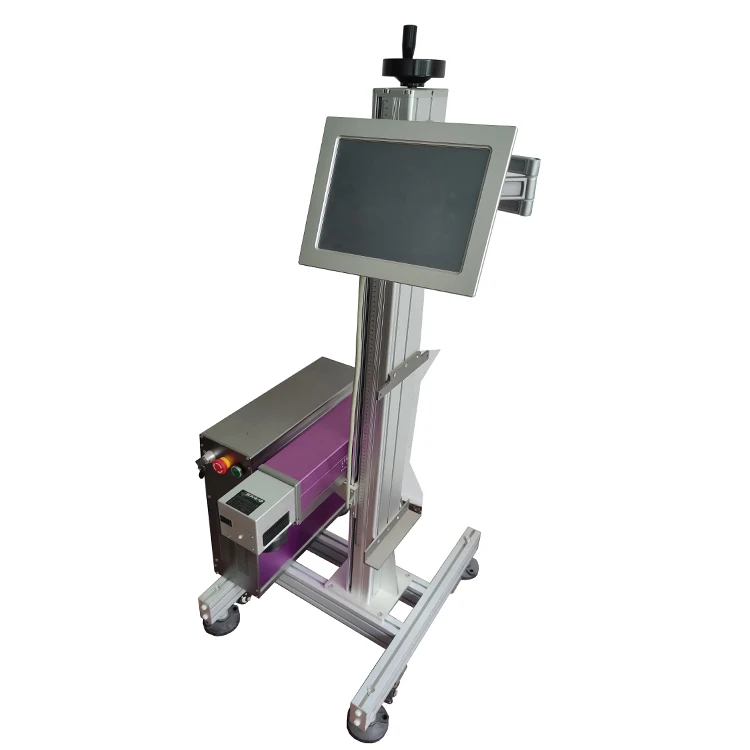

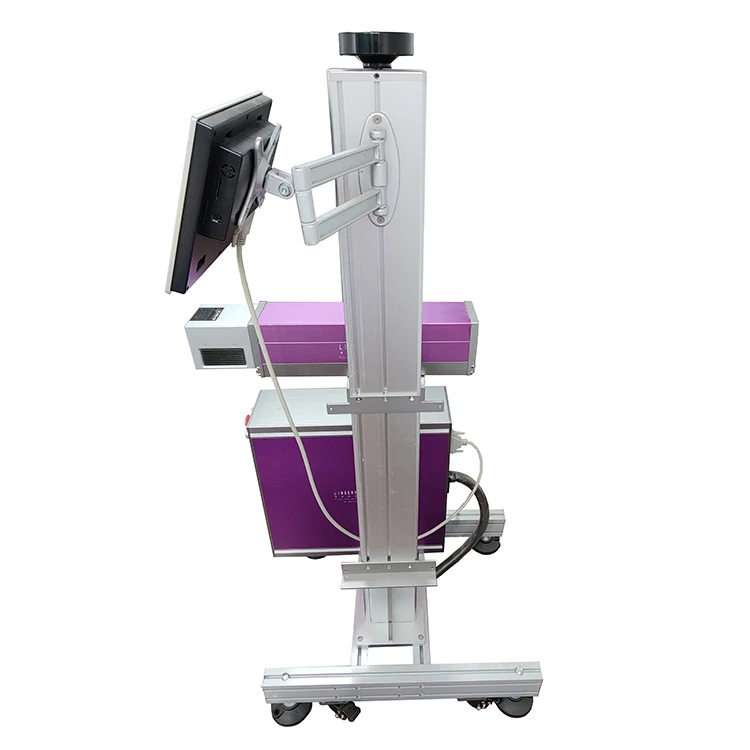

Linservice portable laser qr code jet coding machine for bottle metal jewelry plastic steel aluminum gold silver
- Category: >>>
- Supplier: Chengdu Linservice Industrial Inkjet Printing Technology Co. Ltd.
Share on (1600534163380):
Product Overview
Description
Products Description

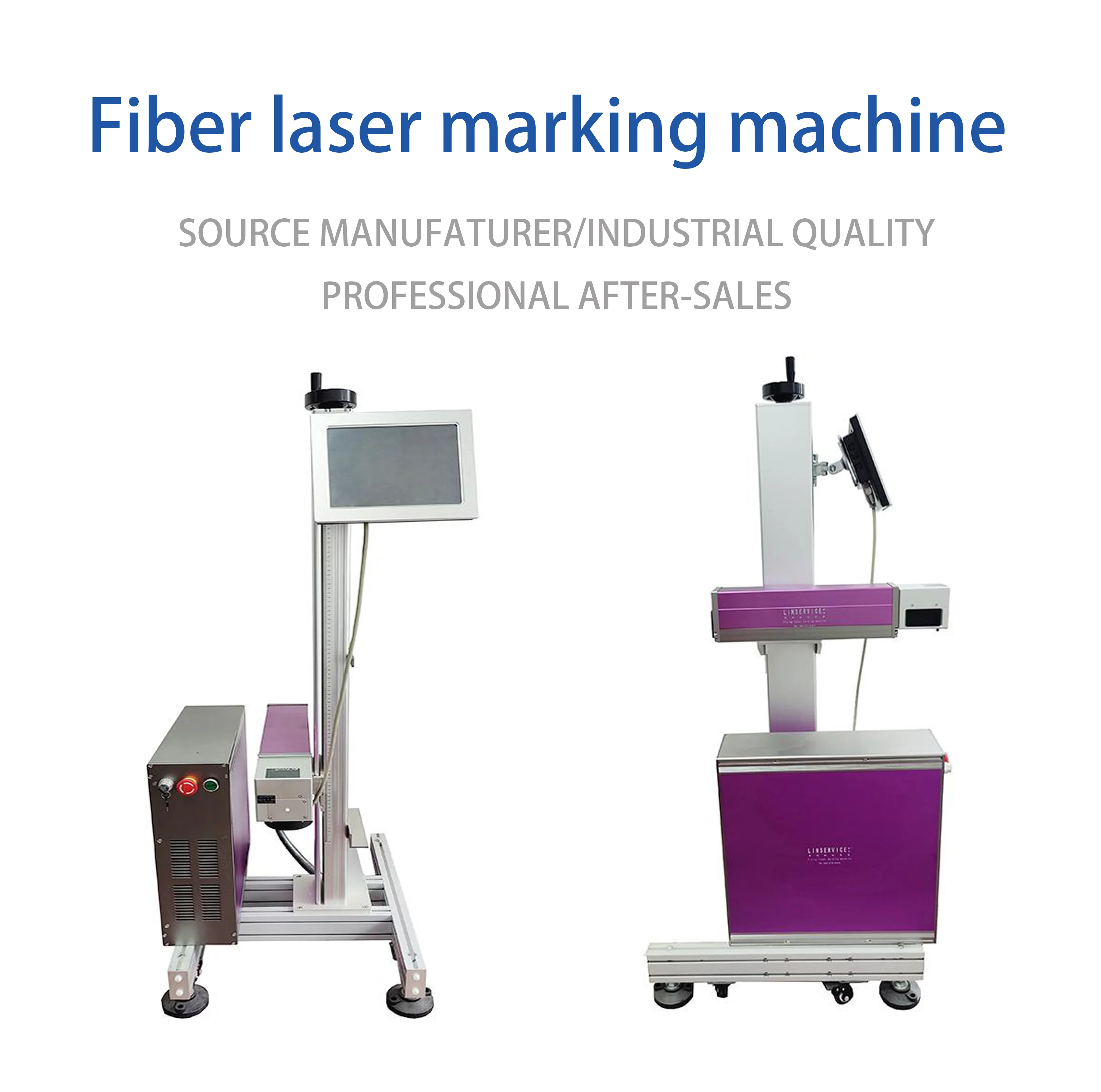

The fiber laser marking machine uses laser beam to make permanent marks on various
material surfaces.
material surfaces.

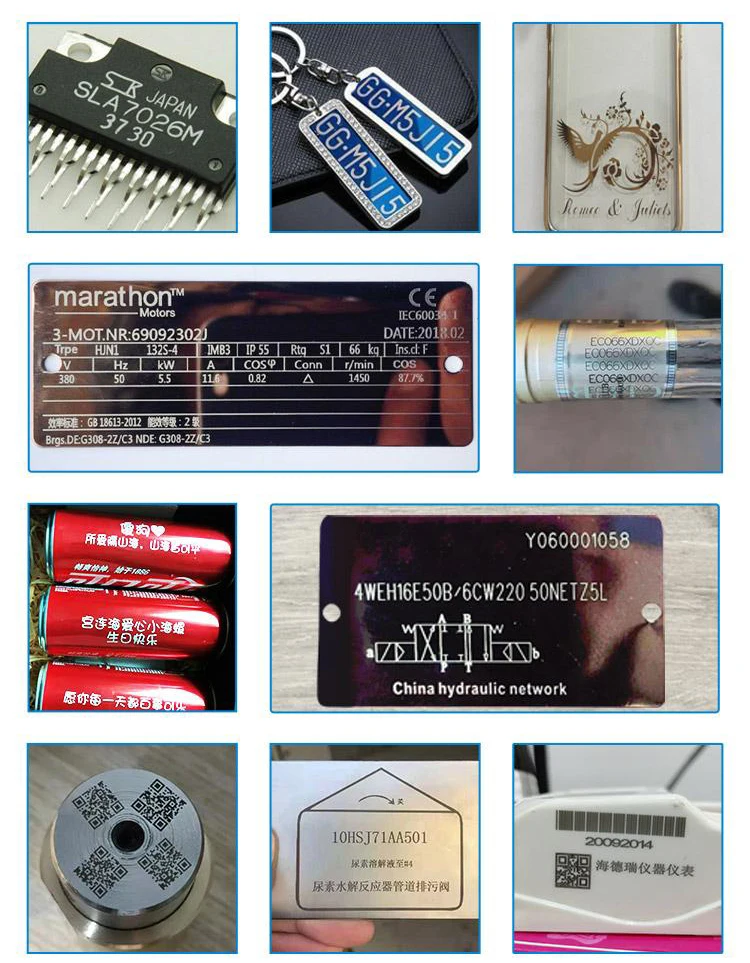

The fiber laser marking machine is applicable to most metal materials and plastics on the market, such as PE pipes, electronic components, wires and cables, food packaging, molds, gears and many other industries.
Parameter specification | ||
Product Name | Linservice portable laser qr code jet coding machine for bottle metal jewelry plastic steel aluminum gold silver | |
Material of the whole machine | Anodized alumina and coating | |
Laser type | Fiber laser generator | |
output power | 20W/30W/50W | |
Laser wavelength | 1064nm | |
Printing mode | High precision two dimensional scanning system | |
Marking speed | ≤12000mm/s | |
Master control | Highly integrated motherboard，10 Inch Touch Screen | |
Operating system | Liunx | |
Cooling system | Air cooling | |
Marking type | Dot matrix and vector all in one machine | |
Mirror size | Standard configuration：8.5mm | |
Repeat positioning accuracy | 0.003mm | |
Marking range | Standard configuration：110mm×110mm；Optional maximum range：600mm×600mm | |
Positioning mode | Red light positioning and focusing | |
Number of marked characters | Any line within the marking range | |
Production line speed | 0~189m/min (It depends on the material) | |
typeface | Chinese, English, number, traditional Chinese and other standard font | |
Picture format t | BMP/DXF/HPGL/JPEG/PLT | |
Bar code | CODE39、CODE128、CODE126、QR | |
Power Supply | 220V | |
Power consumption | 800W | |
Net weight of machine | 24.8kg | |
Dimensions | light path：540mm×100mm×120mm；Control box：495mm×160mm×485mm | |
Environmental requirements | External temperature ：0℃－45℃; Humidity≤95%；non-condensing； No vibration | |
Logistics packaging Overall weight | host：35kg Bracket：28kg | |
Logistics packaging Size | host：850mm×550mm×220mm；Bracket：1350mm×335mm×260mm | |
Company Profile
Located in Chengdu, Sichuan Province, China, the hometown of giant panda, Chengdu Linservice Industrial Inkjet Printing Technology Co., Ltd. has become a leader in the product identification industry with its strong technical strength, complete production equipment, strict quality testing, mature manufacturing.
As a professional inkjet printer product provider, it has professional technology and product resources and focuses on the product identification and safety of the enterprise. With more than nearly 20 years of service experience in the identification industry, it provides safe, assured and reliable product identification for all sectors of society, especially in the association and traceability application of industrial identification.
As a professional inkjet printer product provider, it has professional technology and product resources and focuses on the product identification and safety of the enterprise. With more than nearly 20 years of service experience in the identification industry, it provides safe, assured and reliable product identification for all sectors of society, especially in the association and traceability application of industrial identification.
Exhibition
Partner
Our partner
Linservice has been a qualified supplier of P & G (China) Co., Ltd. for many years. The well-known customers include: P & G (China), Lafarge (China), Coca Cola, unified enterprise, Wuliangye Group, Jiannanchun Group, Luzhou Laojiao group, Tsingtao Beer Group, China Resources Lanjian group, Di'ao pharmaceutical group, China Biotechnology Group, Sichuan ChuanHua group, Lutianhua group, Sichuan Tianhua group, Zhongshun group, Chengdu new hope group, Sichuan Huiji food, Sichuan Liji group, Sichuan Guangle group, Sichuan coal group, Sichuan Tongwei group, Sichuan xingchuancheng group, Sichuan Jiahua group, Yasen building materials, Chongqing beer group, Chongqing Zongshen electric appliance group, Guizhou Hongfu group, Guizhou saide group, Guiyang snowflake beer, Guizhou Deliang prescription pharmaceutical, Yunnan Lancangjiang beer group, Kunming Jida Pharmaceutical Group, Kunming
Jinxing Beer, There are hundreds of enterprises in Yunnan Wuliang zangquan, Gansu Jinhui liquor group, Gansu Duyiwei Co., Ltd., including food, beverage, pharmacy, building materials, cable, chemical industry, electronics, tobacco and other industries.
Jinxing Beer, There are hundreds of enterprises in Yunnan Wuliang zangquan, Gansu Jinhui liquor group, Gansu Duyiwei Co., Ltd., including food, beverage, pharmacy, building materials, cable, chemical industry, electronics, tobacco and other industries.
The products have been also exported to more than 30 countries, such as the United Kingdom, Russia, Saudi Arabia, the United Arab Emirates, Poland, Ukraine, India, Korea, Singapore, Brazil and Peru.
FAQ
1. How to guarantee quality?
From production to sale, the machine is checked at every step to ensure that the final equipment is in order.
2. Can you guarantee the safety in transit?
It can ensure the safety in transit. Our packing is very strict.3.Will you provide after-sale technical service?
We will provide 24 hours after-sales service, we will also have technical staff to answer your questions
4. Can I repair it if it breaks down?
Can repair
5. Where can these devices be used?
Our products cover printing and packaging, food and beverage, chemical building materials, pharmaceutical, tobacco, daily chemical, automotive and aerospace manufacturing and many other industries.
6. How do I know if your machine works well?
Before delivery, we have tested each machine and adjusted it to the best condition. If you have special production conditions, we will adjust to the corresponding state for you.
From production to sale, the machine is checked at every step to ensure that the final equipment is in order.
2. Can you guarantee the safety in transit?
It can ensure the safety in transit. Our packing is very strict.3.Will you provide after-sale technical service?
We will provide 24 hours after-sales service, we will also have technical staff to answer your questions
4. Can I repair it if it breaks down?
Can repair
5. Where can these devices be used?
Our products cover printing and packaging, food and beverage, chemical building materials, pharmaceutical, tobacco, daily chemical, automotive and aerospace manufacturing and many other industries.
6. How do I know if your machine works well?
Before delivery, we have tested each machine and adjusted it to the best condition. If you have special production conditions, we will adjust to the corresponding state for you.
