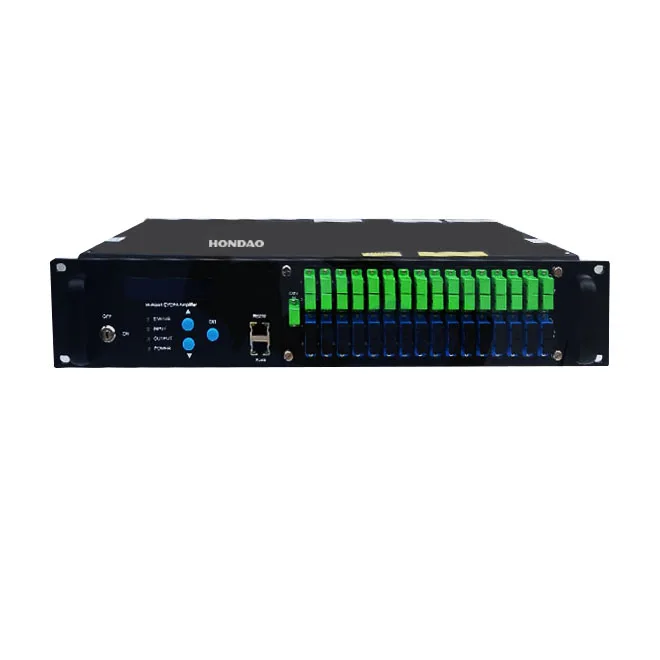

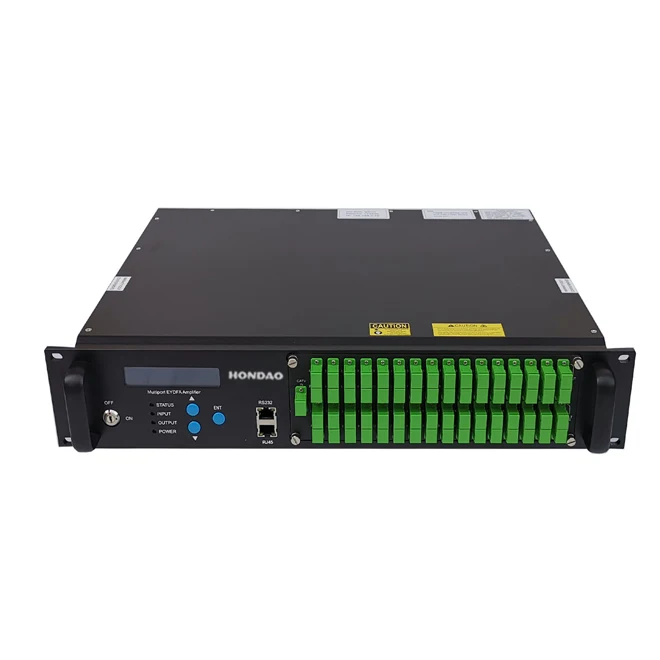

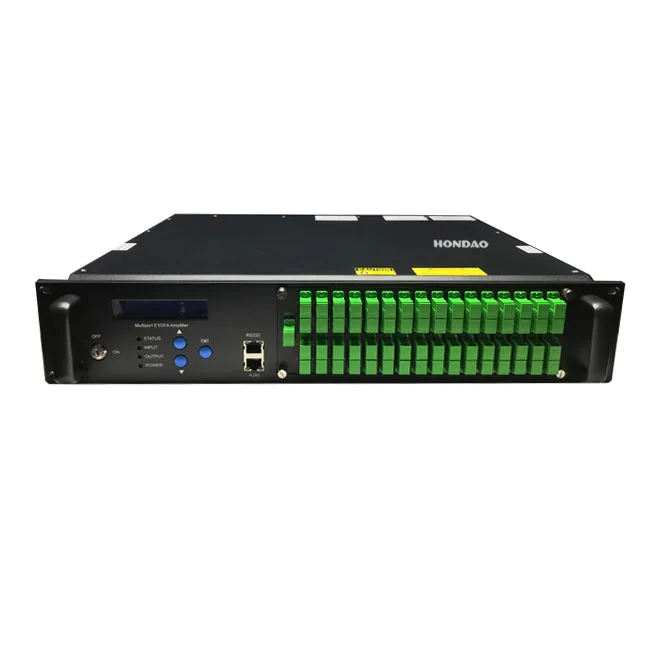

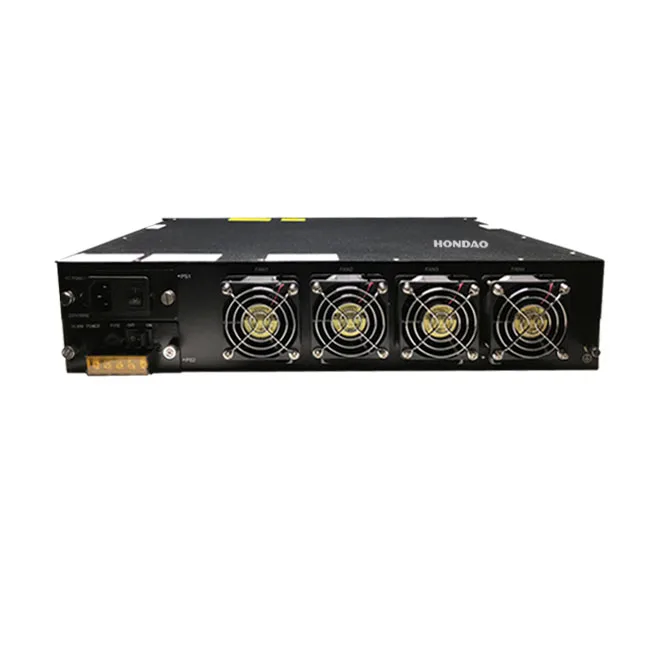

1550nm catv 32 ports 20 dbm wdm EDFA adopt GPON/GEPON signal
- Category: >>>
- Supplier: Hangzhou Hondao Optic Co. Ltd.
Share on (1600534183347):
Product Overview
Description
Product Description
1550nm catv 32 ports 20 dbm wdm EDFA adopt GPON/GEPON signal
Feature
Output ports :16~64 optional , total up to 2W
Each output ports with WDM . 1310/140/1550nm single fiber . XPON Adopt .
APC,ACC,ATC controlled selecion
Efficient space , flexible installation and easy operation.
Power RS232 supervisory instruction . Excellent P/P ration .
1540~1563nm operating bandwidth
Output ports :16~64 optional , total up to 2W
Each output ports with WDM . 1310/140/1550nm single fiber . XPON Adopt .
APC,ACC,ATC controlled selecion
Efficient space , flexible installation and easy operation.
Power RS232 supervisory instruction . Excellent P/P ration .

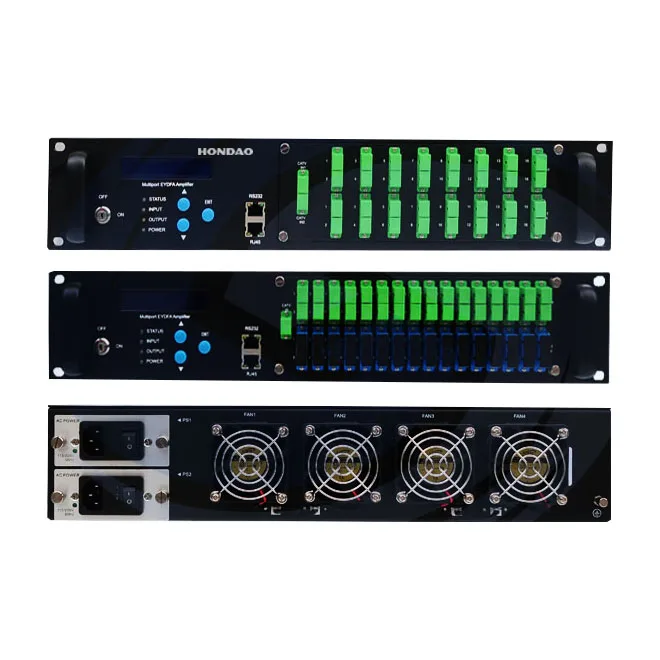

Detailed Images
Specification
Items | Parameter | ||||||
Input (dBm) | -8～+10 | ||||||
Range of output adjustment (dBm) | Up 0.5、down 4.0 | ||||||
Wavelength (nm) | 1530～1565 | ||||||
Output stability(dB) | <±0.3 | ||||||
Fiber Connector | FC/APC、SC/APC | ||||||
Web port | RJ45(SNMP) | ||||||
