High speed automatic paper straw bending straw making machine
- Category: Straw Making Machines >>>
- Supplier: Zhejiang Hongshuo Import And Export Co. Ltd.
Share on (1600534194724):
Product Overview
Description
Products Description

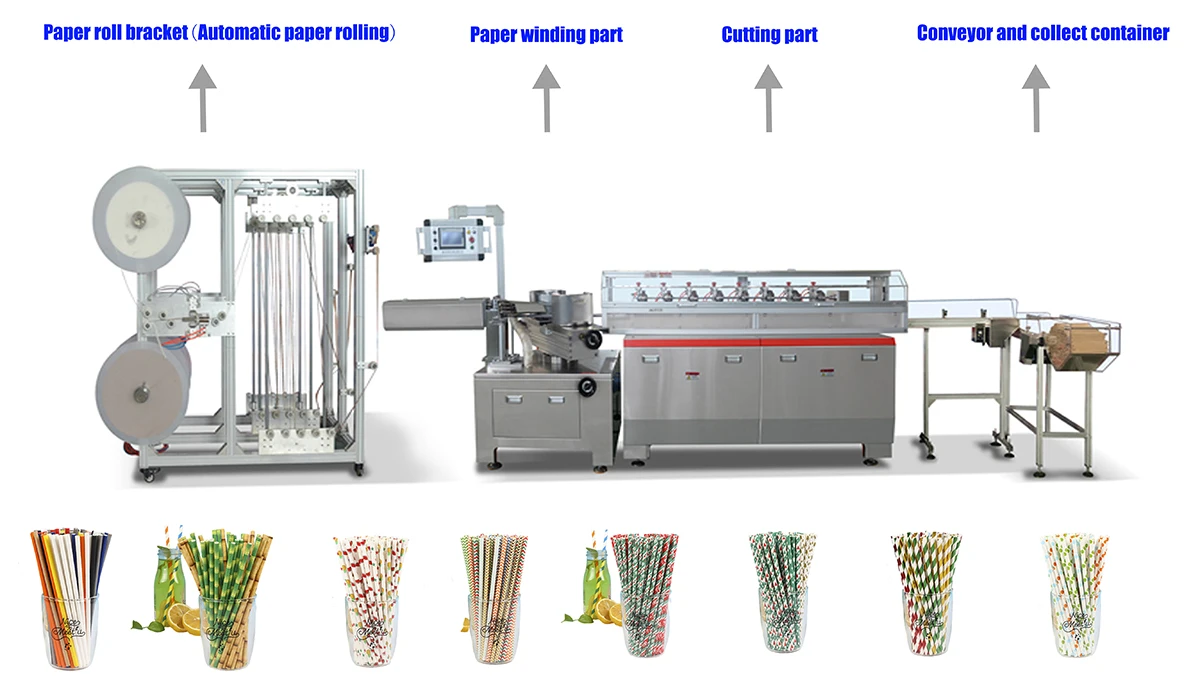

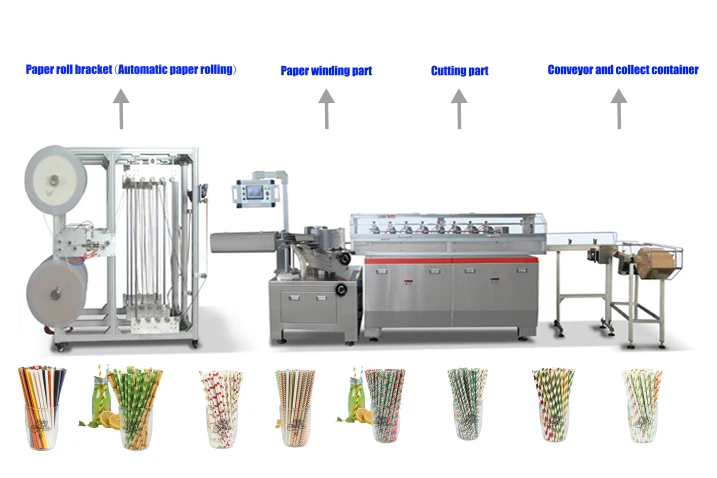

HS-XGJ-QSF Paper Suction Machine
HS-XGJ-QSF Full servo non-adhesive paper suction machine （Dual-purpose machine） is our latest research and development of new products. The machine integrates automatic paper connection, forming, cutting and collecting,and adopts a CNC multi cutter system to directly produce finished paper straws.The paper straw produced by the machine can withstand high temperature of100 degrees (normal one is 70 degrees) but also can be degraded without pollution to the environment.
FEATURES AT A GLANCE
(1)Save space and time.
(2) The machine has sterilization function.
(3) Have no problems caused by weather and glue.
(4) The paper straws can withstand in high temperature and be degradable.
(5) The product. loss rate is greatly reduced.
(6)The hardness increases with the same thickness raw materials.
(7) The whole machine adopts servo motor.
(8) It is suitable for double-use models with glue and no glue.
(2) The machine has sterilization function.
(3) Have no problems caused by weather and glue.
(4) The paper straws can withstand in high temperature and be degradable.
(5) The product. loss rate is greatly reduced.
(6)The hardness increases with the same thickness raw materials.
(7) The whole machine adopts servo motor.
(8) It is suitable for double-use models with glue and no glue.
Sample1
Sample2
Sample3

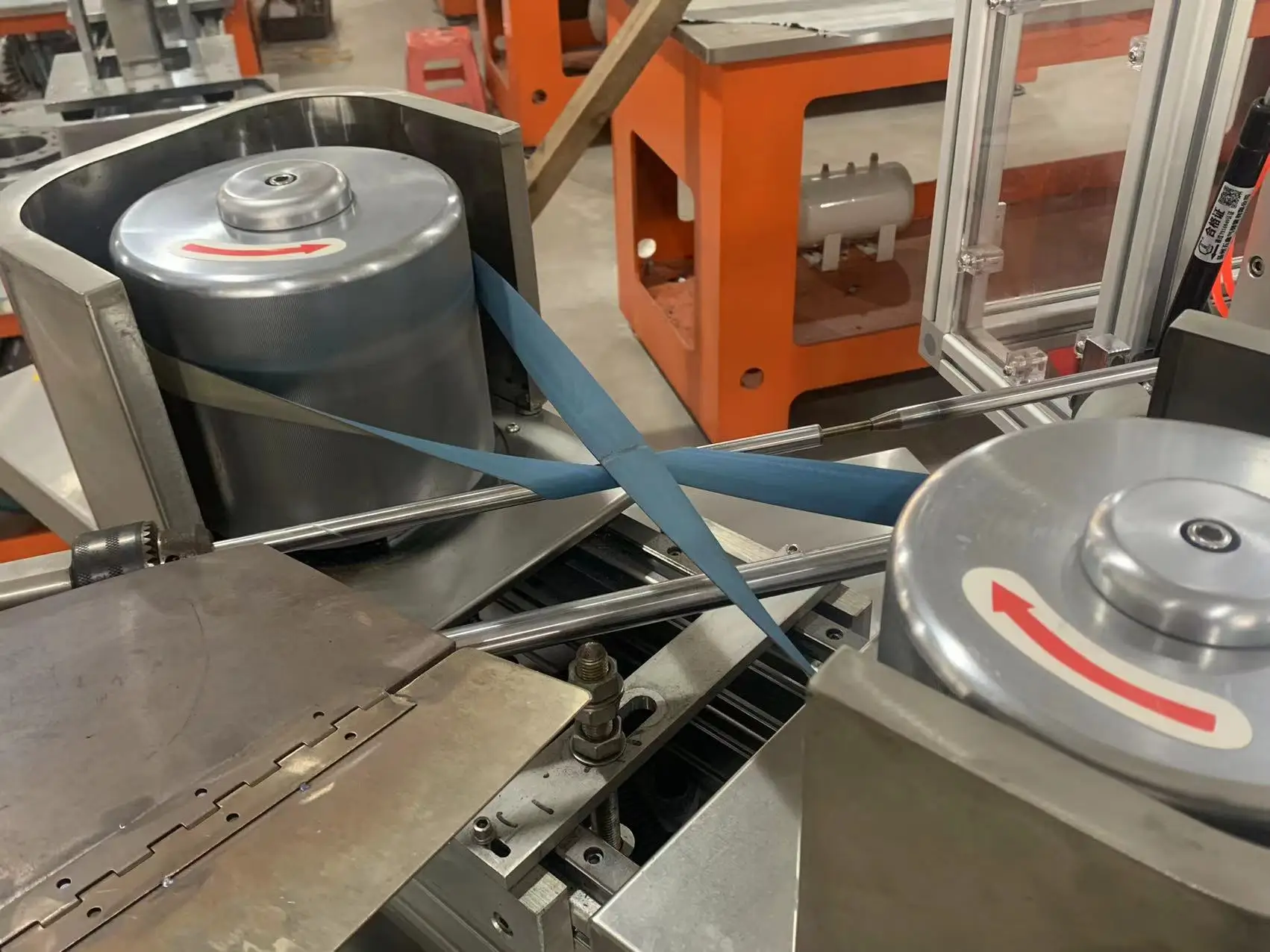

Details Images
Certifications
SALES AND SERVICE NETWORK
Hongshuo Machinery is the no glue paper straw machine inventor ,this new type machine solve all the problem which caused by white emulsion.we are the Korea Starbucks only supplier of paper straw machine.
PRODUCT SPECIFICATIONS
Raw Material | Pure Wood Pulp Paper |
Paper Layers | 3 layers |
Paper Thickness(from inside to outside) | 120g/m²,120g/m²,60g/m² |
Tube Thickness | 0.3-2mm |
Running Speed | 40-100meters/min |
Tube Size | 4.5-12mm |

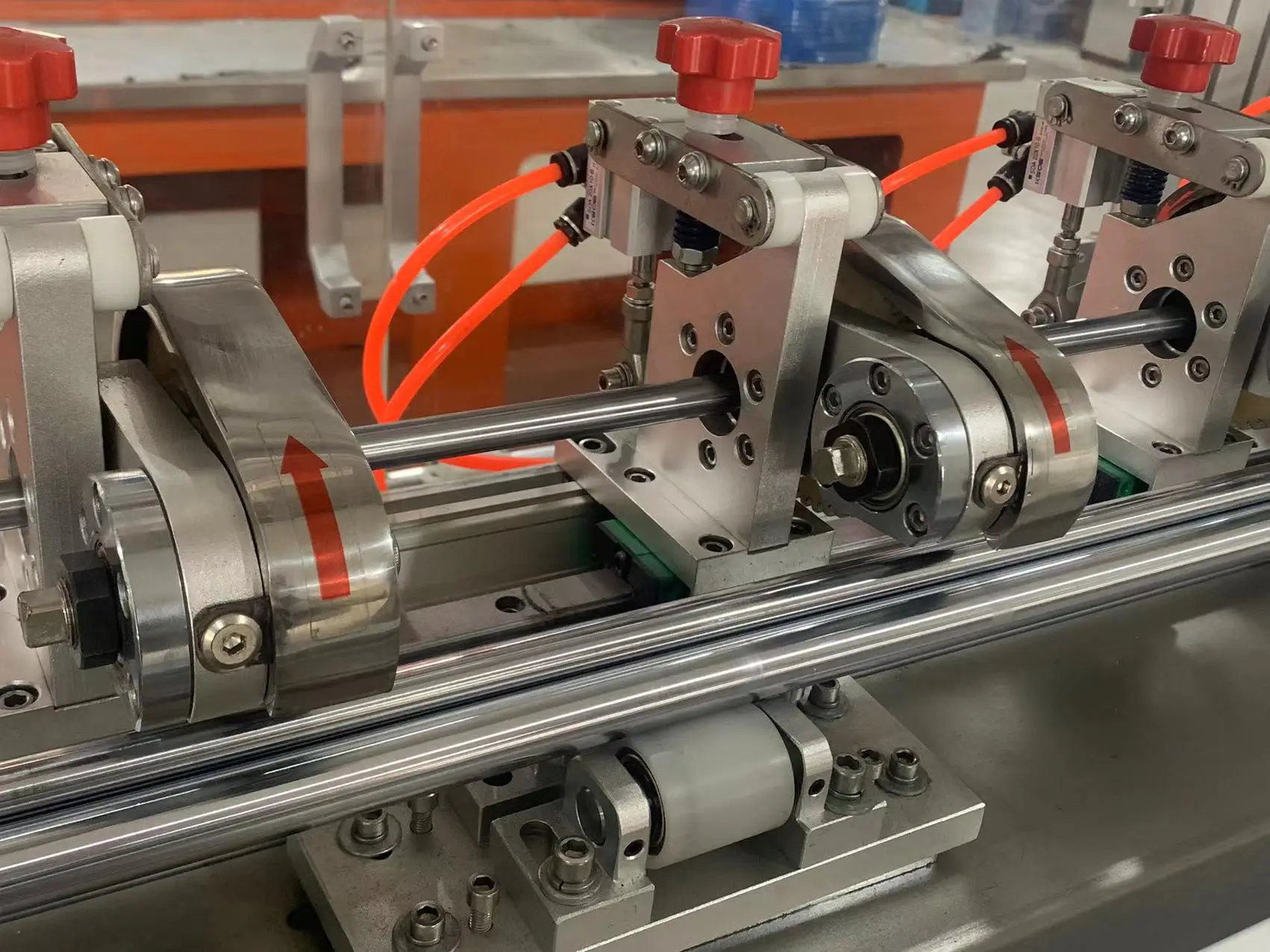

Cutting System | servo motors,8 set knives |
Cutting Length | 70-1050mm |
Power Source | 380V,50Hz |
Operation Person | 1-2person |
Paper Roll Bracket | 1600*2000*1100mm |
Main Part | 2300*860*1270mm |
Collection Part | 1900*970*1770mm |
Weight | 1400kg |
PRODUCT CONFIGURATION
Main Motor | co-trust(1.5kw) |
Drive | co-trust |

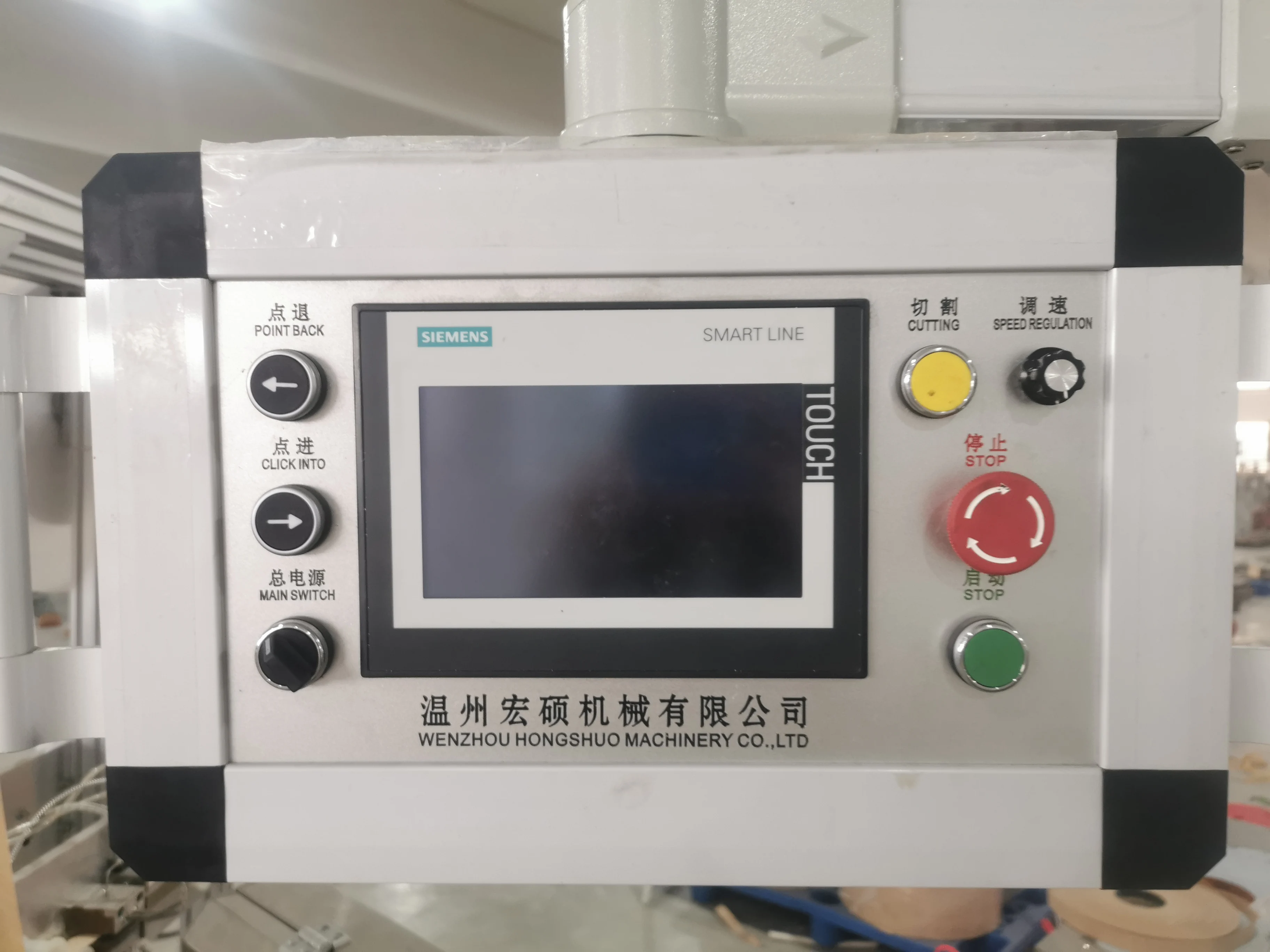

Touch Panel | siemens |
Servo Motor | co-trust |
Bearing | HRB |
Electronic components | Omron |
Pneumatic parts | Airtag |
Product packaging
FAQ
Q1. What kind of straw your machine can make?
A: Our machine can make different size and shape straw through changing mould, or you can also supply your sample.
Q2. Do you provide customized machine?
A: Please share your requirement of the machine, we have experienced engineer to support.
Q3.What about the payment term?
A: 30% deposit in advance, and 70% balance payment before delivery.
Q4. What is the package of machine?
A: Stretch film packing with wooden pallet or wooden case as request.
Q5. Are you trading company or manufacturer?
A: We are one of the leading manufacturer of paper product machinery in China.
