Super Fine Ring Roller Mills and Roller Grinding Mills with High Quality for Limestone Talc and Dolomite
- Category: >>>
- Supplier: Qingdao Epic Powder Machinery Co. Ltd.
Share on (1600534196025):
Product Overview
Description
Product Overview

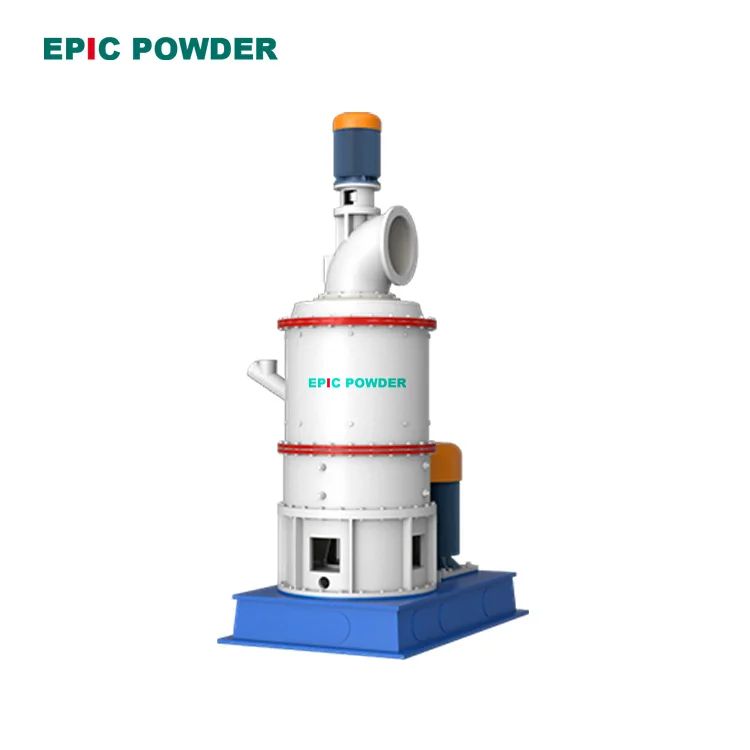

Super Fine Ring Roller Mill
Roller mill processes materials by impacting, compressing, and grinding.

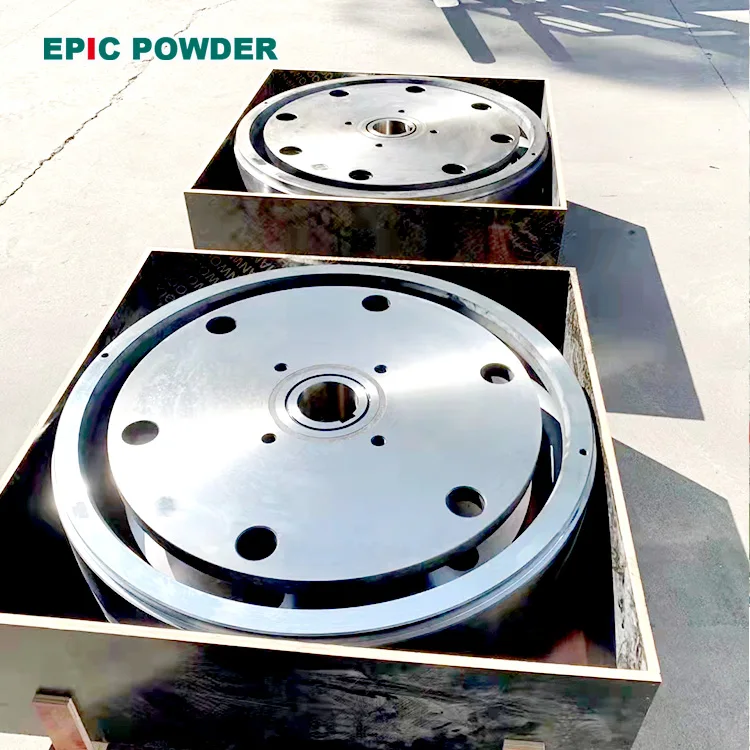

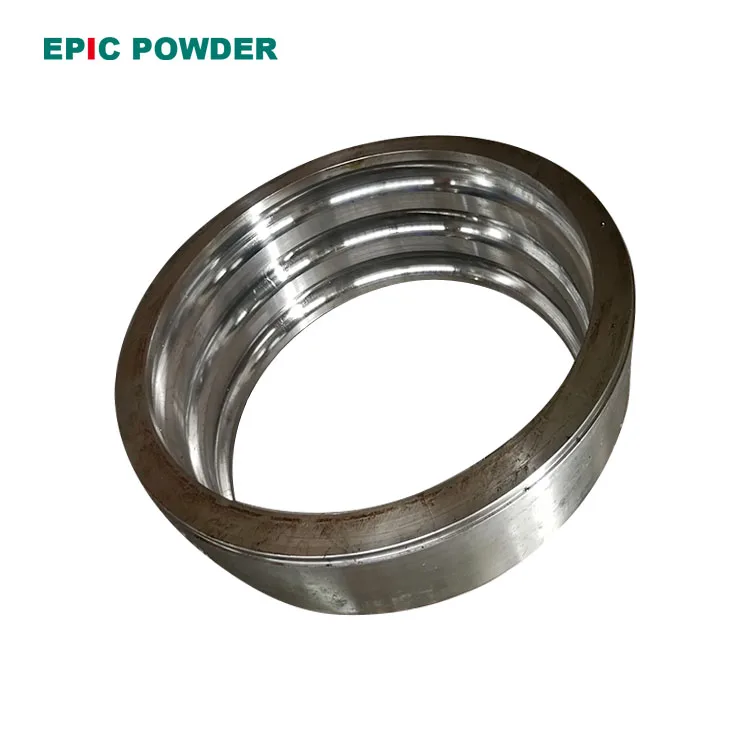

A roller mill has multi-layer grinding rollers and grinding rings. The raw material first falls into the gap between the rollers
and the grinding ring on the first layer. There is a large clearance between the rollers installed on the support and the pin
shaft. When the material passes through the gap between the rollers and the grinding rings, it will be processed to fine powder by
impacting, compressing, and grinding of the rollers. The material will be ground a couple of times when passing through the gap
between the rollers and the grinding rings from top to bottom. The ground material falls onto the distribution plate by gravity

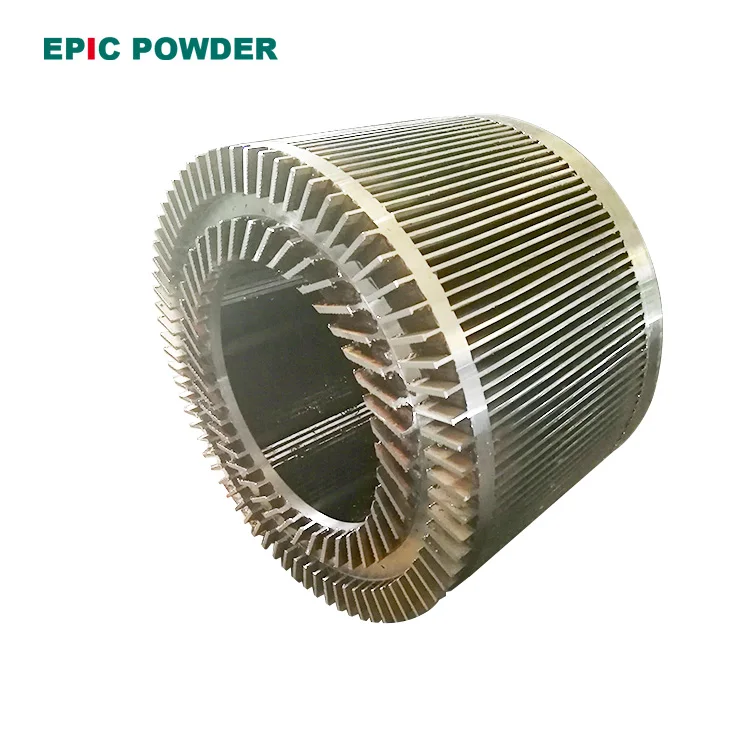

and is forced to the classifying zone at the top of the classifier by the airstream. The material is separated by the classifier
wheel into two factions: fine and coarse. The qualified fine particles pass through the vane gaps of the classifying wheel to the
filtering system where they are collected. The coarse particles are forced to the inner wall of the classifying ring, and fall
down to the grinding zone for further grinding.
A roller mill has multi-layer grinding rollers and grinding rings. The raw material first falls into the gap between the rollers
and the grinding ring on the first layer. There is a large clearance between the rollers installed on the support and the pin
shaft. When the material passes through the gap between the rollers and the grinding rings, it will be processed to fine powder by
impacting, compressing, and grinding of the rollers. The material will be ground a couple of times when passing through the gap
between the rollers and the grinding rings from top to bottom. The ground material falls onto the distribution plate by gravity
and is forced to the classifying zone at the top of the classifier by the airstream. The material is separated by the classifier
wheel into two factions: fine and coarse. The qualified fine particles pass through the vane gaps of the classifying wheel to the
filtering system where they are collected. The coarse particles are forced to the inner wall of the classifying ring, and fall
down to the grinding zone for further grinding.
FEATURES AT A GLANCE
Installation:
The installation is simple, with no need for a multi-layer steel structure platform or concrete platform, nor large-scale civil engineering. It can be put into production soon after installation.
PRODUCT SPECIFICATIONS
Model | SRM800 | SRM1000 | SRM1250 | SRM1680 | |
Feed Size | mm | < 10 - 20 | < 10 - 20 | < 10 - 20 | < 10 - 20 |
Moisture | % | < 5% | < 5% | < 5% | < 5% |
Mill Motor | kW | 75 | 132 | 185 | 315 |
Classifier Motor | kW | 15 - 18.5 | 22 - 30 | 37 - 60 | 55 - 92.5 |
Fan Motor | kW | 37 - 45 | 55 - 75 | 75 - 110 | 132 - 180 |
Product Fineness | 目 | 325 - 2500 | 325 - 2500 | 325 - 2000 | 325 - 1500 |
Production Capacity | 吨 | 0. 5 - 4.0 | 1.0 - 8.0 | 2.0 - 12 | 3.0 - 20 |
