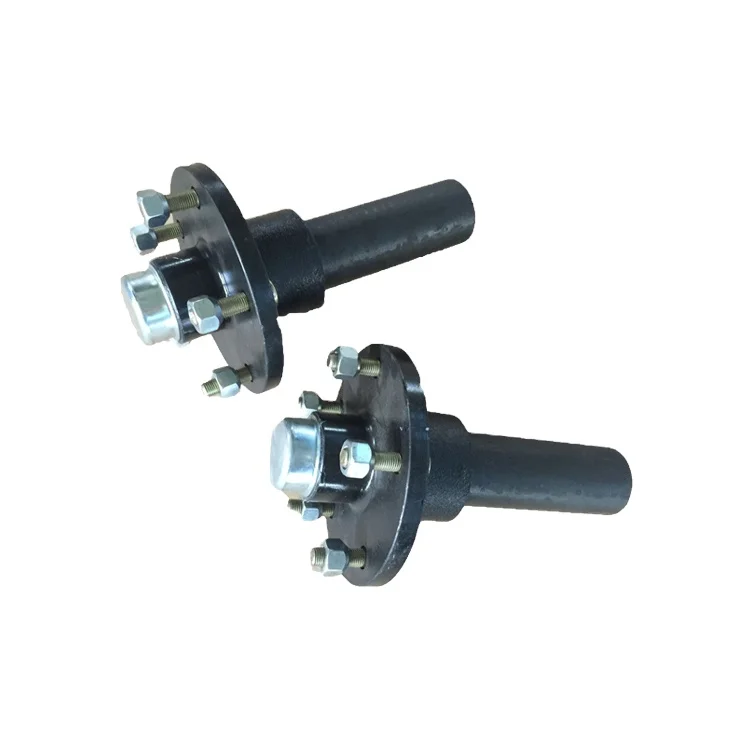

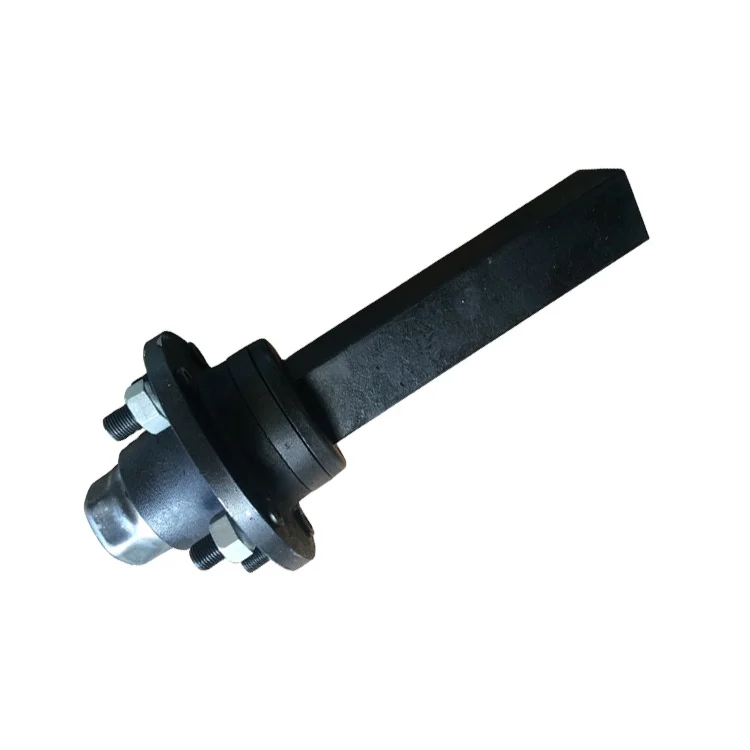

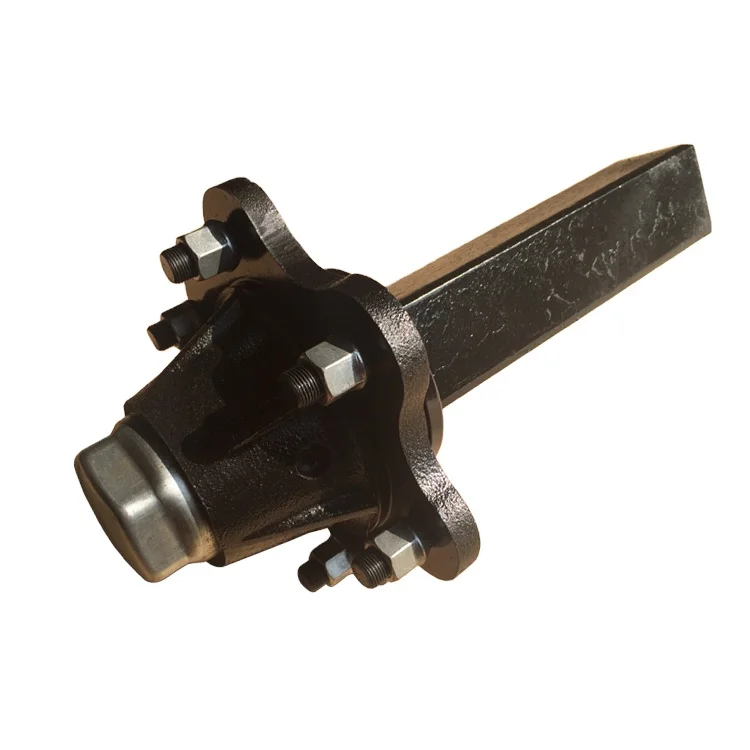

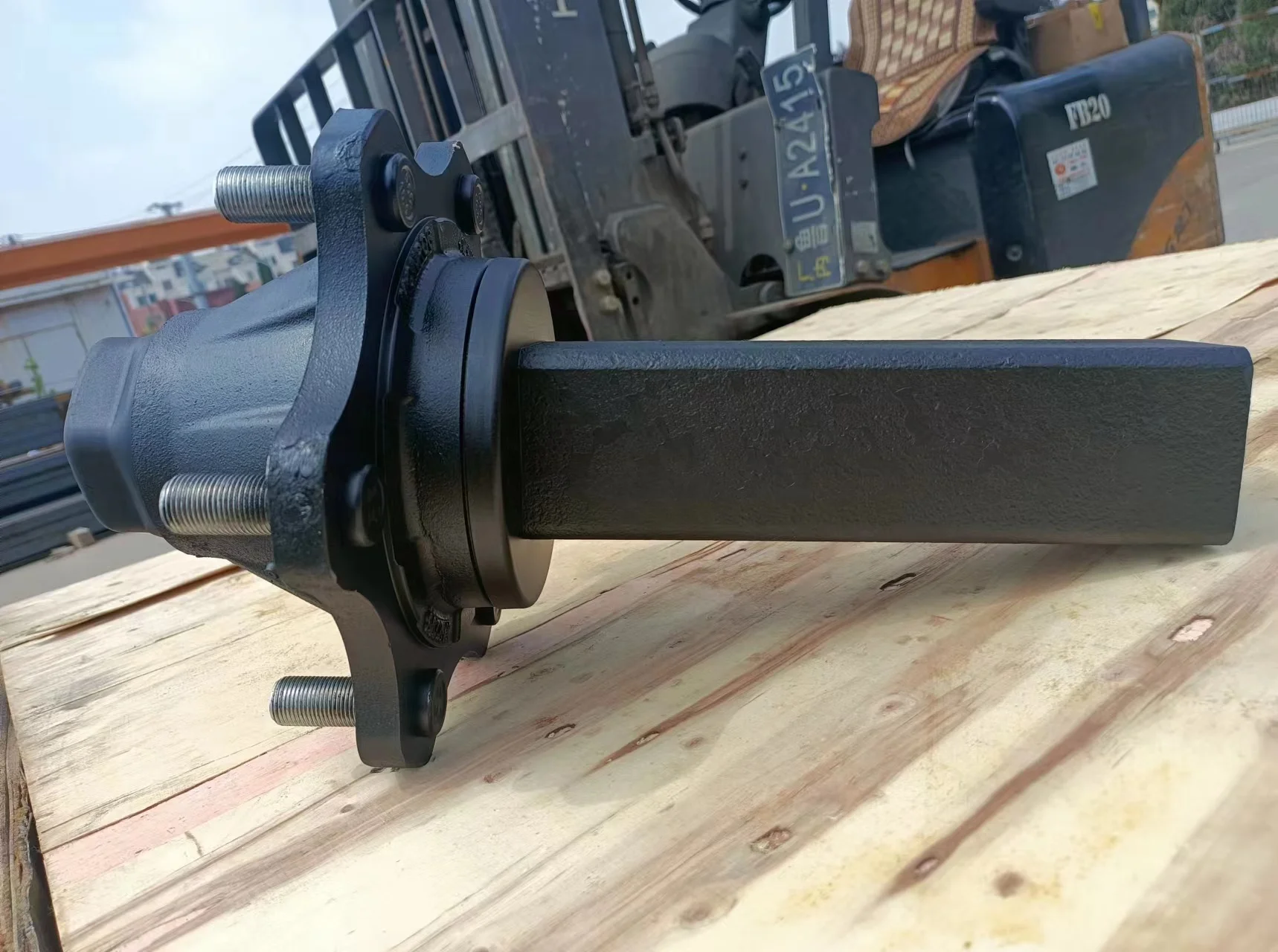

Factory Direct Without Brake Trailer Half Stub Axle Small Trailer Axle
1. Capacity: 1~11 Tons;
2. Track: accept customized;
3. Axle Beam: Round, Square for optional;
4. Brake System: with or without brake for optional;
5. Supply professional solution for customer's trailer;
6. competetive price and excellent quality;

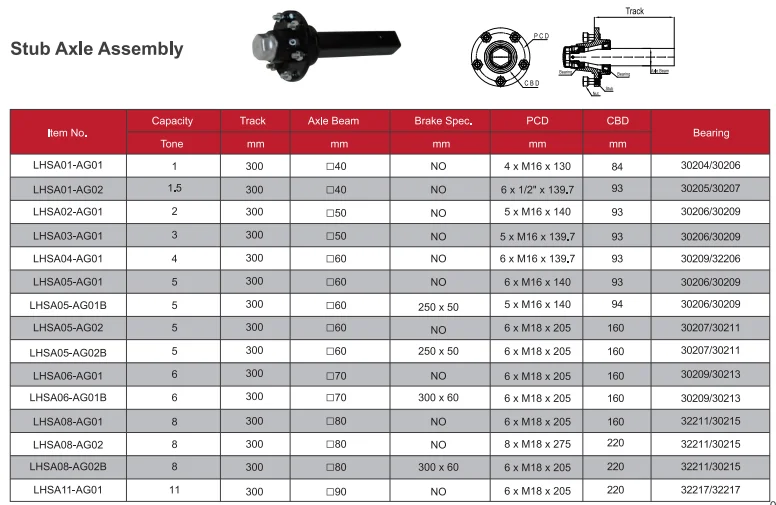

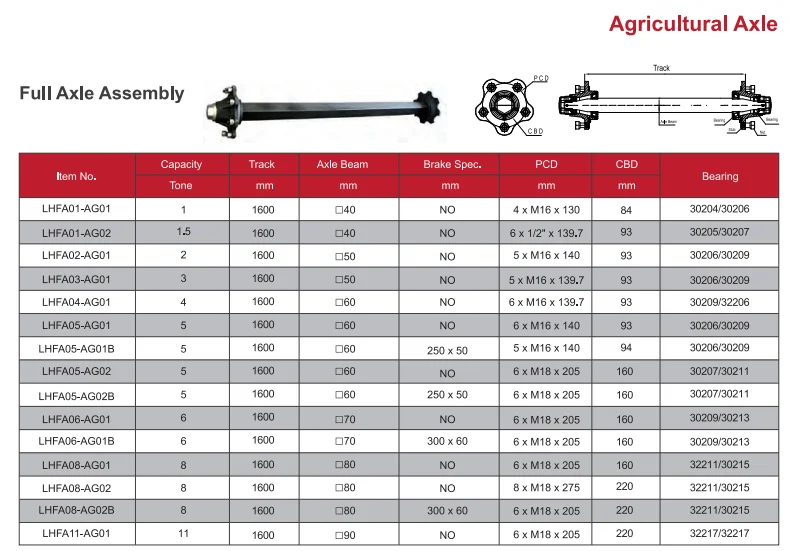

| Item No. | Capacity (T) | Track (mm) | Axle Beam (mm) | Wheel Fixing (mm) | Bearing | Weight (Kg) |
| LHSA01-AG01 | 1 | 200 | 40 | 4×M14×Φ130×84 | 30205-20207 | 15 |
| LHSA03-AG01 | 3 | 200 | 50 | 6×M18×Φ250×160 | 30206-30209 | 20 |
| LHSA05-AG01 | 5 | 200 | 60 | 6×M18×Φ250×160 | 30207-30211 | 32 |
| LHSA06-AG01 | 6 | 200 | 70 | 6×M18×Φ250×160 | 30208-30213 | 43 |
| LHSA08-AG01 | 8 | 300 | 80 | 8×M18×Φ250×160 | 32211-30215 | 65 |
