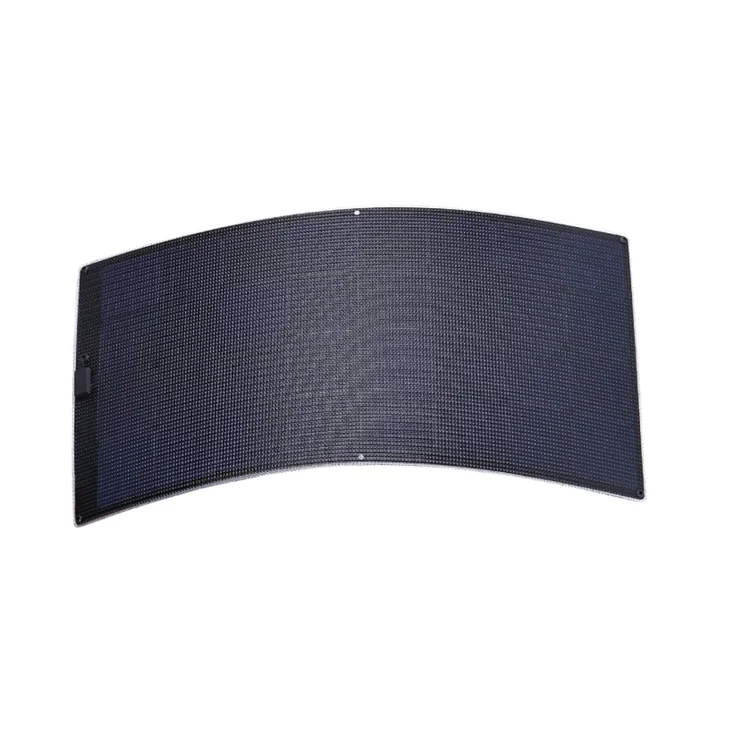

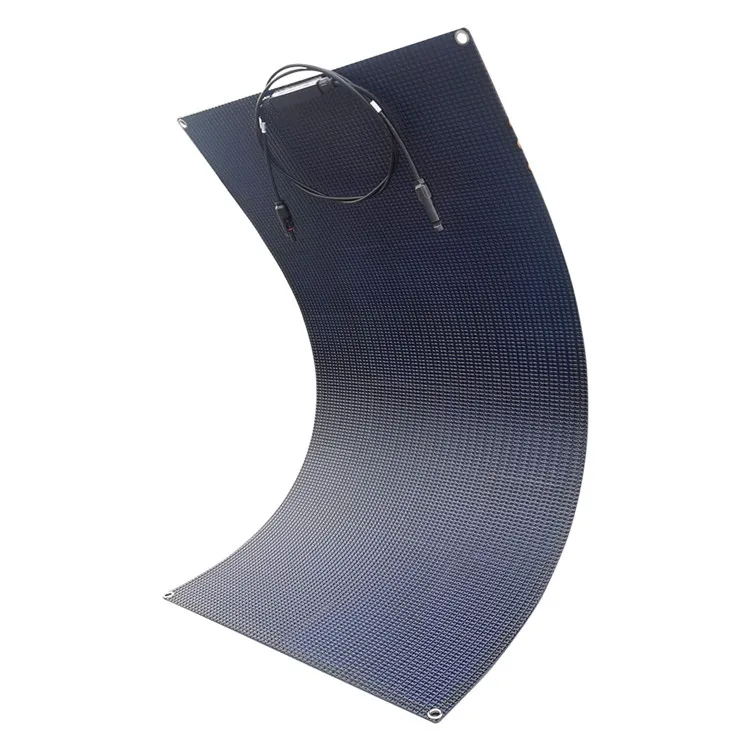

Customized All Black 100W 110W 150W 175W 180W Full Black Flexible Solar Panel 18V Mono Semi SunPower Solar Panel for Caravan
- Category: >>>
- Supplier: Shenzhen Tomax New Energy Technology Co. Ltd.
Share on (1600534207945):
Product Overview
Description
Product Description

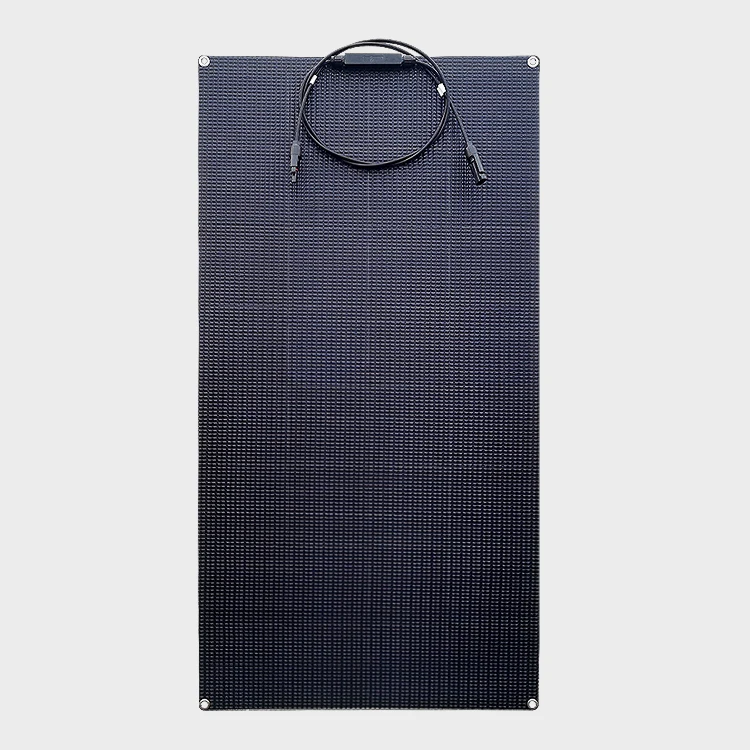

All Black 100W 110W 150W 175W 180W 185W Flexible Solar Panel 18V Mono Semi SunPower Solar Panel for Caravan
Electrical Specifications | |
Standard Test Conditions: | (Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc) |
Maximum Power Pmax | 100W |
Voltage at Maximum Power Point (Vmpp) | 17.6V |
Current at Maximum Power Point (Impp) | 5.68A |
Open Circuit Voltage (Voc) | 21.6V |
Short Circuit Current (Isc) | 5.96A |
Operating Temperature | -20℃ ~ +65℃ |
Max System Voltage (IEC/UL) | 700V DC |
Temperature Coefficient of Isc | (+0.06% /ºC) |
Temperature Coefficient of Voc | (-0.33% /ºC) |
Temperature Coefficient of Pmax | (-0.41% /ºC) |
Mechanical Specifications | |
Cell Type | SunPower solar cell |
Cell Size | 125 x 125mm |
Size | 1050 x 540 x 2.5mm |
Surface Material | High performance corrosion resistant ETFE |
No. of Folding | 32 = 4 x 8 |
Weight | 1.8 KG |
Junction Box | IP67 Rated |
Type of Connector | MC4 |
Certifications | CE, FCC, ROHS, REACH |
P.S. :
We can customize different watts all black flexible solar panels, small wave or big wave are acceptable.
White + Black flexible solar panel is requsted for many projects, we can supply diagram according to customers requests.
Our Advantages

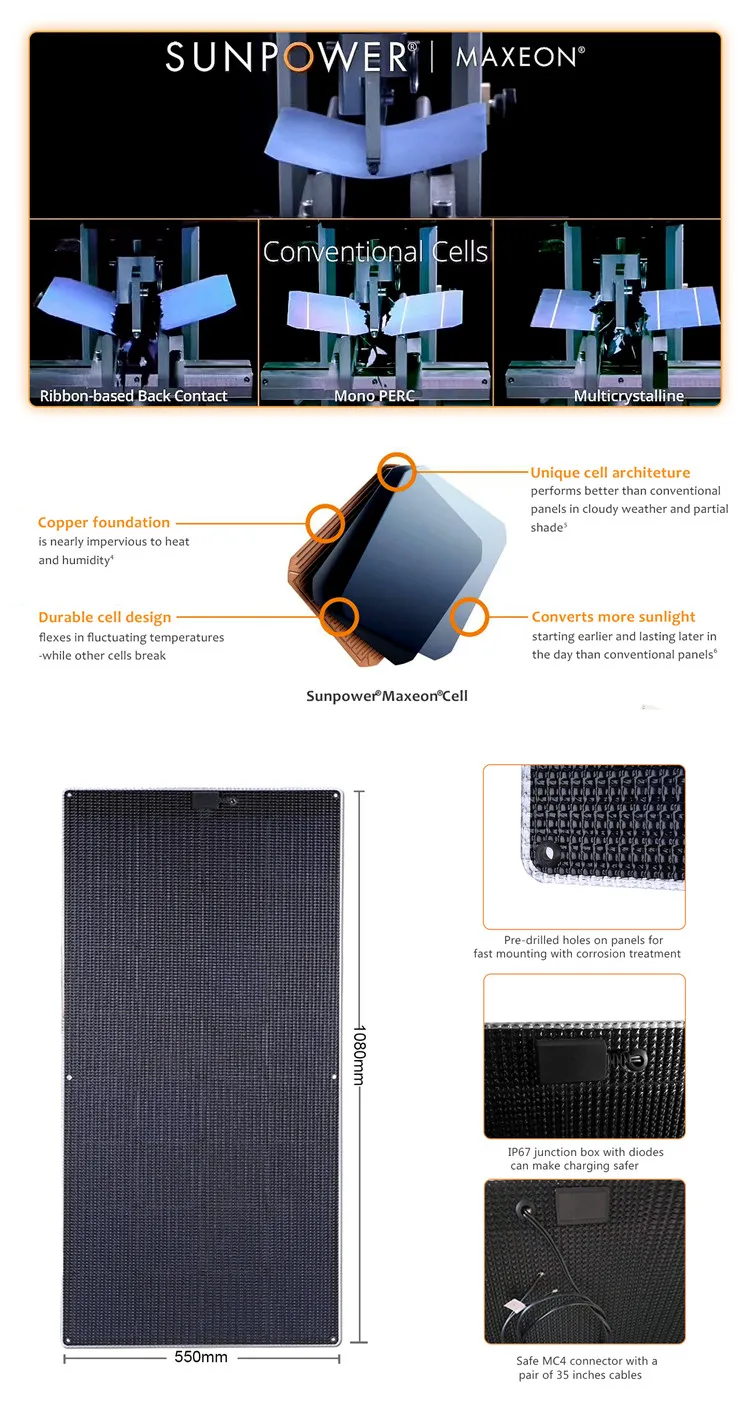

* ●Powerful Power Output : SunPower cells are the #1 choice for customers due to the combination of high efficiency and ruggedness.
* ●Unique Cell Structure: SunPower cell is built on thick and strong copper wire, As a result it can be resistant to power loss via cracking and corrosion.
* ●Premium ETFE Film: This film features superior light transmittance and weatherproof performance, and is also heat, corrosion, and UV resistant. This material surfaces are easy to clean, ensures the best performance day after day. all for a cost-effective
price.
* ●Lightweight : It is a great choice where you need big power without sacrificing fuel economy, or don`t want any extra weight on your roof that may affect your center of gravity.

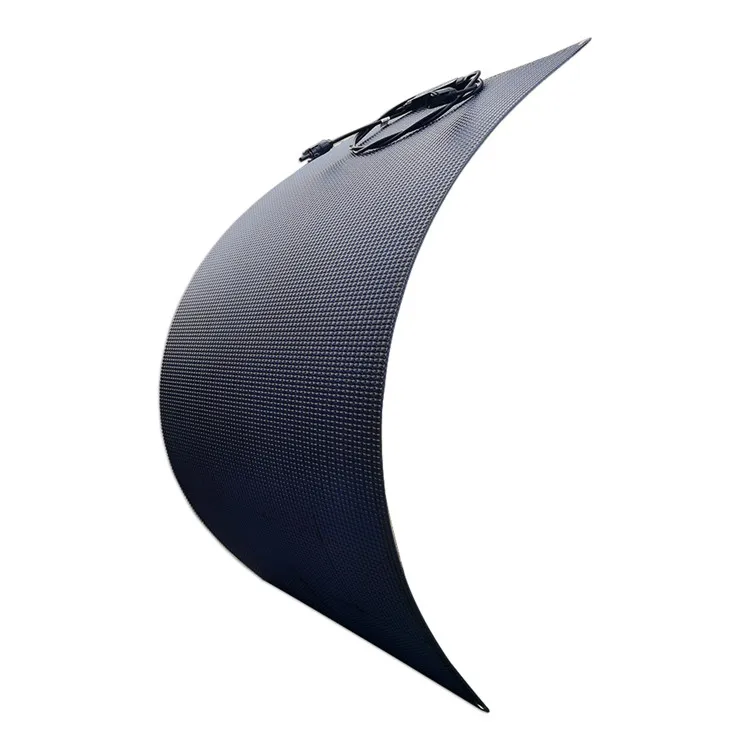

* ●Widely Application : Panel can be bent to a certain extent, suitable for marine use, motorhomes, camping, sailing,
boon-docking and caravans as well as curved roof or any other irregular surface.

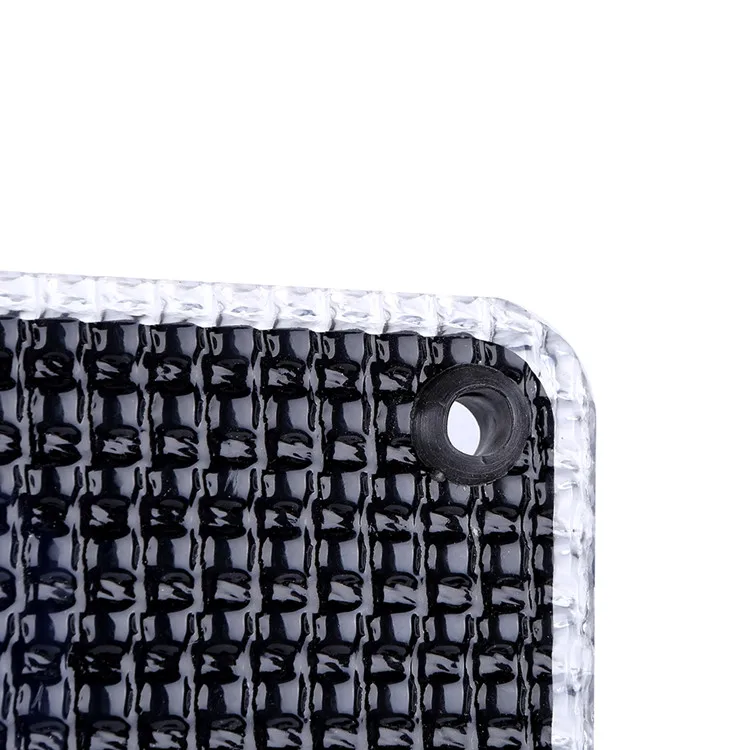

* ●Easy Installation: Can be fixed by adhesive, grommets, velcro. Can be installed without costly structural roof reinforcements. besides reinforced mounting holes at each corner for screws fixing, make it easier to hang, and remove.
* ●Unique Cell Structure: SunPower cell is built on thick and strong copper wire, As a result it can be resistant to power loss via cracking and corrosion.
* ●Premium ETFE Film: This film features superior light transmittance and weatherproof performance, and is also heat, corrosion, and UV resistant. This material surfaces are easy to clean, ensures the best performance day after day. all for a cost-effective
price.
* ●Lightweight : It is a great choice where you need big power without sacrificing fuel economy, or don`t want any extra weight on your roof that may affect your center of gravity.
* ●Widely Application : Panel can be bent to a certain extent, suitable for marine use, motorhomes, camping, sailing,
boon-docking and caravans as well as curved roof or any other irregular surface.
* ●Easy Installation: Can be fixed by adhesive, grommets, velcro. Can be installed without costly structural roof reinforcements. besides reinforced mounting holes at each corner for screws fixing, make it easier to hang, and remove.

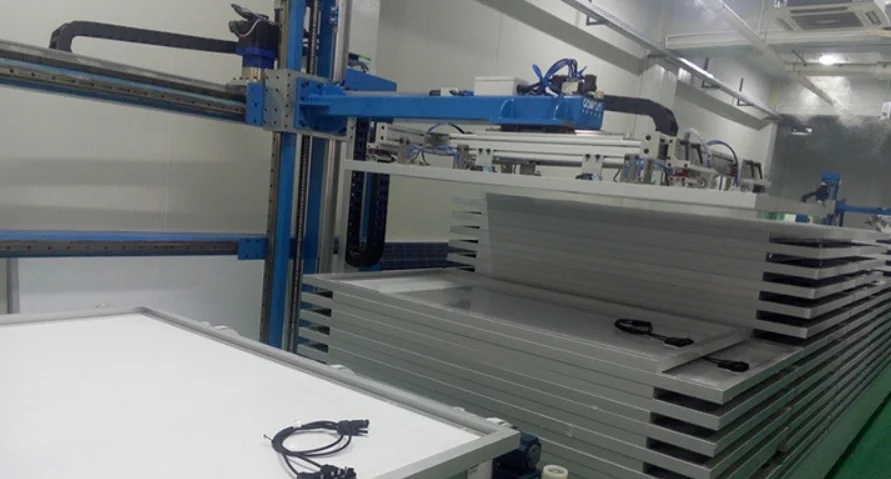

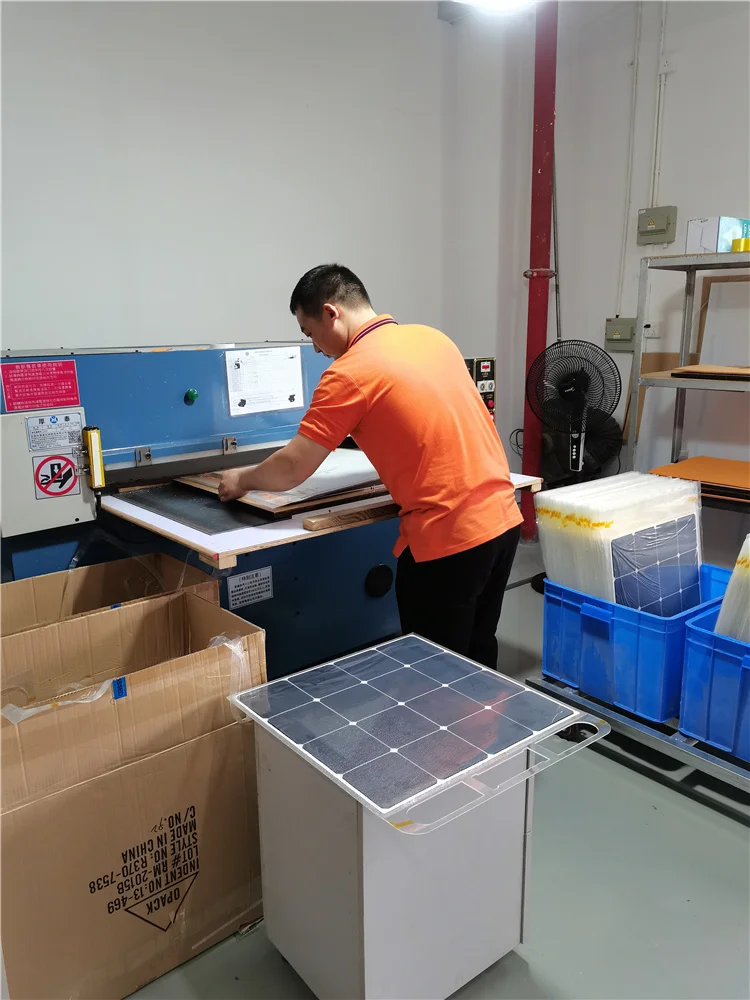

Company Profile
With the solar products growing in popularity as a fantastic source of renewable energy, commercial installations, businesses, and private homes, Shenzhen Tomax New Energy Technology Co., Ltd is proud to be a growing company specializes in providing the high quality high efficiency solar raw materials, portable and off-grid solar power solutions or related products such as portable solar panels, power station generator for large scale commercial and domestic solar application projects.We are dedicated to bringing quality healthy and safe alternatives for people’s everyday needs.
Since its foundation, our company keeps living up to the belief of ”honest selling, high quality&service, people orientation and benefits to customers.” we have established longer and closer working relationships with our clients and suppliers not only provide immediate and reliable services but to continually exceed expectations and goals.
We will do the best to offer best services and products to customers and promise we will be responsible all the way to the end once our services begin.
We are looking forward to welcoming you to our company and work to develop and enhance your current business !
Since its foundation, our company keeps living up to the belief of ”honest selling, high quality&service, people orientation and benefits to customers.” we have established longer and closer working relationships with our clients and suppliers not only provide immediate and reliable services but to continually exceed expectations and goals.
We will do the best to offer best services and products to customers and promise we will be responsible all the way to the end once our services begin.
We are looking forward to welcoming you to our company and work to develop and enhance your current business !
Packing & Delivery
FAQ
1. How many solar panels do I need for an RV?
A: Depending on the amount of sunshine you get and the amount of energy you use, a single 100-watt solar panel is likely to be able to keep a 12-volt DC battery charged. It is likely you'll want multiple higher-wattage panels and perhaps multiple batteries to give you more power for a longer period of time.
2. Are solar panels worth it for RVs?
A: Depends on your usage. The larger upfront cost of solar panels, compared to a generator, pays itself off if you frequently rely on solar power off-grid. However, if you only park your RV in campgrounds with shore power, it's probably not worth your money and effort to invest in solar panels.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
A: Depending on the amount of sunshine you get and the amount of energy you use, a single 100-watt solar panel is likely to be able to keep a 12-volt DC battery charged. It is likely you'll want multiple higher-wattage panels and perhaps multiple batteries to give you more power for a longer period of time.
2. Are solar panels worth it for RVs?
A: Depends on your usage. The larger upfront cost of solar panels, compared to a generator, pays itself off if you frequently rely on solar power off-grid. However, if you only park your RV in campgrounds with shore power, it's probably not worth your money and effort to invest in solar panels.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
