T5 4W 6W 8W electronic ballast driver preheat start with led indicator function

Product Overview

Description

PH12-180-10/10A 4W 6W 8W UV LAMP

PH12-425-18 electronic ballast for UV lamp TUV15WT8

GPH212T5 GPH287T5 GPH303T5 GPH357T5 UV lamp ballast PH12-350-15A

198-264V PW12-350-15 UV ballast for TUV11W TUV16W

99-132V PW12-180-10A UV ballast for TUV4W TUV6W TUV8W LTC4T5 LTC6T5 LTC8T5

Preheating UV Electronic ballasts 4W to 18W

TUV4W TUV6W TUV8W LTC4T5 LTC6T5 LTC8T5 UV lamp ballast

UV lamp Electronic ballast 4-18W TUV4W TUV6W TUV8W LTC4T5 LTC6T5 LTC8T5

TUV15WT8 Ballast



1.Suitable for UV lamps

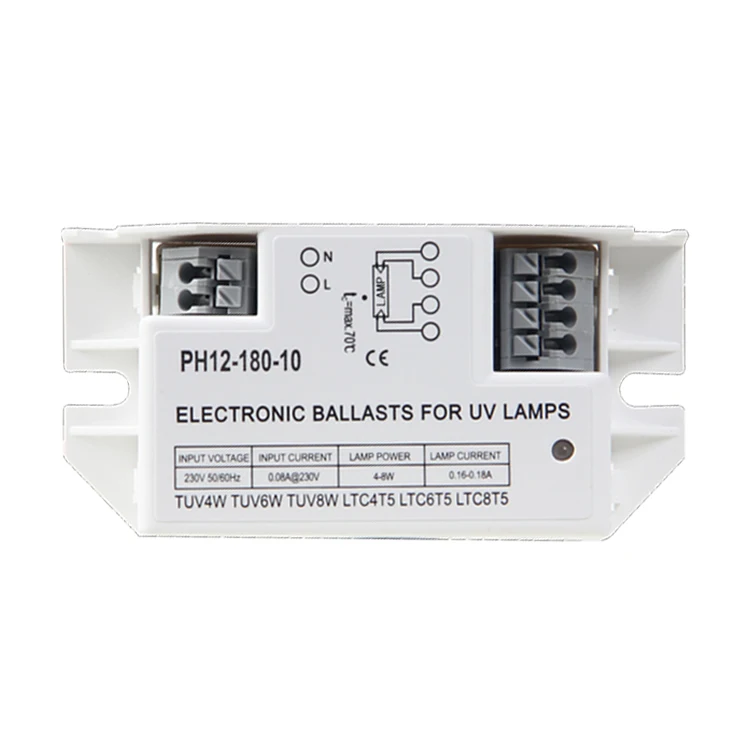

PH12-180-10

PH12-180-10A

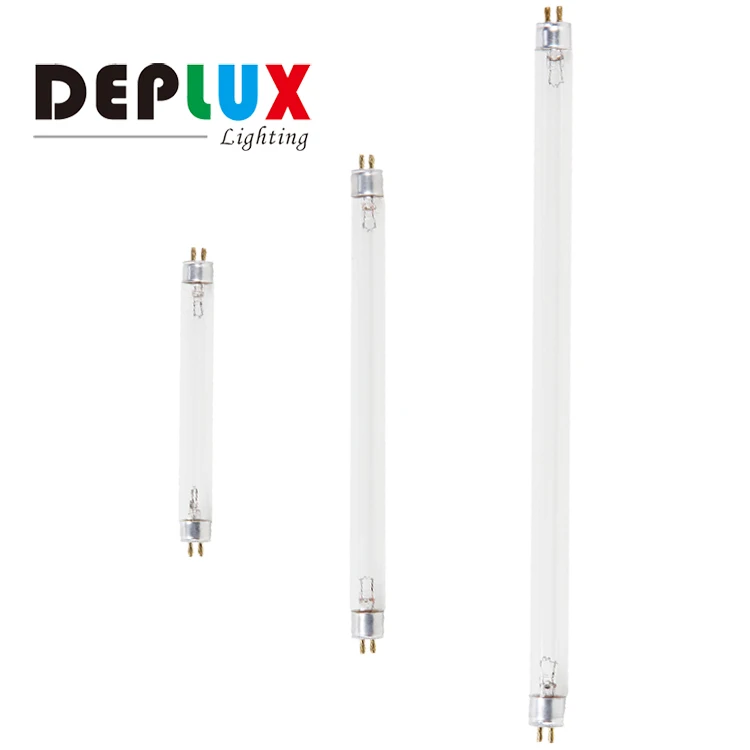

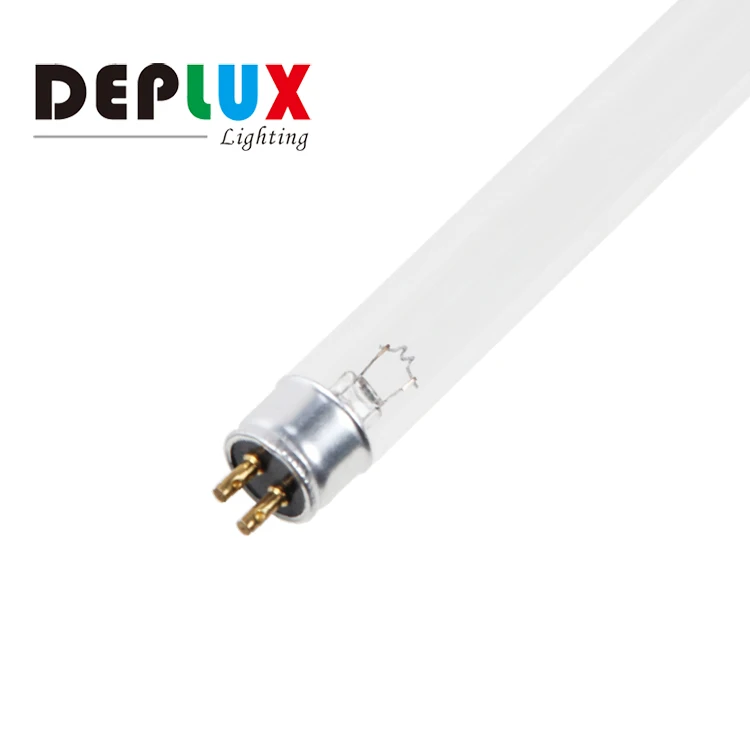

Lamp types: TUV4W TUV6W TUV8W LTC4T5 LTC6T5 LTC8T5



PH12-350-15

PH12-350-15A

Lamp types: TUV15WT8



PH12-425-18

PH12-425-18A

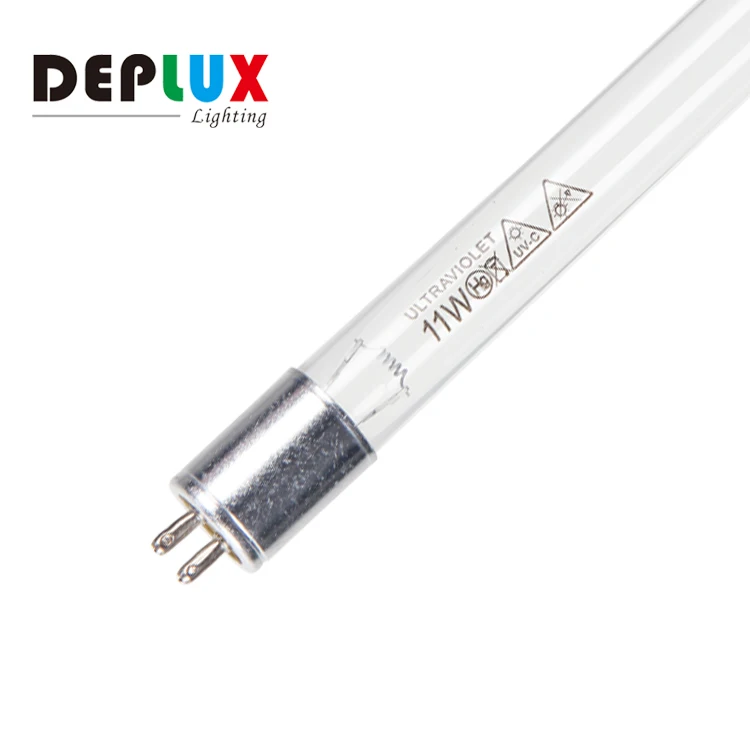

Lamp types: GPH212T5 GPH287T5 GPH303T5 GPH357T5 TUV11W TUV16W



2.Technical specifications

Mains Voltage:110-240VAC±10%

Mains Frequency:50/60Hz

Power Factor: >0.55

Efficiency: >80%

Operating Frequency: 40-60KHz

Dimensions: 80*40*22mm



3.Lamp status forwarding

Potential free relay contacts for lamp on/lamp fault..

4.Installation requirement

Wire Gauge:0.5-1.0mm2

5.Mounting restrictions

Disconnect Input Power Before Installing or Servicing.

Ballast Case Must Be Grounded.

Don’t short any two wires of the four outputs.

6.Features

Starting:Preheat

7.Applications

All areas of applications includes UV lamps

Air purification

Industrial water treatment

Municipal water treatment

Type	Input Voltage(V)	Input Power(W)	Input Current(A)	Power Factor(λ)	Lamp Current(A)	Startup Mode	Net.Weight(kg)	Gross Weight(kg)
PH12-425-18L	198-264	21.5	0.17/230V	>0.55	0.35-0.42	Preheat	0.048	6.3
PH12-425-18AL	99-132	21.5	0.33/120V	>0.55	0.35-0.42	Preheat	0.048	6.3
PH12-180-10L	198-264	10	0.08/230V	>0.5	0.15-0.18	Preheat	0.048	6.3
PH12-180-10A	99-132	10	0.15/120V	>0.5	0.15-0.18	Preheat	0.048	6.3
PH12-425-18	198-264	21.5	0.17/230V	>0.55	0.35-0.42	Preheat	0.048	6.3
PH12-350-18	198-264	21.5	0.17/230V	>0.55	0.30-0.35	Preheat	0.048	6.3
PH12-180-10	198-264	10	0.08/230V	>0.5	0.15-0.18	Preheat	0.048	6.3
