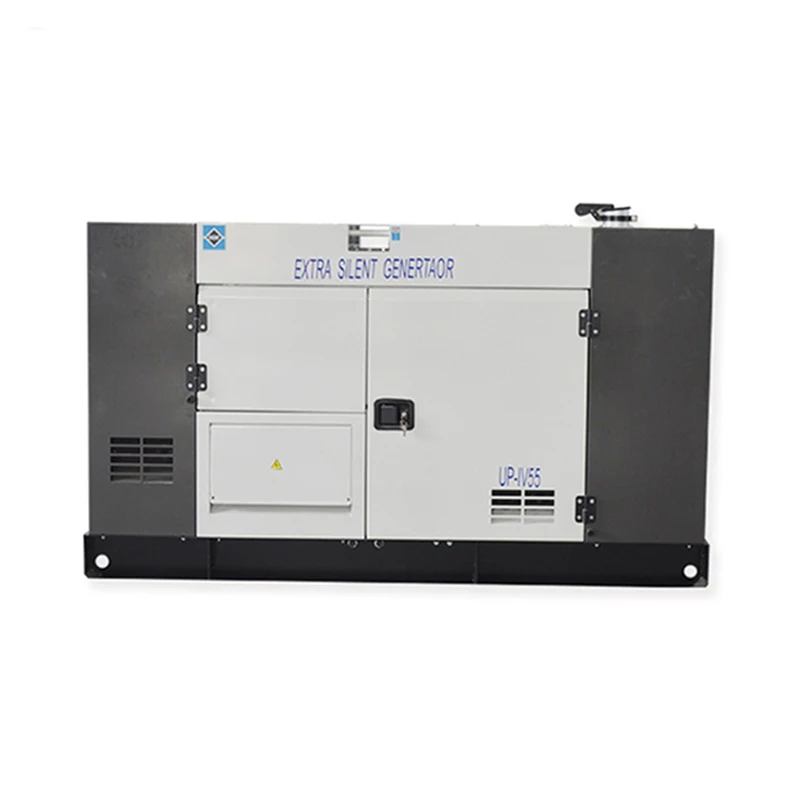

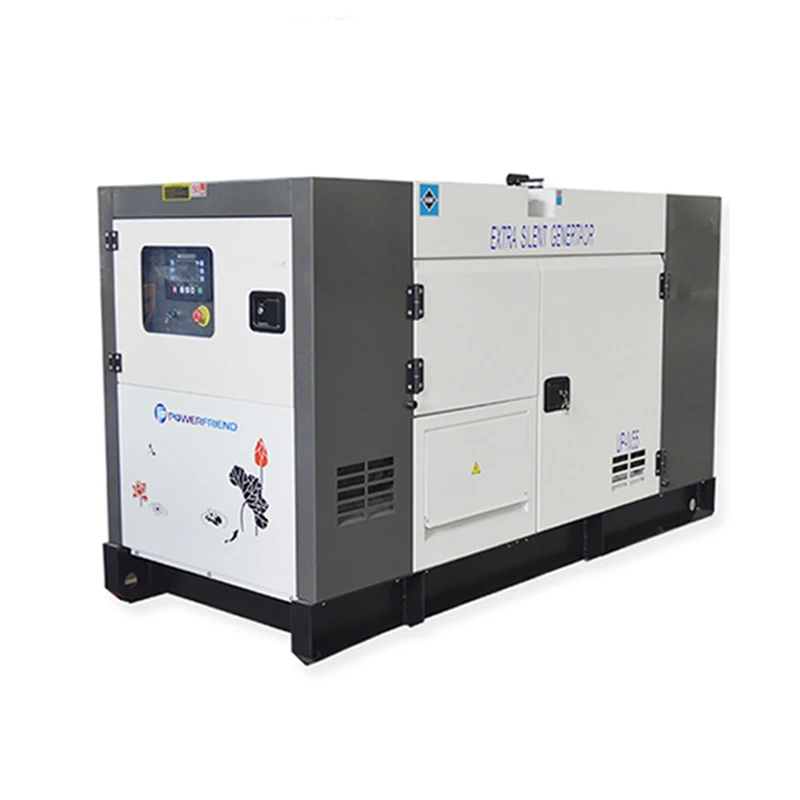

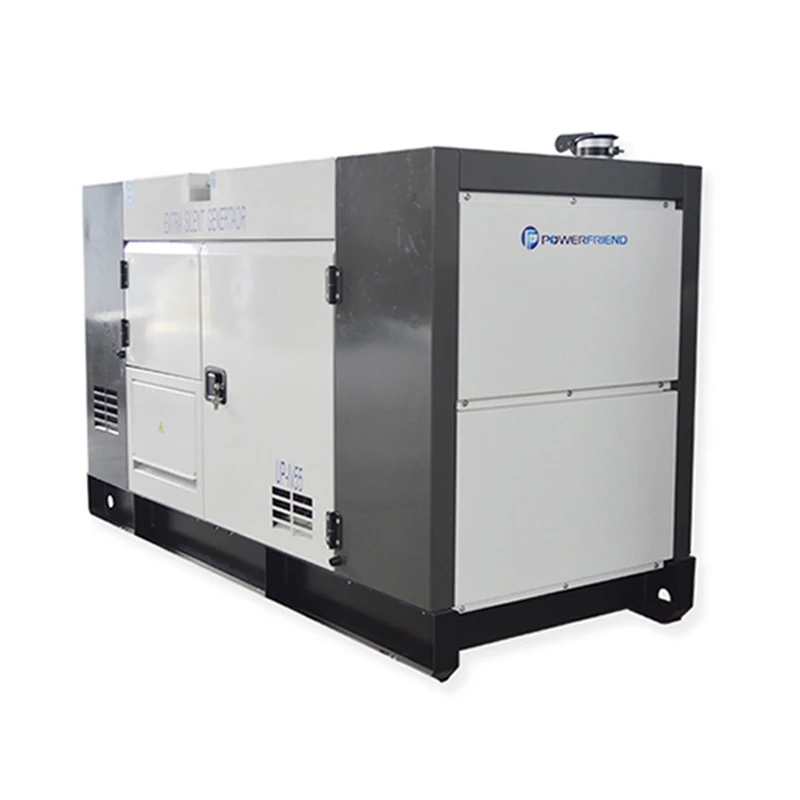

50 kw electric motor three phase generator alternator 63kva 50kw diesel generator price
- Category: >>>
- Supplier: Jiangsu United Power Friend Technology Co. Ltd.
Share on (1600534219083):
Product Overview
Description
50 kw electric motor three phase generator alternator 63kva 50kw diesel generator price
Product Description
| Technical specification | |
| Genset Model | PF-FW69S |
| Prime Power | 50KW/63KVA |
| Standby Power | 55KW/69KVA |
| Phase Number | 3 |
Power Factor | 0.8 |
| Rated Voltage | 400/230V |
| Frequency | 50HZ |
| Rated Current | 90.2A |
| Genset Structure | Silent type |
| Dimension | 2800x1100x1450mm |
| Net Weight | 1700KG |
| Engine Model | FAWDE/4DX23-78D |
| Engine Features | 4-cylinder, 4 stroke, water cooled, turbocharged |
| Bore*Stroke | 102x118mm |
| Displacement | 3.86L |
| 12-hour Power(kw) | 57KW/1500 |
| Fuel Consumption L/H | 15L/H |
| Compression Ratio | 17:1 |
| Governor Type | Electronic |
| Alternator Model | Stamford/UCI224E, Mecc Alte, Marathon, Leroy Somer |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler Panel | Smartgen/ Deepsea/ Harsen |
| Smartgen 6110 | intelligent and netword techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming, automatic switching control fuctions (AMF), especially suitable for the automation system composed by Mains and Generator |

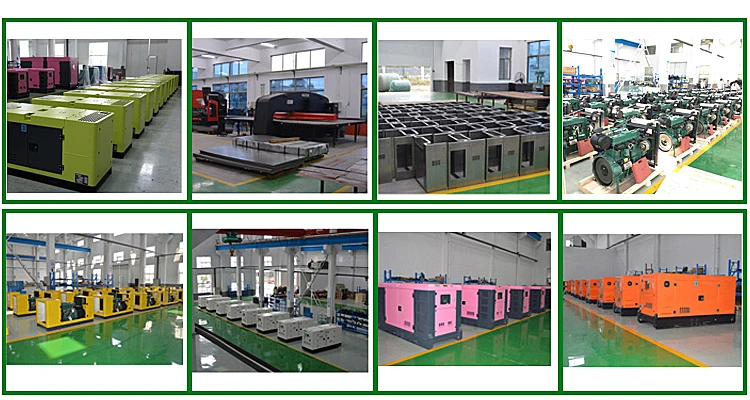

Production Flow
Digital Punching & cutting | Powder Painting | Genset Assembling | Wiring |
|---|---|---|---|
| Shipping | Packing | Tidy & Clean | Test |
| Quality Inspection Process |
|---|
|
|
|
Clean the genset, and packed, then transport |
Company Information
JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.
Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators.
We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.
We supply Generator Sets from 2kva to 3000kva.

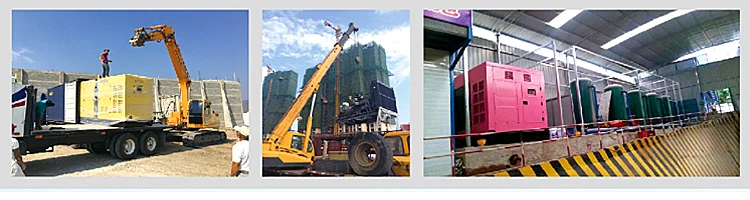

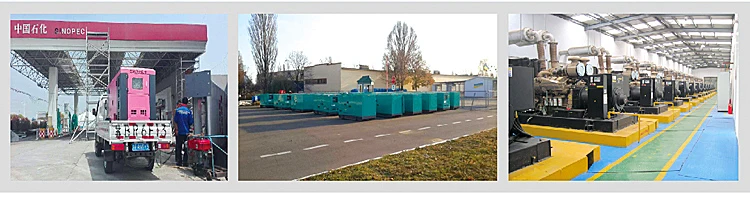

PowerFriend Projects----
500kva for Guatemaia Genset for Property Genset for Government
IVECO gensets for Sinopec 40 sets of silent genset for Ukraine Army 14 sets of Paralleling Gensets
OEM Partners----
PowerFriend Show----
Certificate----
Trade shows----
Our company has participated in several exhibitions, such as Canton Fair(Guangzhou) and many foreign trade shows.
Packaging & Shipping----
Delivery Time: 30 days after deposit, By Sea
Package: nude packing or plywooden case
FAQ
Q1: What is your warranty period?
A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).
Q2: Does your generator have global warranty?
A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details.
Q3: What is your payment terms?
A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.
Q4: What is your delivery time?
A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.
Q5: Can the generators be customized?
A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.
Q6: Can you use our logo?
A6: Yes. For mass orders, we can use customer's logo instead of ours.
