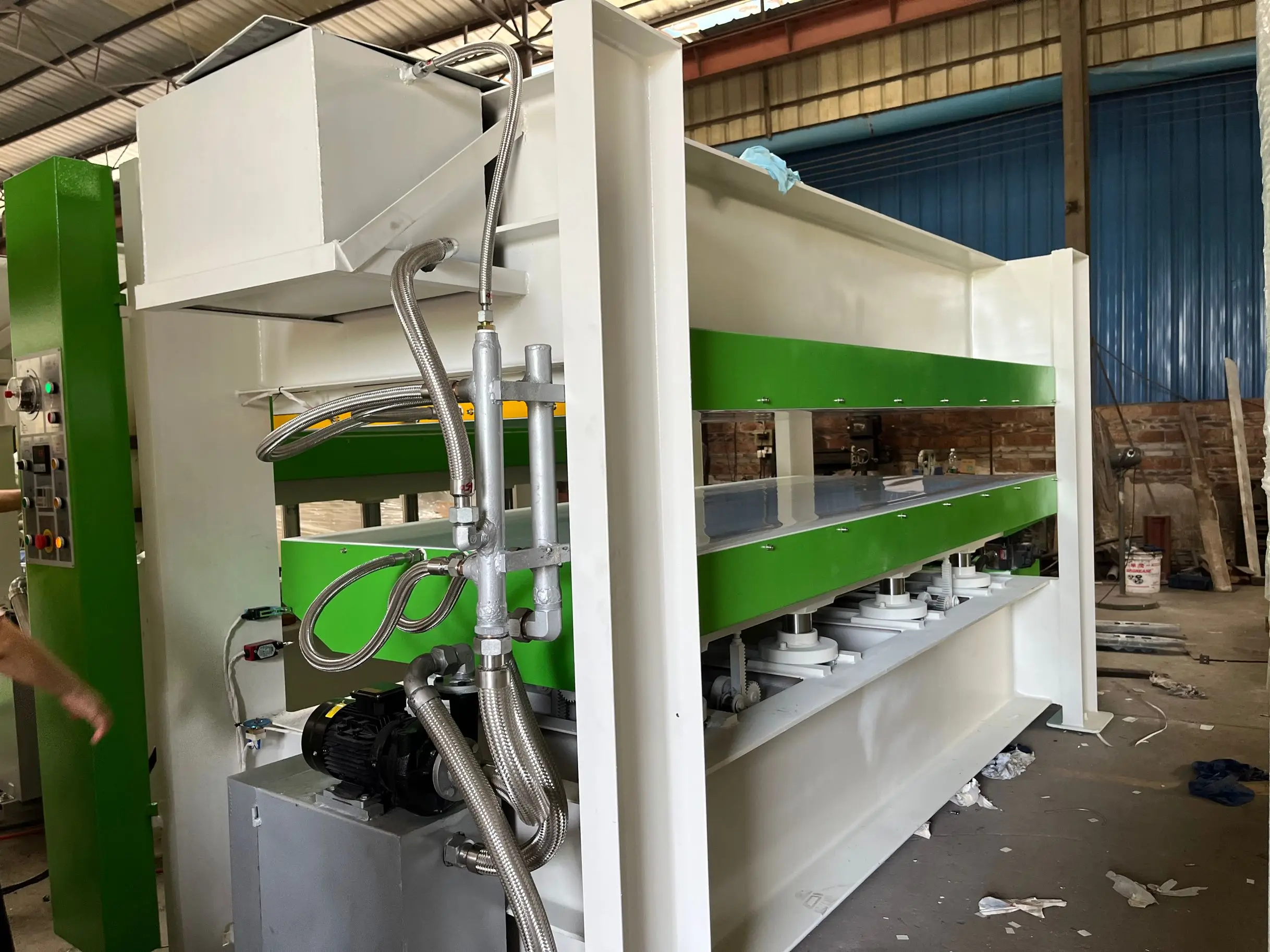

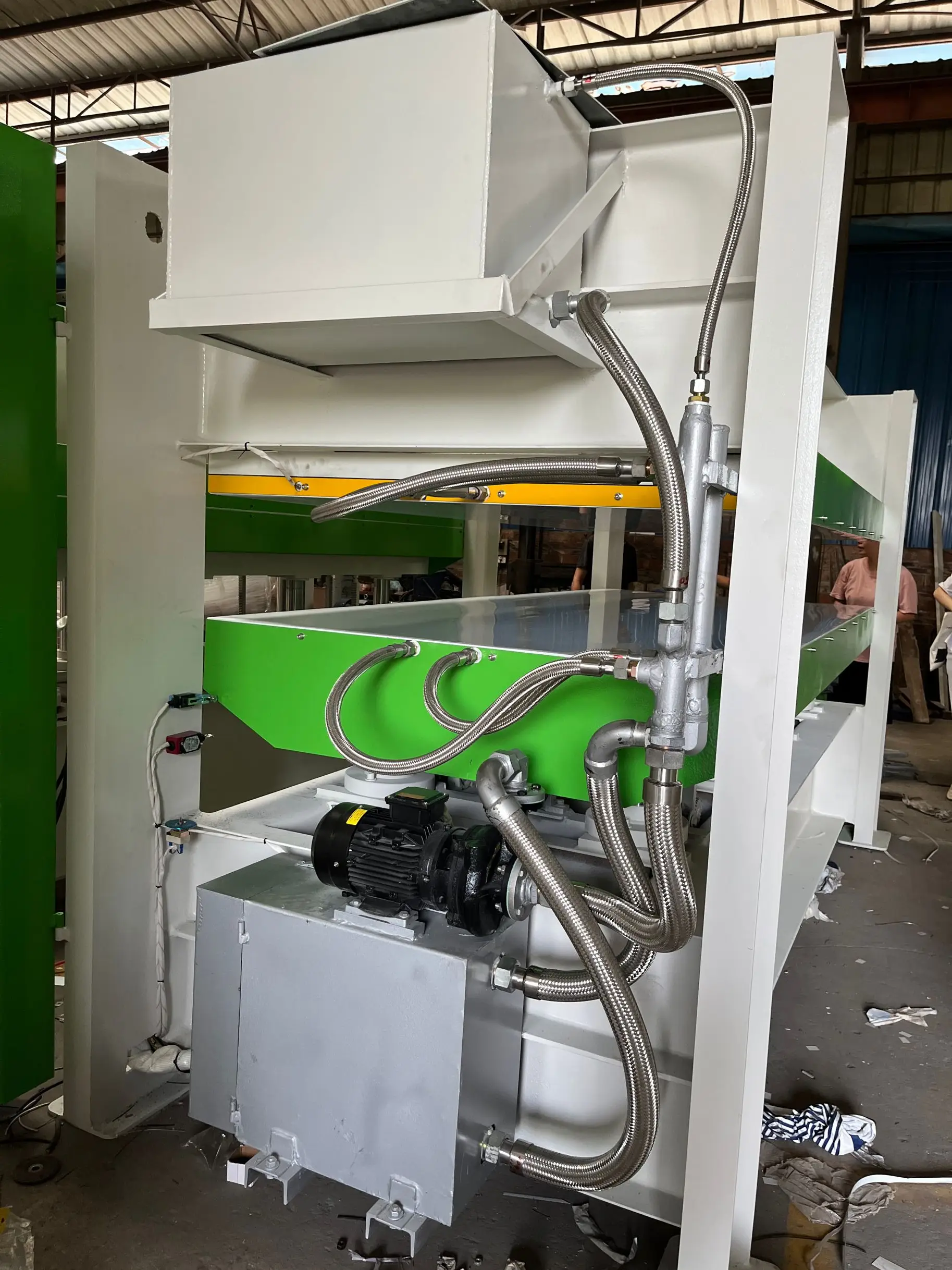

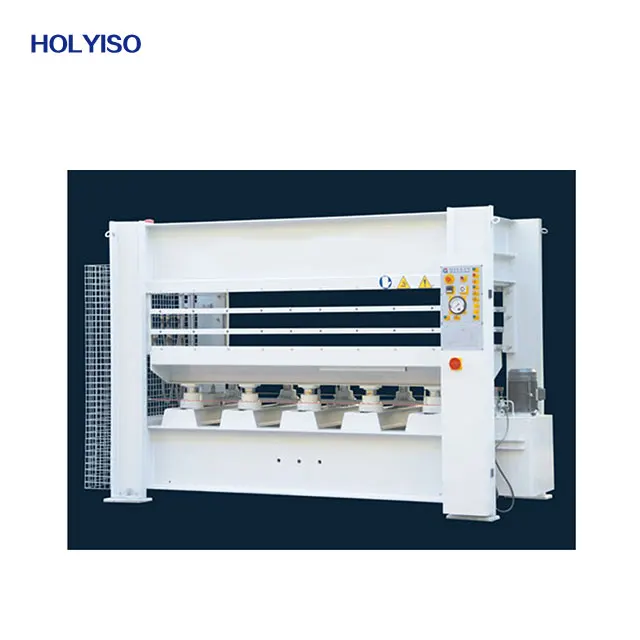

160T Hot Press Machine Flush Door Laminating Hot Press Machine
- Category: >>>
- Supplier: Foshan Holyiso Machinery Co. Ltd.
Share on (1600534240526):
Product Overview
Description
Products Description
Hot Press Machine
Application:
Laminating hot press is fit for the furniture factory or panel decorative plant, which can make lamination for panel, such aswooden door, core board, MDF, Plywood, chipboard with all kinds of decorative paper HPL or veneer. It can also be used for drying or leveling veneer.
Features:
1.PLC programmable control system so that it smooth,rapid closure,stable,effective and pre-loading

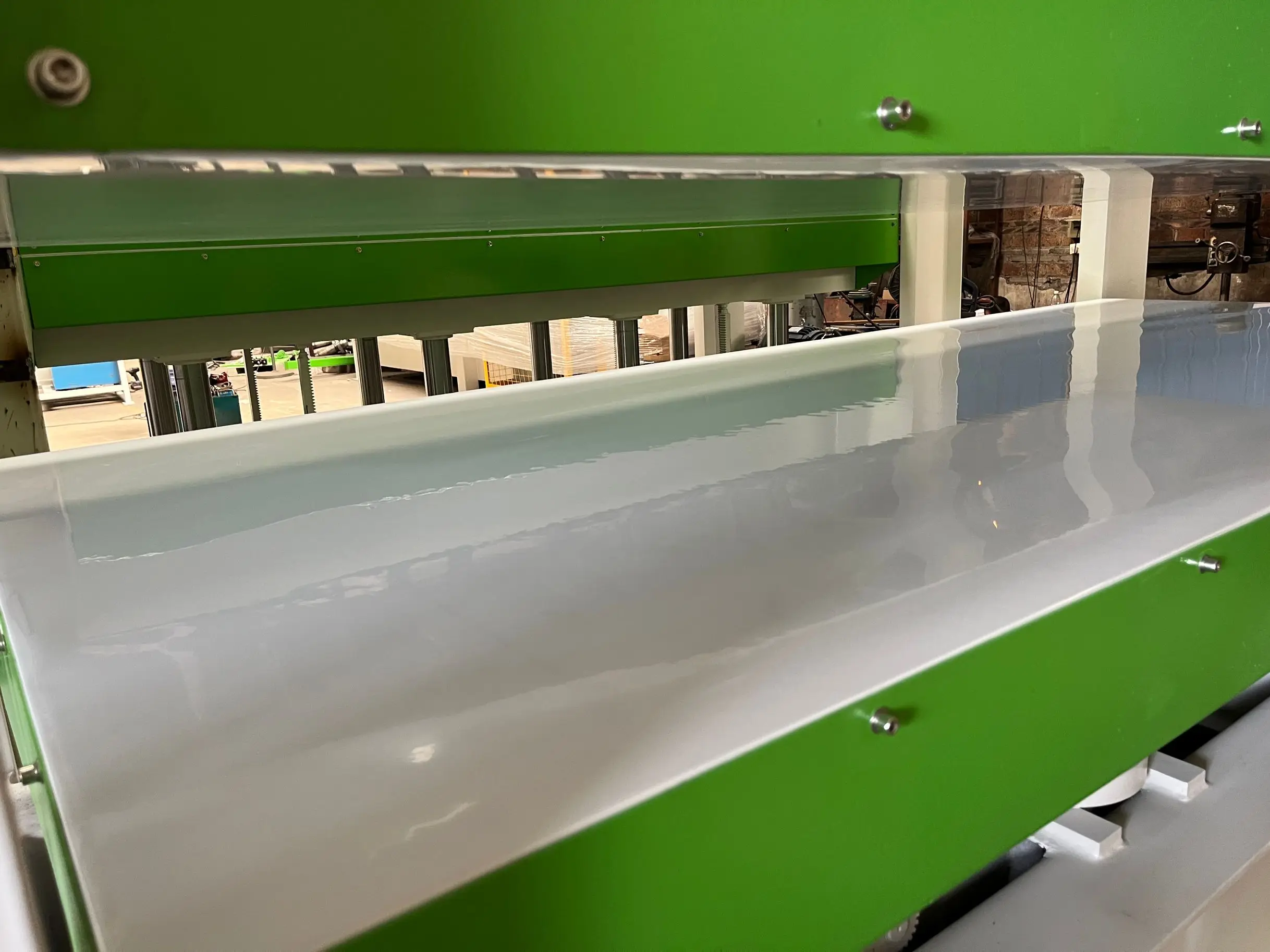

2.Hot platen:It is drilled from excellent carbon solid steel and it is high precision, high strength and durable.
3.It is manufactured on special worktable,so as to keep the hot platen easy to operate.
The electric oil heater is environmental protection instead of using coal or wood as it’s fuel.
4.Hydraulic system:It is “Triple Filter”and it has excellent oil pump and electric motor.
It uses right-angled one-way valve so that it can work smoothly.The pressure is adjustable.
5.Control system:Microcomputer ,Manually/Automatic controlled.
Advantage:
1.It can lift the hot platen,close the separation,add the pressure,keep the pressure,keep time, descend the hot platen and so on.
2.As to the oil heater,it is adjustable,safe, uniform temperature,energy saving and so on.
3.Cylinder:It is worked through excellent CNC precision machine tool.
4.It uses high quality oil envelop so as to avoid of oil leaking.
Model： | AY214×8/10(1)HRC-B1 | AY214×8/12(3)H1RC | AY214×8/16(3)H1RC | |||
Total pressure： | 1000KN/100T | 1200KN/120T | 1600KN/160T | |||
Specific pressure: | 3.2Kgf/cm2 | 3.9Kgf/cm2 | 5.3Kgf/cm2 | |||
Working layer： | 1 | 3 | 3 | |||
Platen No.& Size： | 2-2500x1300x42mm(Covered with mylar) | 4-2500x1300x42mm(Covered with mylar) | 4-2500x1300x42mm(Covered with mylar) | |||
Platen opening： | 380mm | 120mm | 120mm | |||
Cylinder No.& Dia： | 6-φ85mm | 8-φ85mm | 10-φ85mm | |||
Max temperature： | 120℃ | 120℃ | 120℃ | |||
Heating way： | Electric heating with thermic oil | Electric heating with thermic oil | Electric heating with thermic oil | |||
Heating medium: | Thermic oil | Thermic oil | Thermic oil | |||
Installation power： | 28.75kw | 4+0.75+48KW | 53.5KW | |||
Platen opening way： | Automatically | Manually | Manually | |||
Loading way： | Length side,Manually | Length side,Manually | Length side,Manually | |||
Voltage： | As per your request | 380V 50HZ | 380V 50HZ | |||
Packing： | Bare but properly secured | Bare but properly secured | Bare but properly secured | |||
Gross Weight： | About 6000.00 kg | About 7500.00 kg | About 8500.00 kg | |||
Overall dimension: | 3600x1710x2080mm | 3400*1530*2050mm | 3800*1410*2350mm | |||
Container need： | 1X20'GP | 1X20'GP | 1X20'GP | |||
* There are also many models to choose from * >> Tell us your requirement << | ||||||
Details Images
Chain Drive
Make the machine movement more stable and quickly
Humanized control panel
Easily adjust the machine up and down, operation more convenient
Hydraulic Pump
Reduce noise, low energy consumption, high speed
Application
Related Products
Packing&Shiping
1.Delivery:
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the
product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the
product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
Company Profile
Foshan HOLYISO Machinery CO.,Ltd. is committed to providing customers all over the world with high-quality,stable and durable woodworking machinery. It is a professional manufacturer of Panel saw, Edge banding machine,CNC cutting machines and CNC drilling machine.
We have more than 30 professional R&D personnel, the total production area of the factory is more than 27,000 square meters, and more than 30 various high-precision advanced processing equipment, ensuring the perfect performance of the machine. The company uses advanced technology from Germany and Italy to develop automated woodworking CNC equipment that meets the needs of the furniture and wood products industry.
FAQ
FAQ
1.What’s the different between Rough trim&Fine trim?
1.What’s the different between Rough trim&Fine trim?
Rough trim&Fine trim can trim the exceeding edge on the top and bottom side of the panel to be more smooth.Fine trimming can be upgraded to pneumatic adjustment knife edge for increased productivity and precision.
2.Will the machine be debugged before leaving the factory?
Surely yes,our machines are commissioned before leaving the factory to ensure that every function is available. However, we suggestion that the machine be adjusted according to its actual panel after it arrives.
3.Can I pause some features if I don't want to use ?
In addition to the scraping function, most other functions can be pause.
4.Can I customize the features I want?
Of course we are special in woodworking manufacturer and exporter of quality woodworking machines in Guangzhou, China. We have been in this field for more than 20 years.We have the ability to provide professional services for you.
5.Can the edge banding machine only seal the edges straight?
We also have fully automatic Partial hypotenuse edge banding machine.
6.How much temperature reach can it work ?
Generally,when reaches 150 ° it can test the board .The best working temperature is 180°.
7.what features can be upgraded?
A.Full range of products can be customized to feed in the opposite direction.
B.Pneumatic adjustment(Including trimming and scraping)
C.Heavy-duty pneumatic pre-milling function
D.Multi-cylinder adjustment function
E.Profile tracking chamfer
F.Double color plastic pot
G.Dual guide head and tail function
H.PUR glue supply system
I.Four polishing function J.Rapid sol system K.Six-wheel press function
L.Pneumatic flat wipe function (floating edge)
2.Will the machine be debugged before leaving the factory?
Surely yes,our machines are commissioned before leaving the factory to ensure that every function is available. However, we suggestion that the machine be adjusted according to its actual panel after it arrives.
3.Can I pause some features if I don't want to use ?
In addition to the scraping function, most other functions can be pause.
4.Can I customize the features I want?
Of course we are special in woodworking manufacturer and exporter of quality woodworking machines in Guangzhou, China. We have been in this field for more than 20 years.We have the ability to provide professional services for you.
5.Can the edge banding machine only seal the edges straight?
We also have fully automatic Partial hypotenuse edge banding machine.
6.How much temperature reach can it work ?
Generally,when reaches 150 ° it can test the board .The best working temperature is 180°.
7.what features can be upgraded?
A.Full range of products can be customized to feed in the opposite direction.
B.Pneumatic adjustment(Including trimming and scraping)
C.Heavy-duty pneumatic pre-milling function
D.Multi-cylinder adjustment function
E.Profile tracking chamfer
F.Double color plastic pot
G.Dual guide head and tail function
H.PUR glue supply system
I.Four polishing function J.Rapid sol system K.Six-wheel press function
L.Pneumatic flat wipe function (floating edge)
