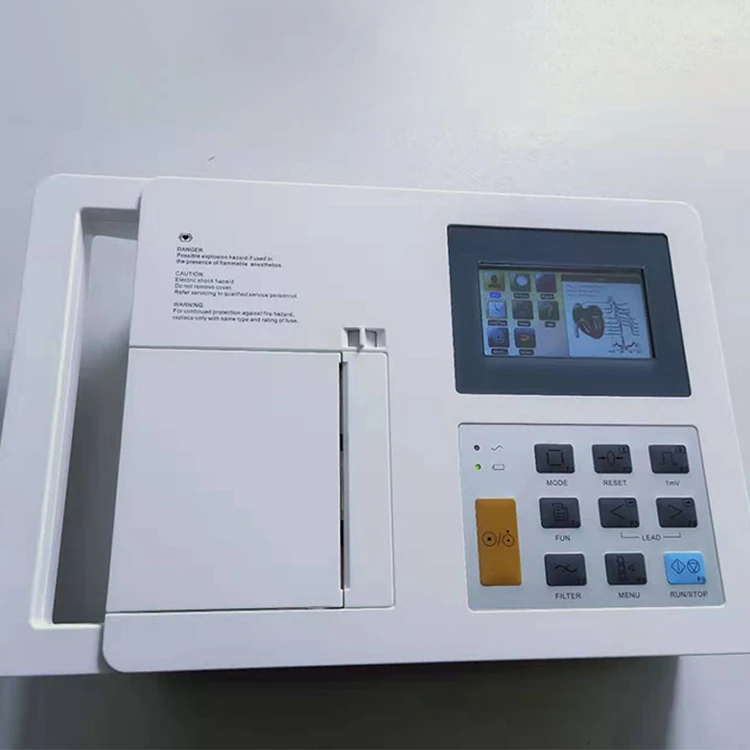

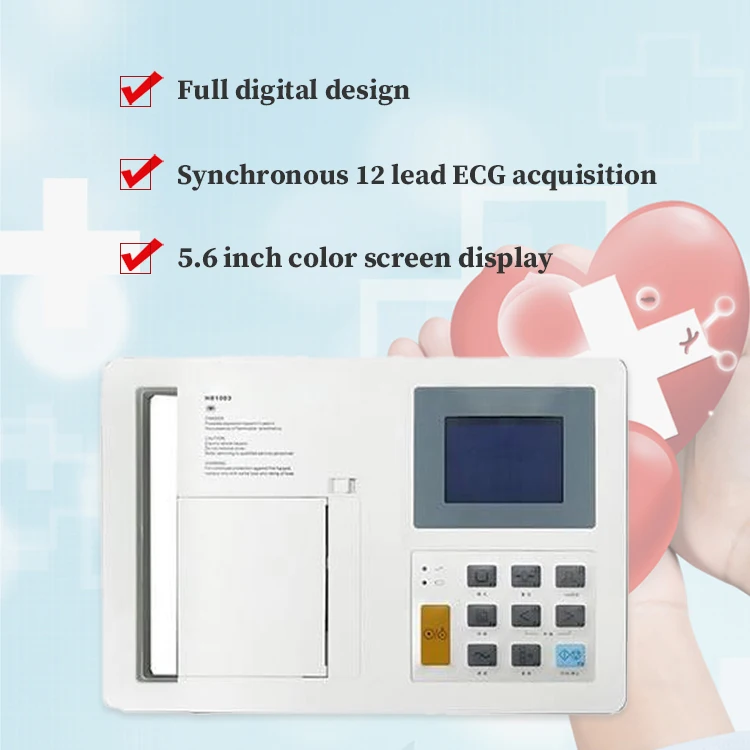

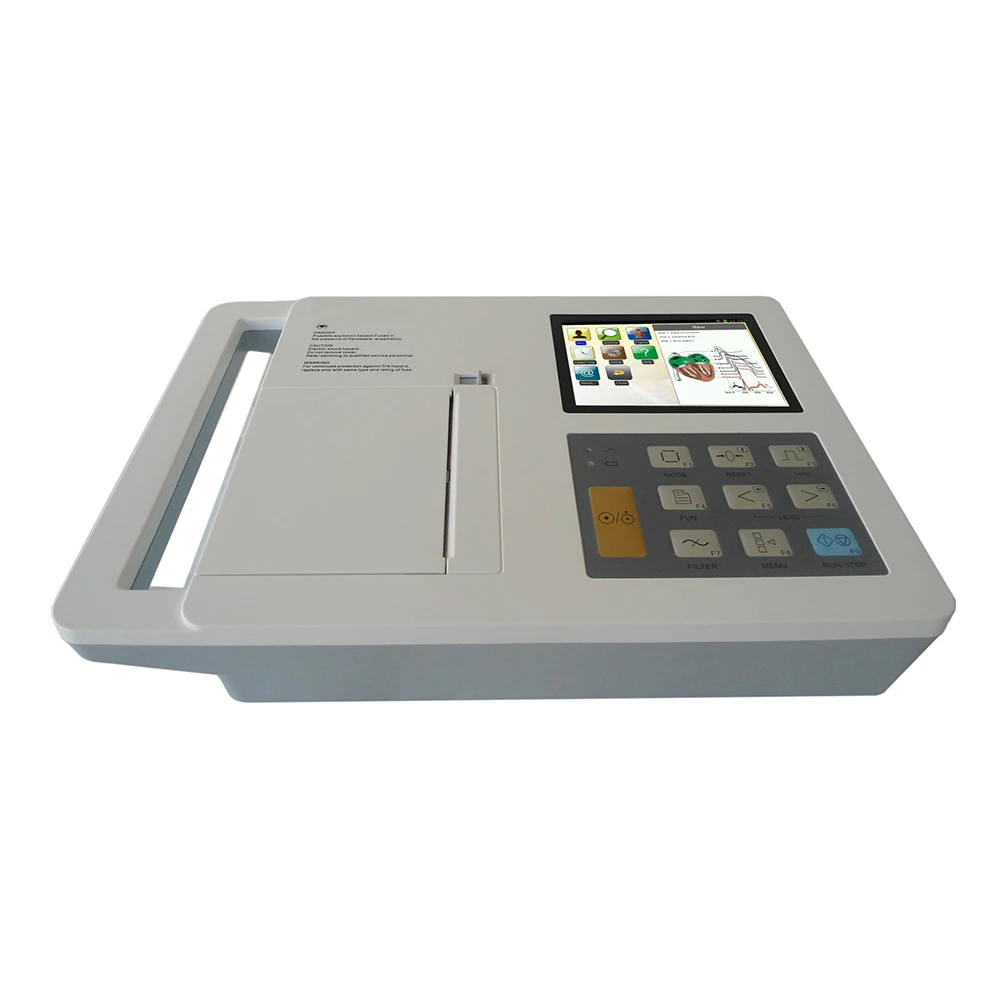

Portable Digital Touch Screen 6 Channel 12 Leads Electrocardiogram ECG Machine
- Category: >>>
- Supplier: Hangzhou Huixinhe Medical Technology Co. Ltd
Share on (1600534274311):
Product Overview
Description
Product Details
CMRR | ≥100dB, with AC Filter | Calibrating voltage | 1mV±3% |
Input circuit | Floating | Voltage tolerance | ± 500mV |
Input circuit current | ≤0.1μA | Time constant | >3.2s |
Resolution | 12bit/ 1000Hz | Frequent response | 0.05Hz~150Hz |
Operation mode | Manual/ Auto | Noise level | ≤15μ Vp-p |
Filter | AC. EMG Filter | Threshold | ≤20μ V |
Drift filter | Anti-Drift System | Paper speed | 12.5, 25, 50mm/s (± 3%) |
Input Impedance | ≥50MΩ | Sensitivity | 5, 10, 20mm/ mV |
Patient current leakage | <10μA | Recorder | High resolution thermal printer |
Specification of fuse | T1.6A 250V Ø5x20 | Battery | Built-in rechargeable Li-ion battery 11.1V(4000mAh) |
Recording paper | Thermal recording paper | Package | 360mm*250mm*68mm |

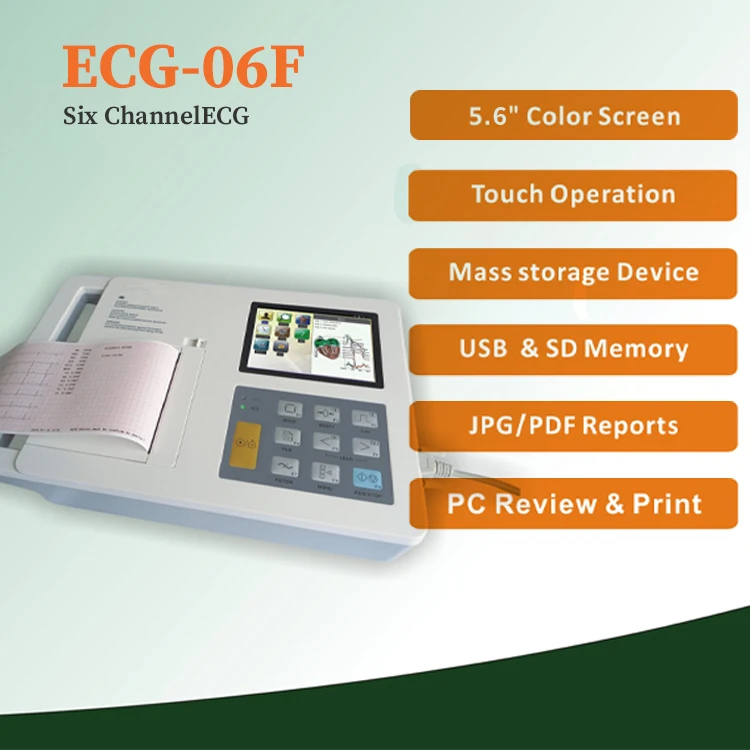

ECG-06
1.Modern in design, light in weight, compact in size.
2.Simultaneously acquisition of 12 lead, full screen display of 6 channel ECG waveforms.
3. 5.6'' color touch-screen, both push-button and touch operation. 4.3” color touch screen can be choose.
4.Sensitive filters of ADS, HUM, and EMG.
5.Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor's burden and
improve working efficiency.
6.Automatic adjustment of baseline for optimal recording.
7.Thermal printer with 112mm print paper, synchronization print.
8.Lead off & lack off paper detection function.
9.Built-in rechargeable li-ion battery (11.1V/4000mAh), AC/DC power conversion.
10.Adapt to 100-240V, 50/60Hz AC power supply
11.Historical data and patient’s information can be reviewed and printed.
12.Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
13.The machine can store over 400 ECG reports in its built-in flash.
14.Standard RS232 and USB communication interfaces.
15.Connect with PC via ECG workstation software.
16.Sleep mode to save energy and extend LCD life
17.The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark
2.Simultaneously acquisition of 12 lead, full screen display of 6 channel ECG waveforms.
3. 5.6'' color touch-screen, both push-button and touch operation. 4.3” color touch screen can be choose.
4.Sensitive filters of ADS, HUM, and EMG.
5.Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can reduce doctor's burden and
improve working efficiency.
6.Automatic adjustment of baseline for optimal recording.
7.Thermal printer with 112mm print paper, synchronization print.
8.Lead off & lack off paper detection function.
9.Built-in rechargeable li-ion battery (11.1V/4000mAh), AC/DC power conversion.
10.Adapt to 100-240V, 50/60Hz AC power supply
11.Historical data and patient’s information can be reviewed and printed.
12.Support USB flash disk & SD memory, stored reports can be saved, opened, analyzed in PC via ECG playback software.
13.The machine can store over 400 ECG reports in its built-in flash.
14.Standard RS232 and USB communication interfaces.
15.Connect with PC via ECG workstation software.
16.Sleep mode to save energy and extend LCD life
17.The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark
