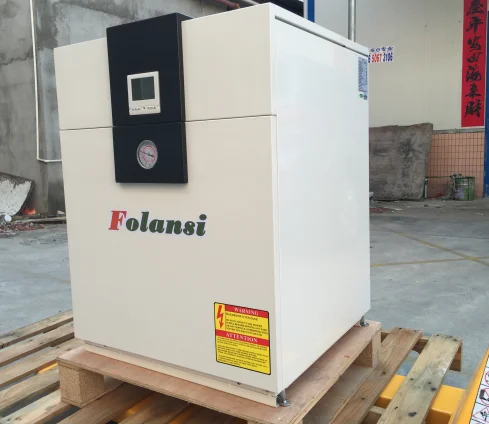

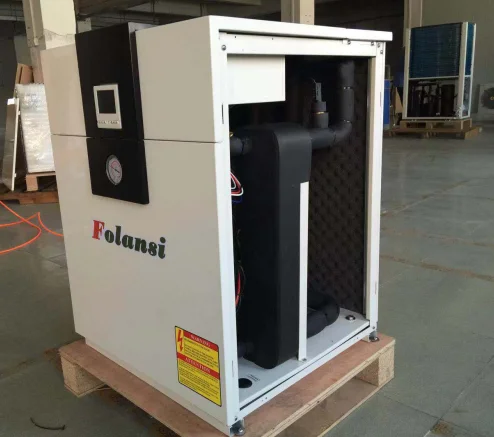

14kW Water to water heat pump Water source heat pump Geothermal heat pump

Product Overview

Description

Model				Unit	FWC-04
	Rated heating	Heating capacity		kw	14
				BTU/h	43418
		Input power		kw	3.4
		Input current		A	16
		COP		kw/kw	3.8
	Rated cooling	Rated cooling capacity		kw	11.3
				BTU/h	38499
		Rated input power		kw	2.4
		Rated  input current		A	12
		EER		kw/kw	4.8
	Max running current			A	20
	Power source			V/Hz	220-240V/380v/50Hz
	Nosie level			dB(A)	≤53
	Dimension		w*d*h	mm	660*530*675
	Weight			kg	170
	Precision of temp controll				±2
	Controller	Type			Multi-color backlight LCD, Can accept panel buttons and infrared remote control
		Main function			Working mode control, independent working temperature setting, status display, timer start and stop machine Settings, key lock function, muti-color backlight selection, etc
Refrigeration circulation structure	Throttle type				External equalizer thermal expansion valve
	Refrigeration	Type			R410A/R417A/ R407C
	Compressor	Type			Copeland,Sanyo,panasonic
		Qty		Piece	1
	Water source side heat exchange	Type			plate heat exchanger
		Water flow		m3/h	1.07
		Water pressure drop		kPa	12
		Pipe size		Inch	1
		Water side max working pressure		kPa	1000
	Water chiller heat exchanger	Type			plate heat exchanger/tube in shell heat exchanger
		Water flow		m3/h	1.94
		water pressure drop		kPa	12
		Pipe size		Inch	1
		Water side max working pressure		kPa	1000
		Refrigeration system			Too high gas temperature protection,high pressure protection, low pressure protection, sensor fault protection
					Compressor delay start protection, phase sequence protection, smoke and fire protection
		Water source system			Water temperature protection, water flow protection, heat exchanger antifreeze protection, standby low temperature protection,Leakage protection



1.Rated heating working condtion:water source side water inlet temp is 15℃,use side water inlet temp is 40℃.water flow the same to summer water flow
2. Rated cooling working: water source side water inlet temp is 18℃,outlet water temp 29℃,use side water inlet water temp 12 ℃,outlet temp 7℃
