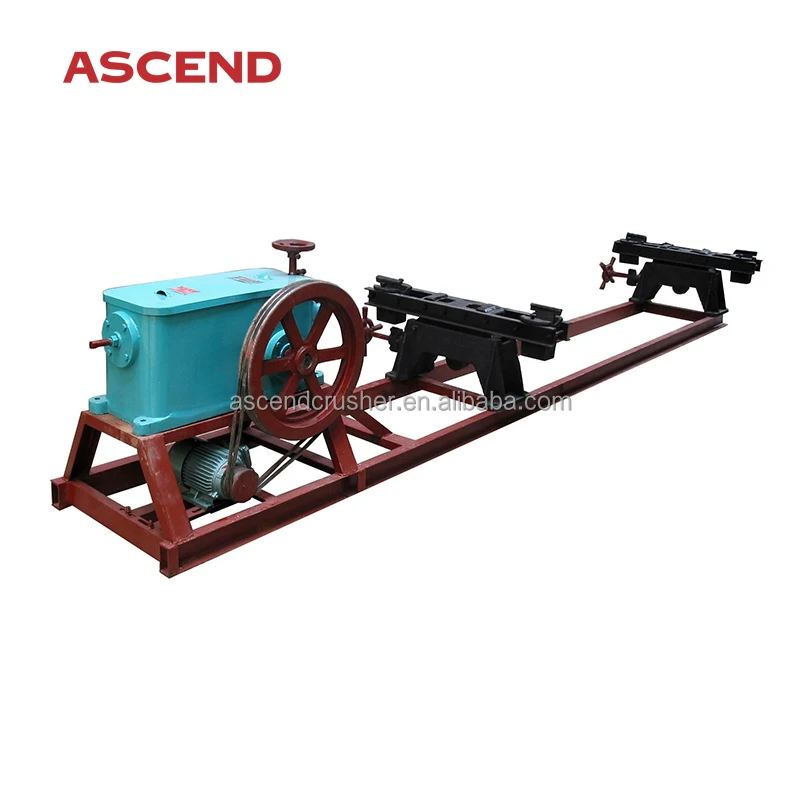

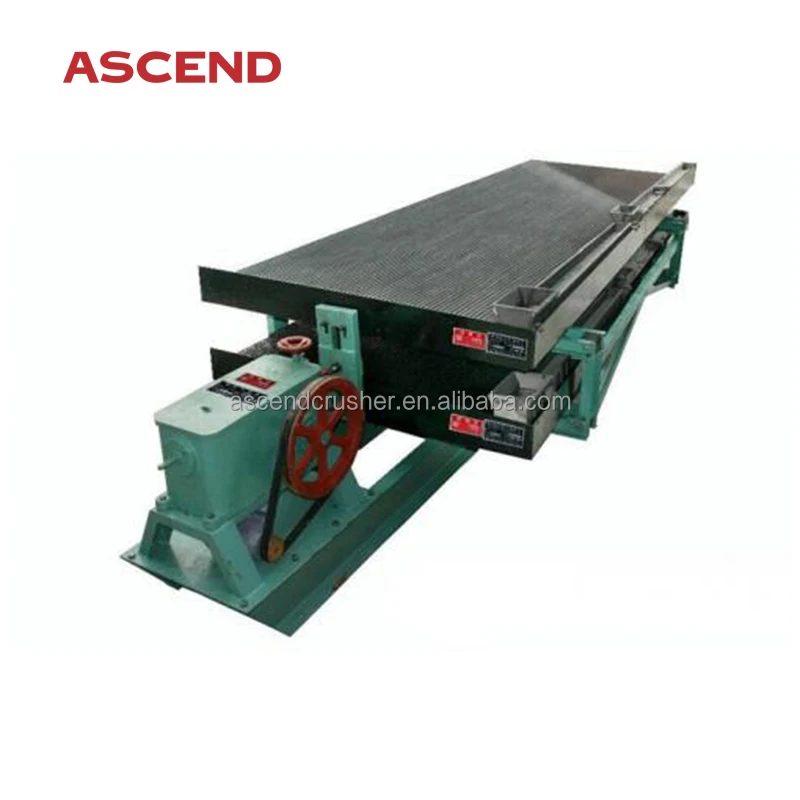

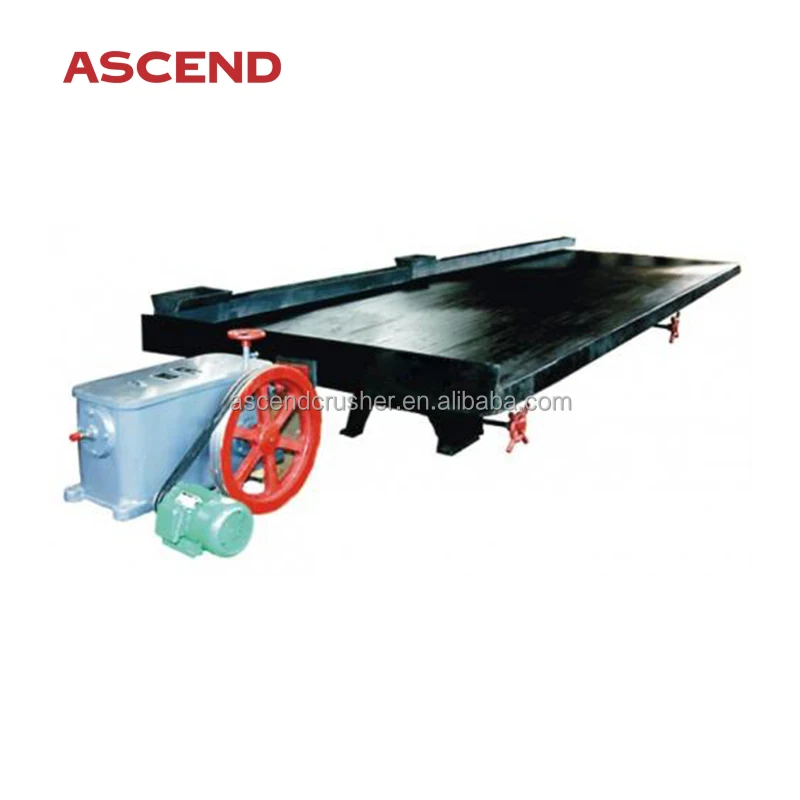

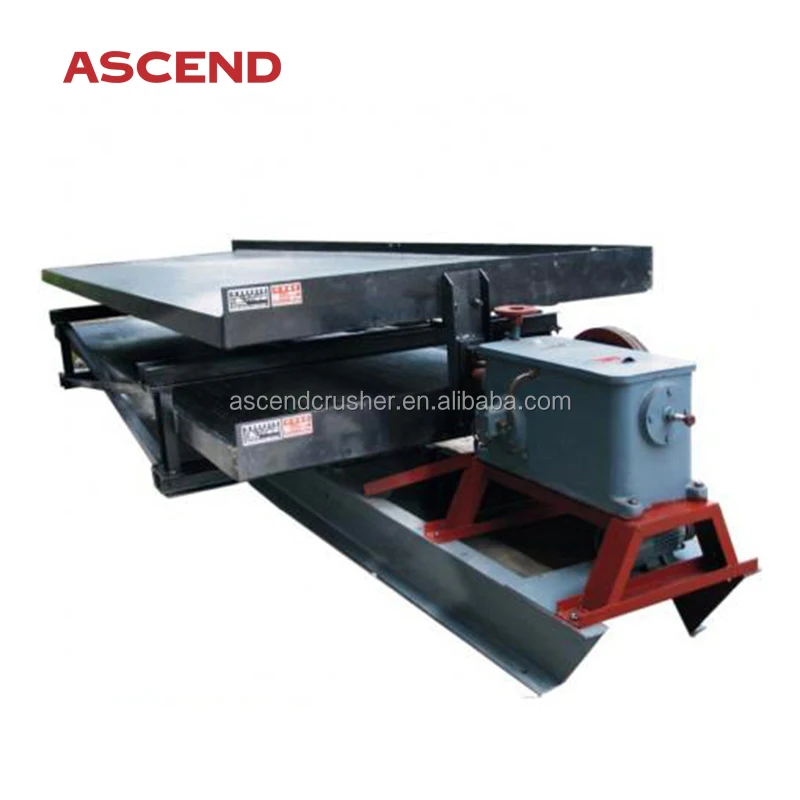

China most popular Water shaking table part 6s shake table for copper gold ore separation
- Category: >>>
- Supplier: Henan Ascend Machinery Co. Ltd.
Share on (1600534284455):
Product Overview
Description
Products Introduction

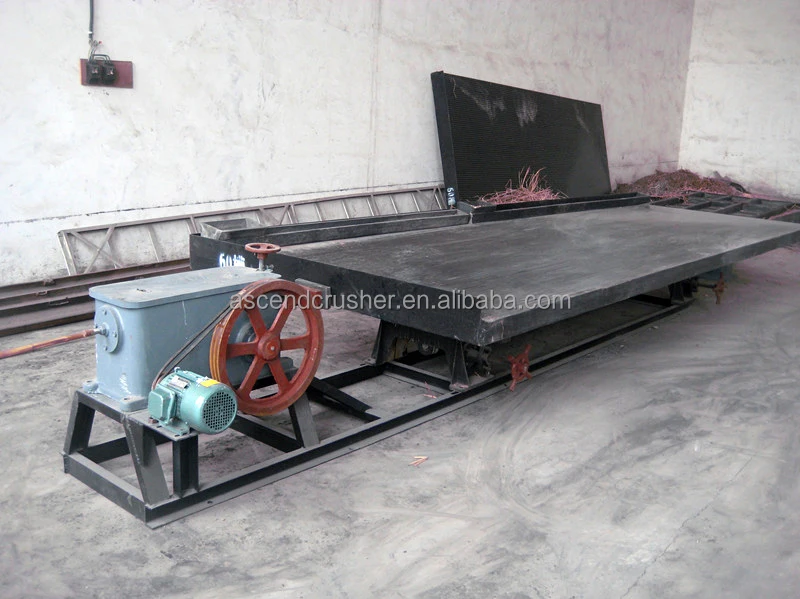

6-s mining shaking table /gold separating machine mining shaker table
Shaking table, as one of the gravity mining machines, applicable to nonferrous metals, ferrous metals and rare metals mineral, like gold, tungsten, tin, tantalum, iron, manganese, chrome, titanium, bismuth and lead, which the size ranges from 2-0.037mm, also recovery of Au, Cu, Ag from various of slags, PCB, waste wire and cable, battery scrap, to improve recovery ratio and protect environment.
Working Principle
The working principle of Gold Ore Shaking Table is to use the combined action of the specific gravity difference of sorted

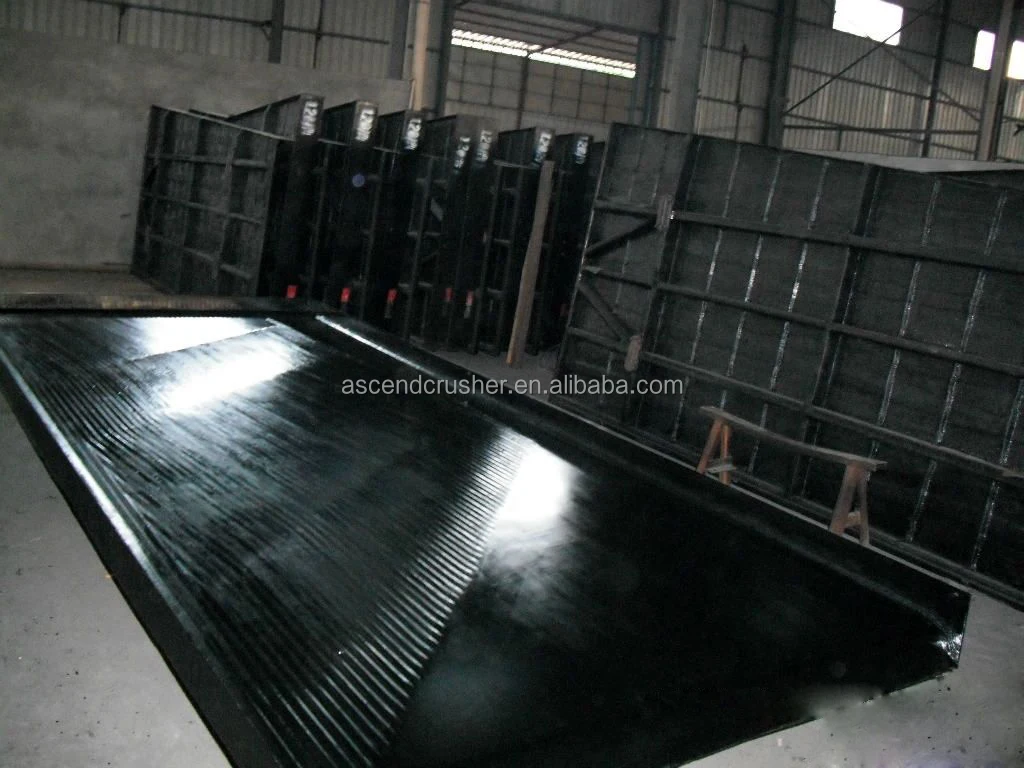

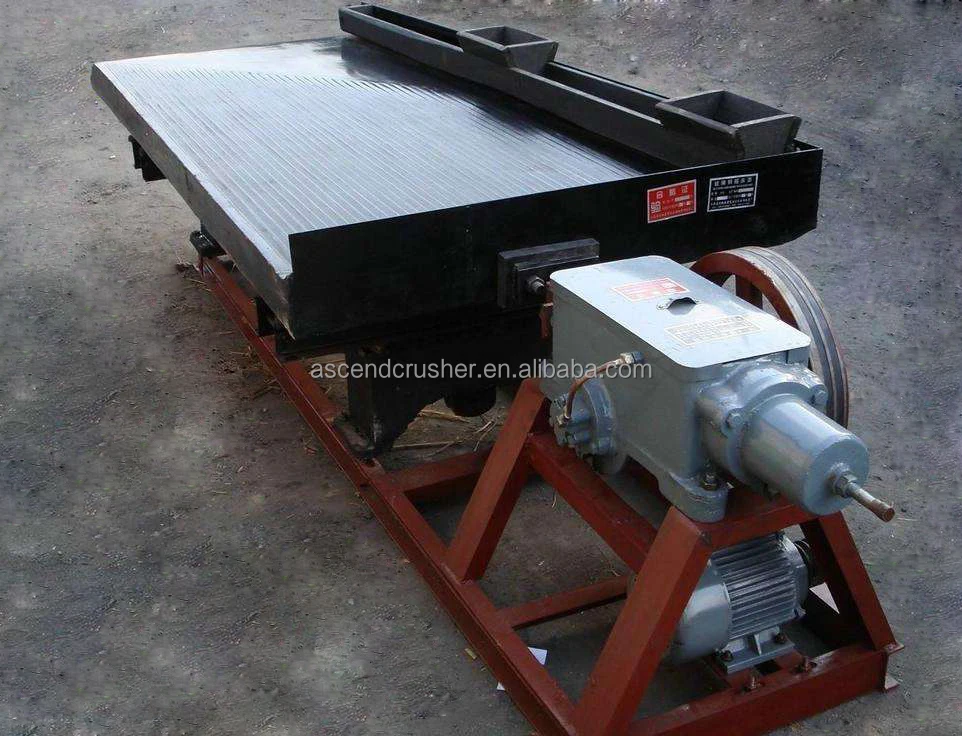

minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced. Mining Gold Shaker Table is composed of three parts, i.e. head of shaking table, surface of shaking table, as well as bearing and adjusting gradient.
minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced. Mining Gold Shaker Table is composed of three parts, i.e. head of shaking table, surface of shaking table, as well as bearing and adjusting gradient.
Specifications
Model | 6S4450x1855x1546 | LY3000x1620x1360 | LY2100*1050*850 | LY1100*500*430 |
Storke (mm) | 8-22 | 6-30 | 12-38 | 9-17 |
Times of Stroke (t/min) | 210-350 | 210-320 | 250-460 | 280-460 |
Cross Slope (°) | 1-4 | 0-10 | 0-8 | 0-10 |
Feed Size (mm) | 2-0.074 | 2-0.074 | 2-0.074 | 2-0.074 |
Feed Density (%) | 15-30 | 10-30 | 10-30 | 10-30 |
Water Consumption (t/h) | 0.5-6 | 0.3-1.5 | 0.2-1.0 | 0.1-0.5 |
Capacity (t/h) | 0.6-2.5 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 |
Power (kw) | 1.1 | 1.1 | 1.1 | 0.55 |
Weight (kg) | 800 | 500 | 350 | 150 |

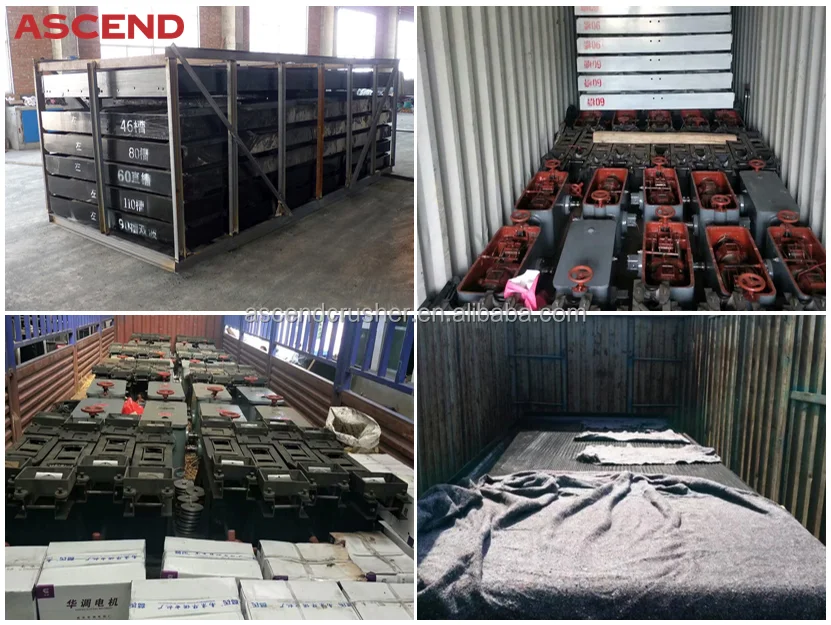

Packing Shipping & Working sites

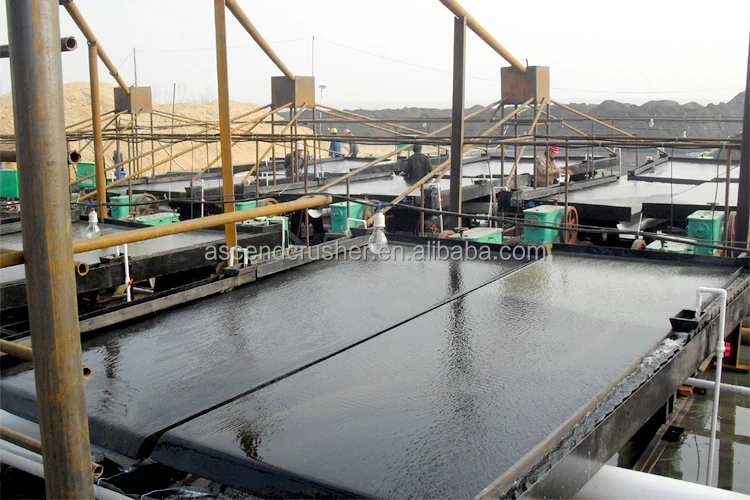

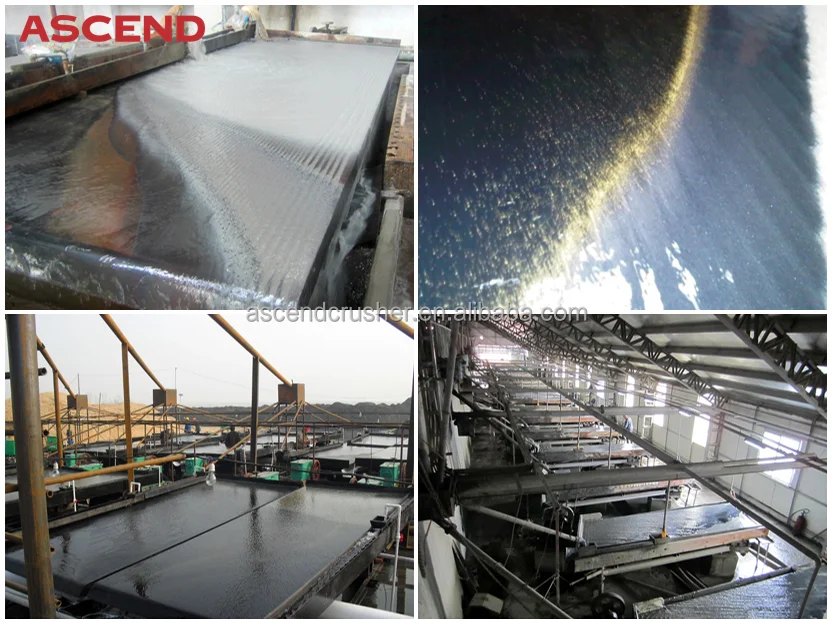

Ascend shaking table working sites
Contact us
We also supply
About Us
Henan Ascend Machinery & Equipment Co., Ltd. was established in 2005 and it is located in the high-tech zone of Zhengzhou City, Henan Province. As a technology driven mining equipment company, it is committed to the R&D, production, sales and after-sales service of mining machinery and equipment.
The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
The company's main products are crushers, grinding mill equipment, mineral beneficiation equipment, rotary dryer and crusher & grinding mill spare parts. In addition to the Chinese domestic market, Ascend machinery expands its business in more than 160 countries and regions.
Contact us
Also you will get the most competitive price first add the Wechat or WhatsApp as shown left.
FAQ
1. Are you factory or trading company?
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
5.What about the payment method?
T/T, Paypal, Western Union, L/C is available
6.What about after-sale service?
12 months warranty for all kinds of products; And you will get our 7*24h online service.
We are factory specialized in manufacturing stone crushers, grinding mills, beneficiation equipments and other mining equipments. Our office and factories are based in Zhengzhou, China. Because we are factory, so we can guarantee the machine quality and we can give you very competitive factory price without extra agent cost.
2. To which country your products have been exported before?
In Africa, We have exported to Sudan, Kenya, Zambia, Ethiopia, Zimbabwe, Guinea, Nigeria and so on. We also exported South Africa, Chile, Peru, Ecuador, New Zealand, America, Austrilia more than 160 countries. Our equipment and service have won very high reputation in these countries.
3. How will you help the customer install the equipment?
We will send our senior engineer to your place to guide the installation and commissioning.
4. How about the wear parts supply?
We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place.
5.What about the payment method?
T/T, Paypal, Western Union, L/C is available
6.What about after-sale service?
12 months warranty for all kinds of products; And you will get our 7*24h online service.
