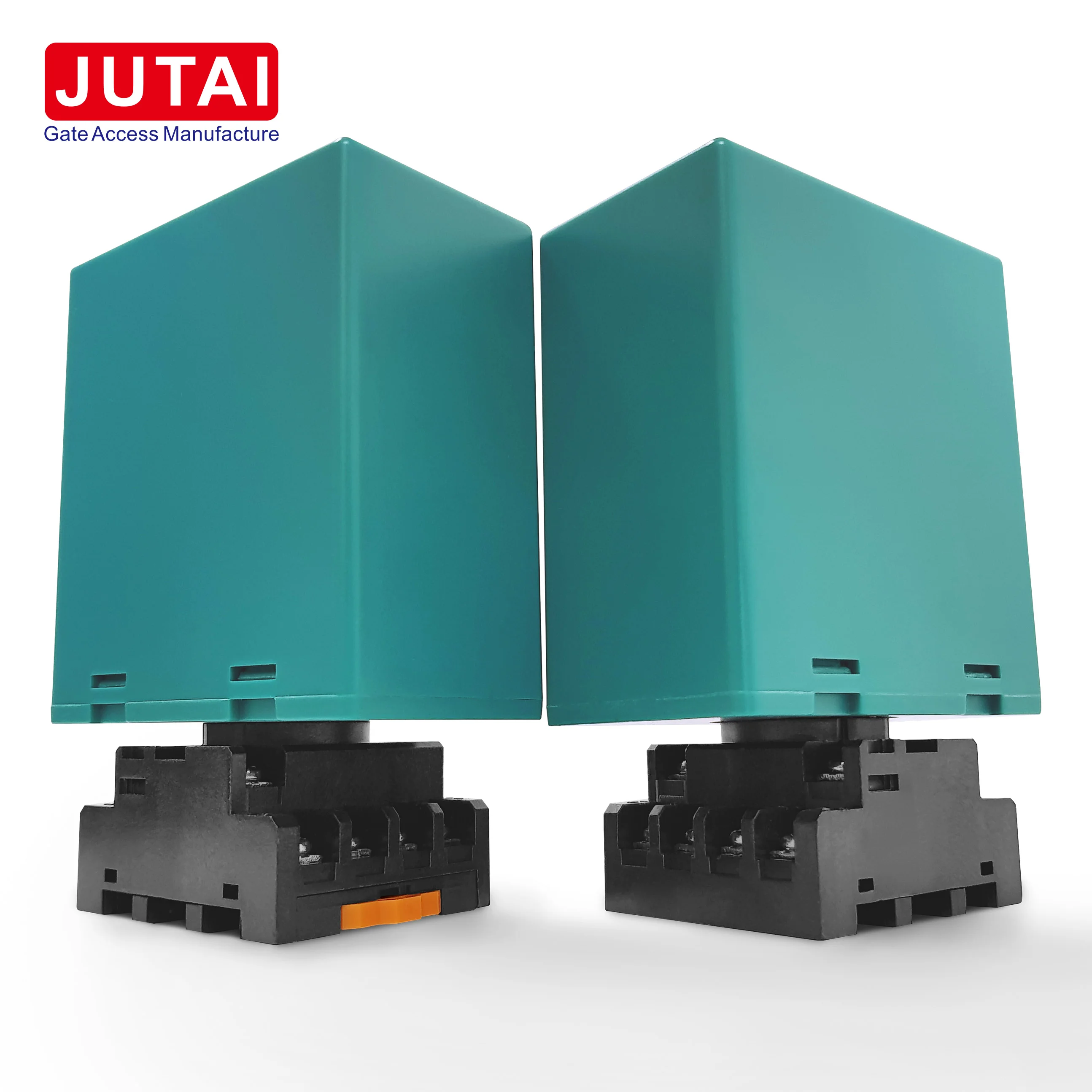

Eleven Pins Connector Relay Output Boom Barrier Loop Vehicle Detector

 JUTAI metal detector loop sensor LD-100 are used wherever vehicles have to be detected. Like monitoring and safe guarding access ways to counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems in car parks or activating card dispensers in car parks. JUTAI has the best loop detector for gate access solution in the market;

Single Channel Metal Vehicle Loop Detector Feature:
1. Compatible with the parking management system.
2. Easy installation and operation.
3. Connects one inductive loop (single channel).
4. Application for loop detector troubleshooting, Parking lot entrances Vehicle detection, Parking lot space information acquisition system, Electronic  traffic lights snapshot system, Traffic monitoring system., etc

Features Of Vehicle Loop Detector:
Compact Size: the compact and well-engineered housing Combines all of the industry requirements regarding features and functionality and allows this detector to be Incorporated into any or existing traffic detection system.
Diagnostic Capabilities: Comprehensive diagnostics Capabilities allow for accurate diagnosis of loop and Installation problems.
Selectable Presence Time: The output of the presence Relay loop sensor can be selected to limit a detect output to a fixed time(time>30 minutes)while a vehicle remains on the Loop Frequency Indication: Interference between adjacent single channel loop detectors can be determined by an integral indication, and eliminated by changing the frequency setting.
Two separate output relays:
Presence Relay A is presence output. Can be extended for 0,2,5,8,10,15,20 or 30 seconds, programmable with external 10 way DIP switches.
Pulse Relay B, programmable with external 10 way DIP switches, provides presence, pulse on entry, pulse on exit, or failed output.

Parameters:

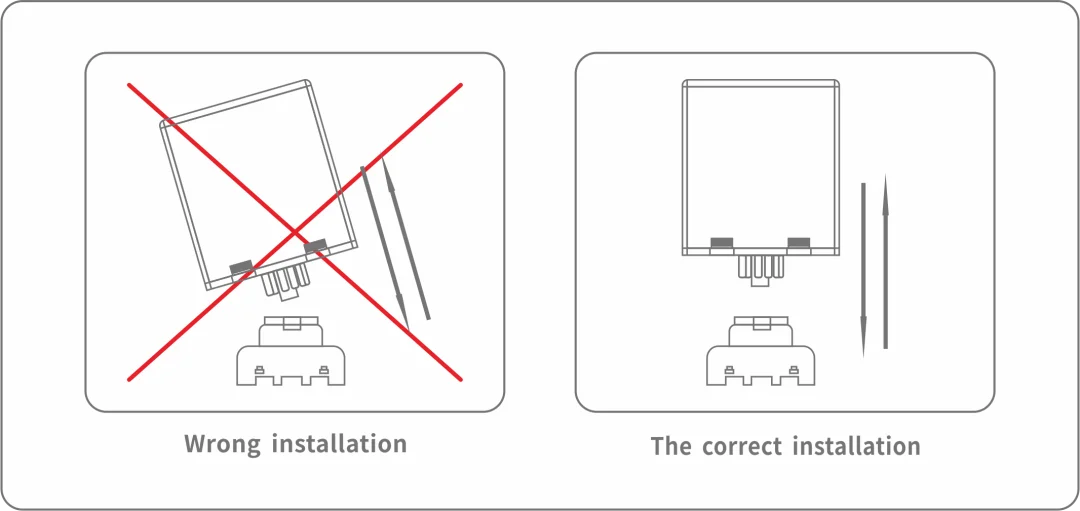

Detector Position and Installation:

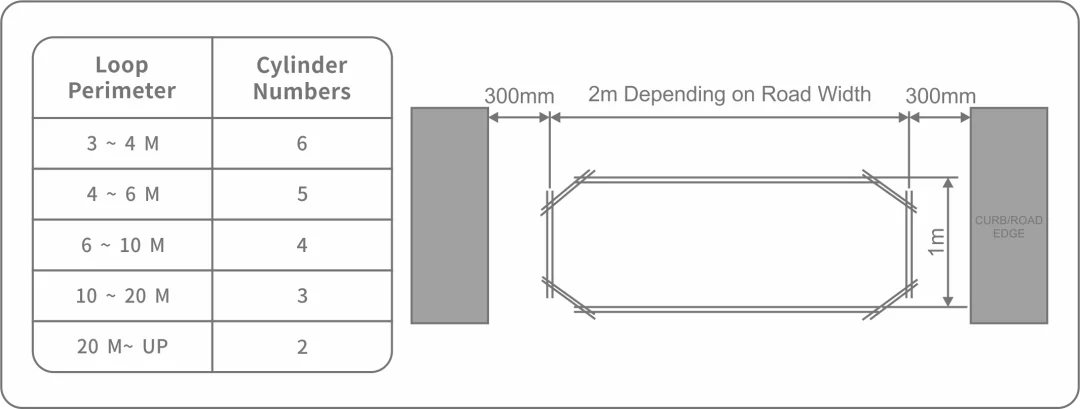

Loop Installation
The loops are sealed using a "quick-set" black epoxy compound or hot bitumen mastic to blend with the roadway surface;

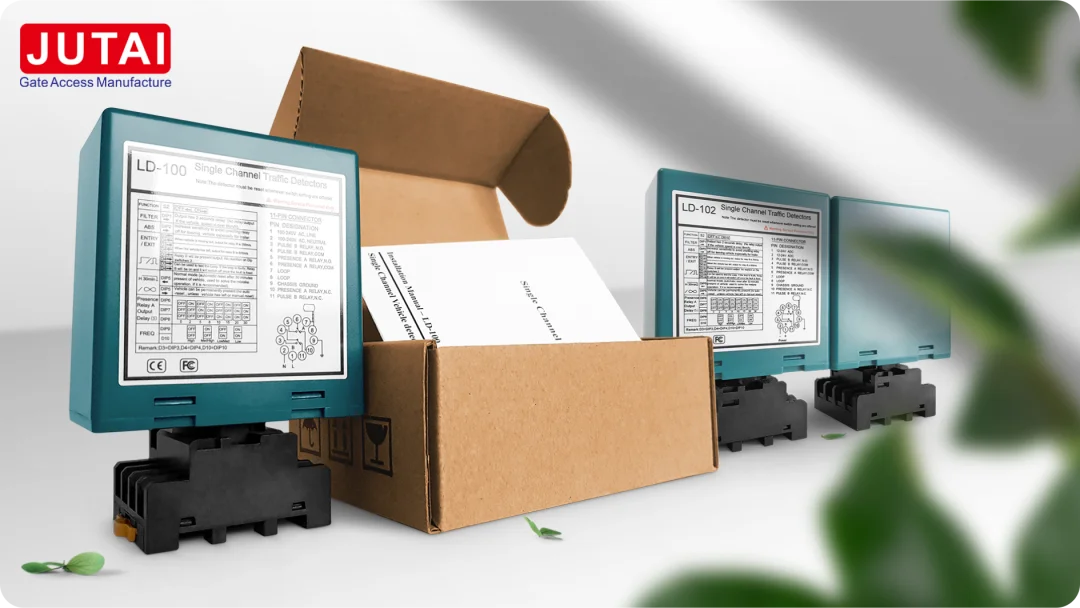

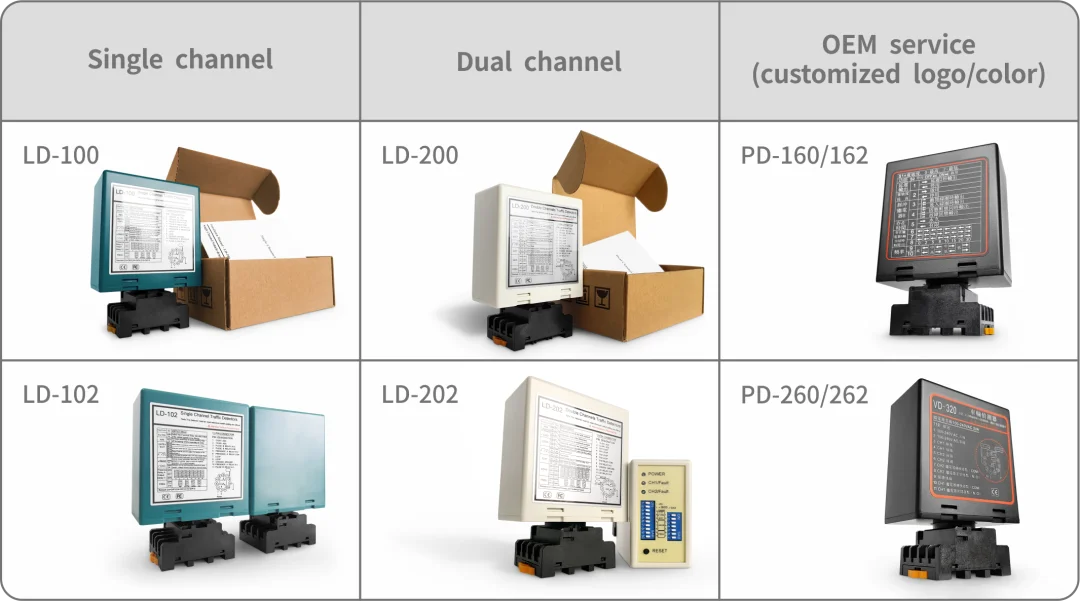

JUTAI Loop Detector Details Model:

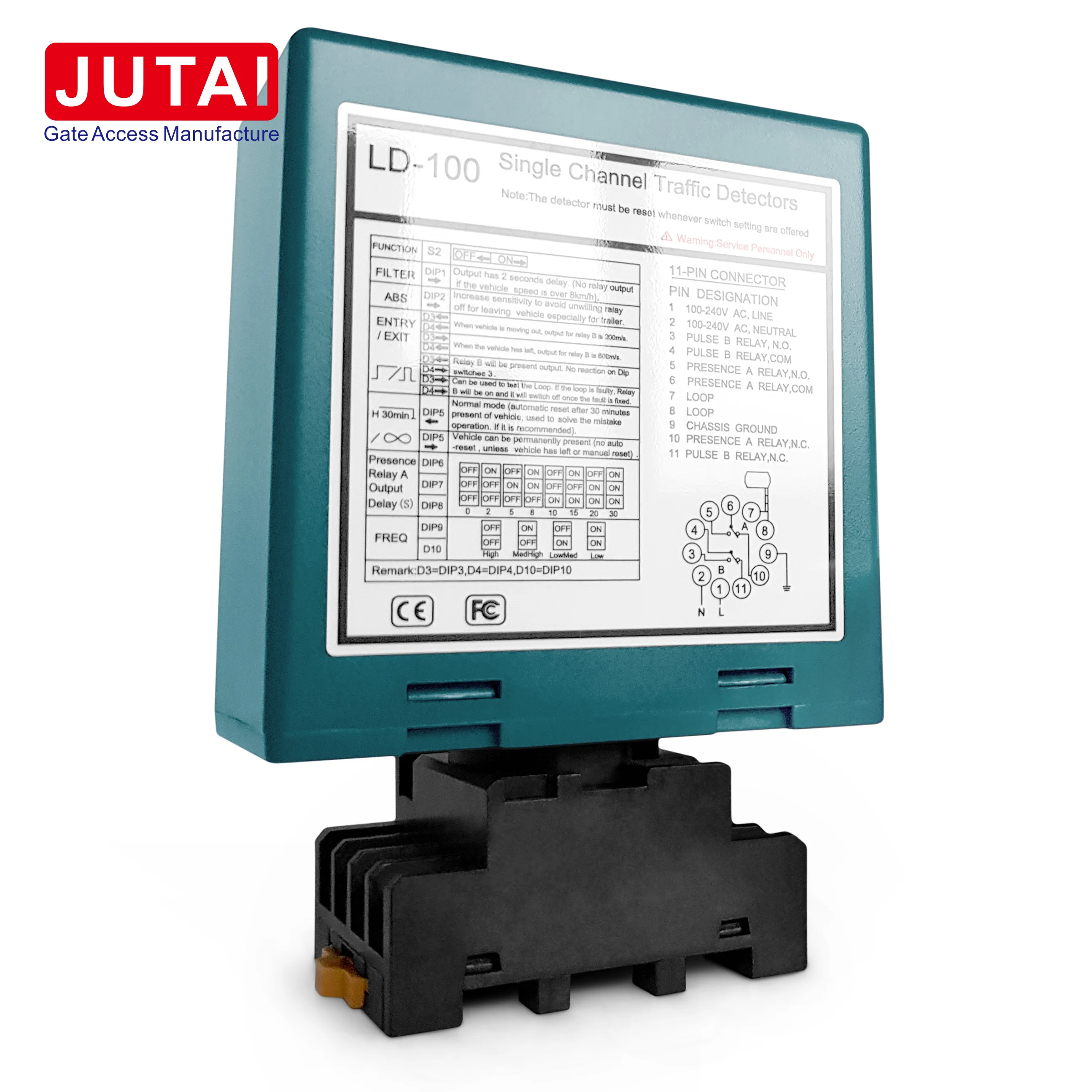

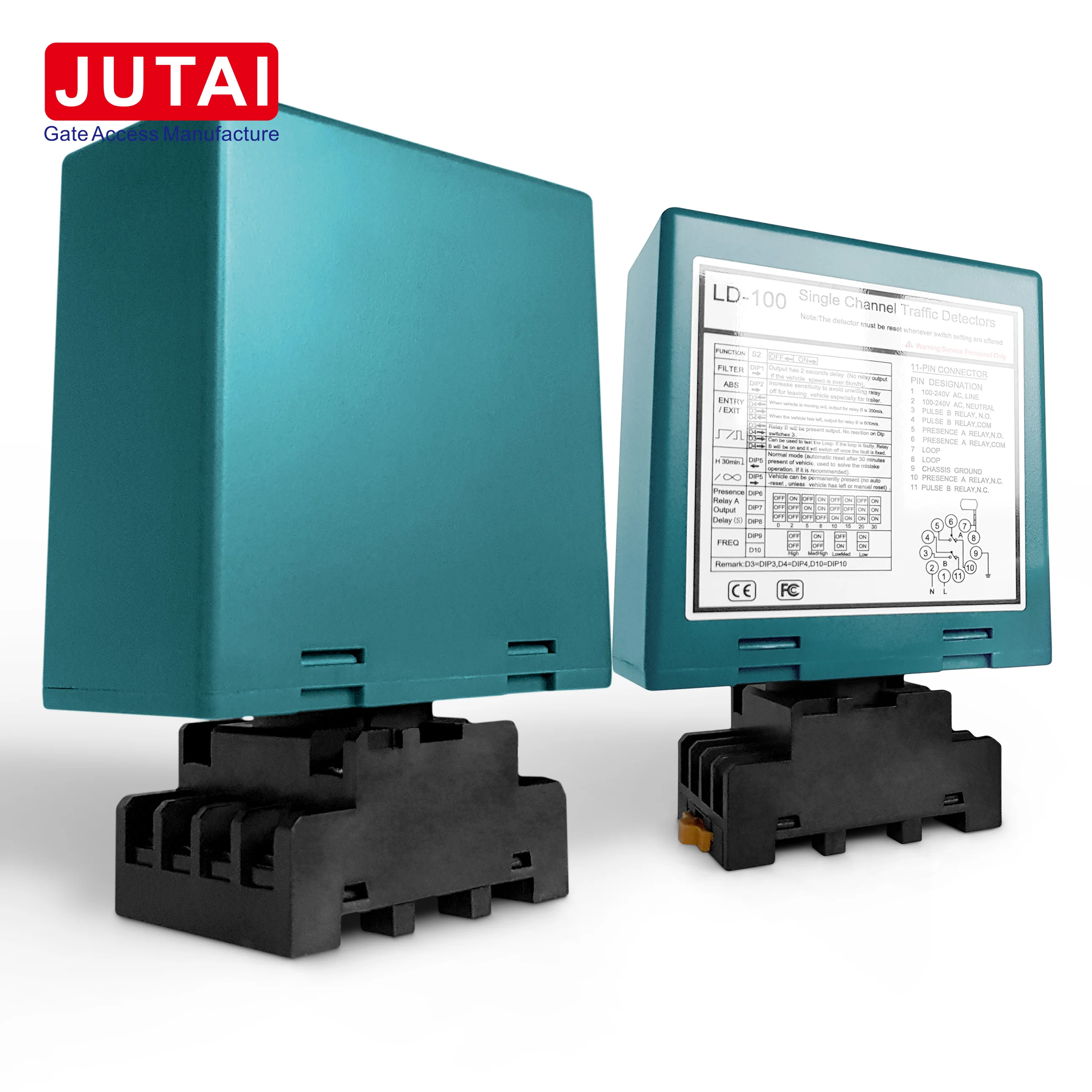

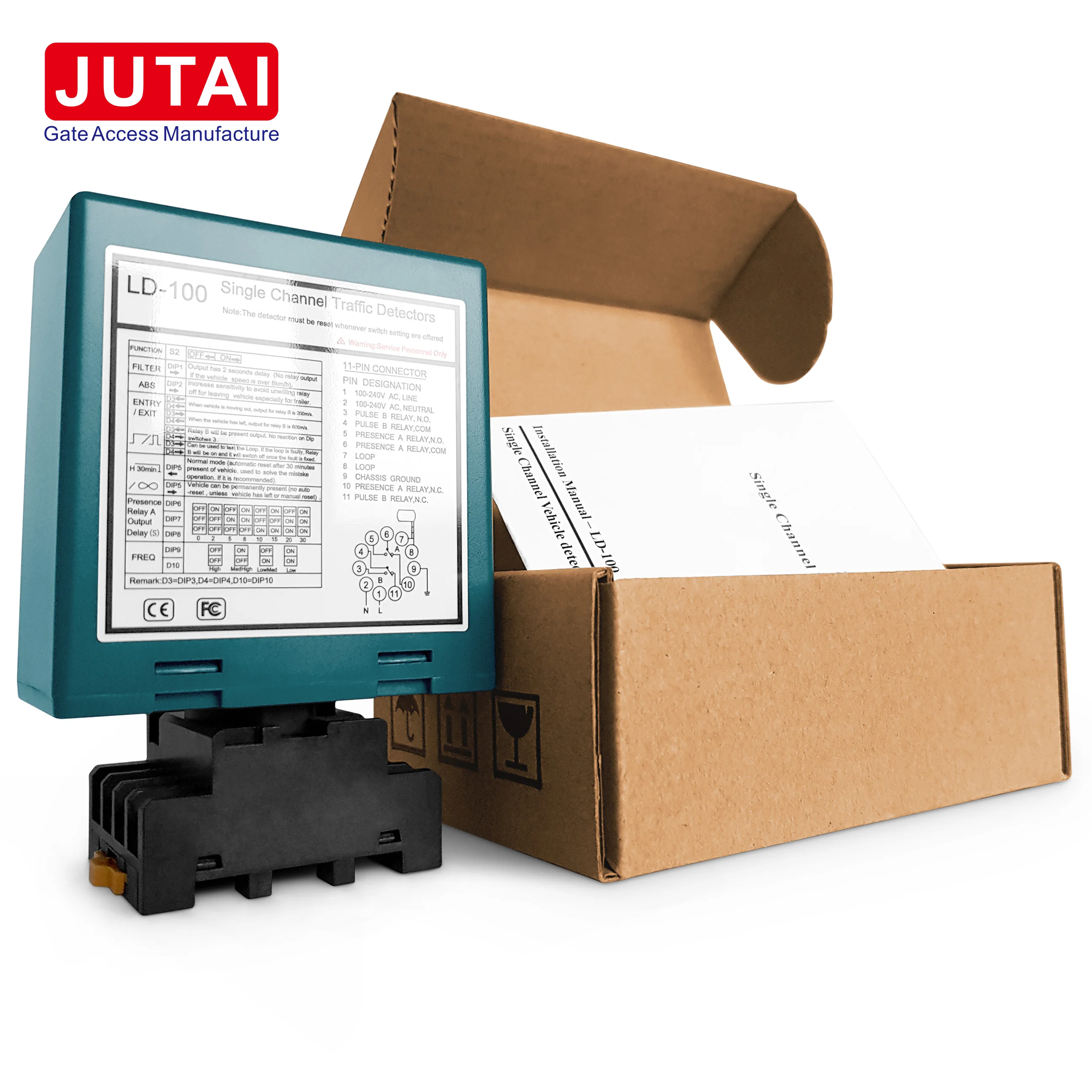

1ch Single Loop Detector With 110-240V : LD-100

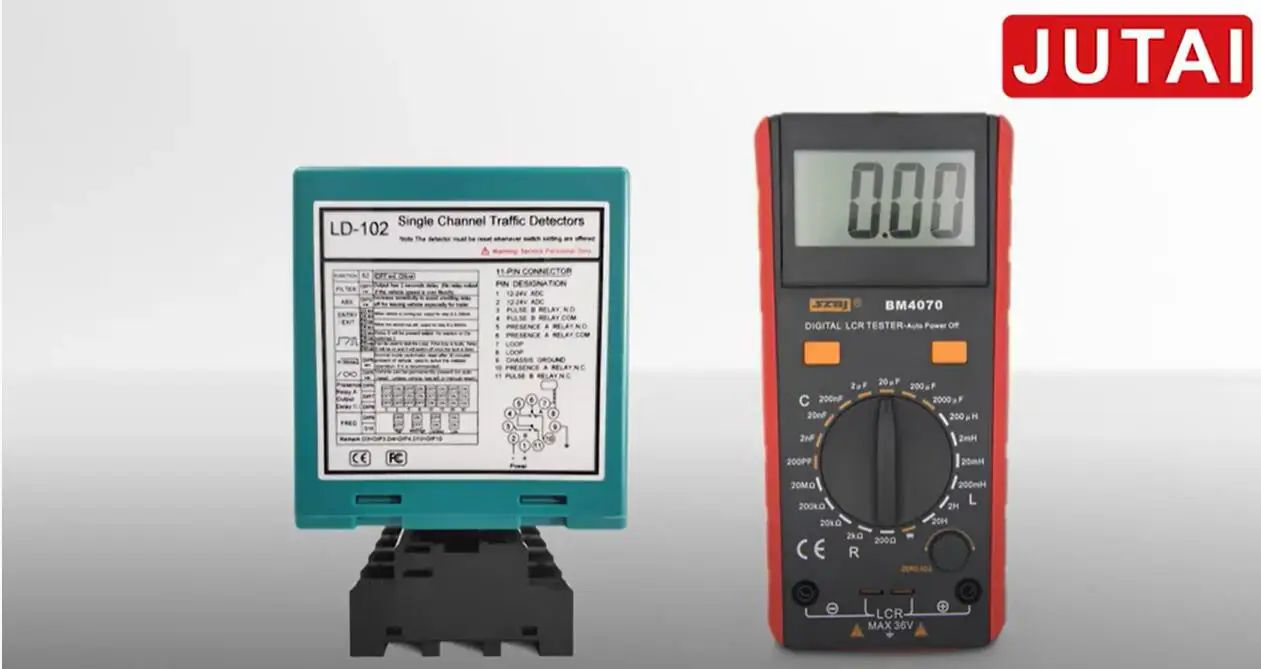

1ch Single Loop Detector With 12-24V:  LD-102
2ch Double Loop Detector With 110-240V
2ch Double Loop Detector With 12-24V

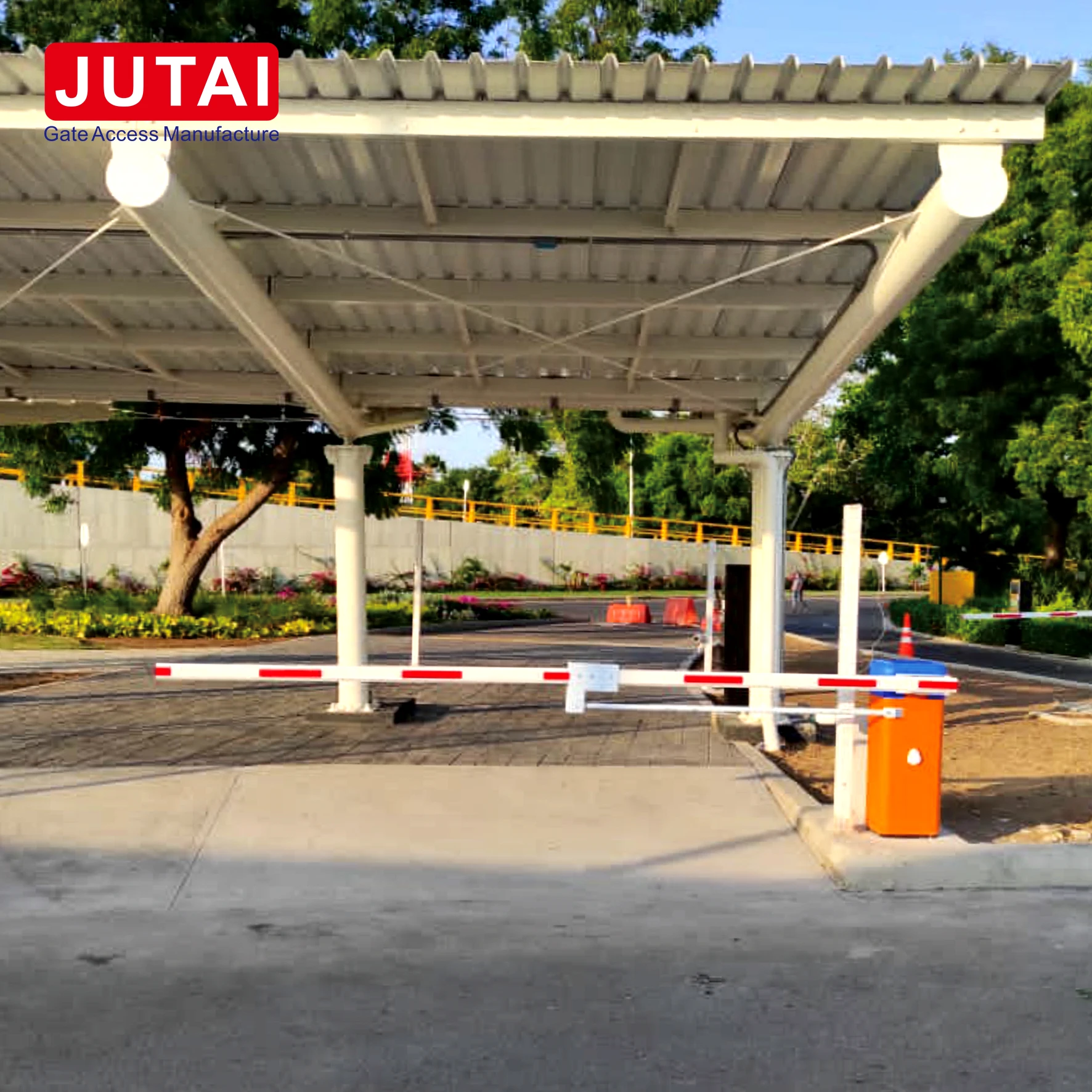

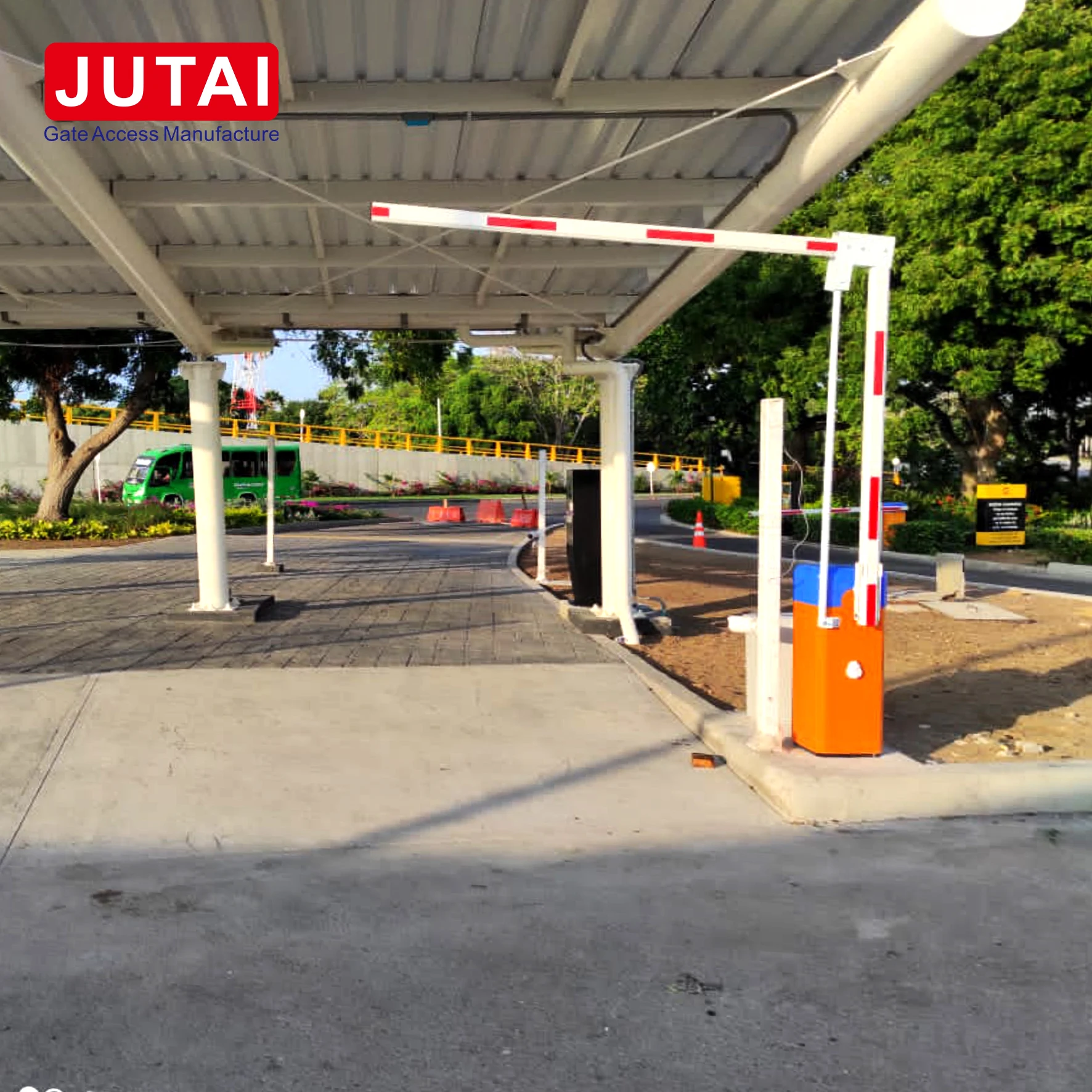

Successful Projects Reference Of Loop Detector,Barrier Gate And Parking System:

More and more Details Please Scan OUR QR:
