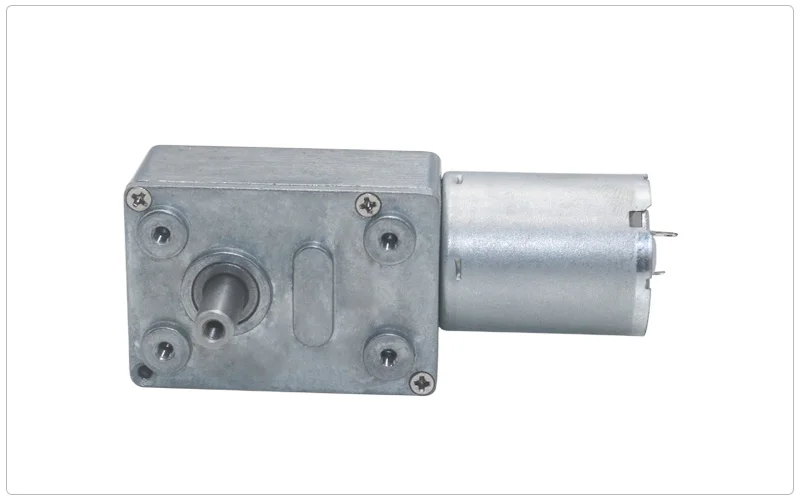

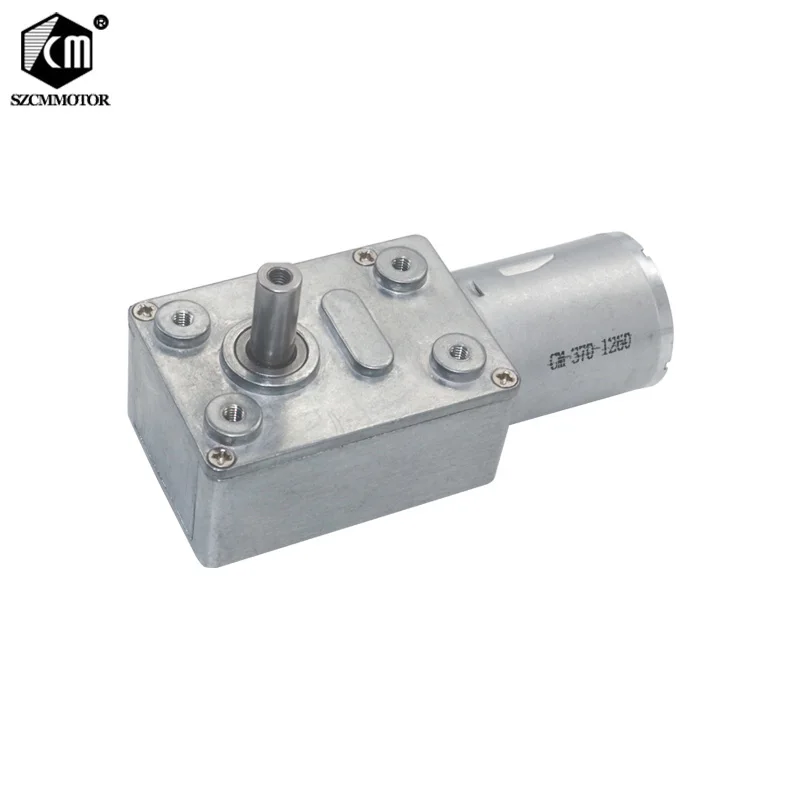

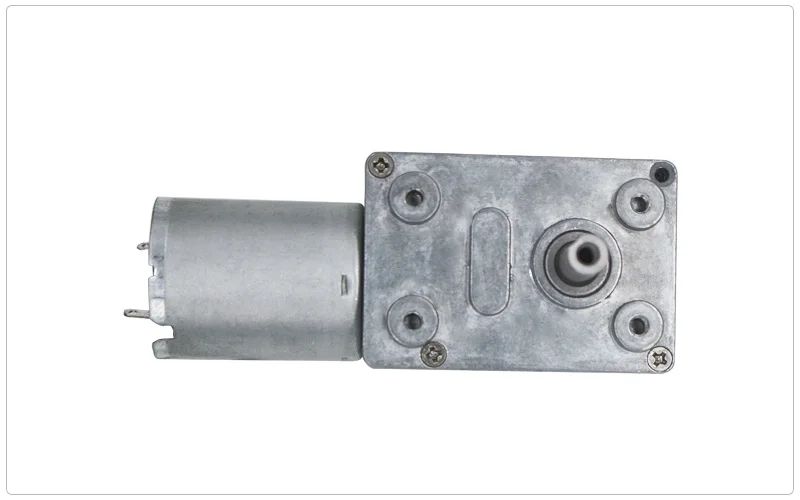

Factory Supply 12V 23RPM wheel worm DC reduction motor low speed motor for bank equipment with large torque self locking motor
Factory Supply 12V 23RPM wheel worm DC reduction motor low speed motor for bank equipment with large torque self-locking motor
Factory Supply 12V 23RPM wheel worm DC reduction motor low speed motor for bank equipment with large torque self-locking motor
Factory Supply 12V 23RPM wheel worm DC reduction motor low speed motor for bank equipment with large torque self-locking motor
Factory Supply 12V 23RPM wheel worm DC reduction motor low speed motor for bank equipment with large torque self-locking motor
Factory Supply 12V 23RPM wheel worm DC reduction motor low speed motor for bank equipment with large torque self-locking motor

Factory Supply 12V 23RPM wheel worm DC reduction motor low speed motor for bank equipment with large torque self locking motor

Share on (1600534317966):


Price:$3.50 - $6.50

Quantity:


Product Overview

Description



Product Detail


General specifications:
* Rated Volt: DC 6v 12V 24V

* Speed(No load): 2/6/10/18/23/30/40/90/150 RPM

* No-load current:0.06A

* Stall Torque:9Kg.cm

* Stall current:1.3A

* Max torque:24kg.cm

* Main Material:Metal

* Weight:160g


The A and B outputs are square waves from 0 V to Vcc approximately 90° out of phase. The frequency of the transitions tells youthe speed of the motor, and the order of the transitions tells you the direction


Voltage
 No-load speed
No-load current
Stall Torque
Stall current
12V
23RPM
0.06A
9Kg.cm
1.3A

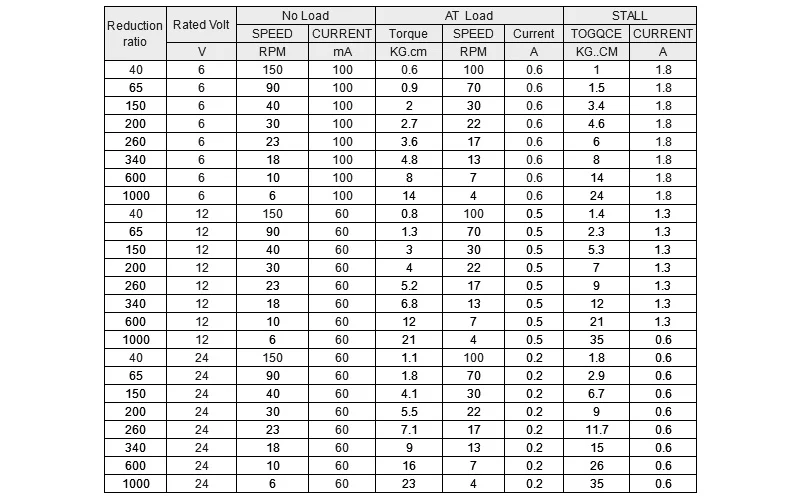

Datasheet of gear motor:

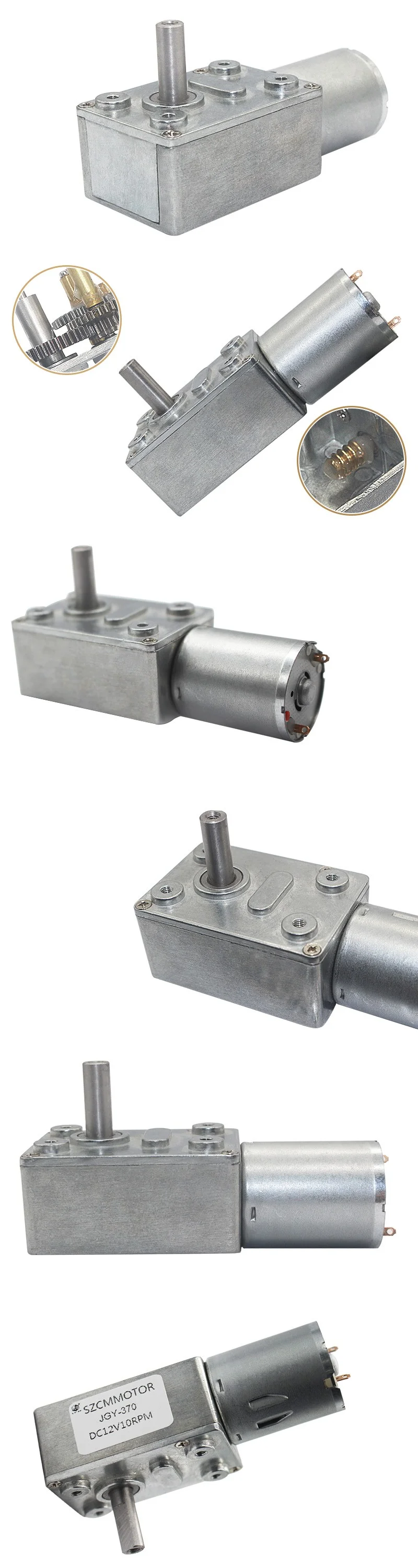

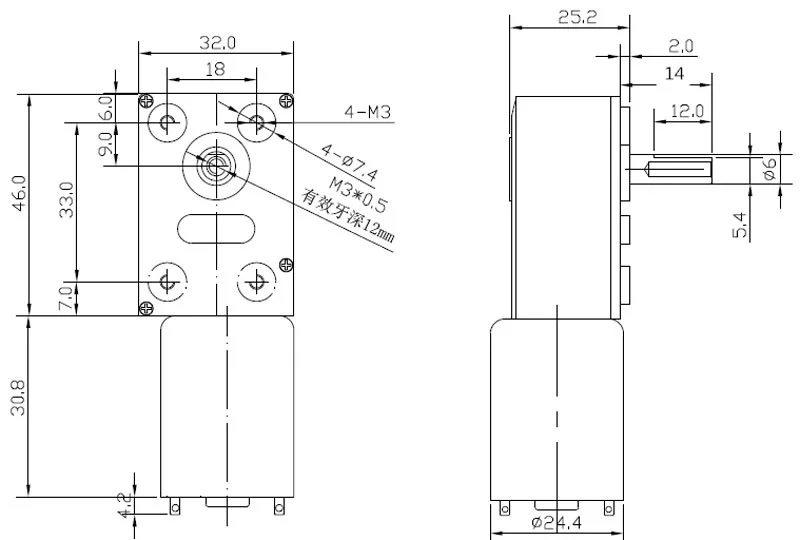

Dimensions &Pictures:






The product application




Our Services & Strength


*General Service:
*Quick Reply:All enquiry or email be replied in 12 hours, no delay for your business.
*Professional Team:Questions about products will be replied professionally, exactly, best advice to you.
*Short Lead time:Sample or small order sent in 7-15 days, bulk or customized order about 30 days.
*Payment Choice:T/T, Western Union,, L/C, etc, easy for your business.
*Before shipment:Take photos, send to customers for confirmation. Only confirmed, can be shipped out.
*Language Choice:Besides English, you can use your own language by email, then we can translate it.
*Customization Service:
Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor- made
according to customer’s requirements.


Certifications

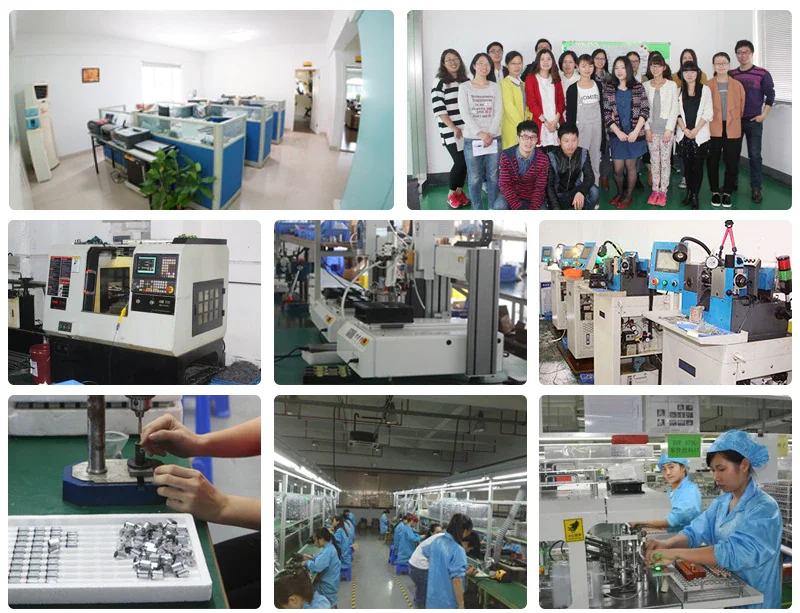

Company Introduction








Packing & Delivery


*shockproof foam packing
*Suitable carton size
*stretch film and pallet packing
*DHL,EMS,UPS,Epacket,ocean shipping
*Sample order send out in 2 days.
