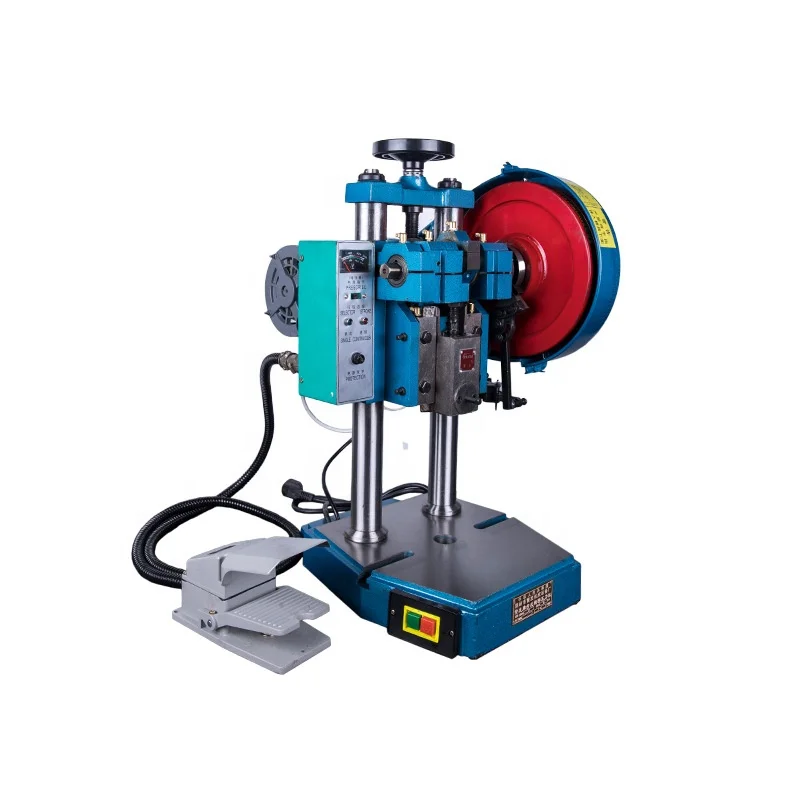

Hole Punching Machine For Steel Punching Sheet Metal Punch Power Press

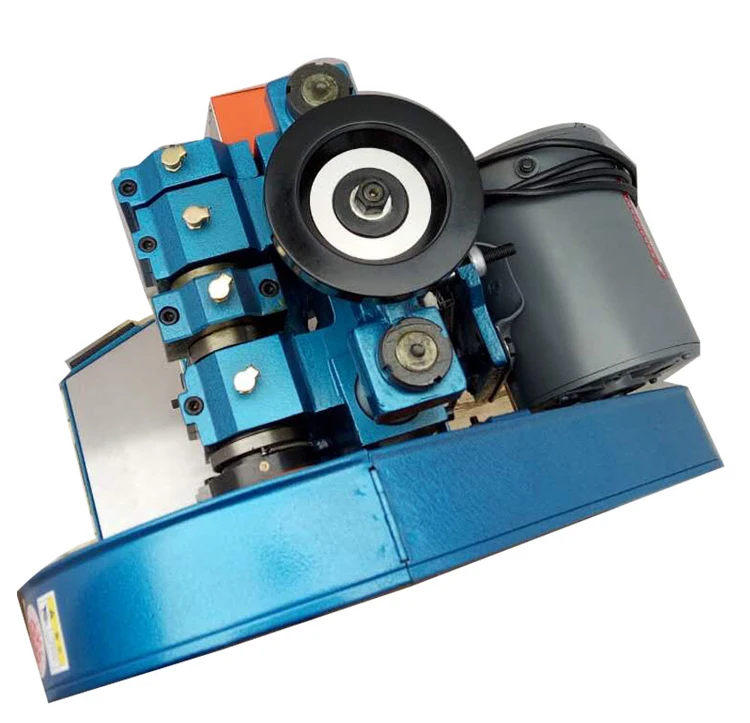

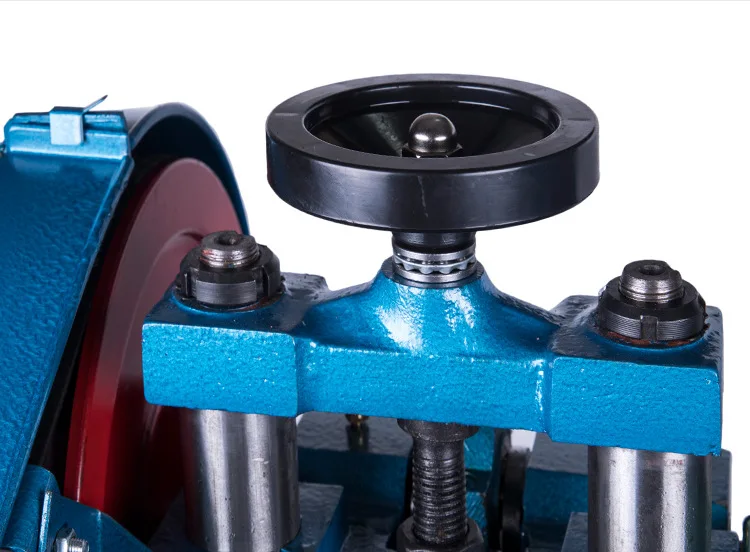

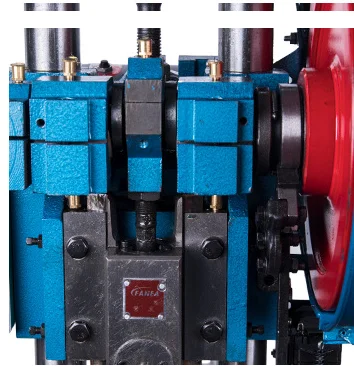

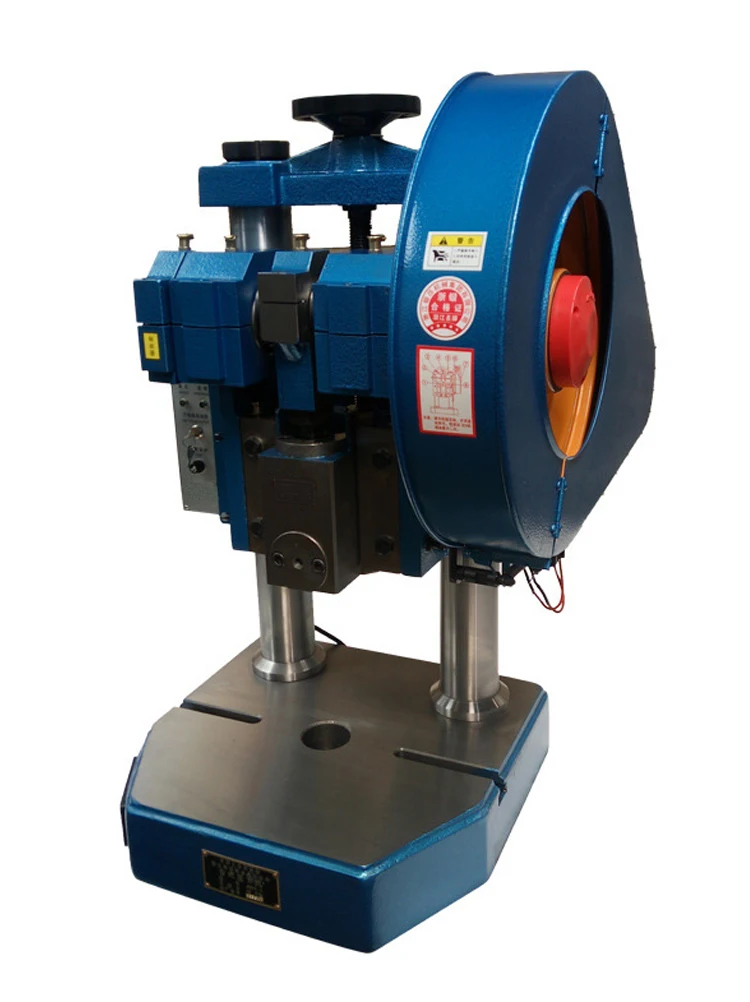

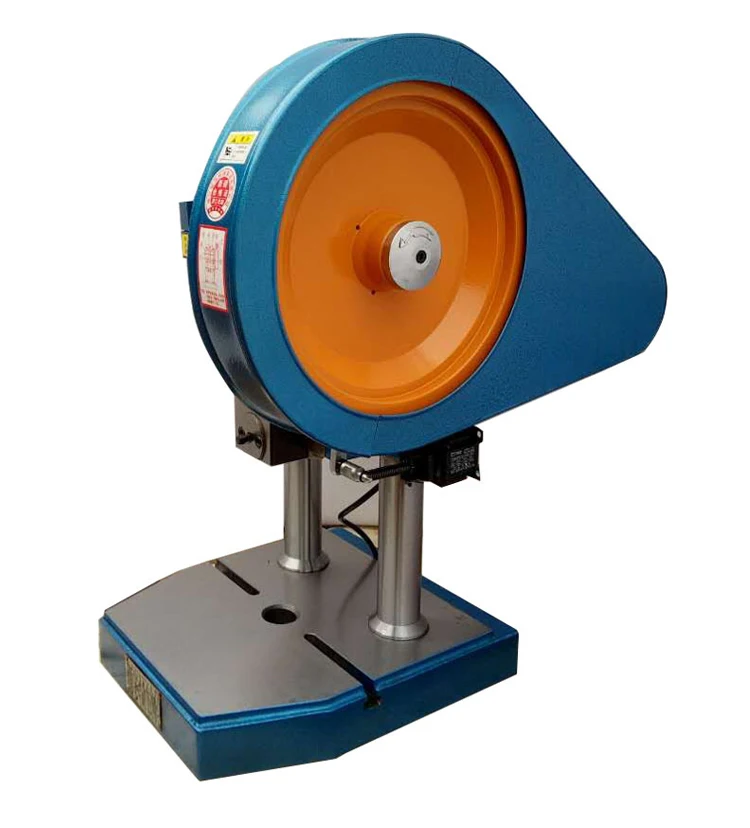

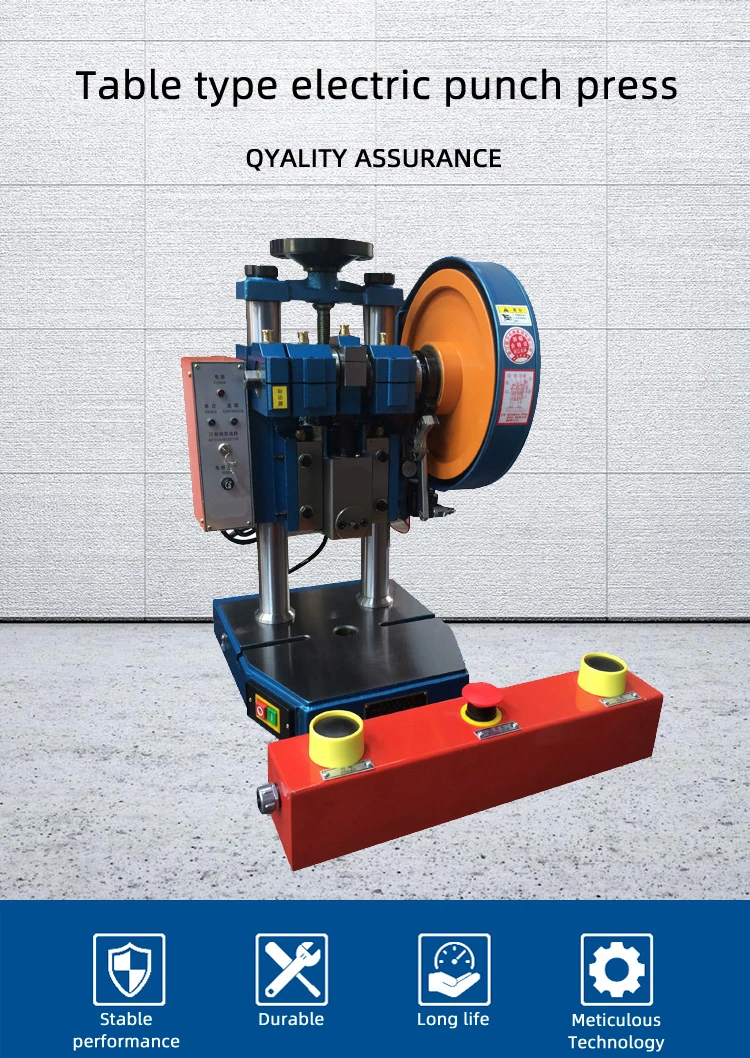

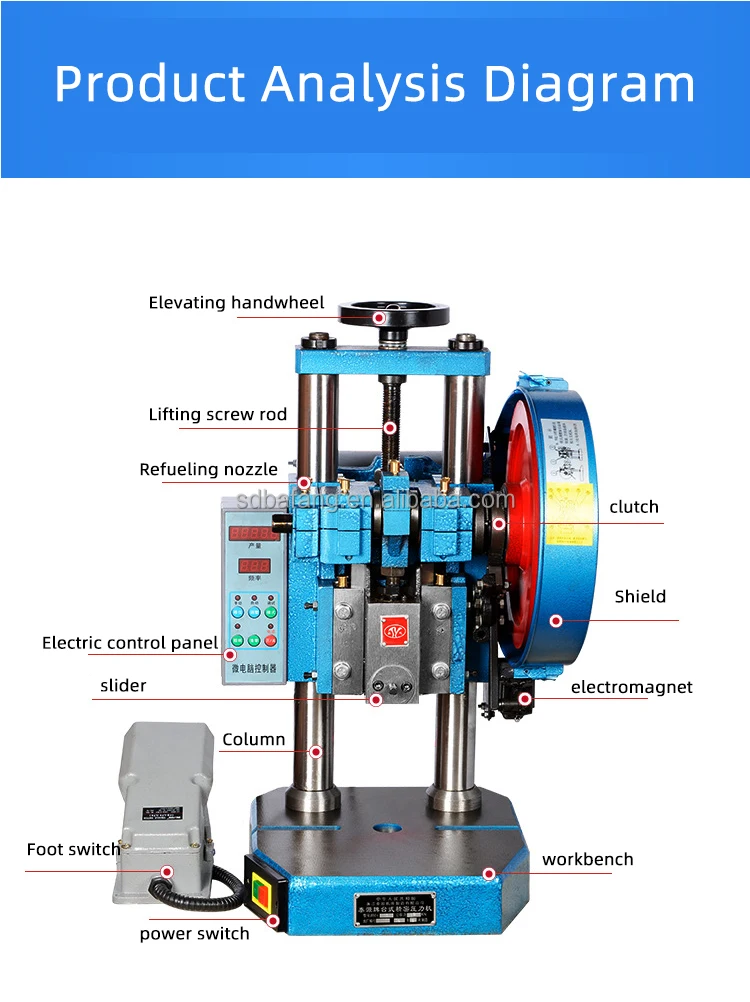

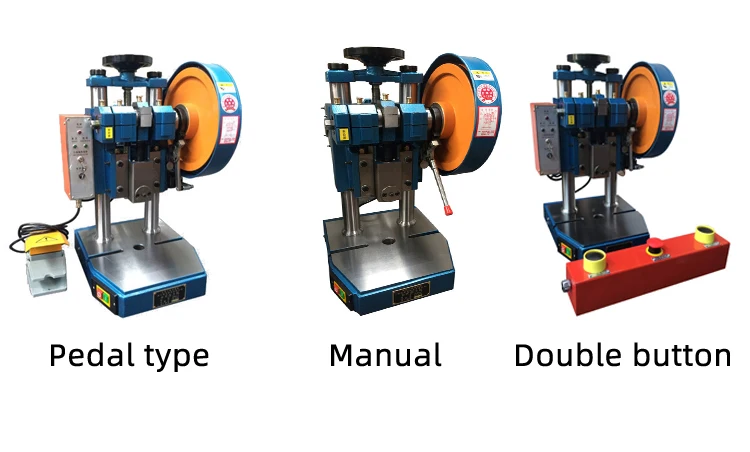

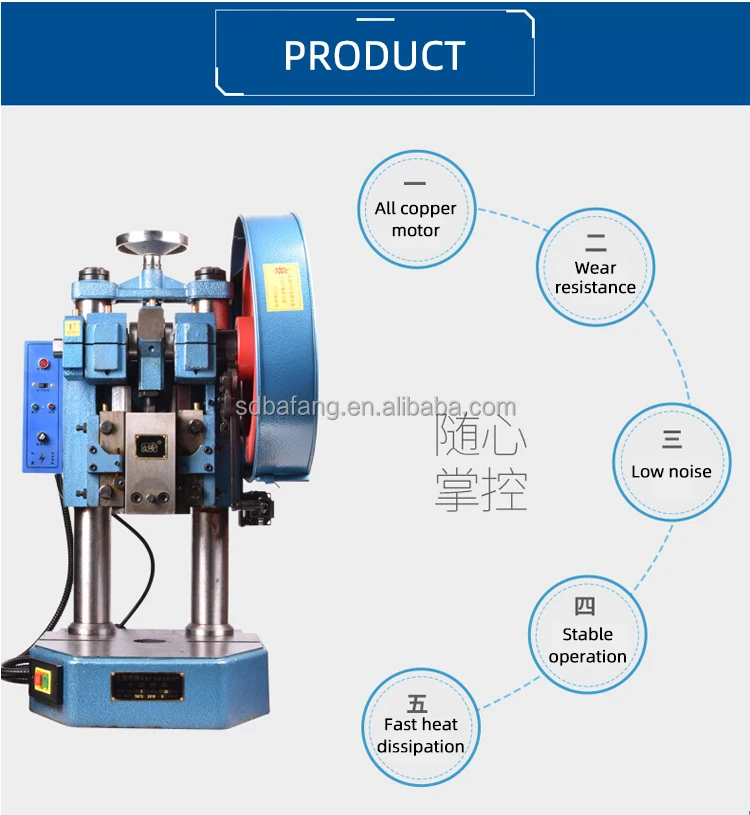

JB series bench press (also known as electric punching machine) is a kind of light and small punching machine, which has the advantages of light volume, high production efficiency, simple operation, low noise, high precision, accurate size of processed parts, and smooth cutting surface. The application range is very wide, such as electronics, instruments, meters, cameras, clocks, jewelry and other light industry, hardware industry, as well as medicine industry, clothing, shoes and hats industry. It can also be used for blanking, stamping, riveting, forming, shearing, bending, breaking, shrinking, stretching, levelling and equal technology of black and non-ferrous metal, plastic and other materials.
Model | JB-02 | JB-03 | JB-04 | |
Nominal presser(KN) | 10 | 20 | 30 | 40 |
Slipper stoke(mm) | 40 | 42 | 48 | 42 |
Nominal force stroke(mm) | 2.4 | 2.4 | 2.4 | 2.4 |
Number of stoke(s.p.m) | 250 | 220 | 200 | 200 |
Max. sealing height(mm) | 150 | 220 | 250 | 250 |
Pole distance(mm) | 106 | 130 | 230 | 230 |
Throat depth(mm) | 58 | 65 | 85 | 65 |
Mold hole size(mm) | 20*40 | 20*45 | 28*50 | 25*40 |
Platform size(mm) | 300*275 | 320*300 | 400*380 | 350*370 |
Slider bottom size(mm) | 57*48 | 72*64 | 80*70 | 78*78 |

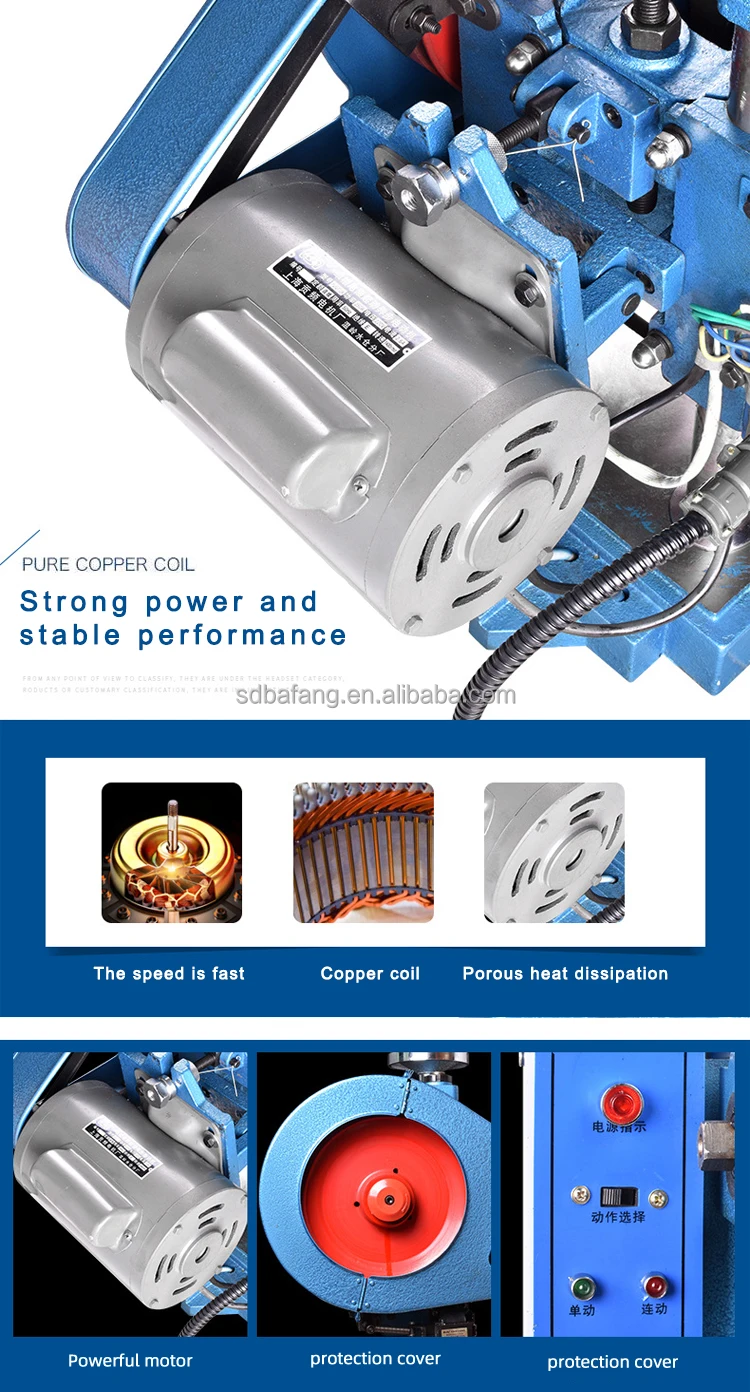

Motor power(w) | 370 | 450 | 650/750 | 650/750 |
Dimension(mm) | 480*320*540 | 520*400*620 | 640*550*830 | 720*570*900 |
Weight(kg) | 95/100 | 115/120 | 240 | 250-360 |

















Q1: Do you have after-sales service?
A: Yes.
1. Our sales team will answer your questions within 24 hours (holiday).
2. Technical support will be available at all times. Once the fault caused by the quality of our products is confirmed, a free replacement will be provided.
Q2: Where is our factory? How do I get there?
A: Our factory is located in Jining City, Shandong Province, China. We warmly welcome you to visit us.
Q3: Do you test all items before shipping?
A: Yes, we have passed 100% testing before delivery. We will attach our inspection report to each machine.
Q4: What are your terms of trade?
A: FOB, CFR and CIF are acceptable.
Q5: How do you build long-term and good business relationships with us?
A:1. We maintain excellent quality and competitive prices to ensure that our customers benefit; 2. We respect each customer and regard it as a friend, no matter where they come from, we sincerely do business with them and make friends.
Q6: What is your payment terms?
A: T / T is 30% of the deposit and 70% before delivery. Before you pay your balance, we will show you a photo or video of the product and packaging.
Q7: What is your delivery time?
A: The exact delivery time depends on the item and quantity you ordered.
Q8: What warranty does our machine have?
A: Our mainframe has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide videos on machine installation and operation.
Q9: What is your packaging condition?
A: Usually, we use the standard export wooden box for LCL cargo and fix the full container.
Q 10: Are you willing to provide consumables for trading customers?
A: Yes, we have a record for your customers and want to provide accessories for our customers.
