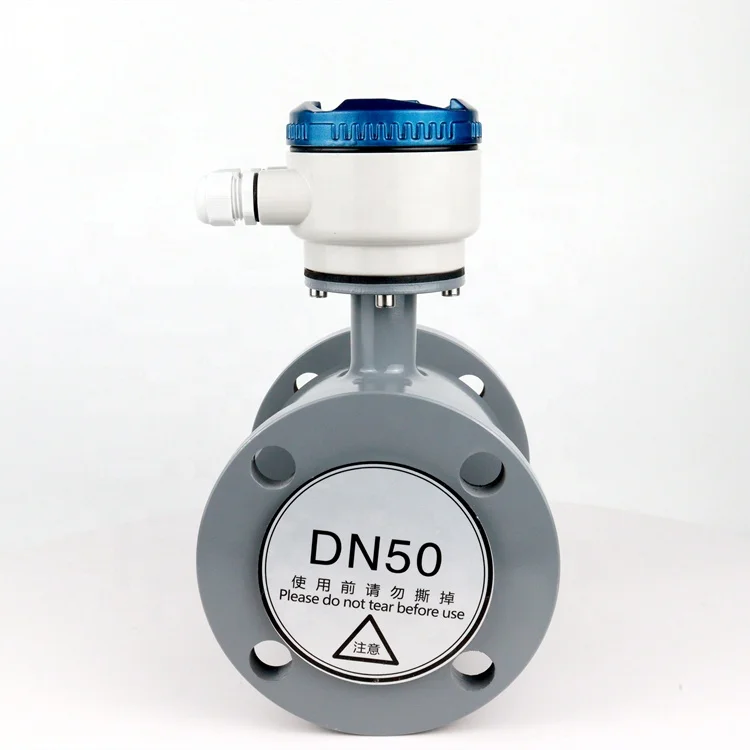

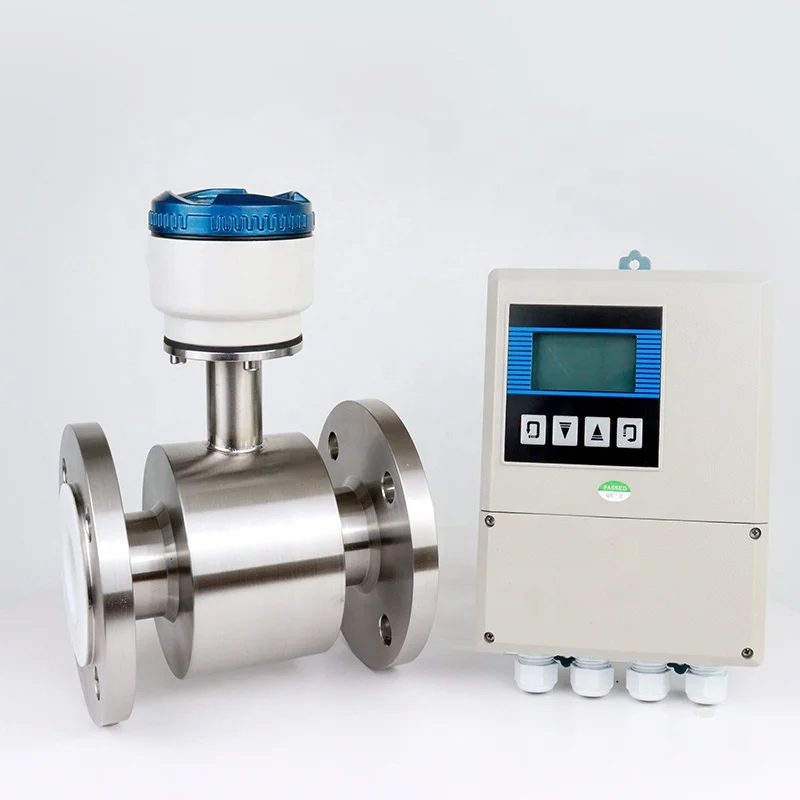

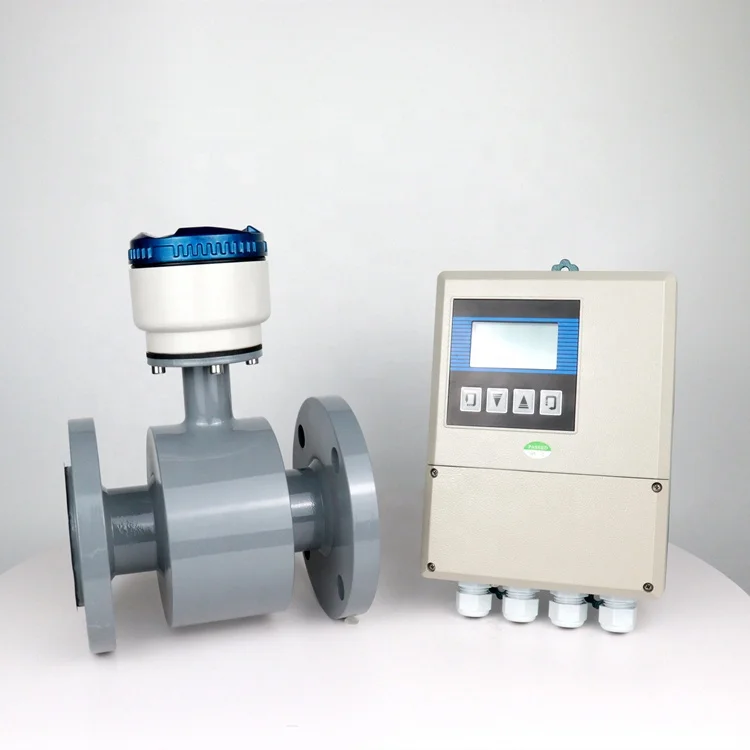

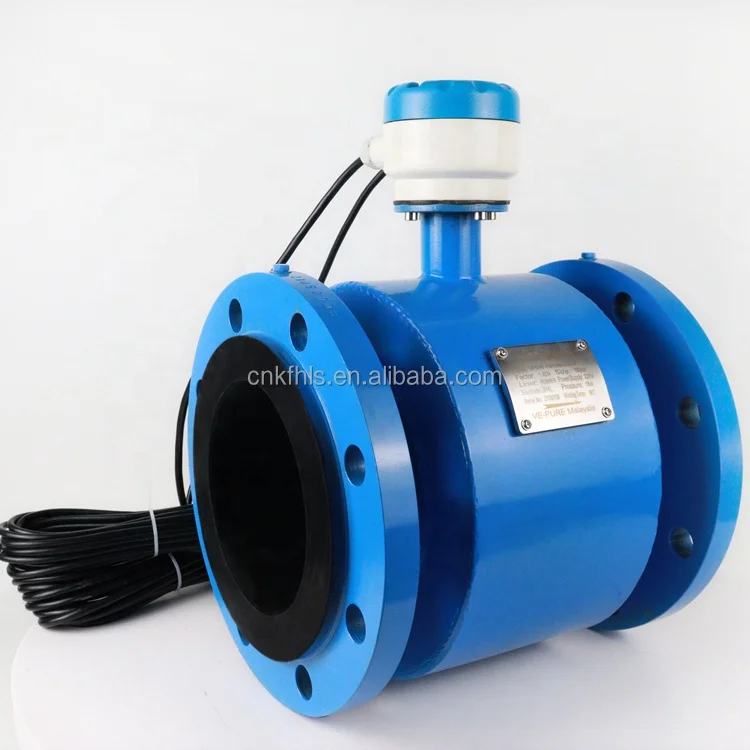

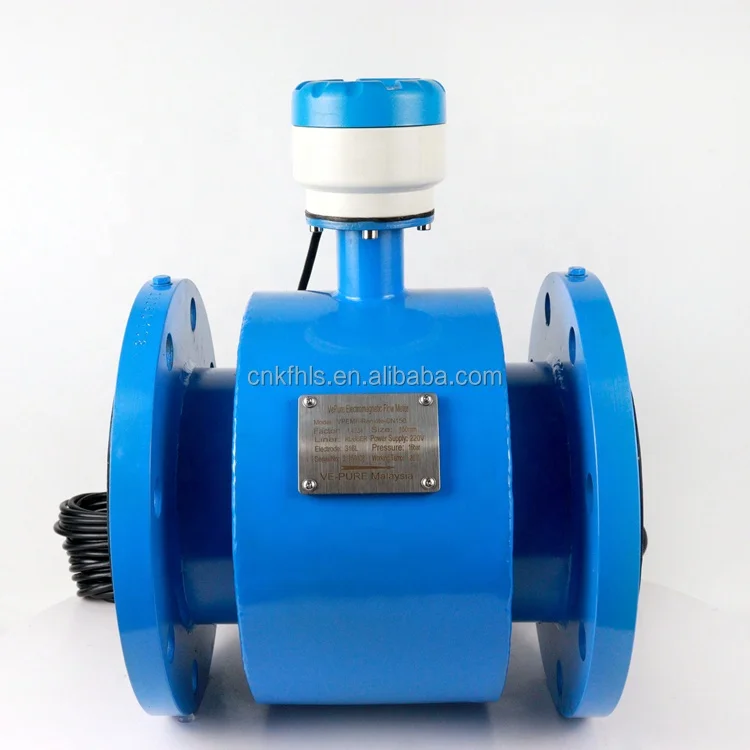

GMF100 split type China OEM magnetic flow meter factory supplier waste water flowmeter electromagnetic flow meter
- Category: >>>
- Supplier: KAIFENG LIZOBOR INSTRUMENT CO. LTD
Share on (1600534330925):
Product Overview
Description
Product Description

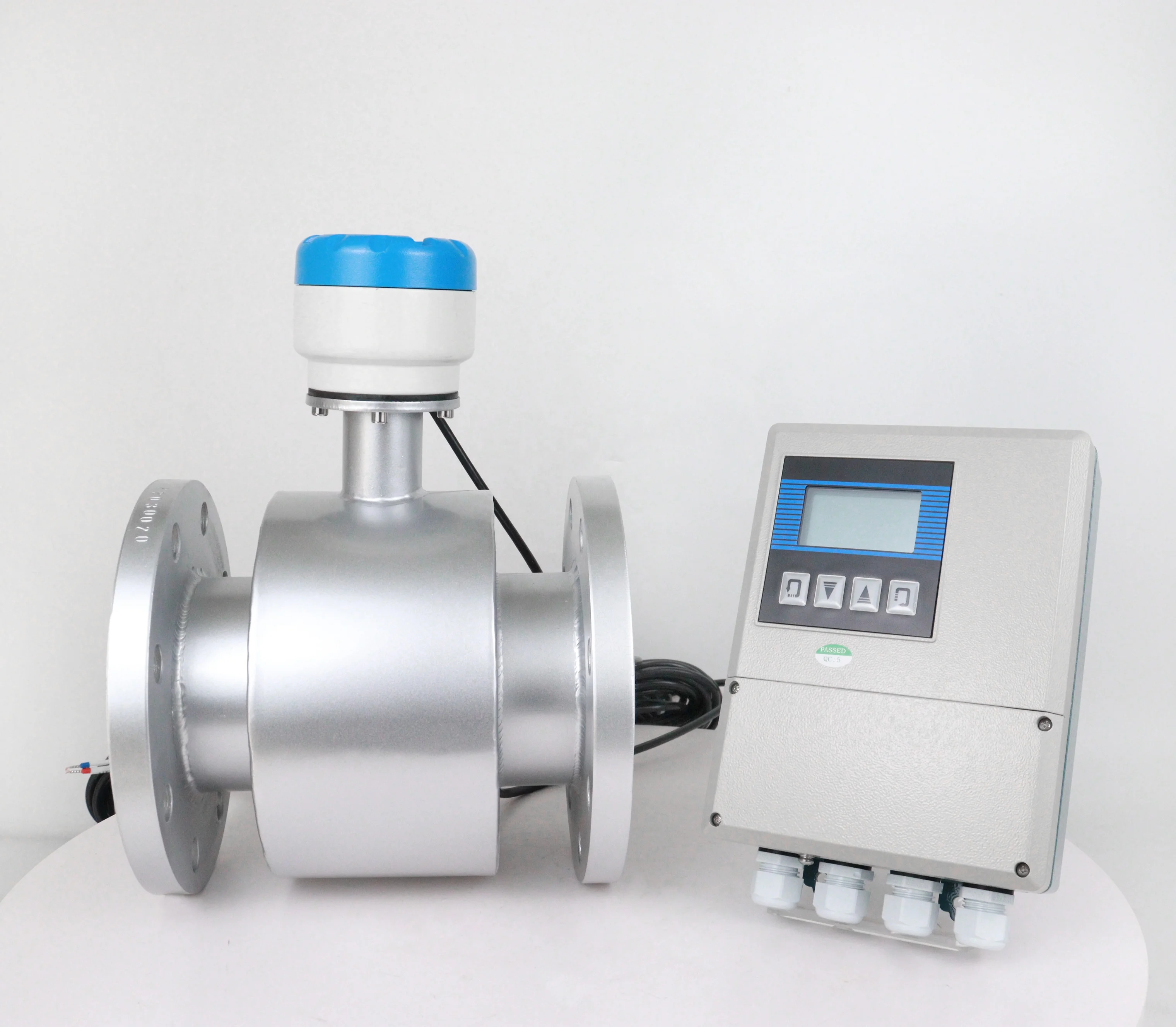

Remote converter electromagnetic flow meter is usually used in following sophisticated flow measurement applications:
1. Environment temperature is over 60°C or measured fluids temperature is high
2. Corrosive and aggressive environment which will corrode the converter (Aluminum case)
3. Much wet environment or has corrosive gas in the field
4. Magnetic meter is installed in the underground well or high place which not convenient to read the flow rate value.
1. Environment temperature is over 60°C or measured fluids temperature is high
2. Corrosive and aggressive environment which will corrode the converter (Aluminum case)
3. Much wet environment or has corrosive gas in the field
4. Magnetic meter is installed in the underground well or high place which not convenient to read the flow rate value.
Specification
Item | The Specifications of electromagnetic flowmeter |
Installation Type | Split/remote |
Measuring fluid | conductive fluid and slurry |
Caliber | DN6-DN3000 |
End connection | Flange, threaded, clamping, insertion type, etc. |
Electrode materials | Mo2Ti , Hastelloy C, Hastelloy B, Pt Ta Ti |
Flange standard | GB, DIN, JIS, EN, SABS, etc. |

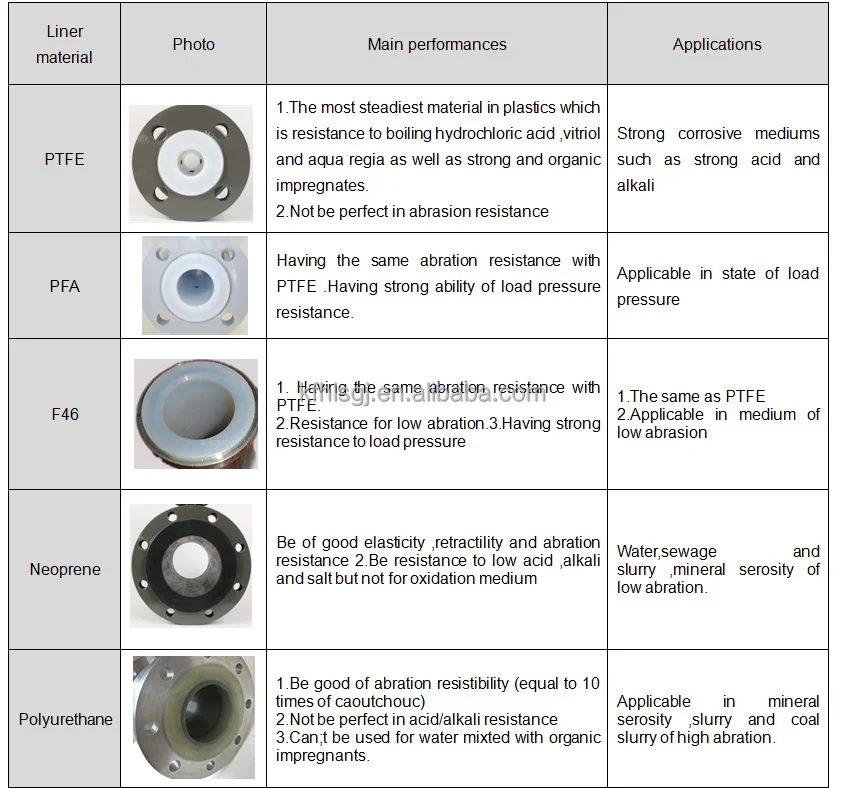

Lining Material | PTFE/ Teflon, PFA (resistance to negative pressure), chloroprene rubber, polyurethane, hard rubber (optional conductive ground rubber), F46 |
Electrode Type | Standard type 316L, scraper-type (DN ≥ 50) |
Dielectric conductivity | > 5μs/cm (water> 20μs/cm) |
Accuracy grade | ±0.5% RS. |
Flow Range | 0-10m/s |
Maximum temperature of medium | For rubber liner ≤ 80 °C, for PTFE liner ≤ 120°C |
Ambient temperature | -20 - +60 |
Working pressure | 0.6Mpa-4.0Mpa, the special high rpressure is available |
Protection Level | IP65, IP67, IP68 (optional) |
Power | 220VAC(85~250 voltage) 24VDC(11~40 voltage) |
Display | Forward and backward instantaneous flowrate, total flow, velocity, flowrate percentage with back light |
Output | 4-20mA current output ,0-1kHz frequency output, pulse output per unit volume |
Communication | RS485 @Modbus, RS232@Modbus, HART, Profibus, GPRS, etc. |
Sensor selection

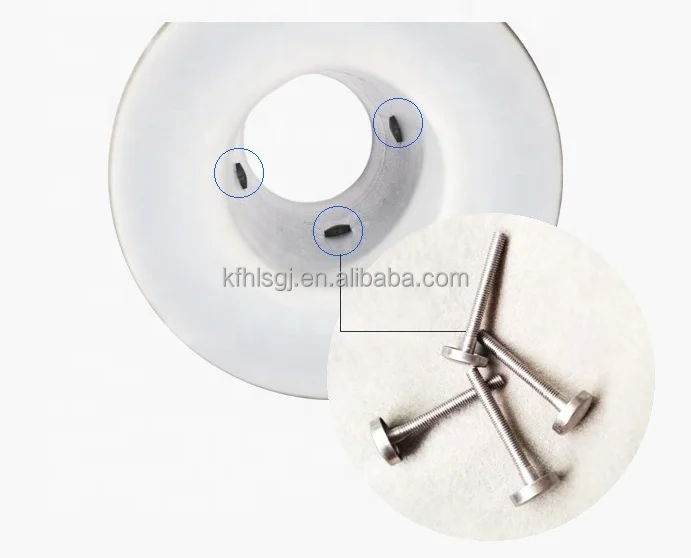

Electrode Material | Application |
Molybdenum-containing stainless steel (0Cr18N12Mo2Ti) | Applicable to industrial/municipal water, wastewater and low corrosive mediums. Widely used in petroleum, chemical industries. |
Hastelloy B | Strong resistance to hydrochloric acids below the boiling point. Resist against oxidable acids, alkali and non-oxidable salts. For instance, vitriol, phosphate, hydrofluoric acids, and organic acids. |
Hastelloy C | Exceptional resistance to strong solutions of oxidizing salts and acids. For example, Fe+++, Cu++, Nitric acids, mixed acids |
Titanium | Titanium can withstand corrosive mediums such as seawater, chloride salt solutions, hypochlorite salts, oxidable acids(including fuming nitric acids), organic acids, and alkali. Not resistant to high purity reducing acids such as sulphuric acids, hydrochloric acids. |
Tantalum | Highly resistant to corrosive mediums. Applicable to all chemical mediums except Hydrofluoric Acids, Oleum and Alkali. |
Platinum-iridium | Applicable to all chemical mediums except for Ammonium salts and Fortis. |
Company Profile
Certificates
FAQ
For Before-sales advise
In order to recommend you the most suitable our electromagnetic sensor , please show us following necessary information according
to your practical situation.
1.What is your measuring medium ? Conductive liquid or slurry
2.Working pipe size? 6-3000mm
3.Install type? Flange ,Inserted,Threaded, Clamped.
4.Electrode material? SS316,HB,HC,Ta,Ti,Pt
5.Liner material? PTFE,rubber,neoprene,FEP,PFA,polyrethane
6.Communication mode? RS485, Modbus, RS232 ,Modbus, HART, Profibus, GPRS, others
to your practical situation.
1.What is your measuring medium ? Conductive liquid or slurry
2.Working pipe size? 6-3000mm
3.Install type? Flange ,Inserted,Threaded, Clamped.
4.Electrode material? SS316,HB,HC,Ta,Ti,Pt
5.Liner material? PTFE,rubber,neoprene,FEP,PFA,polyrethane
6.Communication mode? RS485, Modbus, RS232 ,Modbus, HART, Profibus, GPRS, others
After-sales service
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on
actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the
scope of warranty.
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on
actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the
scope of warranty.
FAQ
Q1. Can you accept OEM service ?
A:We professional provide OEM service for electromagnetic flow meter.
Q2. Could I get samples?
A:Yes,we can arrange production and delivery as soon as possible to help you get the sample.
Q3. How about the quality of the magnetic flow meter?
A:Every magnetic flow meter is five-pionted calibrated in flow meter calibration equipment,we'd provide factory certification test
to you.
Q4. Could you provide me the shortest lead time?
A:Generally delivery is 2-3 working days after received payment,if urgently required,we will try our best to satisfy you.
Q5. Could I visit your factory?
A:Welcome to visit us,we will guide your visit in our factory.
Q6. How can I get the quotation?
A: Send your inquiry or contact us directly at Trade Manager,Mobile/Whatsapp: 008618317875454, Wechat/QQ: 2334150950, you will get the reply within 12h, and the quotation within 24h.
Q7.What is your MOQ?
A: To start our cooperation, sample order is acceptable.
Q1. Can you accept OEM service ?
A:We professional provide OEM service for electromagnetic flow meter.
Q2. Could I get samples?
A:Yes,we can arrange production and delivery as soon as possible to help you get the sample.
Q3. How about the quality of the magnetic flow meter?
A:Every magnetic flow meter is five-pionted calibrated in flow meter calibration equipment,we'd provide factory certification test
to you.
Q4. Could you provide me the shortest lead time?
A:Generally delivery is 2-3 working days after received payment,if urgently required,we will try our best to satisfy you.
Q5. Could I visit your factory?
A:Welcome to visit us,we will guide your visit in our factory.
Q6. How can I get the quotation?
A: Send your inquiry or contact us directly at Trade Manager,Mobile/Whatsapp: 008618317875454, Wechat/QQ: 2334150950, you will get the reply within 12h, and the quotation within 24h.
Q7.What is your MOQ?
A: To start our cooperation, sample order is acceptable.

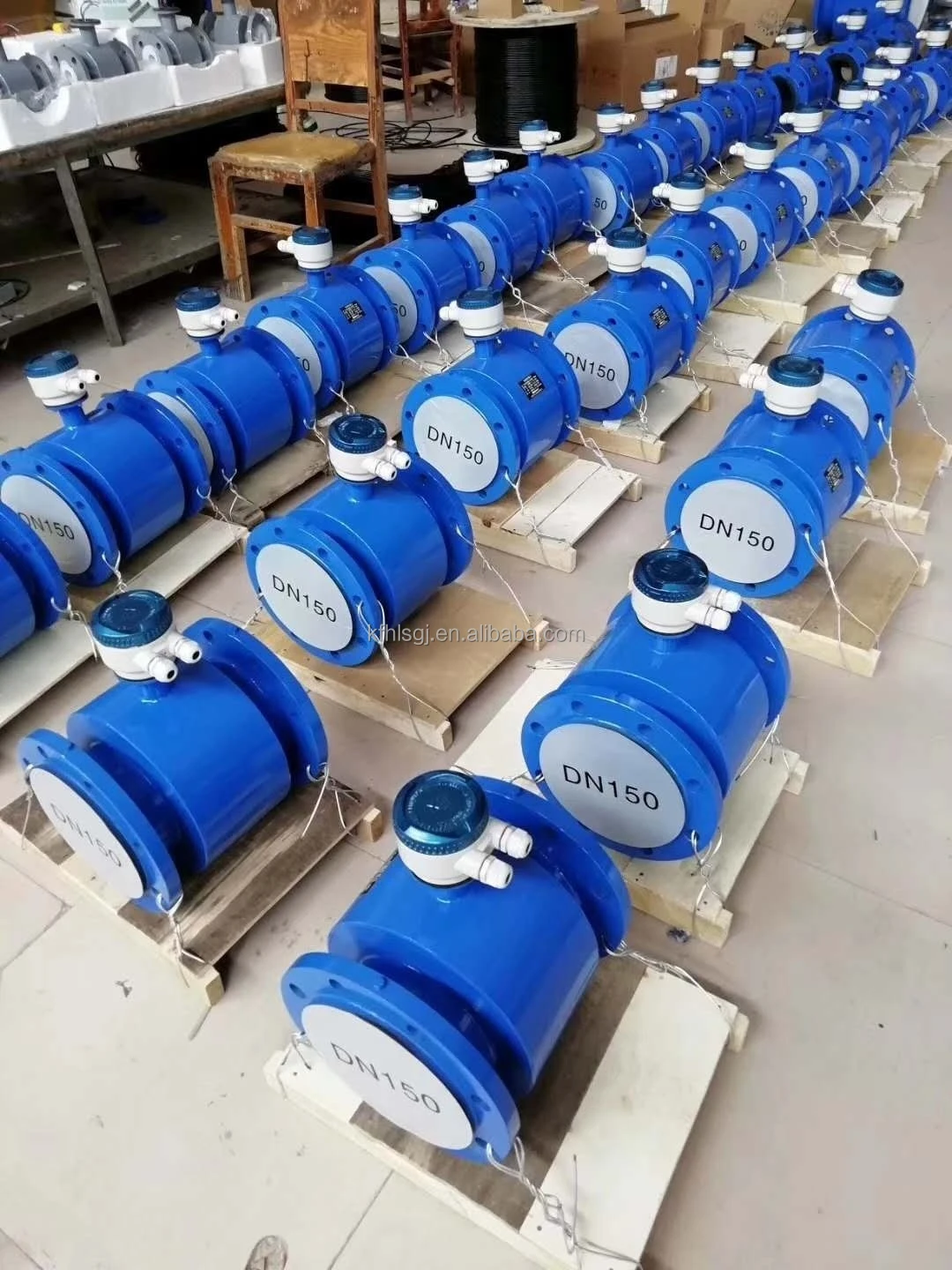

Packing & Delivery
Generally paper box is used for electromagnetic flow meter with diameter size DN6~150, plywood box for DN200~3000.
Pallet would be used for bulk orders.
