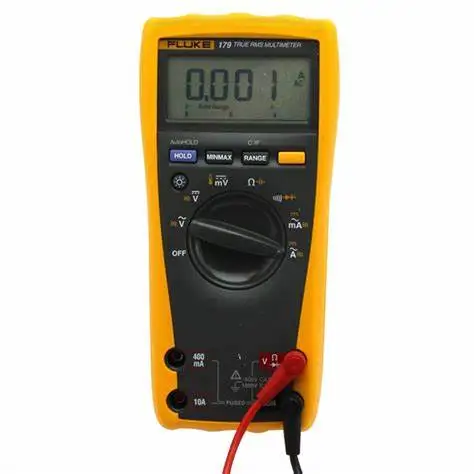

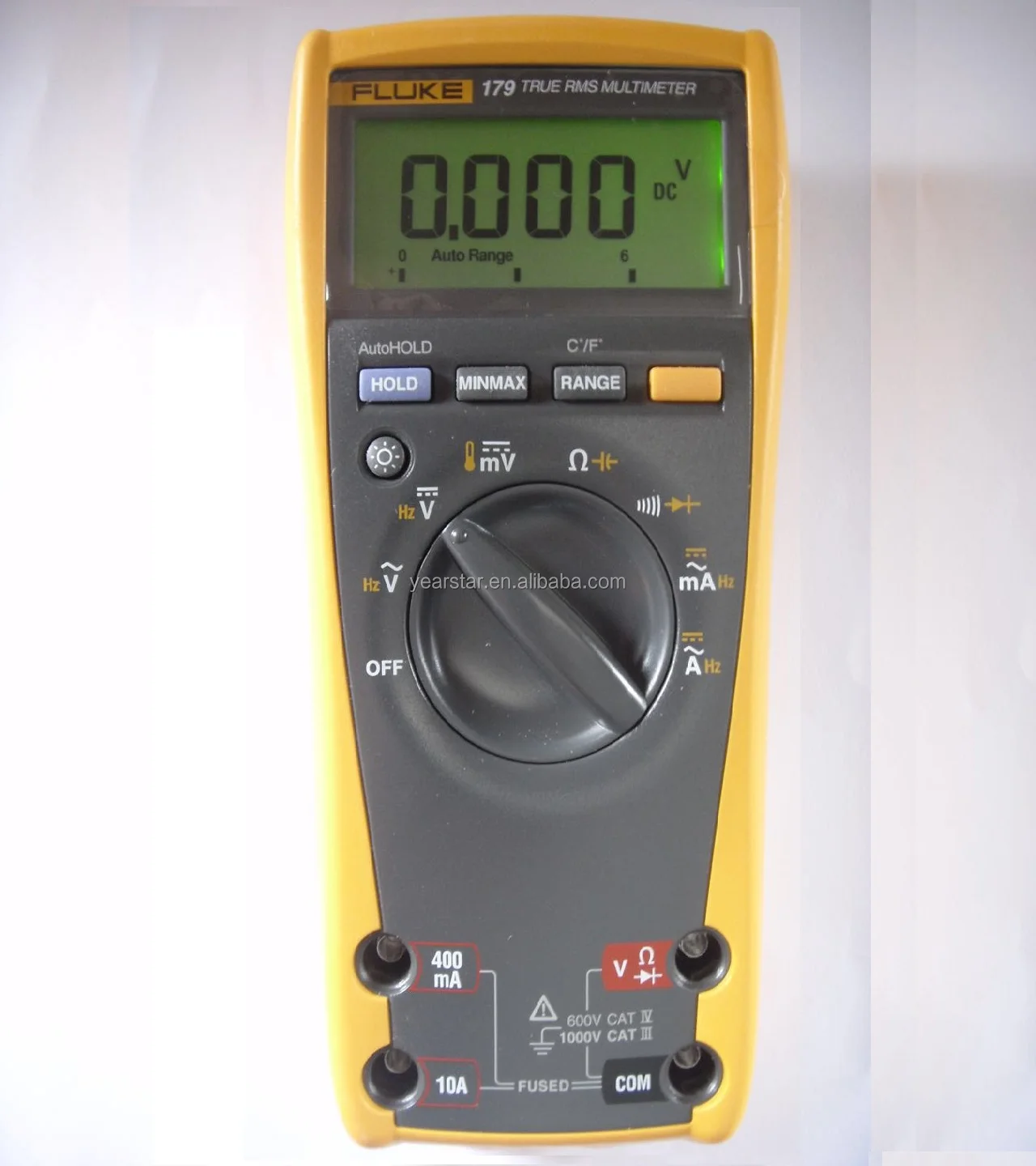

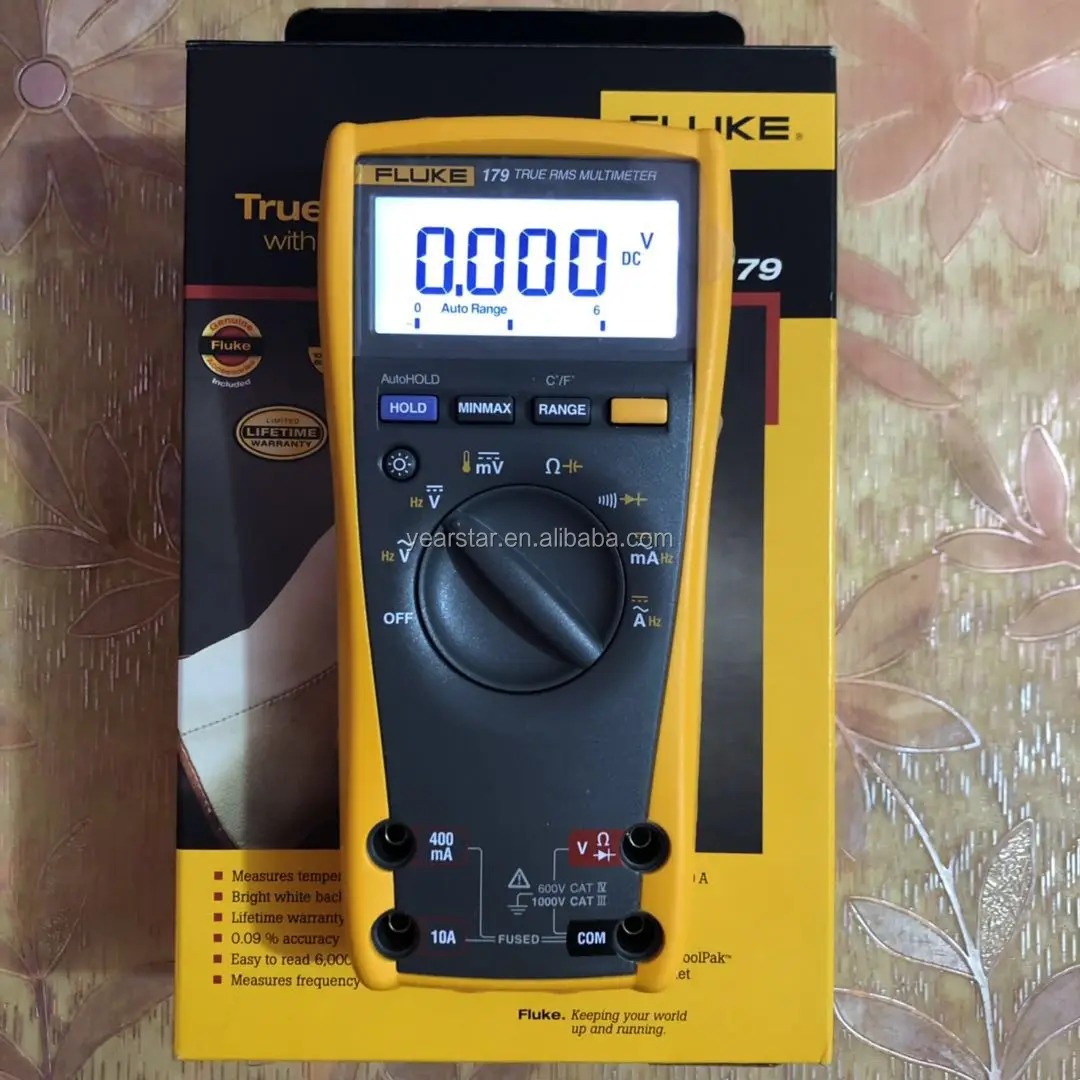

Min max average recording Temperature measurements Fluke 179 True RMS Series Digital Multimeters

Product Overview

Description

Fluke 170 Series Digital Multimeters Fluke 179  :





• Manual and automatic ranging


• Display Hold and Auto Hold


• Frequency and capacitance measurements


• Resistance, continuity and diode measurements


• Temperature measurements


• Min-max-average recording


• Closed case calibration through front panel


• Ergonomic case with integrated protective holster



  Specifications :

Voltage DC	175 - Accuracy* ± (0.15%+2) 177 - Accuracy* ± (0.09%+2) 179 - Accuracy* ± (0.09%+2) Max. Resolution 0.1 mV Maximum 1000 V
Voltage AC	Accuracy* ± (1.0%+3) Max. Resolution 0.1 mV Maximum 1000 V
Current DC	Accuracy* ± (1.0%+3) Max. Resolution 0.01 mA Maximum 10 A
Current AC	Accuracy* ± (1.5%+3) Max. Resolution 0.01 mA Maximum 10 A
Resistance	Accuracy* ± (0.9%+1) Max. Resolution 0.1 Ω Maximum 50 MΩ
Capacitance	Accuracy* ± (1.2%+2) Max. Resolution 1 nF Maximum 10,000 µF
Frequency	Accuracy* ± (0.1%+1) Max. Resolution 0.01 Hz Maximum 100 kHz
Temperature	179 - Accuracy* ± (1.0%+10) Max. Resolution 0.1°C Range -40°C/400°C
Note	* Accuracies are best accuracies for each function



Environmental Specifications :

Operating Temperature	-10°C to +50°C
Storage Temperature	-30°C to +60°C
Humidity (Without Condensation)	0% - 90% (0°C - 35°C)   0% - 70% (35°C -50°C)



Safety Specifications :

Overvoltage category	EN 61010-1 to 1000 V CAT III.   EN 61010-1 to 600 V CAT IV.
Agency Approvals	UL, CSA, TÜV listed and VDE Pending



Mechanical & General Specifications :

Size	43 x 90 x 185 mm
Weight	420 g
Warranty	Lifetime
Battery Life	Alkaline: ~200 hours typical, without backlight

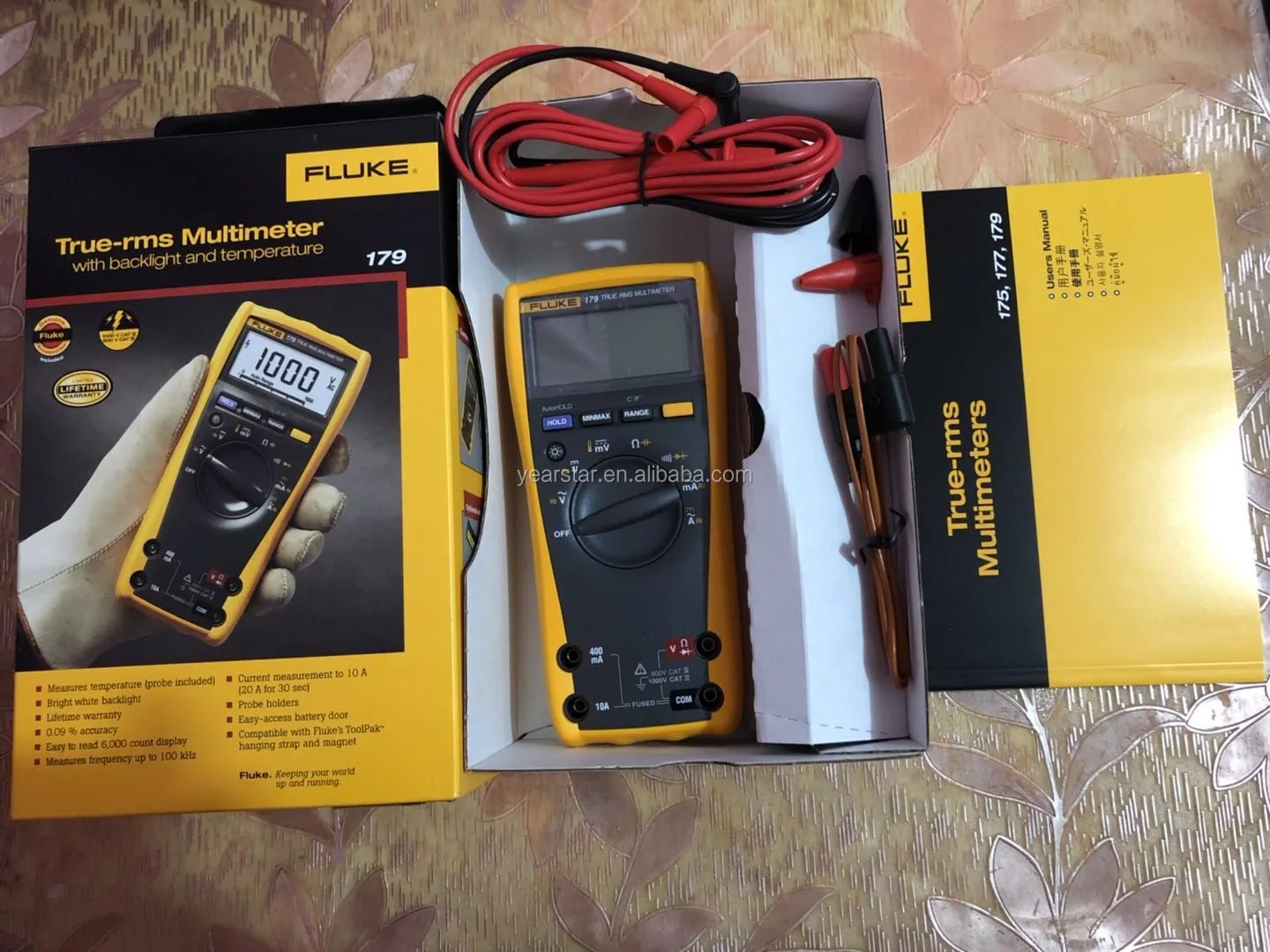

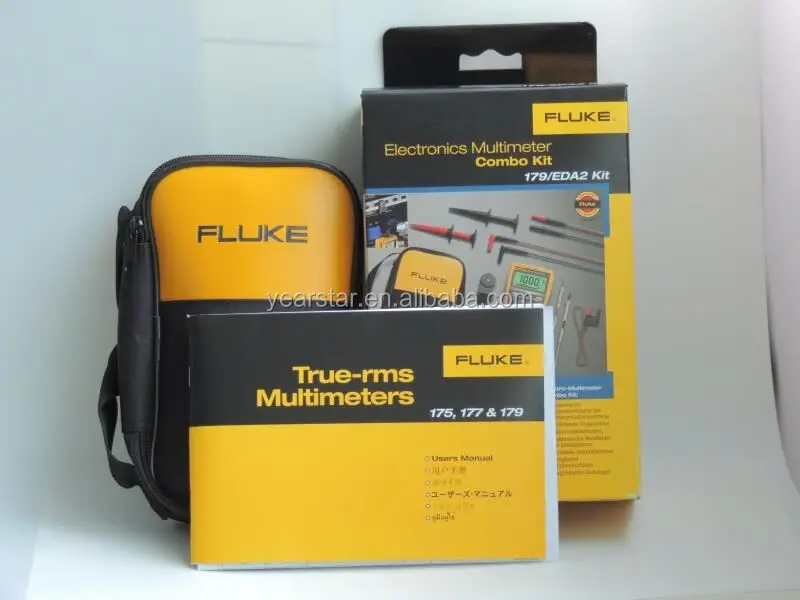

including accessories:

• 80BK Temperature Probe


• Installed 9V battery


• Test leads


• Users manual





--------------------------------------------------------------------------





































-----------------------------------------------------
