fan water spray,nozzle sprayer v nozzle 11005
US $1.40-$1.54

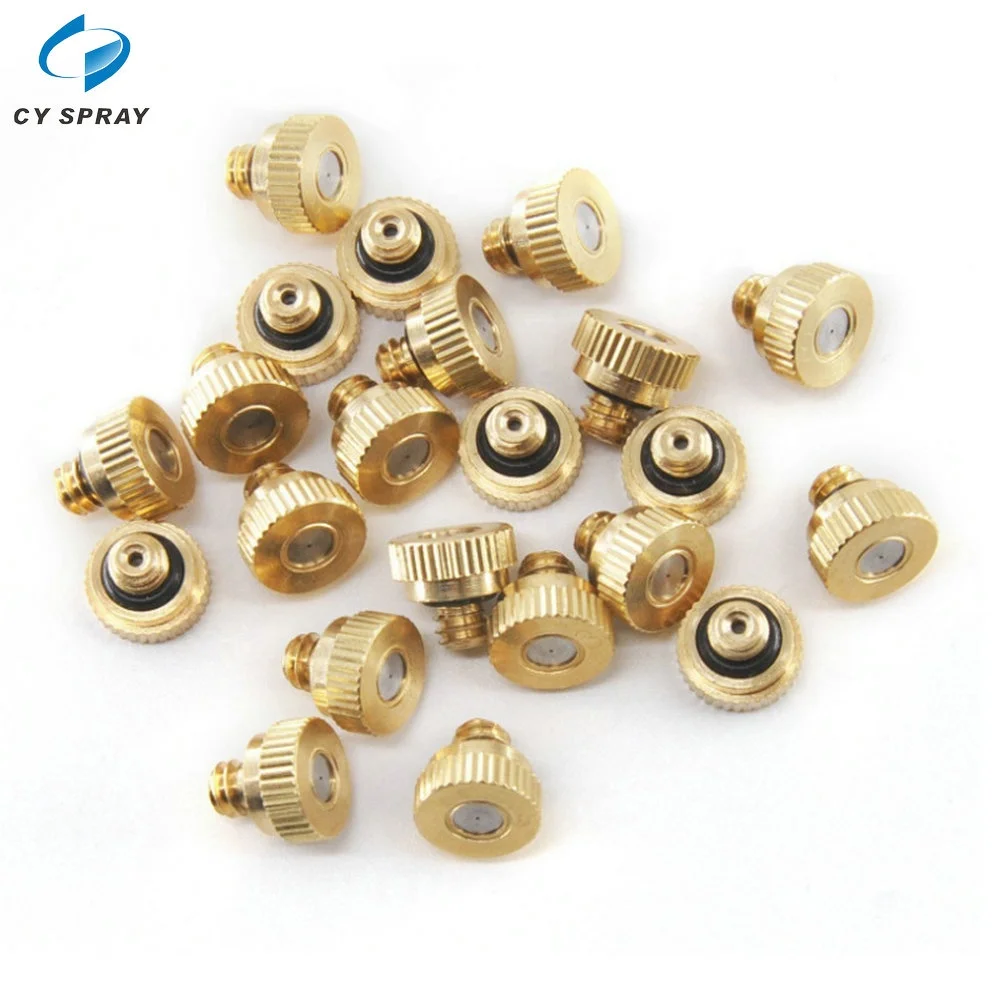

Low Pressure Greenhouse Fogging Brass Fog Outdoor Nozzle Fine Mist Water Hose Spray Irrigation Nozzle
- Category: Cleaning Equipment Parts >>>
- Supplier: Dong,Guan,CY,Spraying,&,Purification,Technology,Limited
Share on:
Product Overview
Description
Design features
F series high pressure anti-drop fine fog nozzles have guide vane inserted and have a anti-drop equipment.
2.Under the pressure of 20-70KG(290PSI-1015PSI), the liquid flows in a high speed forming a centrifugal vortex In the vanes, then spray the fine droplets from the orifice.
3.This kind of nozzle can be used in artificial fog, disinfection, cooling, humidifying etc. As the wide use in artificial fog industry, it's also called artificial fog nozzle, cooling fog nozzle.
4.Material of nozzle's body: stainless steel,SS
Common application
1. Wetting & Rust removal
2.Humidify for space
3.Chemical treatment
4.Chemical agent spraying
5.Liquid coating
6.Humidify for tabacco leaf
7.Pill coating
8.Evaporative cooling for flue gas
9.Disinfection & sterilization
10.Parts cooling
11.Fruit wax injection
12.Ceramic tile glazing
13.Humidify for factory
14.Salt fog test
15.Artificial fog
16.Humidify for other place
Performance Data:
| Type |
| Type | Size dia. | Thread | Pressure | Flow Rate |
| L1 | 0.10mm/0.004" | 10/24,12/24,3/16" | 20-70bar | 0.016-0.040L/Min |
| L2 | 0.15mm/0.006" | 10/24,12/24,3/16" | 20-70bar | 0.029-0.046L/Min |
| L3 | 0.20mm/0.008" | 10/24,12/24,3/16" | 20-70bar | 0.049-0.089L/Min |
| L4 | 0.30mm/0.012" | 10/24,12/24,3/16" | 15-70bar | 0.065-0.145L/Min |
| L5 | 0.40mm/0.016" | 10/24,12/24,3/16" | 7-70bar | 0.056-0.178L/Min |
| L6 | 0.50mm/0.02" | 10/24,12/24,3/16" | 7-70bar | 0.077-0.248L/Min |
Catalogue
R&D process:
Customers’ Requirement- Concept Generation—Samples obtained or start from scratch–Drawing—Materials Purchases—Prototyping (Machining/Tooling)-Testing—Customer Confirmation-Mass Production. Also in cases,Customers’ Sample Nozzles-2D Measurements, Drawings (Pro-E, Autocad), Materials Purchases-Machining/Tooling-Testing-Customers confirmation-Mass Production.
Payment terms:
T/T 100% in advance for small amount
Large amount we accept 30% in advance, 70% after make over and sured by picture ,After check the copy of B/L by ocean way.
Western unin ,Paypal and alipay
FAQ:
Q1. Are you a trading company or a manufacturer?
CY spray, founded in 1997, is one of the biggest spray nozzle manufacturer in China
Q2. What are your terms of payment?
T/T, D/T, Western Union. We will arrange product after received payment. And we'll show you the photos of the products and packages before shipping.
Q3. How about your delivery time?
Generally, it will take 7-10 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples or can you provide the sample for the quality test?
Yes, we provide OEM service and customized product. We can provide the sample for a quality test before order confirmation and will charge sample cost. But the cost can be refunded after order confirmed when your quantity is more than our MOQ.
Q5. Do you test all your goods before delivery?
Yes, we have 100% test before delivery
