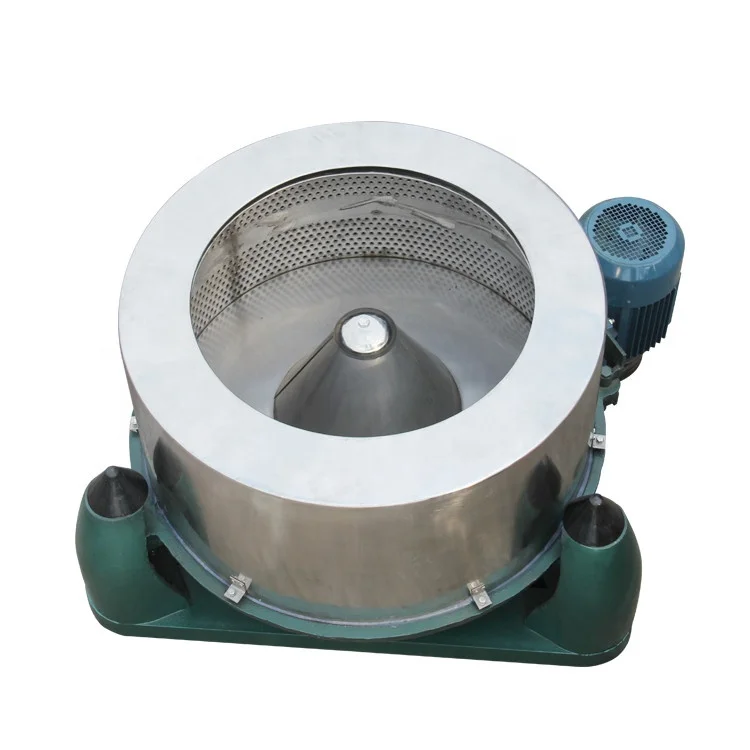

High speed centrifugal food dehydrator clothes textile hydro extractor

Product Overview

Description

High speed centrifugal food dehydrator clothes textile hydro extractor

Wechat/Whatsapp: +8613925059353



Main technical parameter

Industrial clothes hydro extractor,extracting machine, dehydrator, hydro extractor, dewatering machine, etc...

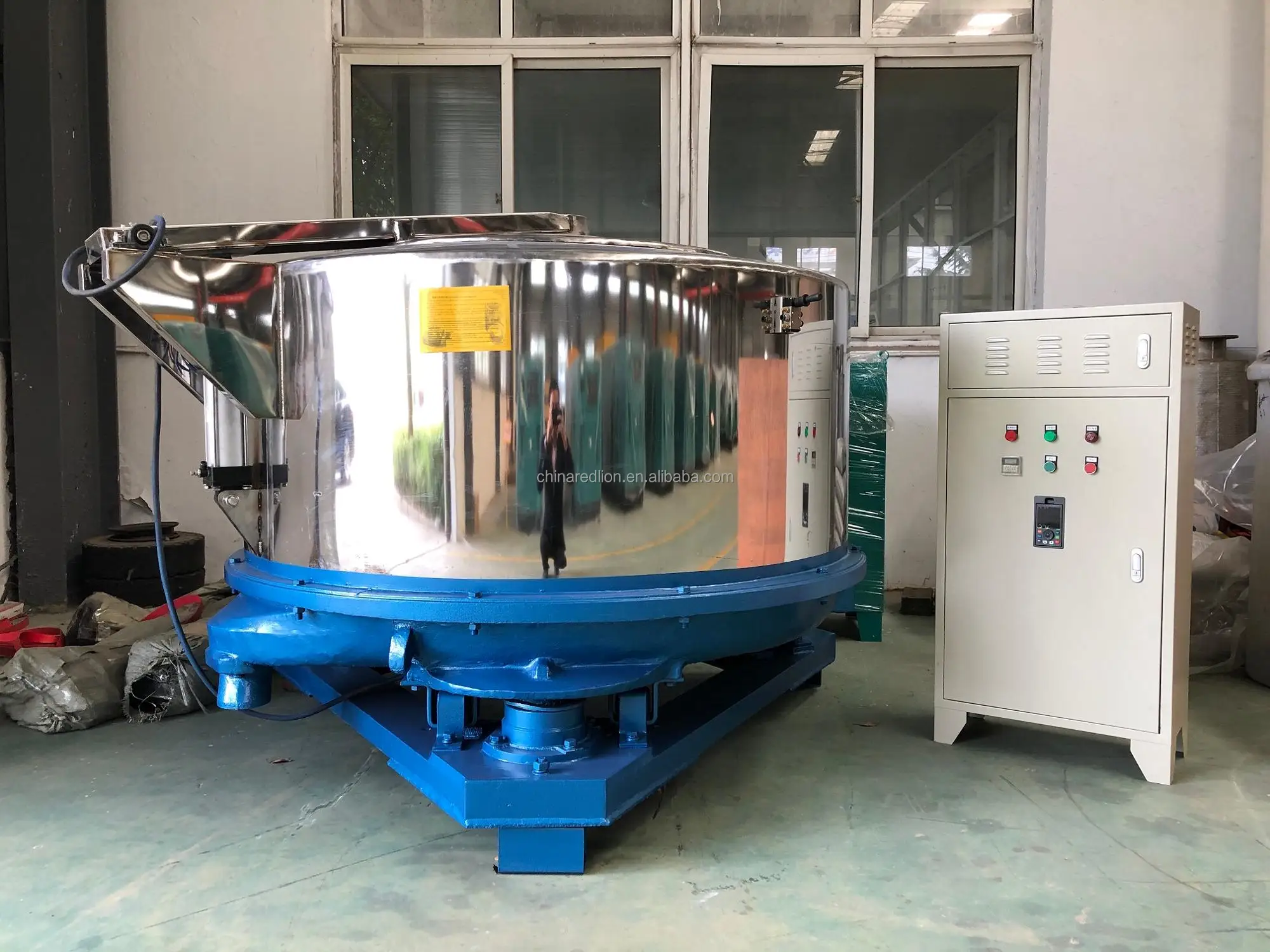

1,Cover and inverter is optional.

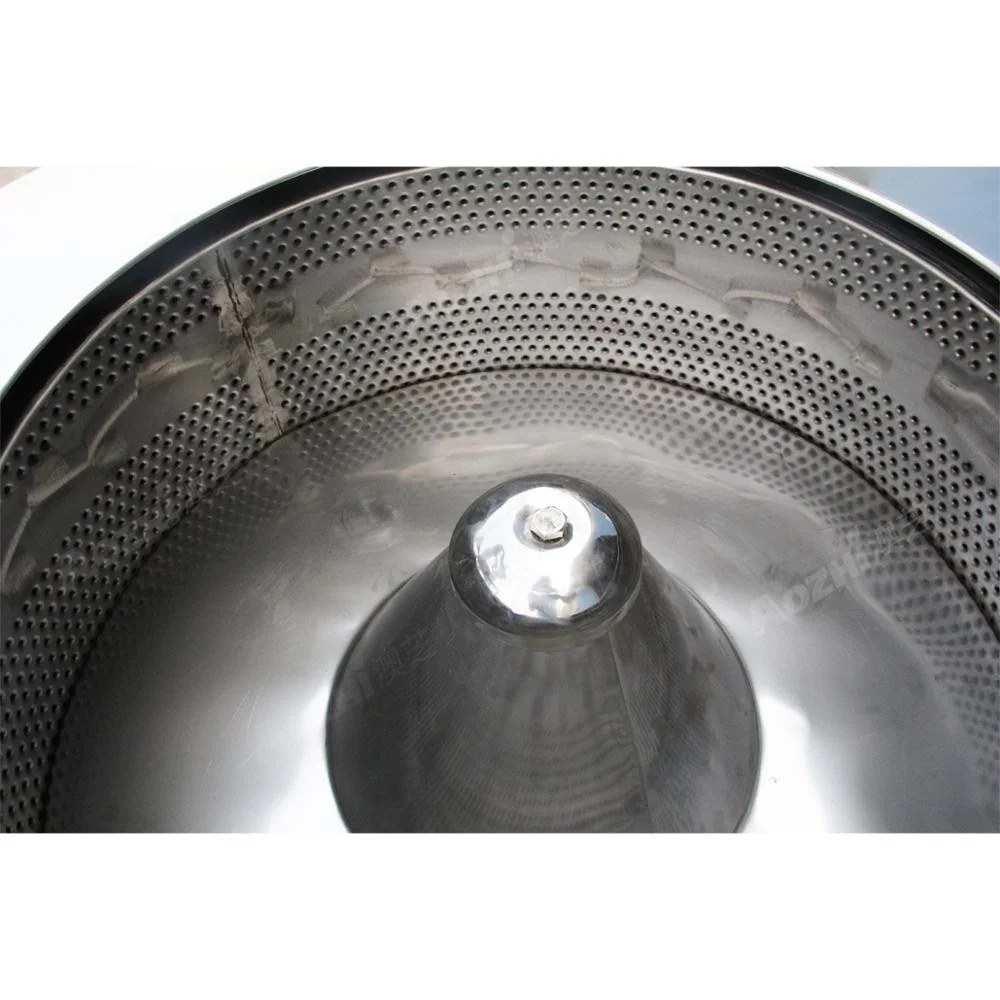

2,The panel and drum are all in stainless steel, good appearance and long life.

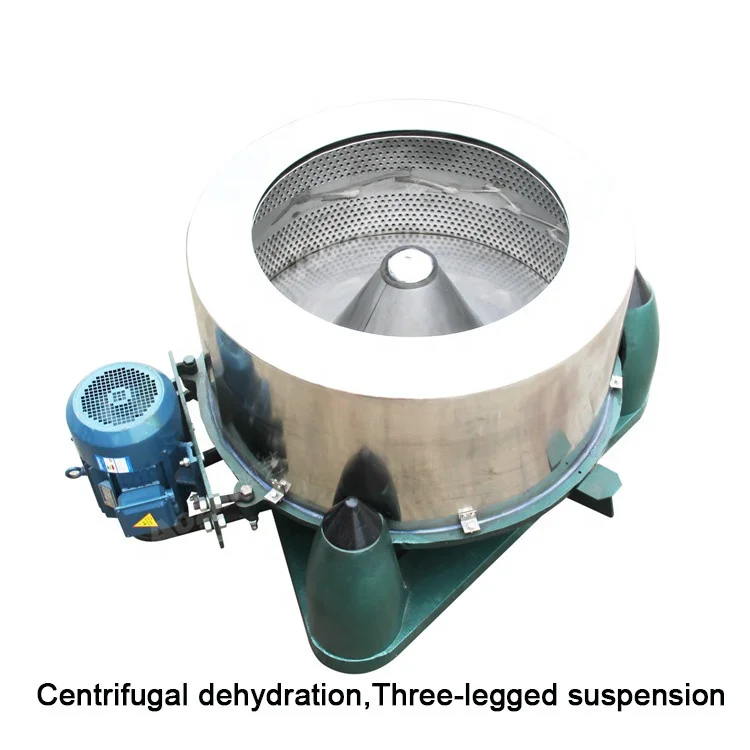

3, This kind of industrial extractor is provided with unique shock-absorber,three legs suspended structure, reasonable structure,running stable, low noise.

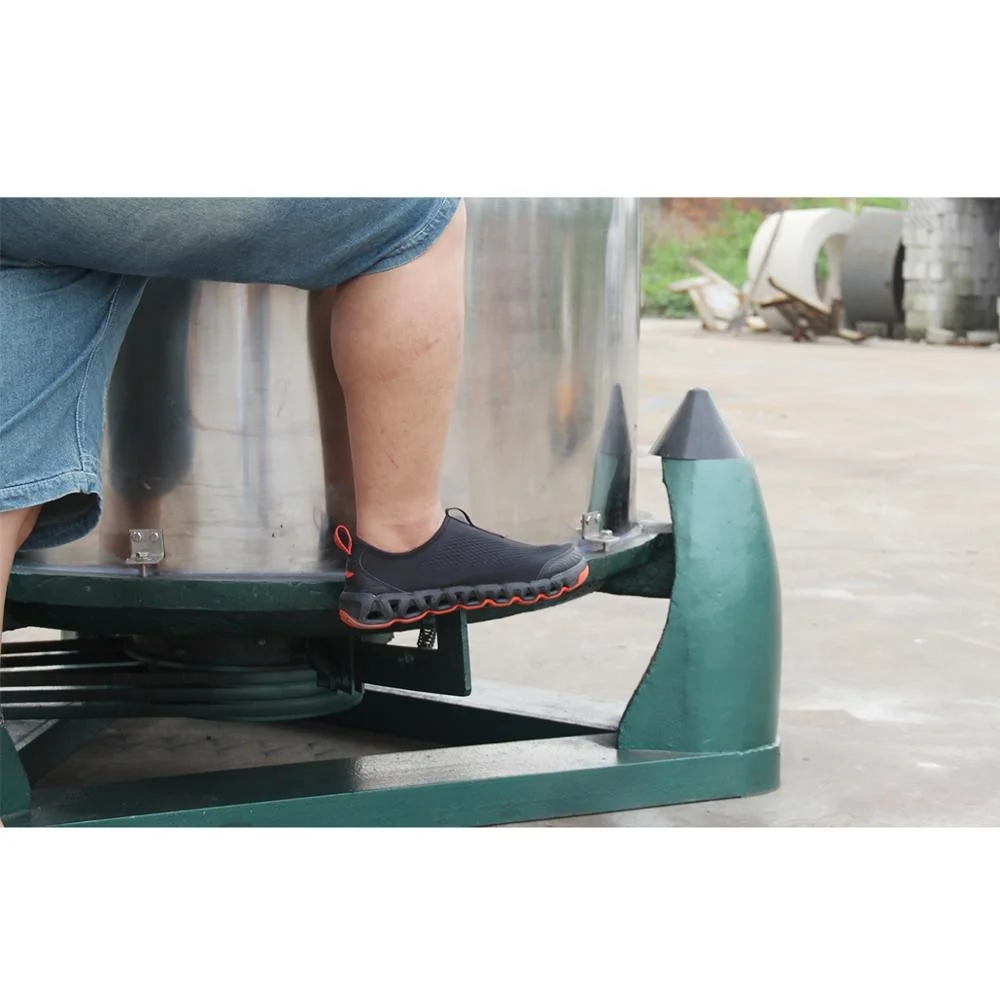

4, The brake system adopts feet braking ,smooth braking, easy and flexible to operate.
5, The diameter could be Φ440mm, Φ570mm, Φ640mm, Φ850mm,  Φ950mm, Φ1000mm, Φ1100mm.
6, Widely used in various laundries, clothes factory, food factory, etc..





Model		TL-15	TL-20	TL-25	TL-30	TL-35
Capacity	kg	15	20	25	30	35
Drum Diamention	mm	Φ440×370	Φ550×280	Φ570×310	Φ640×320	Φ640×350
High spin Speed	r/min	900	850	850	830	830
Voltage	v	220/240/380/415/440
Motor Power	kw	1.5	1.5	1.1	1.5	1.5
Dimension(LxWxH)	mm	800x800x780	1000x850x700	860x1000x660	1150x1000x710	950x1100x700
Net Weight	kg	125	220	350	350	400









Model		TL-50	TL-70	TL-100	TL-120
Capacity	kg	50	70	100	120
Drum Diamention	mm	Φ850×370	Φ950×400	Φ1000×400	Φ1100×380
High spin Speed	r/min	786	780	770	760
Voltage	v	220/240/380/415/440
Voltage	v	220/240/380/415/440
Frequency	Hz	50/60	50/60	50/60	50/60
Motor Power	kw	4	5.5	7.5	7.5
Dimension(LxWxH)	mm	1100x1150x850	1350x1450x900	1500x1600x900	20780x1548x1000
Net Weight	kg	900	1000	1200	1300







FAQ:



Q1. Are you a factory or a trading company?



A: We are a leading factory here and our engineer with 25 years experience, OEM is available.



Q2. Can your factory do steam heating or steam heating?



A:Yes,we can do electric heating and steam heating according to your requirement.



Q3.Our power supply is 415V,3 Phase,50Hz,can you provide it?



A:Yes,we can.We can customize the power supply for you without any problem.



Q4.What’s your machines’ warranty?



A:We provide free parts for you when manufacture defects has been detected during normal operation under warranty period. All parts are under two years.



Q5.What is your delivery time?



A:Our delivery time is about 15-30days after receiving deposit.
