894/530 M IS цилиндрический роликовый подшипник с наклонным корпусом 894/530 MB подшипник 894/530
- Category: Thrust Roller Bearings >>>
- Supplier: Jinan Baisite Bearing Co. Limited
Share on (1600534381322):
Product Overview
Description
Product Description

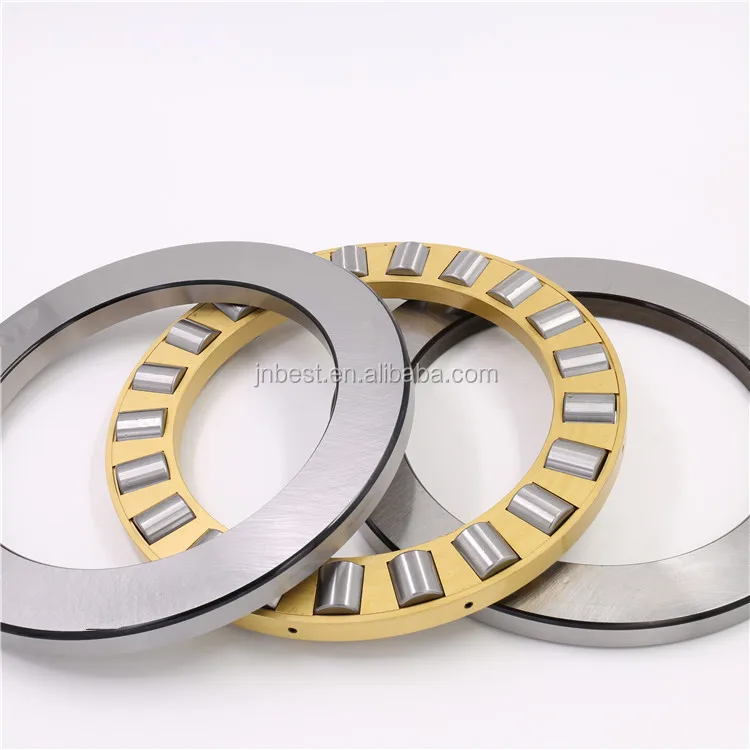

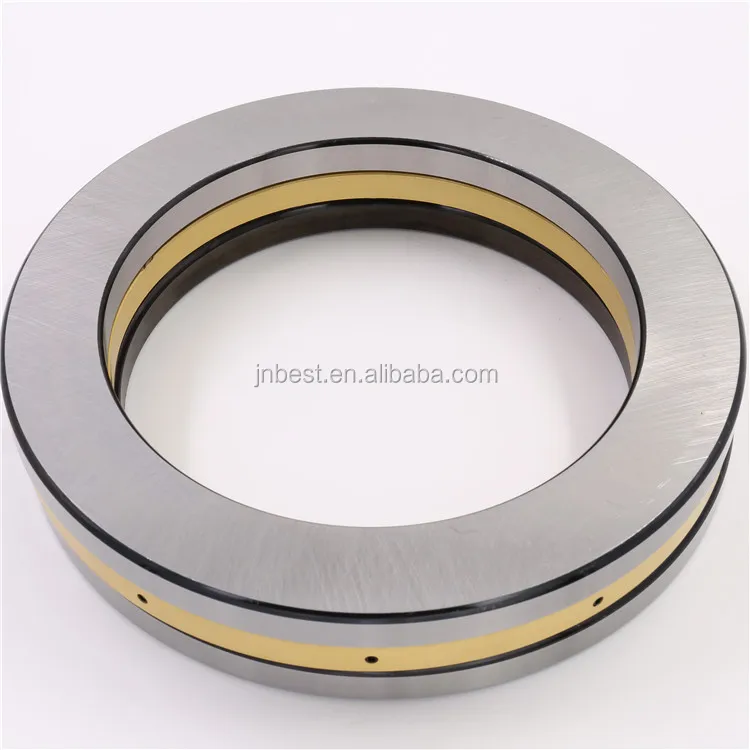

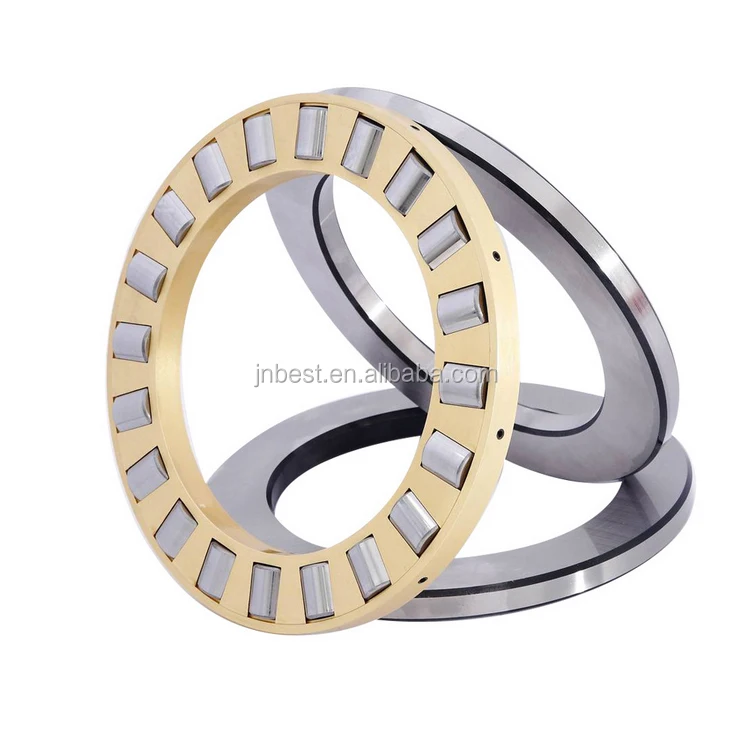

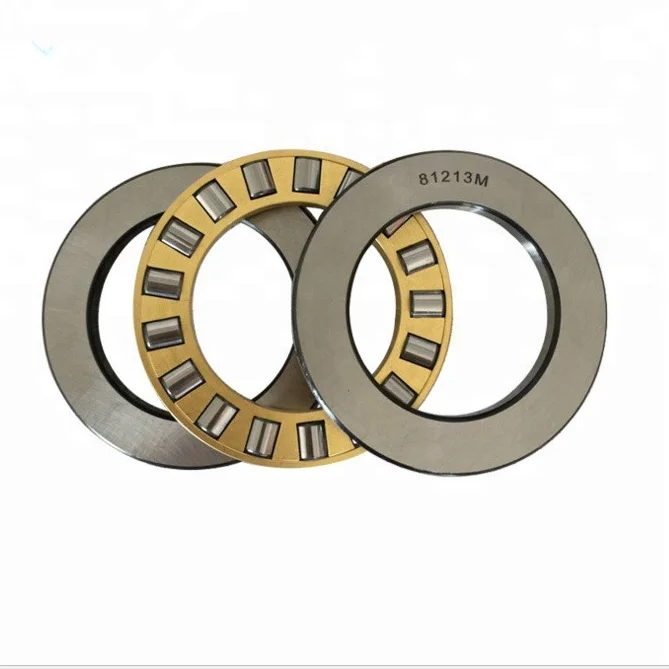

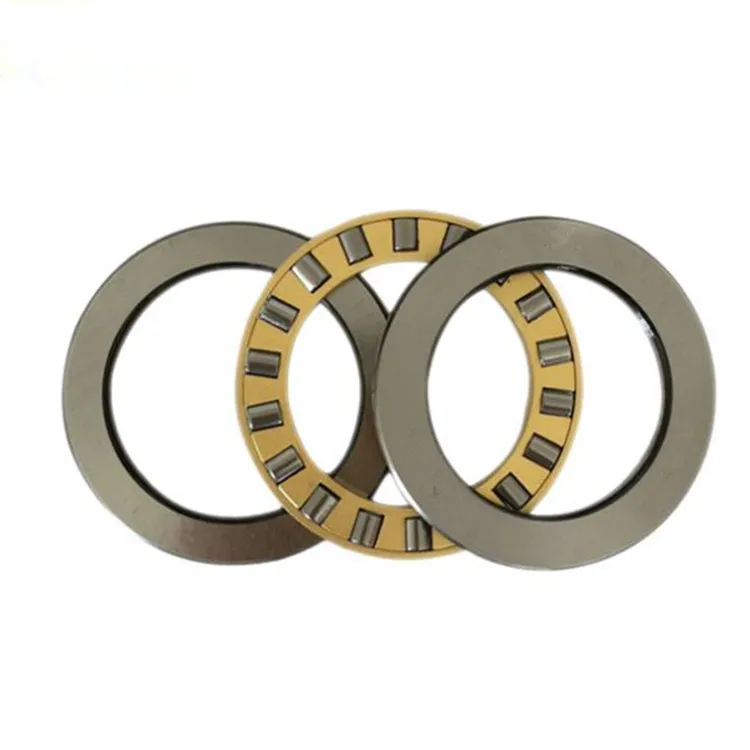

894/530-M-IS Cylindrical roller thrust bearing 894/530-MB Bearing 894/530
Thrust cylindrical roller bearings are often combined into high stiffness bearing arrangements that can withstand heavy and vibrational loads without difficulty. Such bearings can withstand large axial loads in one direction, but not radial loads, they do not automatically adjust heart ability. Axial cylindrical roller bearings can be split into thrust cylindrical roller and cage assemblies, shaft washers and races.
Model | 894/530-MB |
Brand | OEM |
d(mm) | 530 |
D(mm) | 920 |
B(mm) | 236 |
Weight(kg) | 736 |
number of row | single row |
Material | GCr15/GCr15SiMn |
Cerfication | C2,C0,C3,C4,C5 |
Cerfication | ISO9001:2008 |
Features:
1.Able to accommodate misalignment
2.Suitable for high axial and some radial loads
3.Relatively high speed ratings
4.Application examples: Heavy vertical shafts, injection moulding machines, etc.
Main modle:
Thrust cylindrical roller bearings (81000 series)
Thrust taper roller bearing (90000series)
Thrust spherical roller bearing (29000 series)
Cylindrical roller thrust bearings designs
Bearings are produced in several designs which is mainly different in cage as following:
Bearings in "M" design have brass cages guided by a steel sleeve on the shaft washer.
Bearings in "J" design have pressed steel cages guided on the shaft washer.
Bearings in "J" design are interchangable with bearings with machined brass cage. If the bearings with machined brass cage is to be replaced in arrangement, where the shaft washer rests on the shaft on the face of steel sleeve which guides the cage by the bearings in "J" design, it is necessay to insert a spacer between the shaft washer and original shaft shoulder.
Parts of the thrust roller bearing:
| model number | dimension(MM) | weight(KG) |
| 81120 | 100×135×25 | 1 |
| 81122 | 110×145×25 | 1.1 |
| 81124 | 120×155×25 | 1.23 |
| 81126 | 130×170×30 | 1.7 |
| 81128 | 140×180×31 | 1.95 |
| 81130 | 150×190×31 | 2.05 |
| 81132 | 160×200×31 | 2.2 |
| 81134 | 170×215×34 | 2.95 |
| 81136 | 180×225×34 | 3.05 |
| 81140 | 200×250×37 | 3.74 |
| 81188 | 440×540×80 | 41.5 |
| 811/530 | 530×640×85 | 55.5 |
| 811/850 | 850×1000×120 | 177.15 |
| 81206 | 30×52×16 | 0.12 |
| 81207 | 35×62×18 | 0.2 |
| 81208 | 40×68×19 | 0.27 |
| 81209 | 45×73×20 | 0.3 |
| 81210 | 50×78×22 | 0.43 |
| 81240 | 200×280×62 | 13.7 |
| 81211 | 55×90×25 | 0.708 |
| 81212 | 60×95×26 | 0.64 |
| 81213 | 65×100×27 | 0.874 |
| 81214 | 70×105×27 | 0.77 |
| 81215 | 75×110×27 | 0.979 |
| 81216 | 80×115×28 | 0.9 |
| 81217 | 85×125×31 | 1.44 |
| 81218 | 90×135×35 | 1.75 |
| 81220 | 100×150×38 | 2.58 |
| 81222 | 110×160×38 | |
| 81224 | 120×170×39 | 2.7 |
| 81226 | 130×190×45 | 4.92 |
| 81228 | 140×200×46 | 4.55 |
| 81230 | 150×215×50 | 5 |
| 81232 | 160×225×51 | 6.2 |
| 81234 | 170×240×55 | 7.7 |
| 81236 | 180×250×56 | 8.25 |
