MDF HDF laminate flooring line manufacturer short cycle hot press machine
- Category: >>>
- Supplier: Changzhou Sum Industry Limited
Share on (1600534439743):
Product Overview
Description
Product Overview

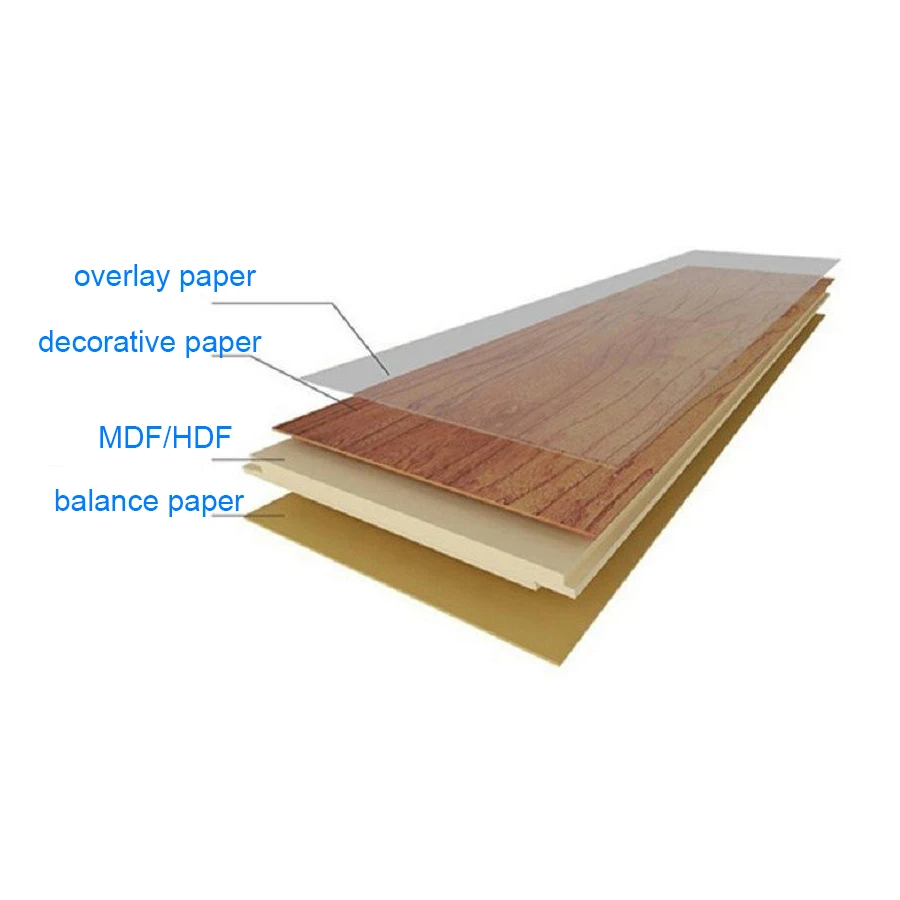

Laminate floor structure:
Overlay paper + decorative paper + MDF/HDF + Balance paper
laminate flooring is a wood based product made by fusing together a few basic layers and sealing them together.
Laminate flooring is made by fusing all the layers together using extremely high pressure, as well as very high temperatures by short cycle hot press.
After laminating ,the board will through automatic cutting line ,double end tenoner line,V shape groove painting line(if necessary) and wax sealing line, packing line,stacking line.
We have two types economical production line and automatic production line ,choose according to customer needs.

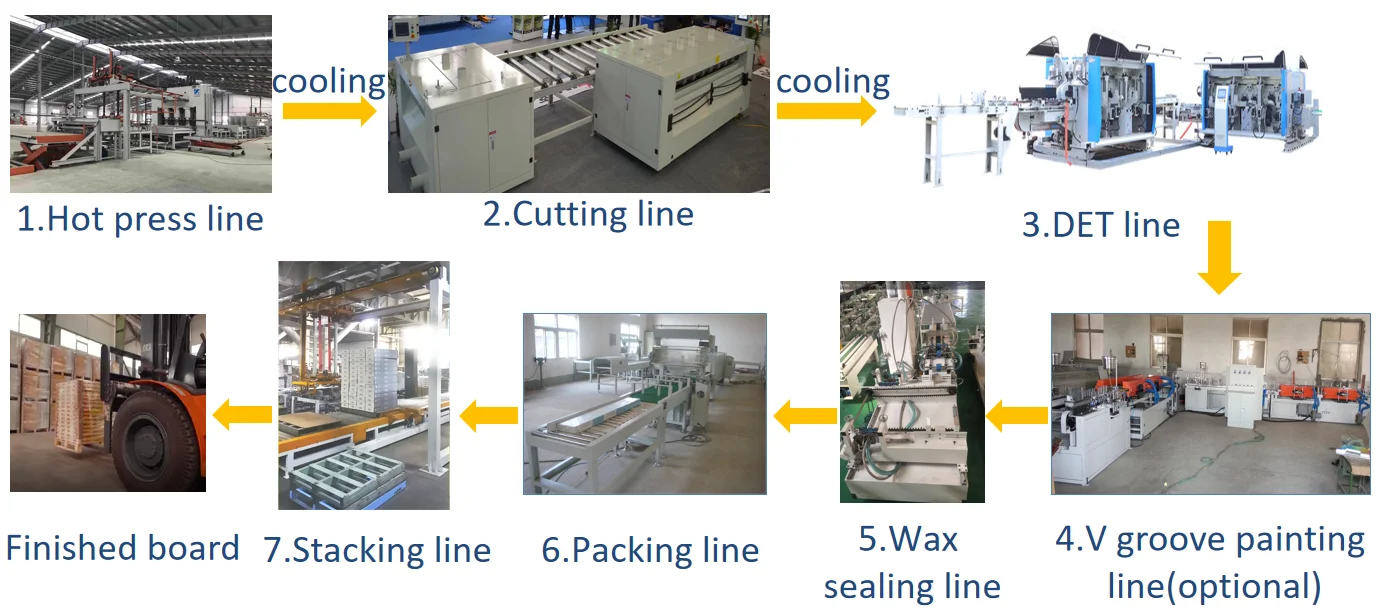

Production process
Automatic laminate floor production line
No. | Equipment list |
1 | Hot press line |
2 | Cutting line |
3 | Double end tenoner |
4 | V groove painting line (option) |
5 | Wax sealing line |
6 | Packing line |
7 | Auto stacking line |
Equipment list

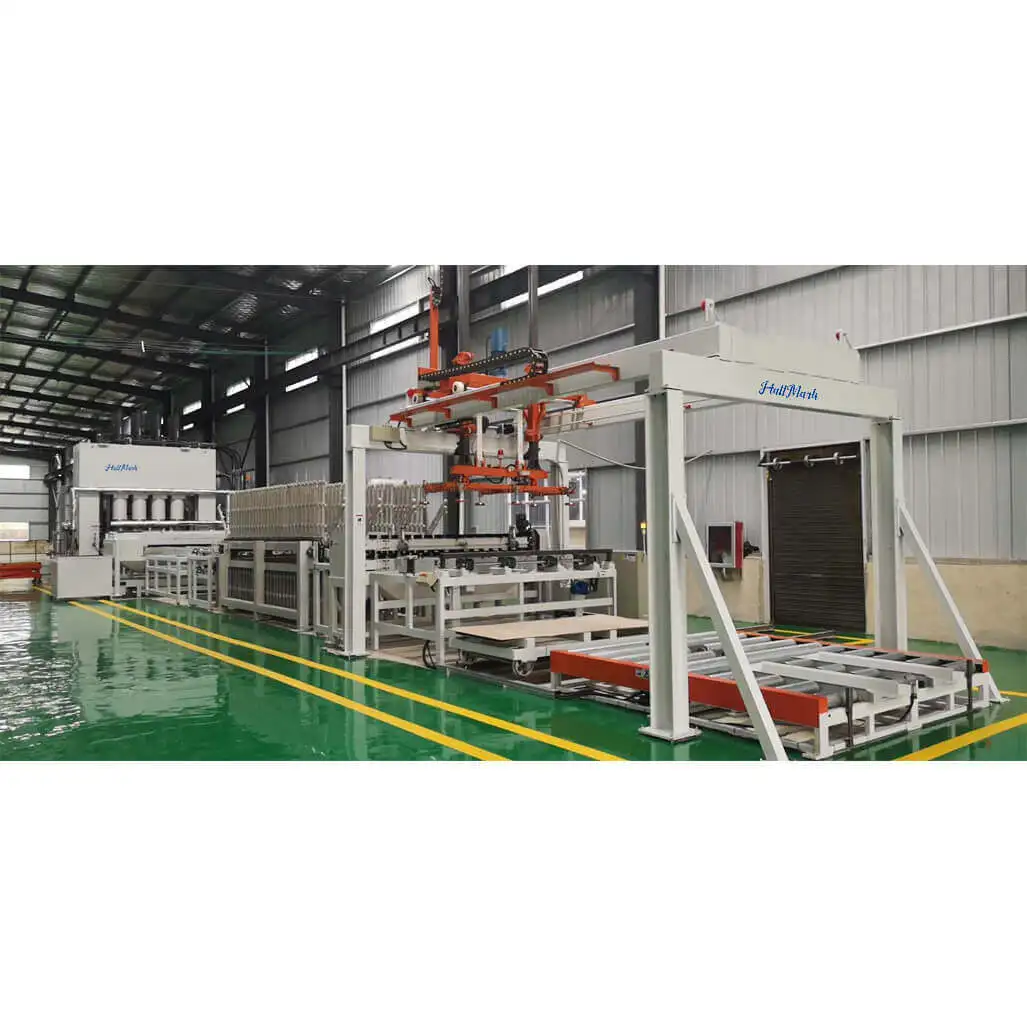

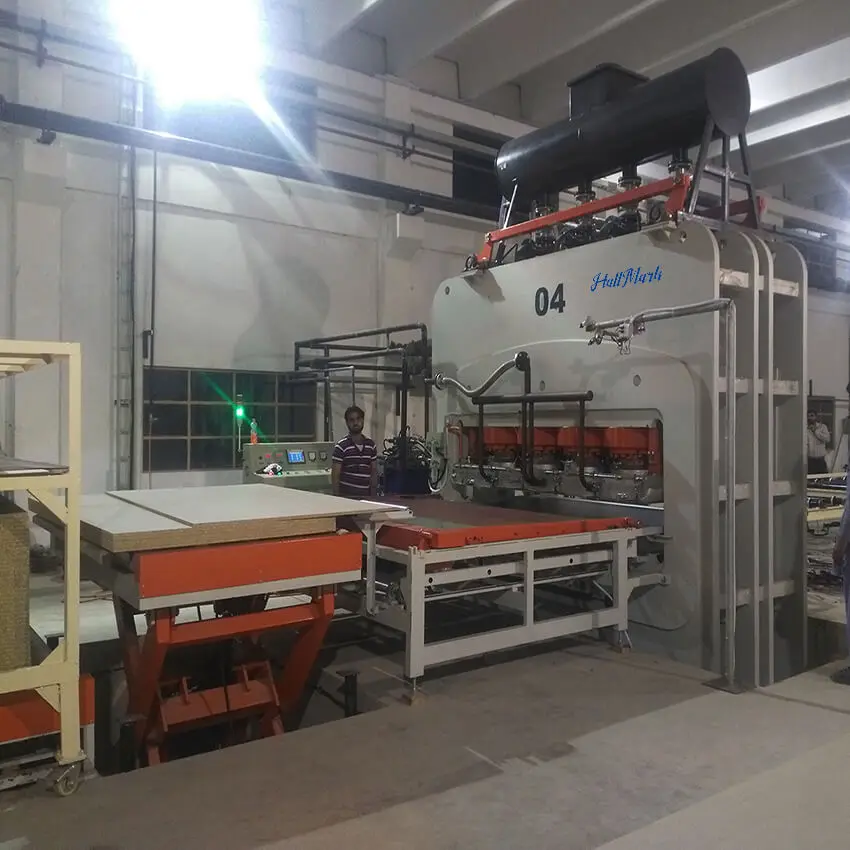

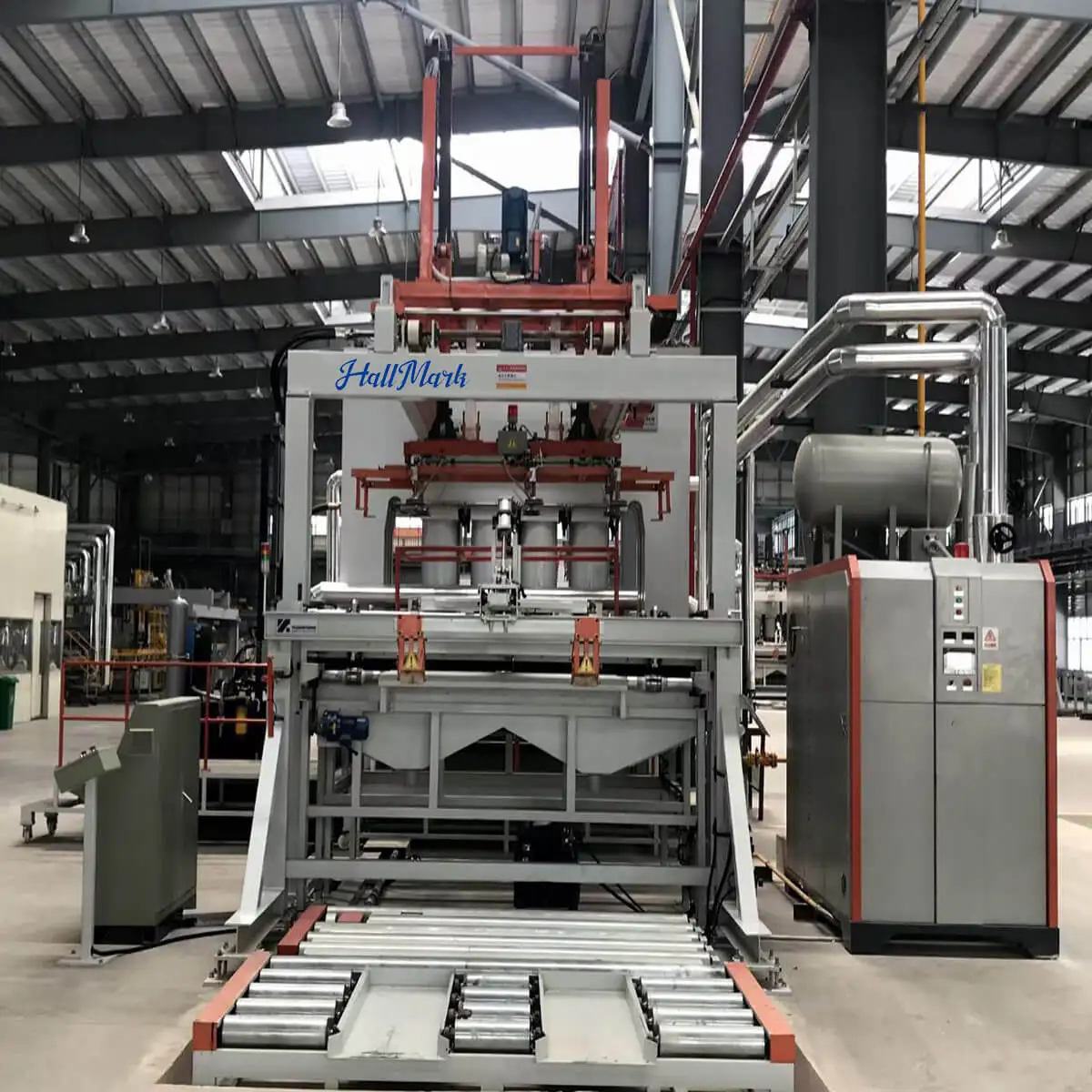

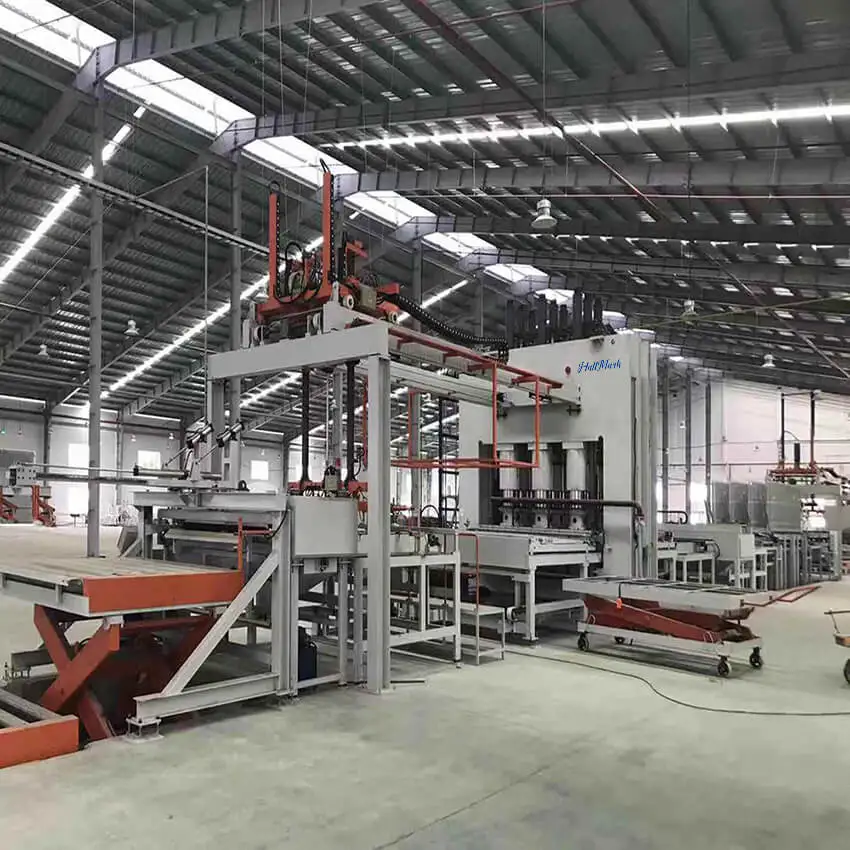

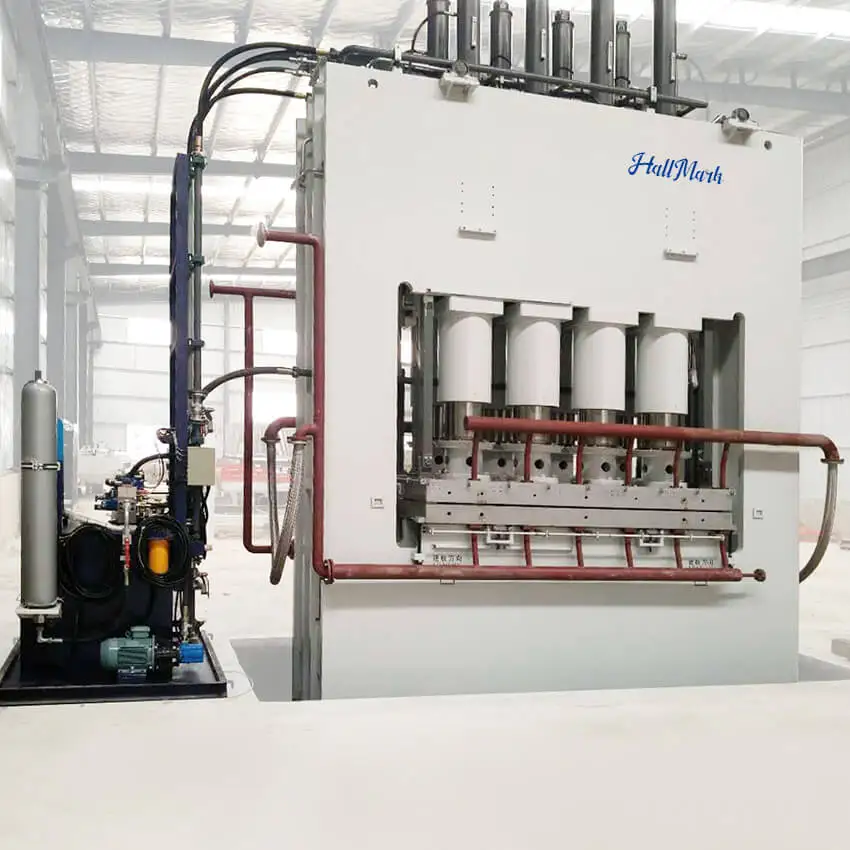

Automatic short cycle hot press line
The overlay paper, decorative paper, HDF board and balance paper are pressed together through short cycle press with high pressure,high temperature and short cycle time.
2. Major parameters for reference:
1) size: 4'×8' [1220×2440mm(thickness:8-30mm)]
1) size: 4'×8' [1220×2440mm(thickness:8-30mm)]
7'×9' [ 2070×2800mm(thickness:8-30mm)]
2) pressure: 2000T to 5600T
3) capacity:70-90 sheets/h
Automatic cutting line
This cutting line main function is cut big board into some small boards.
Includes hydraulic lift platform-loading system-three pieces saw-steering roller conveyor-multi-rip saw-palletizing machine-stacking.
Save labor, improve efficiency.
working speed:15~30m/min

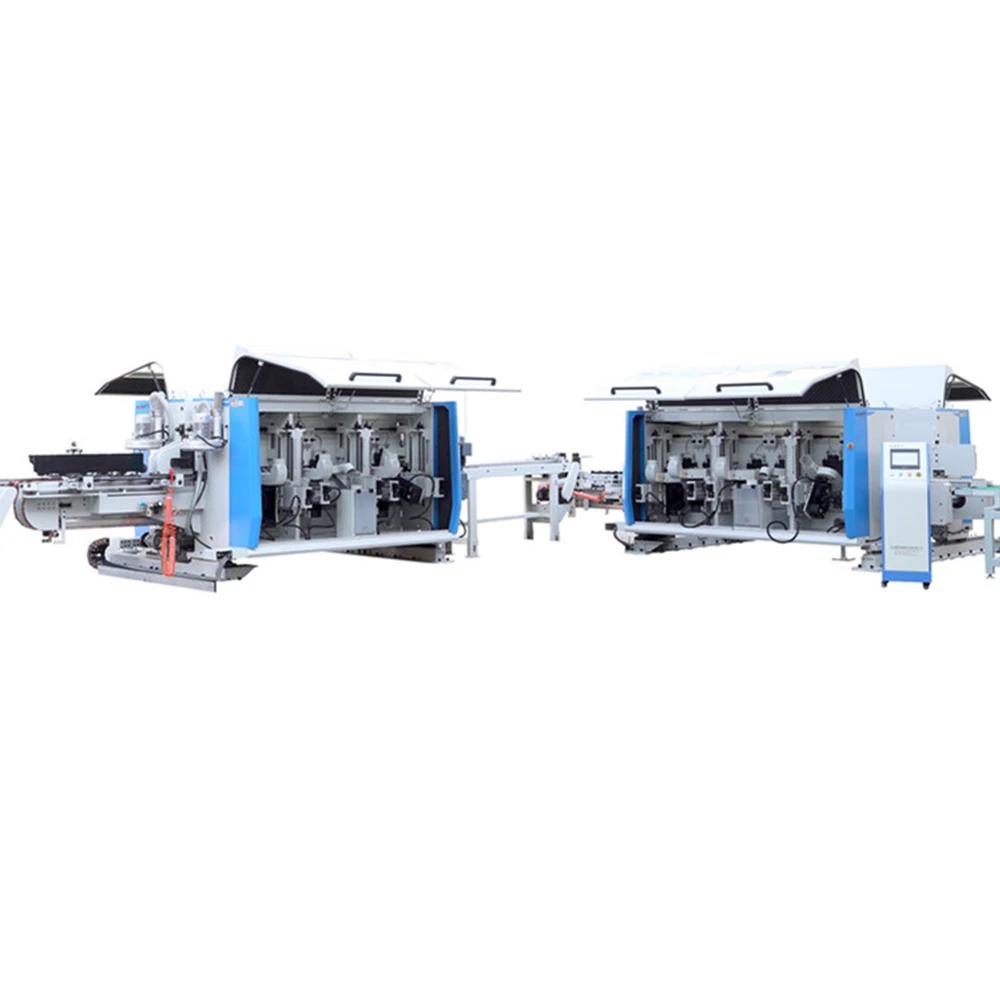

Double end tenoner line
It is used in the forming processing of the board's long sides and short sides.
It can process all kind of click profile,such as: Unilin, Valinge, I4F,5G and so on.
Longitudinal DET: feeding speed: 40-100m/min, width: 125-800mm, thickness: 3-25mm.
Transverse DET: feeding speed: 20-40m/min, width: 400-1500mm or 400-2500mm, working thickness: 3-25mm.

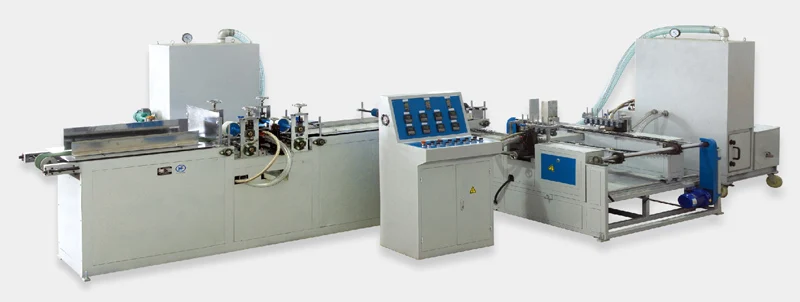

V-shape groove painting line(optional)
If the board need V groove,use water-based paint to paint the groove.
The floor with paint improve waterproof properties, which is beneficial to the floor of the joining together.
working speed:70-100 m/min(long side)

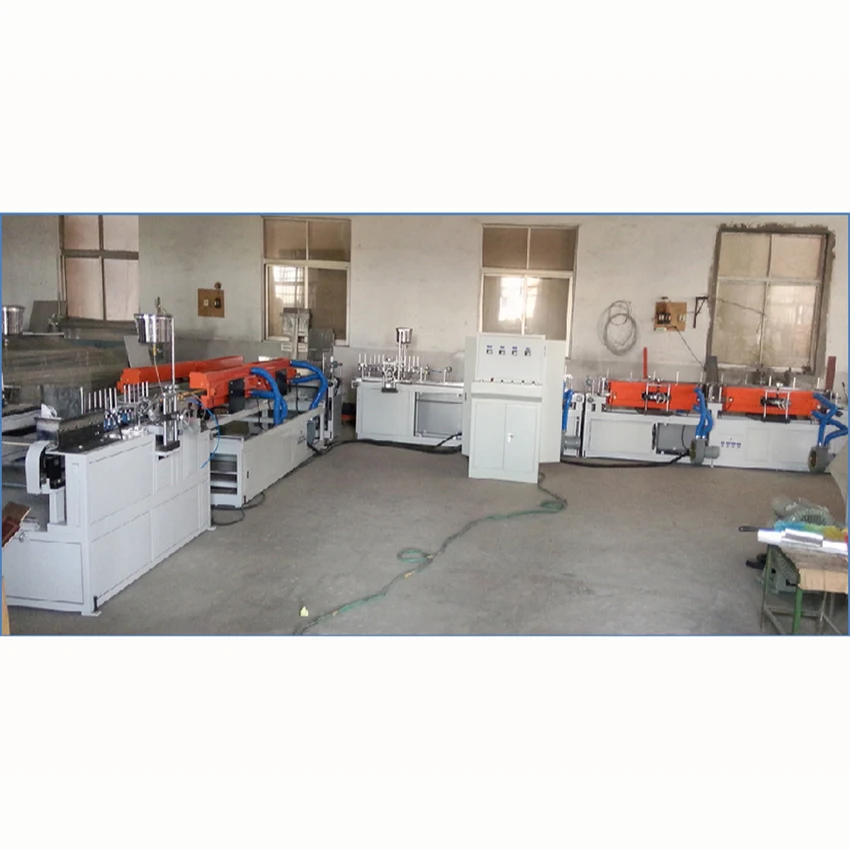

Wax sealing line
Make wax into all grooves of laminate flooring, ensure waterproof and in favor of connecting of flooring.
working speed :max 130m/min

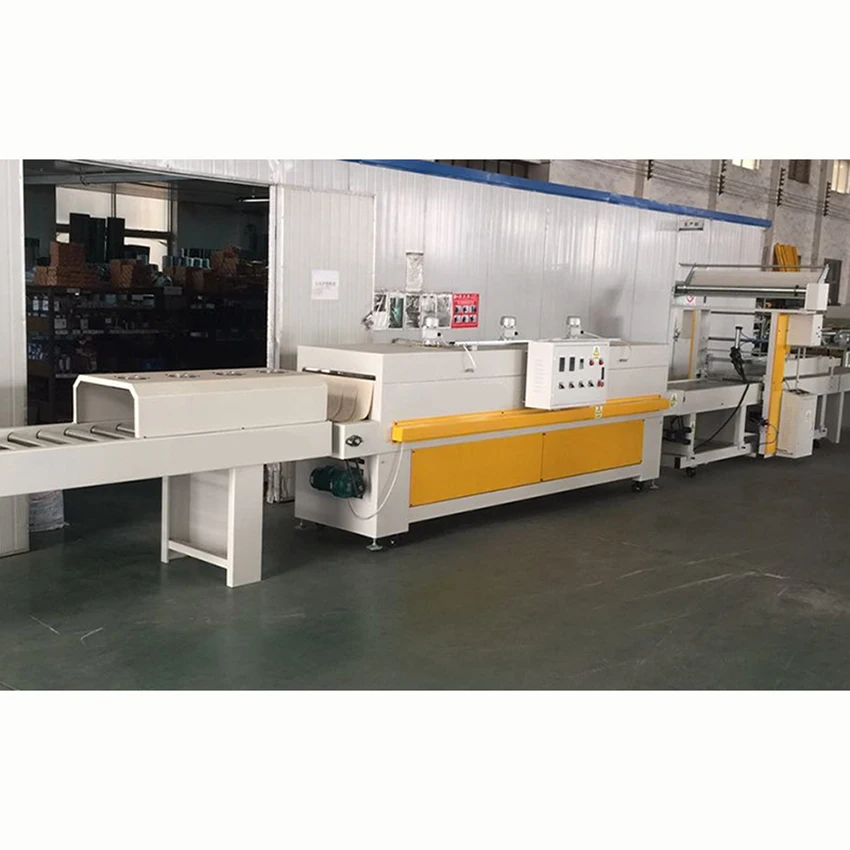

Packing line
To realize the function of automatic film covering and shrinking.
The shrinked package can naturally cool or be cooled by strong wind, and then transfer to stacking area.
working speed:7~10 bag/min

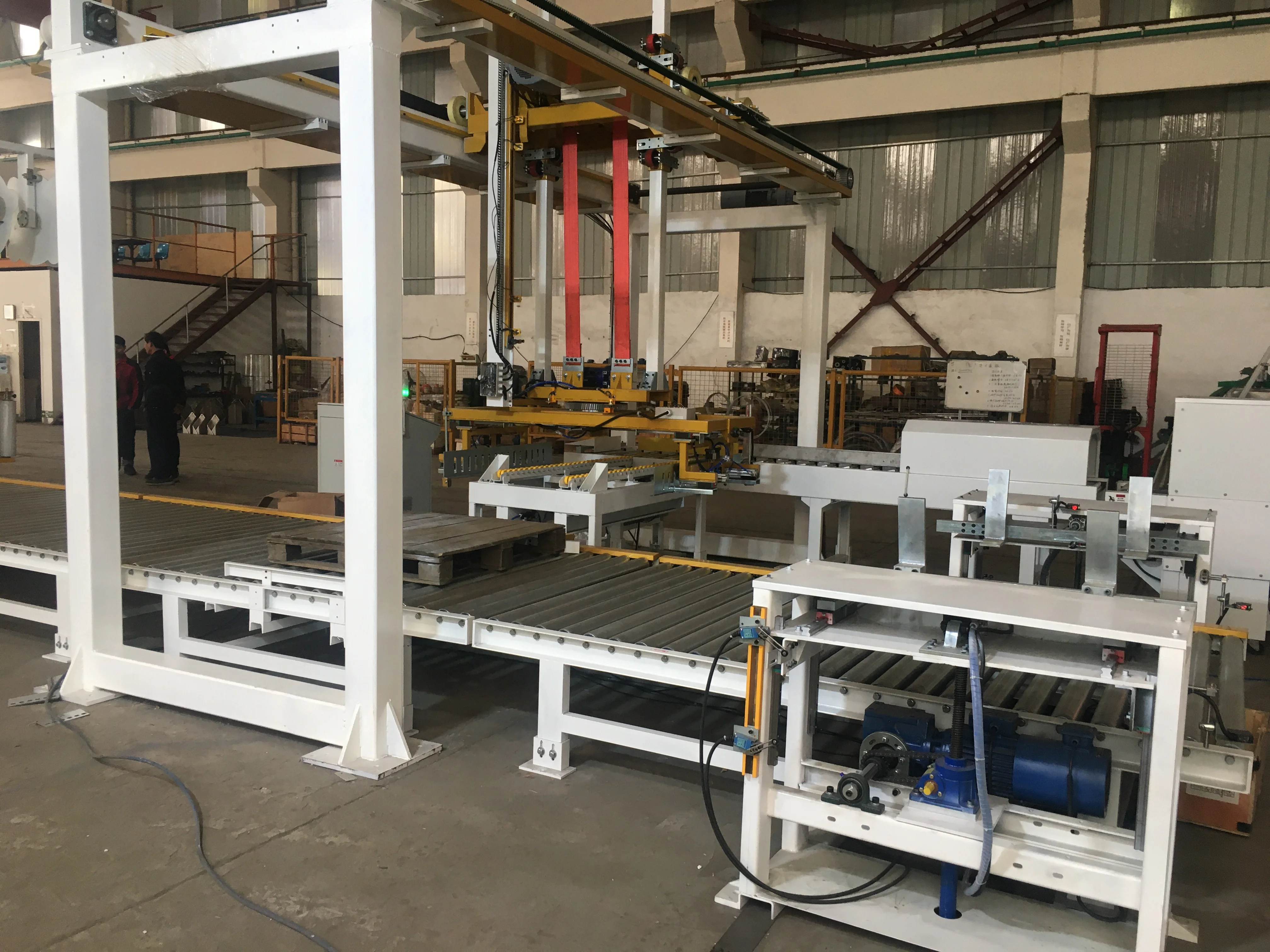

Automatic stacking line
To complete automatic wrapping of packed final finished products in stacking area for stacking so as to ensure convenient transportation.
Accessories
Dust extraction system
It is used for collecting and handling all kinds of dust from double end tenoner and multi rip saw machine.
Air requirement:45000-50000 m3/h(air speed:35-40 m/s)

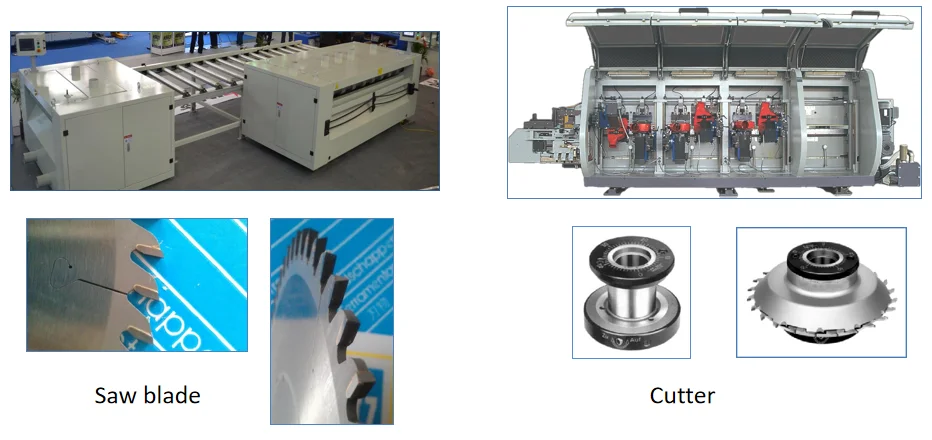

Saw blade and cutter
Saw blade for cutting line ,material:cemented carbide.
Cutter for DET line,material:diamond.
Cutter for DET line,material:diamond.
About us
How to choose equipment
1.Your target flooring is A type or B type?
A type: Flat & light emboss laminate flooring
(Such as glossy, matte, wood grain)
(Such as glossy, matte, wood grain)
B type: Heavy emboss laminate flooring
(Such as EIR, V-shape, Wave, Hand scratch design)
(Such as EIR, V-shape, Wave, Hand scratch design)

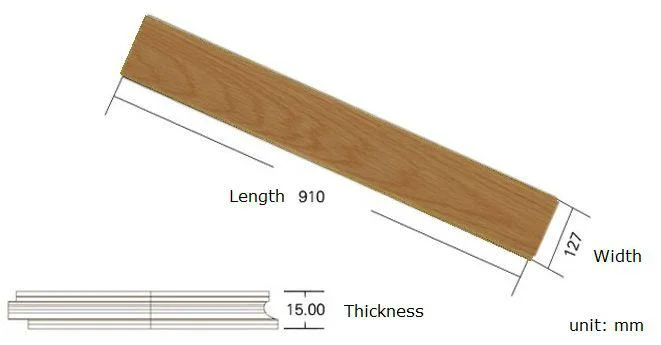

2.What is your raw board size and final flooring size?
Raw board:1220*2440 or 2070*2800 ?
Final floor size: ?
These size will matter to choose the hot press and cutting machine.

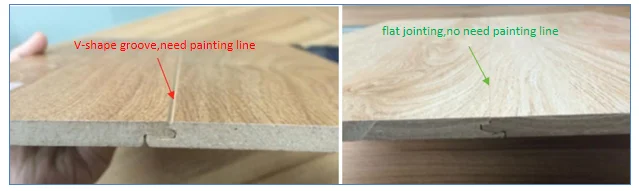

3.Will you produce the V-shape flooring?
It will matter the double end tenoner cutter station,and the V groove painting line.
4.what is your flooring click?
There are many types clicks on the market,you can send us the photos or the sample.
(The one on the right are just for your reference)
3.what is your target output?
Usually one back section can be equipped with two or three hot press line.
It depends on the whole line automation situation.
