Product Description
Laser type
|
Q-switch Nd: YAG laser
|
Wavelength
|
1064nm, 532nm
|
Frequency
|
1~10Hz
|
Spot size
|
adjustable 1-8mm
|
Output energy
|
adjustable 100-500mj
|
Lamp life time
|
More than 1,000,000 shots
|
Pluse width
|
5ns
|
Machine size
|
83*40*83cm
|
Laser power
|
800W
|
Aiming light
|
Red infrared light
|
Warranty
|
1-2 years free warranty
|
How does it work

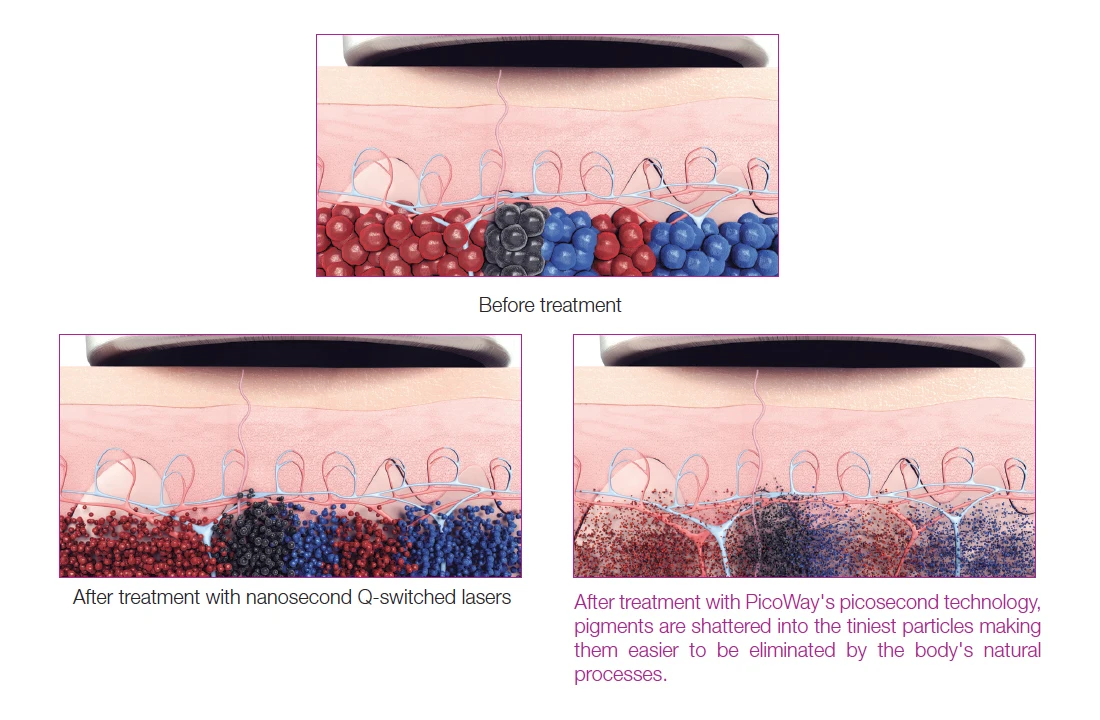

An YAG laser therapeutic instrument is used to effectively crush the pigment in the diseased tissue with the high energy emitted by the laser. That is, the principle of light blasting: by using the instantaneous high energy emitted by laser, the irra- diated pigment particles expand and break after absorbing energy, one part splits into smaller particles discharged out of the body, and part is excreted by the human body through the lymphoid system, thus scavenging the pigment. Because the laser of 1064nm is not absorbed by the normal tissue, the cell frame is kept intact and there is no scarring condition. This is incomparable to any other method at present. It is precisely because laser removal of pigment does not destroy normal tis- sue, so its safety is the greatest. To ensure that customers will not suffer from postoperative complications.
The YAG laser therapeutic instrument uses pulse Xenon lamp as pump source. The 1064nm laser is produced by the strong light pumped Nd:YAG crystal, and the frequency doubling laser of 532nm can be obtained after the nonlinear crystal KTP frequency doubling. In addition, we use electro-optic Q-switching technology to generate narrow pulse width giant pulse la- ser, so we can obtain high peak power pulse laser output with low energy jitter.
Components and Controls
Application
Skin Rejuvenation
Al Color of Tattoo
Removal Pigment Changes
Lip Line and eyes Line Removal
Age Spots, Birthmark
Equipment List
The YAG laser therapeutic instrument platform includes the following:
- YAG laser therapeutic instrument System
- Light guide arm
- power line
- 2 sets of Keys
- Water Funnel and Tubing
- 2 pair safety Glasses & 1 pair client eyeshields
Advantages and Features
1. Electro-optic Q-switch Nd Yag Laser, releases actual single pulse of laser energy. Really achieve to painless treatment and micro-injury to skin, long-term lasting treatment result.
2. Excellent 7-arm articulating arm, to ensure the precision of long-time treatment and facilitate the operator's hand to a great extent.
