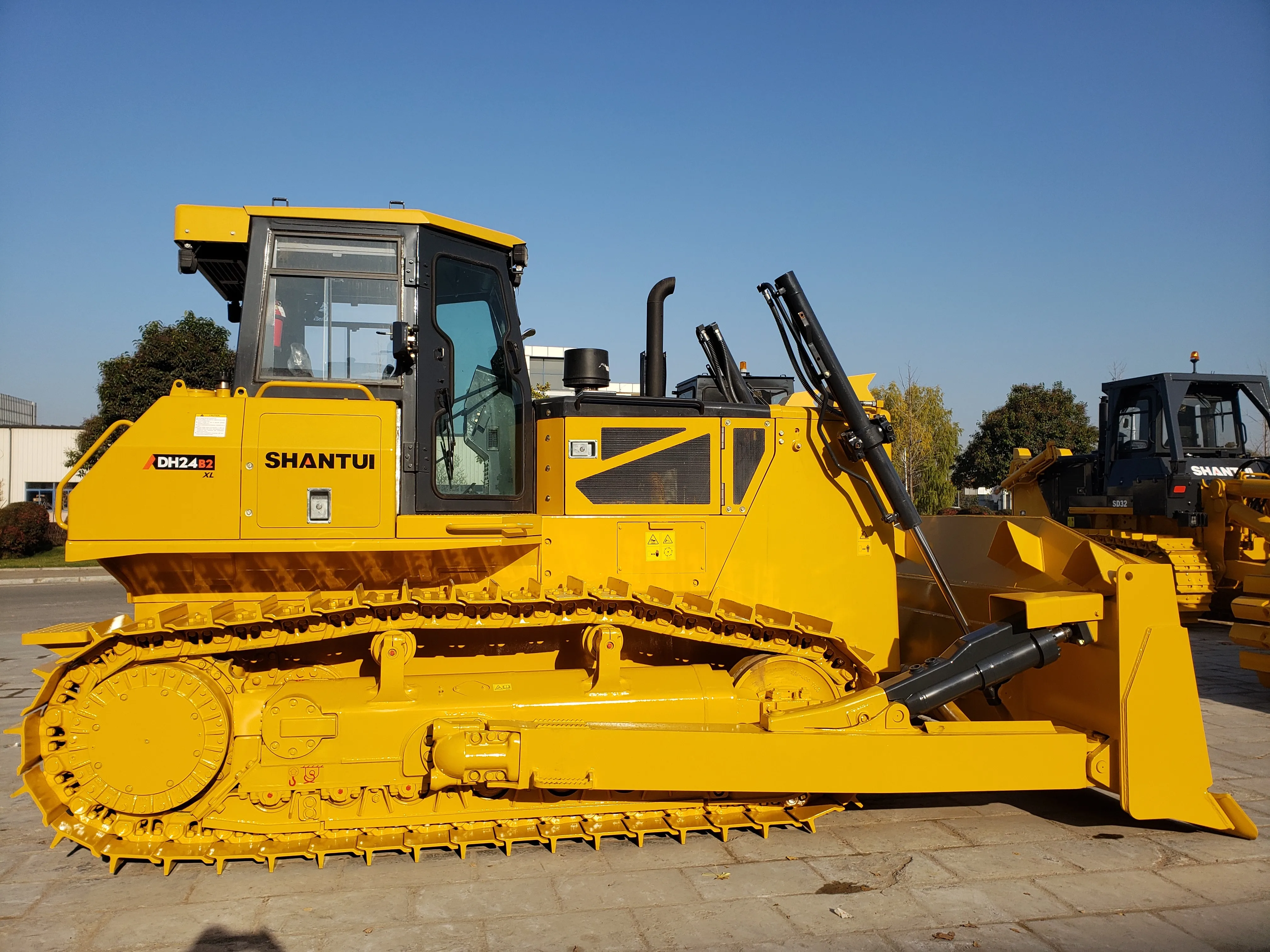

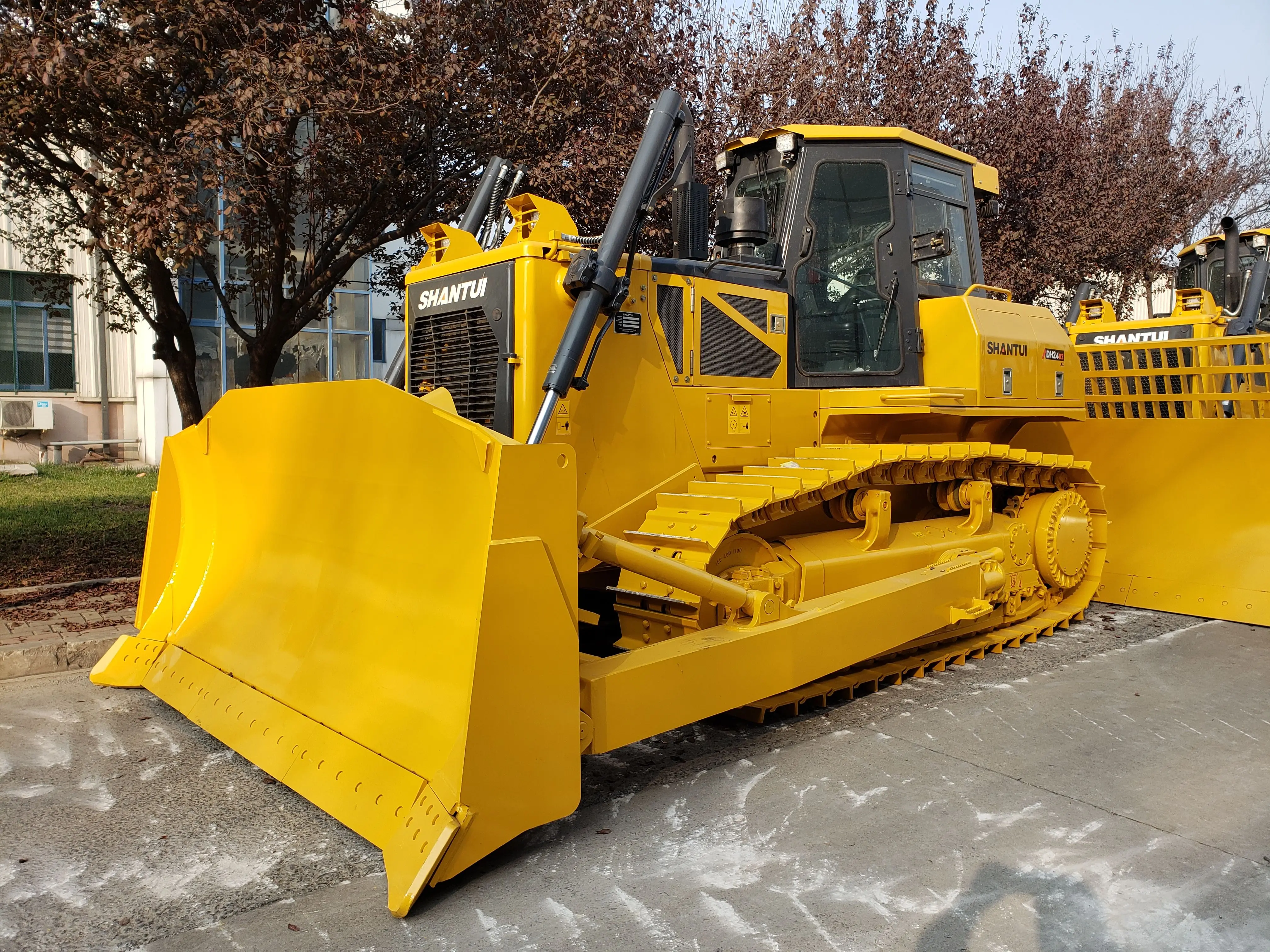

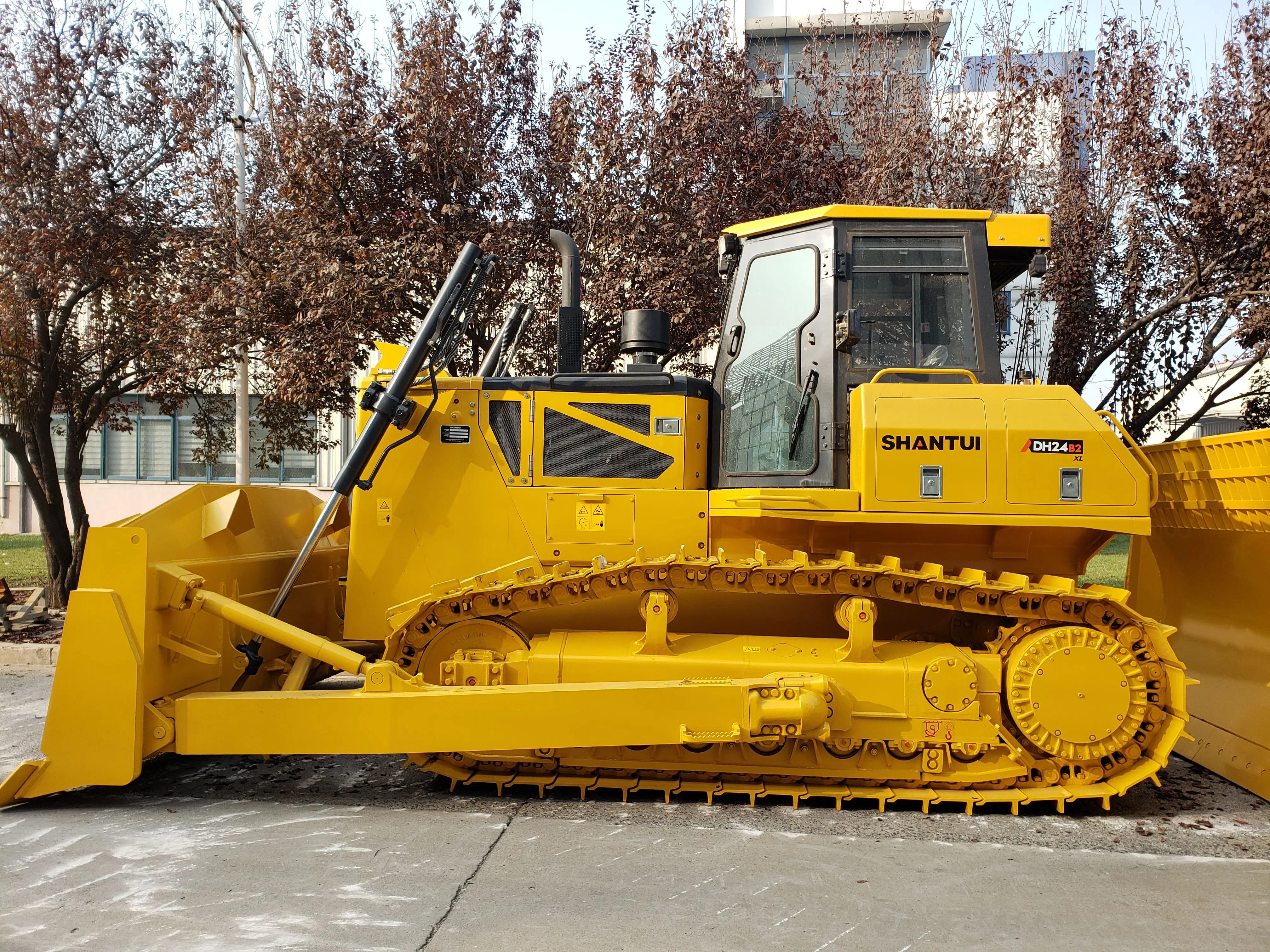

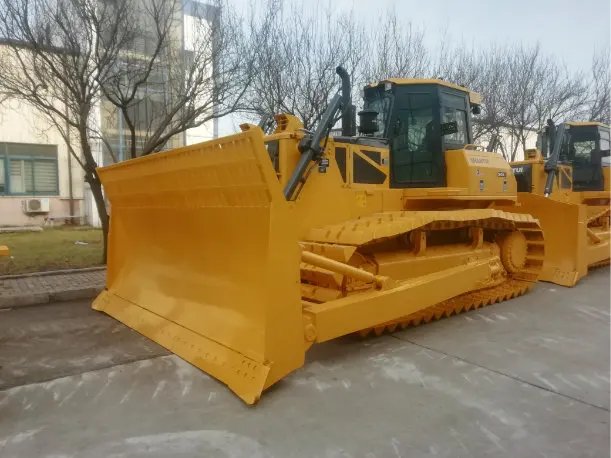

320hp Crawler Dozer Cheap Bulldozer Price Pd320y With High Quality Dh24 b2 For Sale
- Category: >>>
- Supplier: Qingzhou Changhui International Trade Co. Ltd.
Share on (1600534773755):
Product Overview
Description
Product Description
Power System
Weichai mechanical engine conforms to the China-II non-road machinery emission regulation, featuring high intelligence and efficiency, simple structure, high parts interchangeability, and low maintenance cost.
The intelligent match technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%.
Driving/Riding Environment
The integral ergonomic hexahedral cab features large space, excellent vision, and good airtightness.
The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
The standard canopy and the optional standard cab + heating and A/C system are provided. The cab adopts integrally sealed shock-absorbing system and sound-absorbing sponge to lower the driver’s parotic noise to 85dB and realize low vibration and noise.
The intelligent display and control terminal with integrated instruments, cigarette lighter, USB charging port, radio, toolbox, sun shade, and fire extinguisher to provide more abundant personalized driving/riding experience and guarantee the comfortable and safe driving/riding environment.
The safety passage system of the machine guarantees the driver’s safety.
| Parameter name | DH24-B2 XL | DH24-B2 LGP |
| Performance parameters | ||
| Operating weight (Kg) | 23850 | 26450 |
| Ground pressure (kPa) | 68.4 | 40.9 |
| Engine | ||
| Engine model | Weichai WD12G250E202 | Weichai WD12G250E202 |
| Rated power/rated speed (kW/rpm) | 185/1900 | 185/1900 |
| Overall dimensions | ||
| Overall dimensions of machine (mm) | 6095*3640*3192 | 6255*4365*3228 |
| Driving performance | ||
| Forward speed (km/h) | 0-11 | 0-11 |
| Reversing speed (km/h) | 0-11 | 0-11 |
| Chassis System | ||
| Center distance of track (mm) | ||
| Width of track shoes (mm) | 560/610(Optional)/660(Optional) | 910 |
| Ground length(mm) | 3050 | 3482 |
| Tank capacity | ||
| Fuel tank (L) | 390 | 390 |
| Working device | ||
| Blade type | Semi-U | Straight-tilt |
| Digging depth (mm) | 540 | 550 |
| Ripper type | 3 shank | - |
| Ripping depth (mm) | 655 | - |

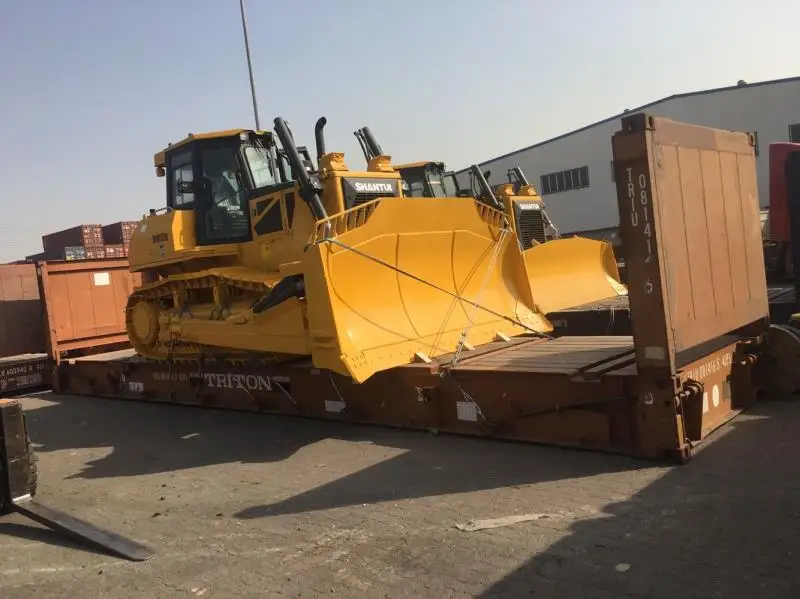

Packing & Shipping
