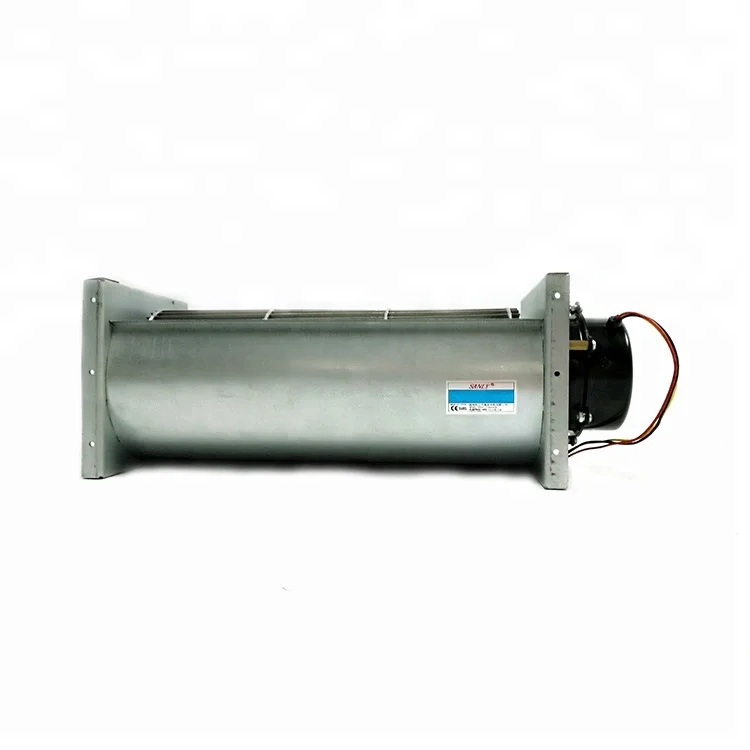

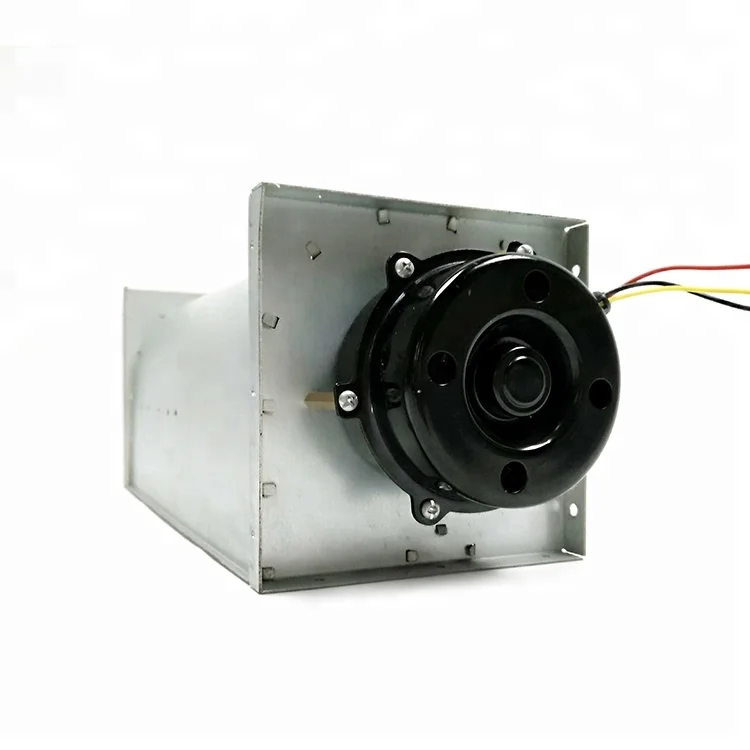

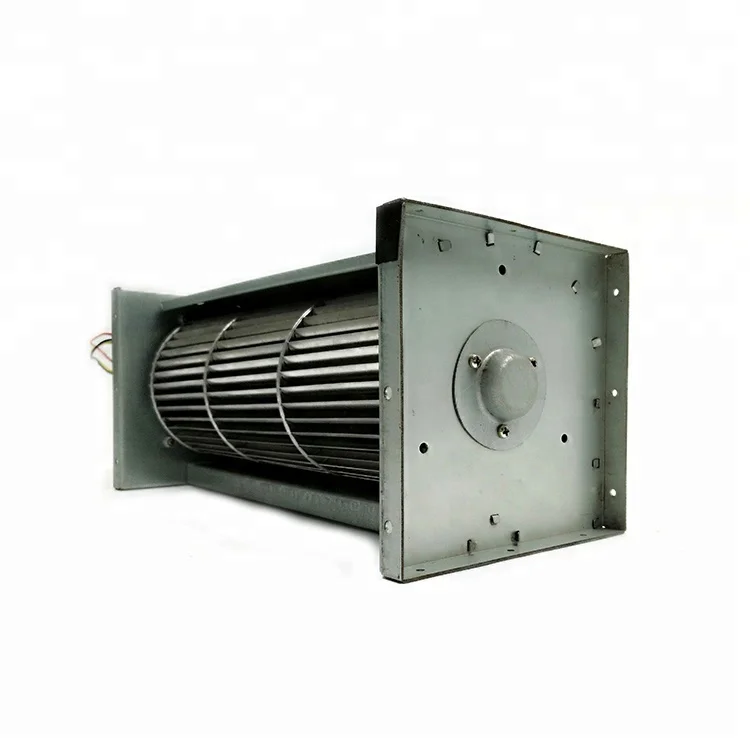

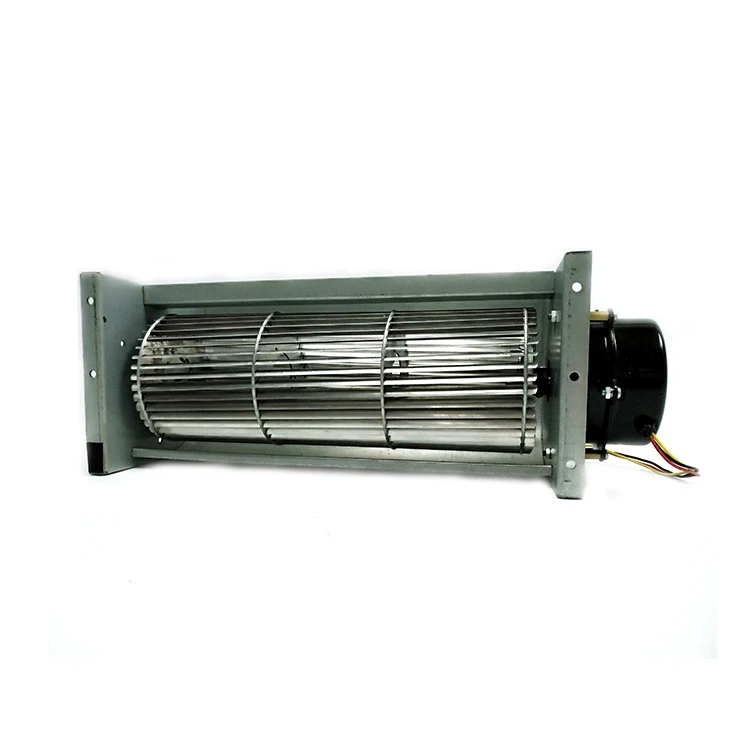

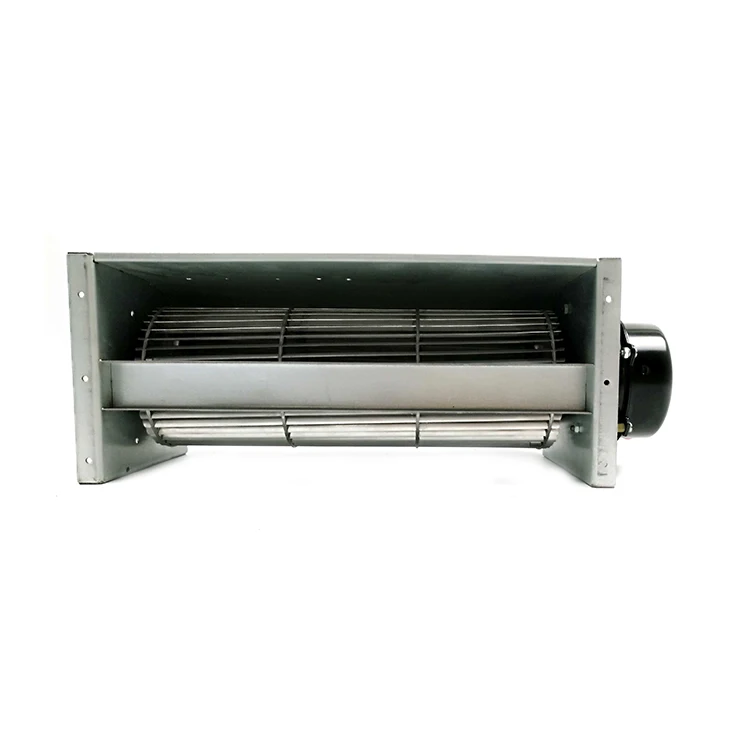

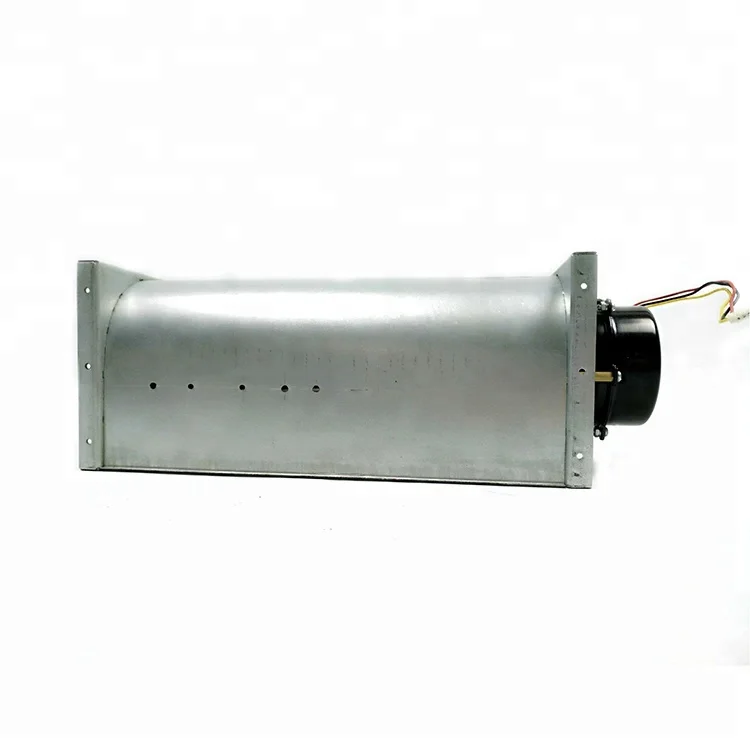

100300 100x 300mm Cheap Quiet Air Condition Wall Mount Cross Flow Air Door Air Curtain Cross Flow Fan

Applications

Industrial plant equipment cooling, electric fireplaces, engineering vehicles, treadmills, air purifiers, electronic equipment, household appliances, high-speed railways, smart home equipment, etc.

Introduction

1. Bearing: High precision 2 ball bearing or Sleeve/oil bearing;
2. Material:
(1)Impeller: It adopts aluminum-magnesium alloy, which has the advantages of light weight, high strength, large air volume, low noise, low vibration, good temperature resistance and long service life.
(2)Air duct: Its guard plate is made of galvanized sheet (the surface is made of primary color or blackened);
(3)Connector: EPDM anti-fatigue and high temperature resistant silicone rubber parts;
3. Fan Rotation:
(1)Face to the fan outlet, motor on left side, COUNTERCLOCKWISE.
(2)Face to the fan outlet, motor on right side, CLOCKWISE.
4. Operating Temperature: -20°C ~ 70°C
5. Motor: DC brushless motor
6. Insulation grade: standard grade is B grade (up to grade H).
7. Fan Rotation: standard Clockwise (If need Counterclockwise, please tell us)
8. Lead Wire: Standard RED: Positive(+); BLACK: Negative(-) Wire insert: 2.5-2P / NOP(Tin exposed 5mm)
9. Protection: Reverse protection; Auto Re-start protection.
10. Certification: CE, RoHS

Note

1. "S" for Sleeve bearing; "B" for 2 ball bearing

2.  Max Life: S (Sleeve bearing) 20,000 hours, B (2 Ball bearing) 50,000 hours.

3. Working voltage: DC5V, DC12V, DC24V, other voltage (within DC48V)

4. Our company can customize the following special functions according to customer requirements:
