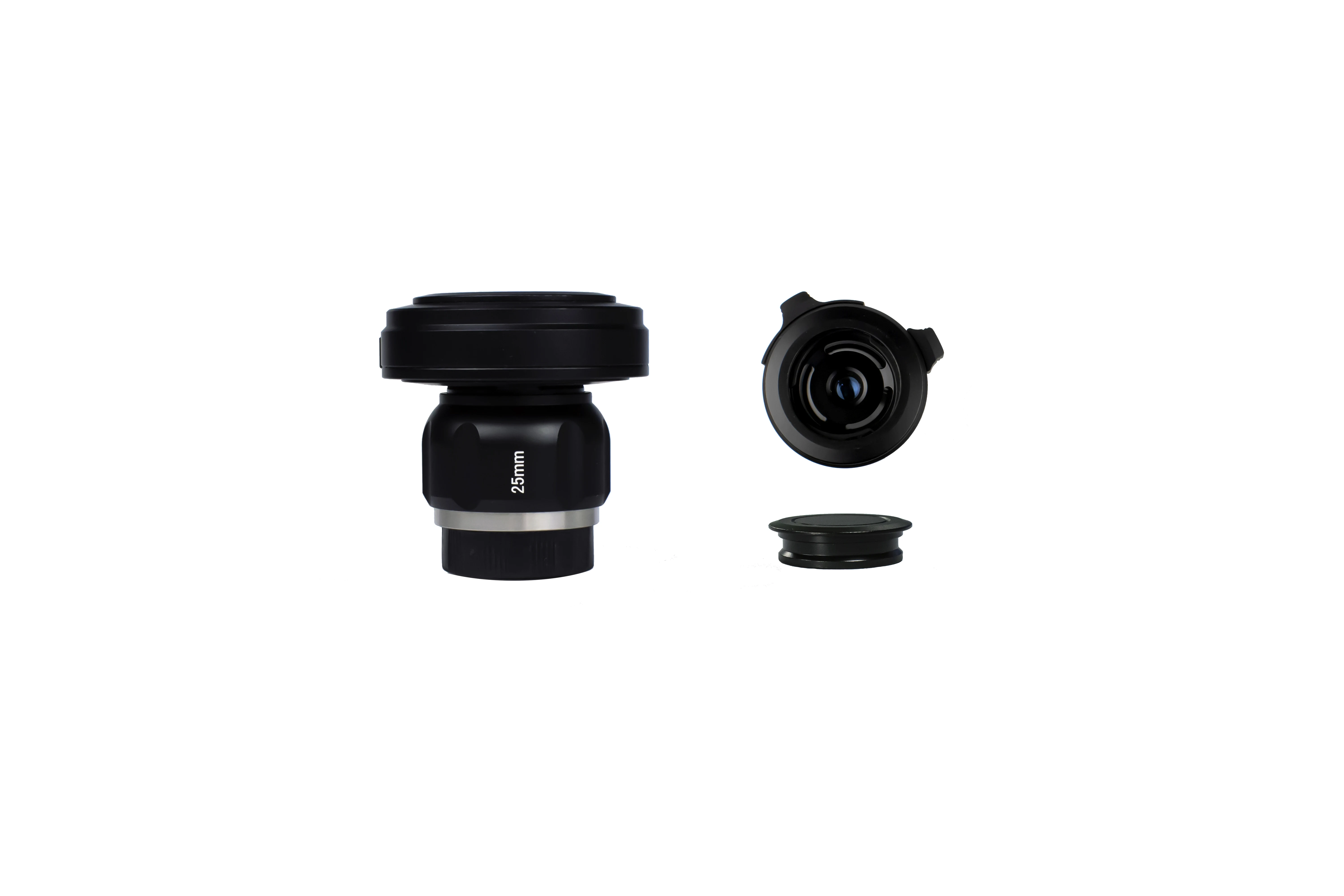

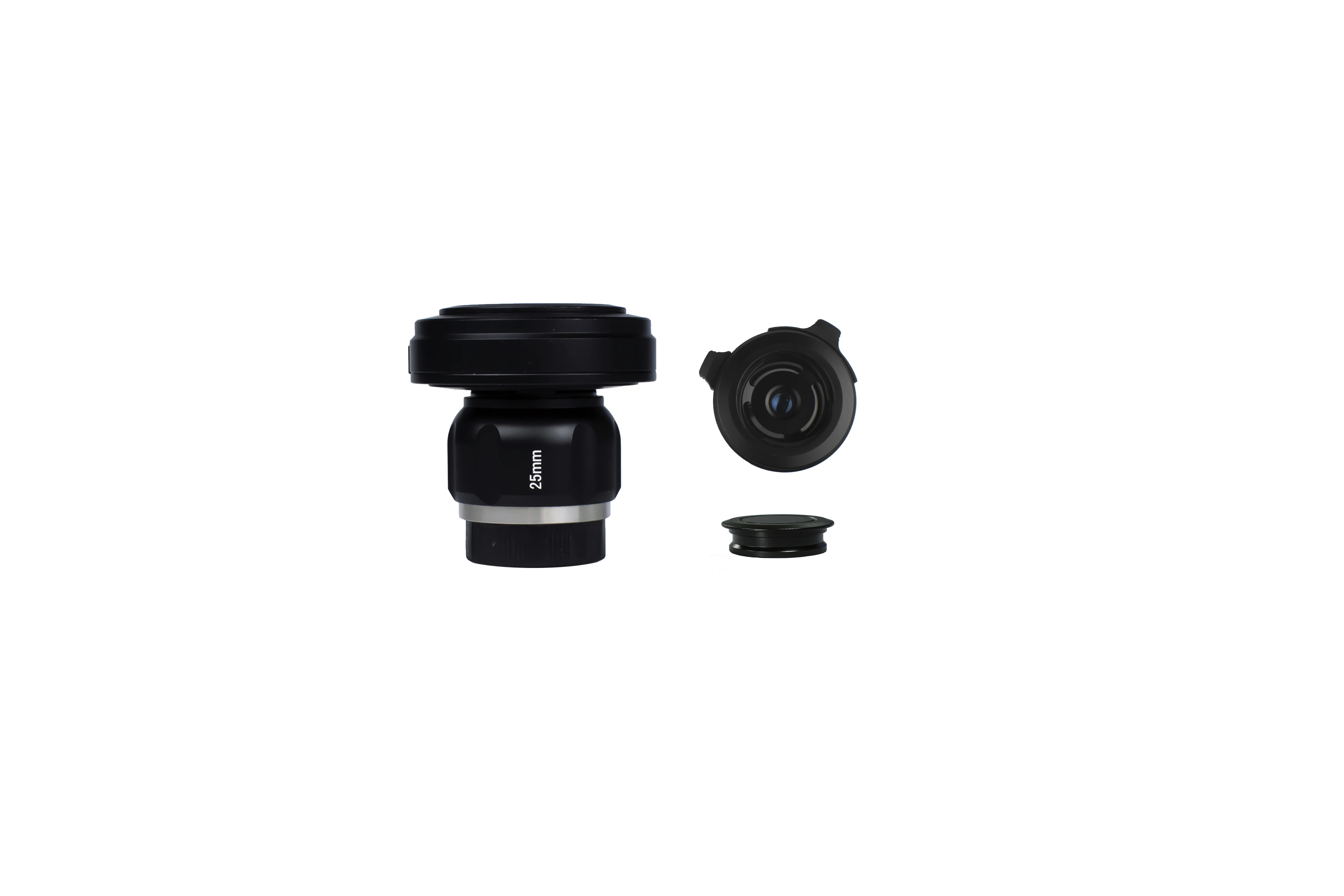

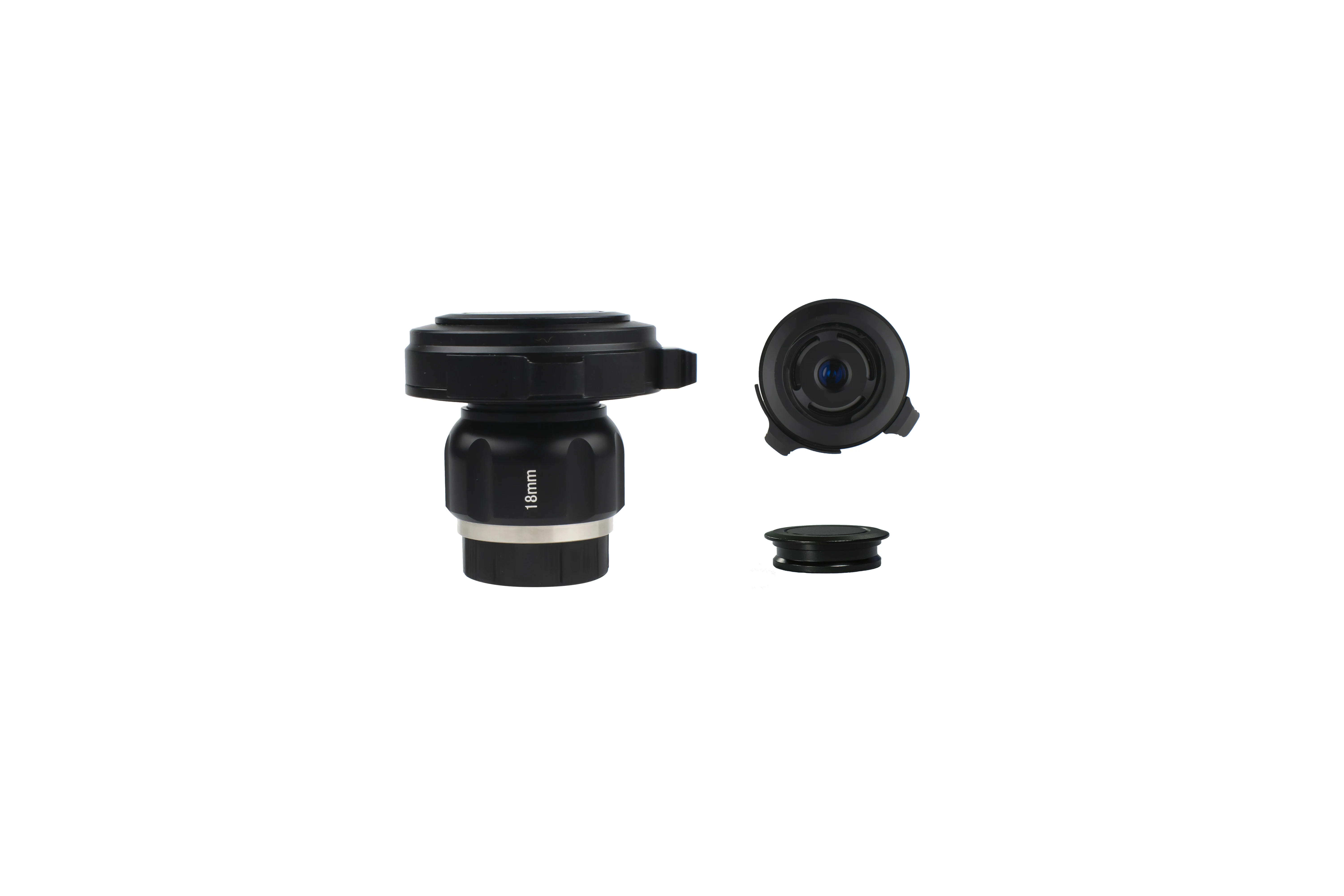

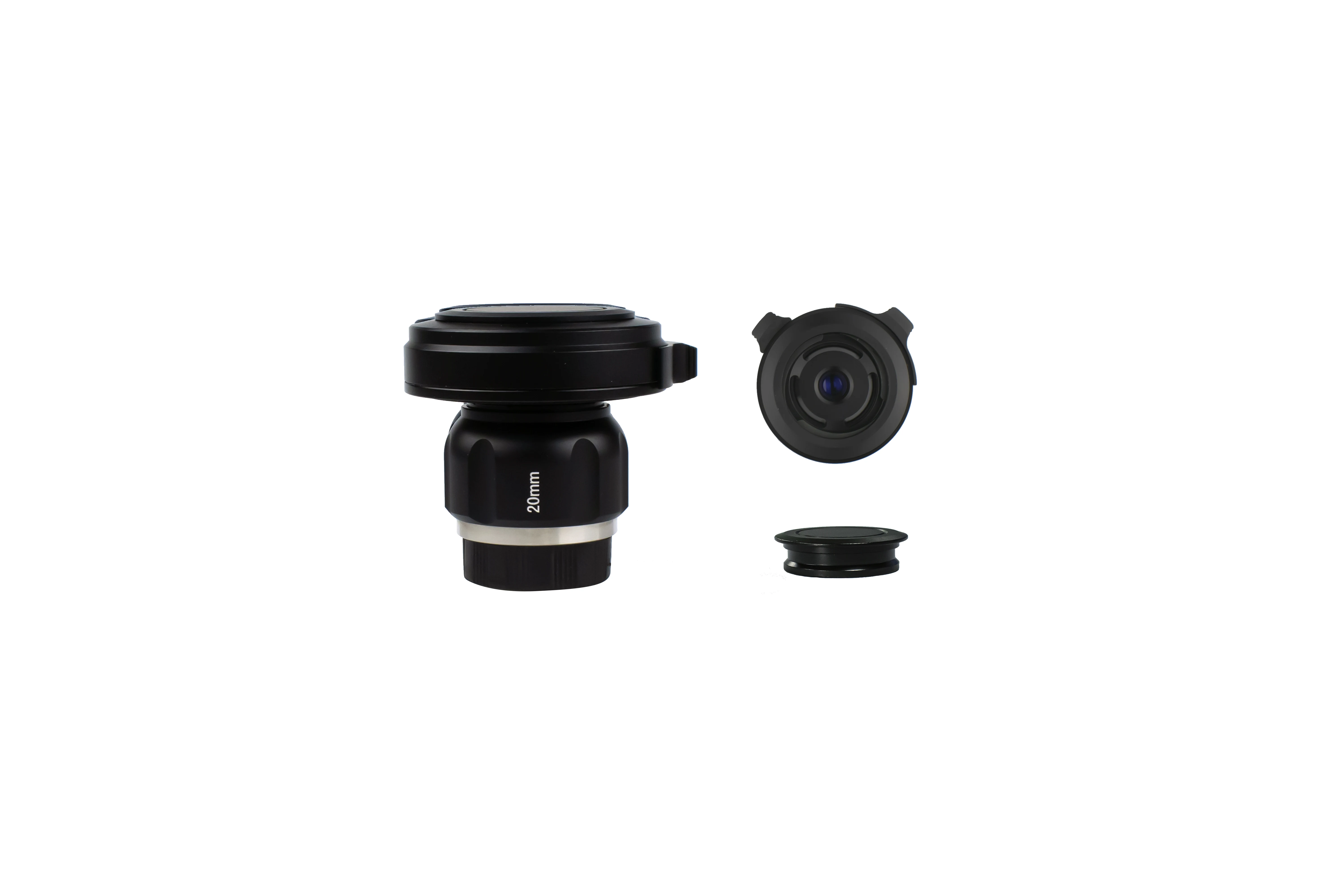

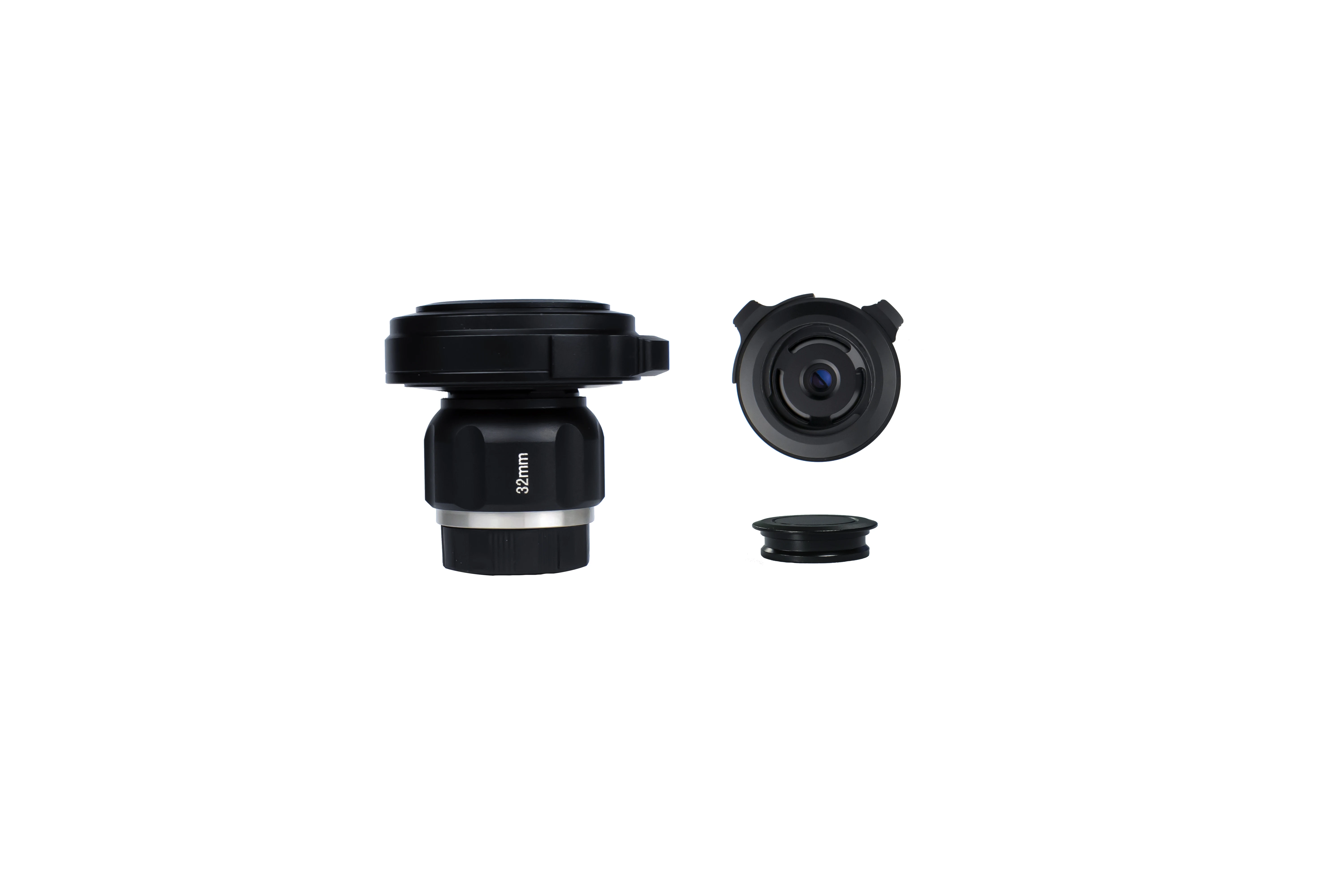

medical endoscope camera 1080P fixed Coupler
- Category: >>>
- Supplier: Shenzhen Shinuoqi Electronic Technology Co. Ltd.
Share on (1600534818809):
Product Overview
Description
Products Description
specification
Model | EN778+IMX385 |
Image Sensor | 1/1.8” SONY CMOS(IMX385) |
Effective Pixels | 1845(H) × 1097(V)Approx. 2.13M pixels |
Scanning System | Progressive |
Resolution | SDI:1080P(30/60fps) |
Min-illumination | Color:DSS:0.00017LUX, BW DSS: 0.00008 LUX |
SDI | HD-SDI/EX-SDI switchable |
S/N Ratio | More than 42Db(AGC off) |
Brightness | 1-20 steps |
Auto AGC | 1-20 steps |
BACKLIGHT | OFF/BLC/HLC/WDR |
Color (AWB) | Preset/Purshing |
3D-DNR | Off/Low/Middle/High |
Freeze | The picture freezes |
D-ZOOM | Image zoom in /out |
COLOR(AWB) | One key white balance |
Sharpness | 1-20 steps |
Backlight | Full AVG/Central peak 1/2 |
Endoscope mode | Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T |
Color ADJ | User Define: Yellow gain 1-250 Bule gain 1-250 Green gain 1-250 Red gain 1-250 Yellow Hue 1-250 Bule Hue 1-250 Green Hue 1-250 |
Language | Chinese/English/Japanese/Korean polyglot |
Power(Max.) supply | DC12V ±10%<1.7W |
Working Current | 140mA±10mA |
working temperature | -30°C to 70°C |

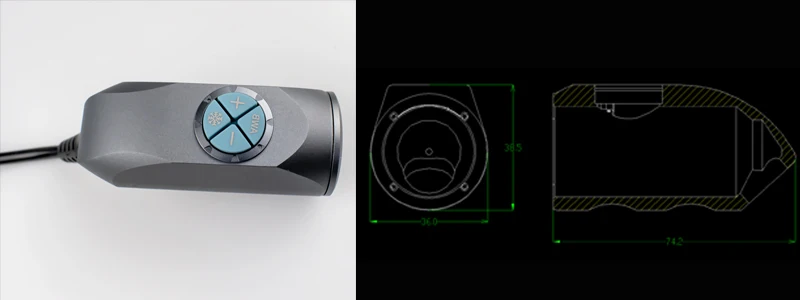

Size | 75mm*38mm*36mm |
