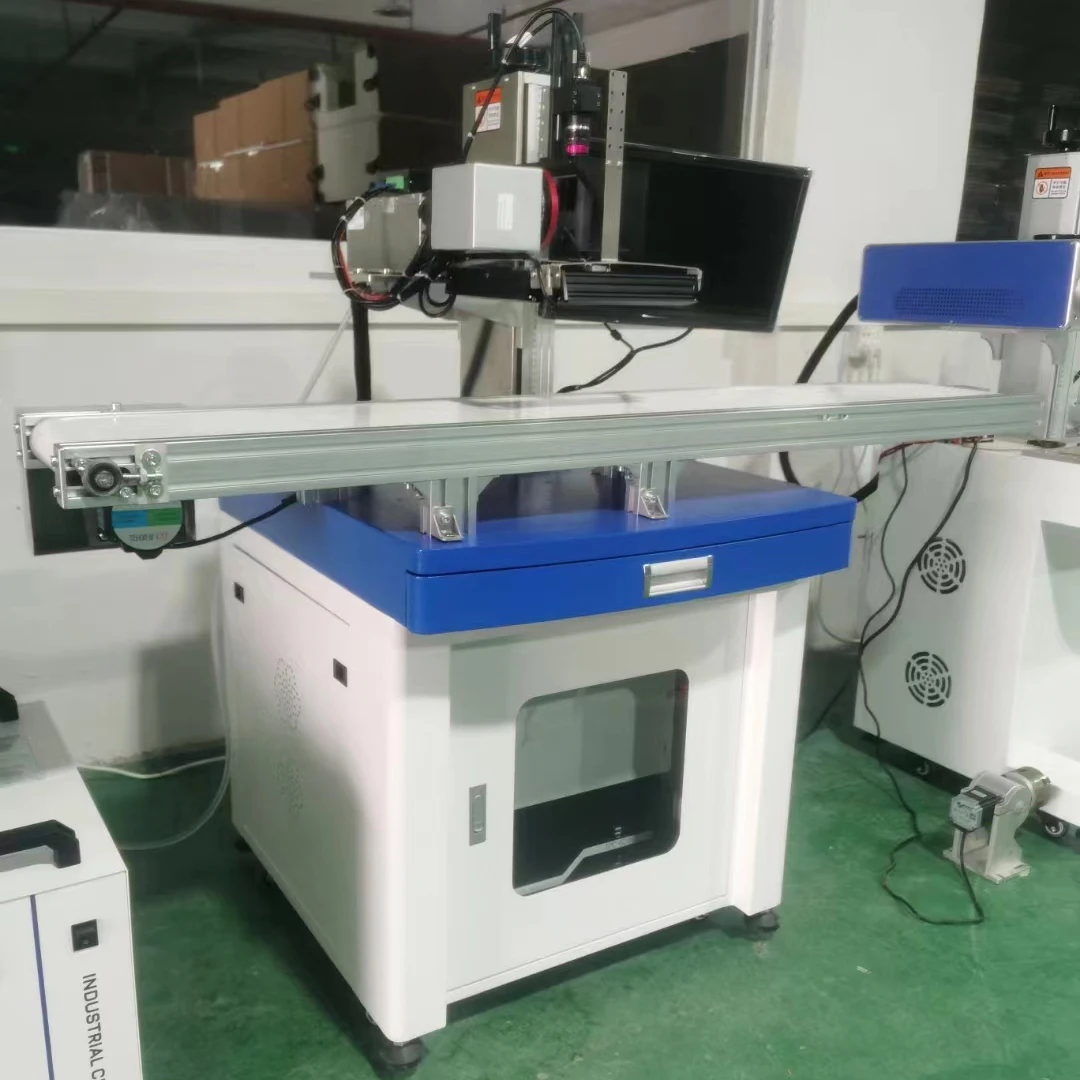

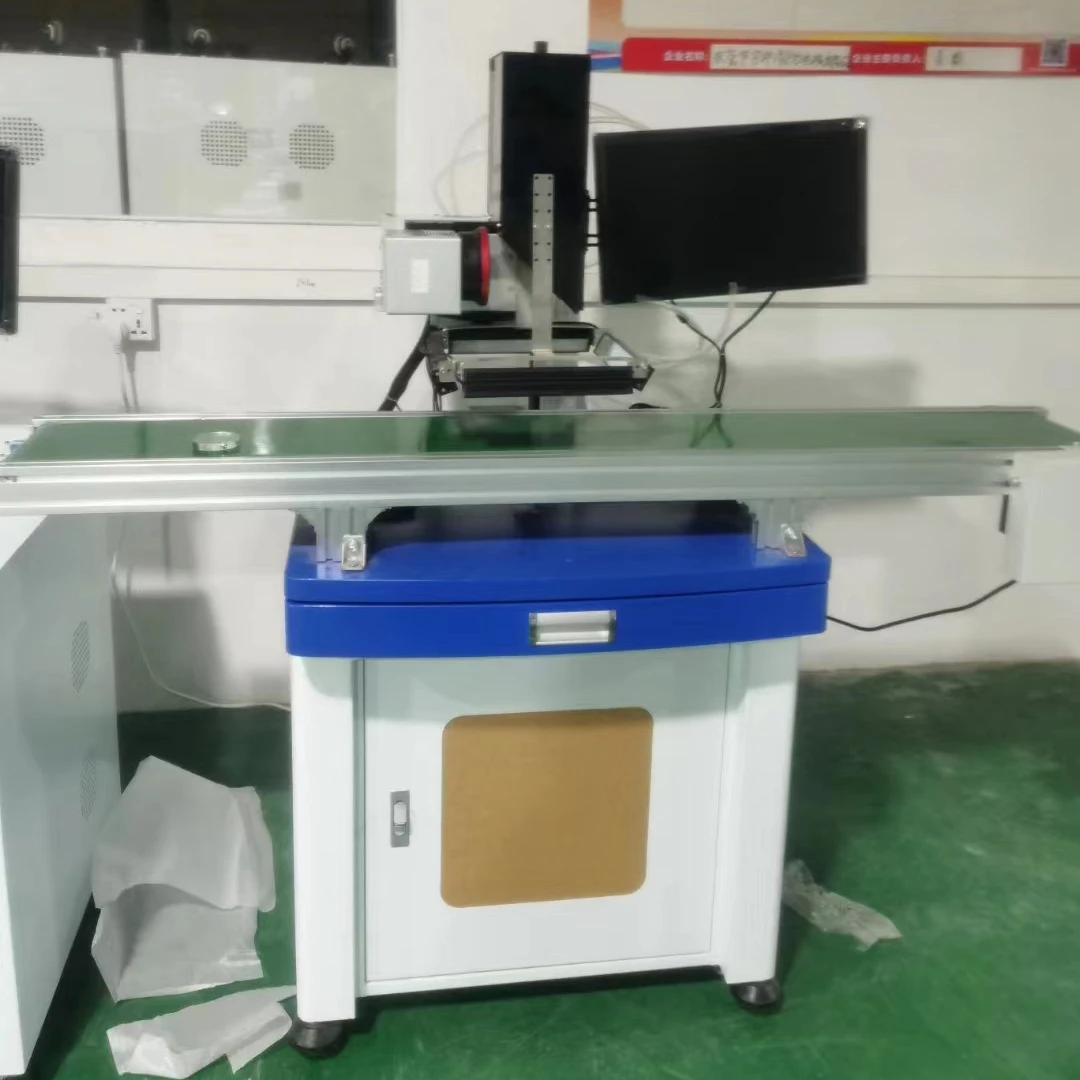

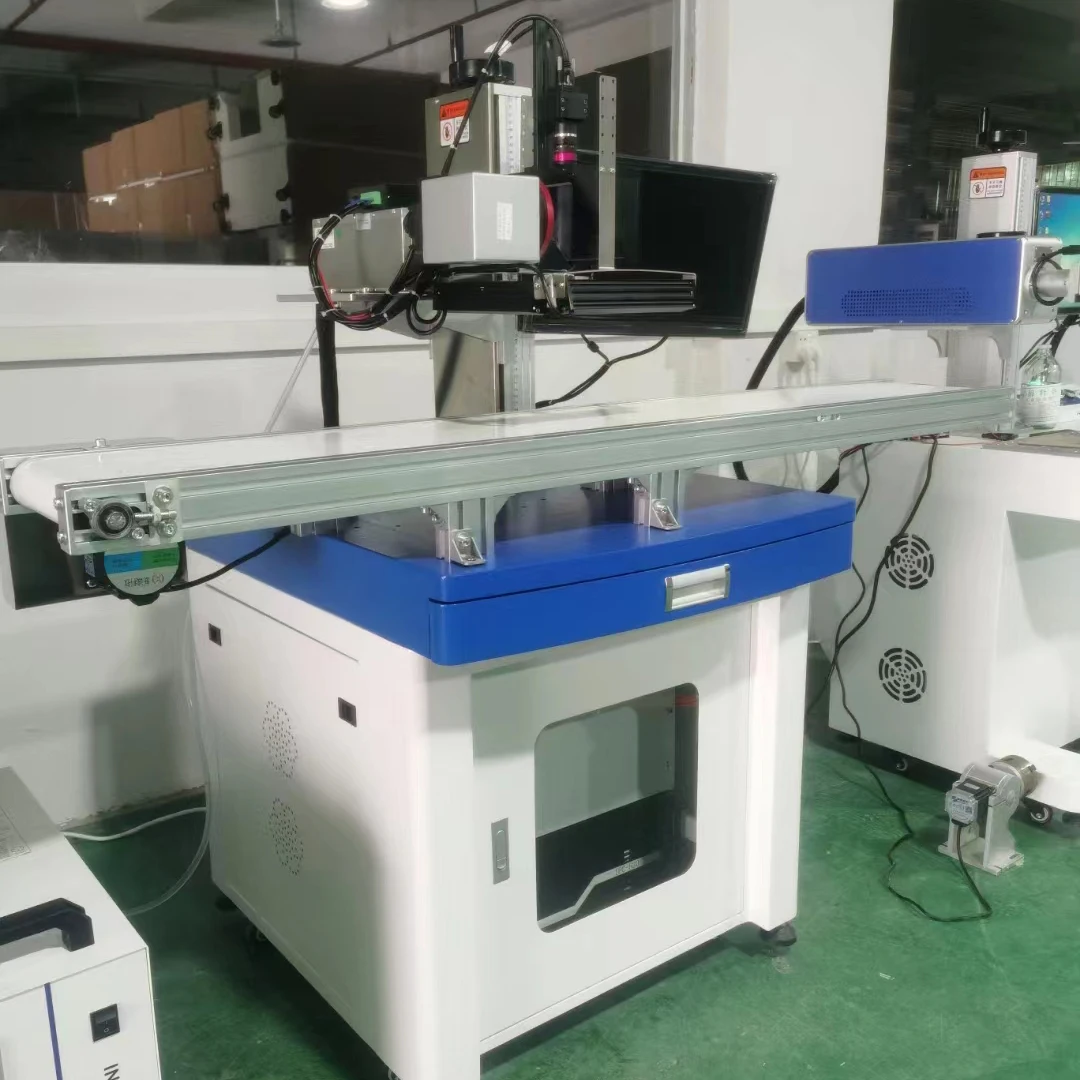

Automatic Laser Marker 20w 30w 50w Fiber Laser Flying Marking Machine CCD Visual positioning laser marking machine
- Category: >>>
- Supplier: Zhejiang Holy Laser Technology Co. Ltd.
Share on (1600534830885):
Product Overview
Description
Product Overview
HSGQ Series Fiber Laser Marking Machine
Fiber laser means a laser that uses a rare-earth-doped glass fiber as a gain medium. A fiber laser can be developed on the basis of an optical fiber amplifier: Under the action of pump light, high power density can be easily formed in the fiber, resulting in a laser of the laser working substance. The energy level "particle number reversal" can form a laser oscillation output when a positive feedback loop (constituting a resonant cavity) is appropriately added. Fiber laser marking machines use laser beams to mark permanent surfaces of various substances. The effect of marking is to reveal the deep material through the evaporation of the surface material, or to “burn” the trace by the light energy to cause the chemical physical change of the surface material, or burn off some of the material through the light energy, showing the required
etching. Patterns, text, bar codes, and other types of graphics.
etching. Patterns, text, bar codes, and other types of graphics.
FEATURES AT A GLANCE
*Permanently mark, etch smooth, uneven metals including firearms, tools, parts, jewelry, PVC & Acrylics.
*Compact Scan head with lower maintenance.
*High reliability: laser lifetime is more than 100,000 working hours.
*Foot petal included for production job runs
*Chuck rotary size options for cylindrical objects (optional)
*Operation easily.
High Speed Scan Head
Radiator Cooling Fans & Holes
Adjustable Column
PRODUCT SPECIFICATIONS
No | Item | Fiber Laser Marking Machine | ||
1 | Laser Power | 20W, 30W, 50W, 100W | ||
2 | Max Working Area | 70mm, 110mm, 150mm, 175mm, 200mm, 300mm | ||
3 | Laser Wavelength | 1064nm | ||
4 | Marking Speed | 0-7000mm/s | ||
5 | Monopulse Energy | 0.67 mj-1.5 mj | ||
6 | Pulse Width | 90ns-130ns | ||
7 | Repeat Frequency | 20KHZ-200KHZ | ||
8 | Power Consumed | ≦1000W | ||
9 | Control Software | Genuine EZCAD | ||
10 | Cooling | Air Cooling | ||
11 | Power Supply | AC220V+/-10%, 50Hz/60Hz | ||
PRODUCT CONFIGURATION
High Accuracy
Full Power Laser with High Stability
Foot Switch Convenient to Processing
Sales All Over The World
Various Fairs
FAQ
Q: What’s the package?
A: We have 3 layers package: The outside is plywood case, which is fumigation-free packaging. In the middle is covered with thick sponge to protect the machine from shaking. Inside this is covered by thickening plastic bag for waterproof.
A: We have 3 layers package: The outside is plywood case, which is fumigation-free packaging. In the middle is covered with thick sponge to protect the machine from shaking. Inside this is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation.
Q: How to install and run the machine?
A: Our engineer have installed and tested the machine before shipping. No parts need installed.
For running machine, we have menus and videos to show you for training. And we also will training you on line. Most of customers training to run the machine like this, very little customer come factory for training.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us ASAP and do not try to fix the machine by yourself or someone else. We will response within 24 hours as quickly as we can to solve it for you.
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation.
Q: How to install and run the machine?
A: Our engineer have installed and tested the machine before shipping. No parts need installed.
For running machine, we have menus and videos to show you for training. And we also will training you on line. Most of customers training to run the machine like this, very little customer come factory for training.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us ASAP and do not try to fix the machine by yourself or someone else. We will response within 24 hours as quickly as we can to solve it for you.
