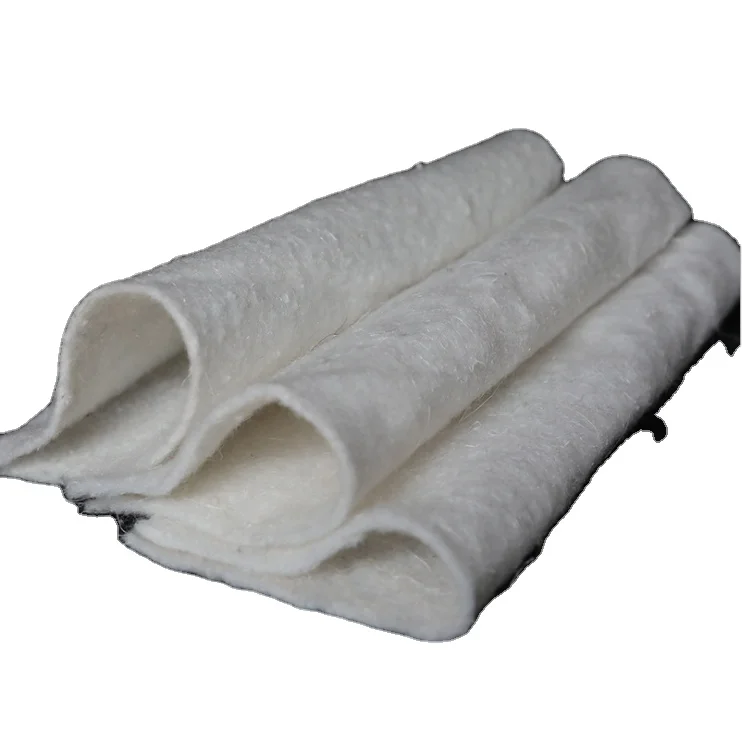

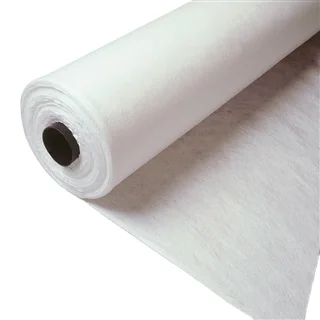

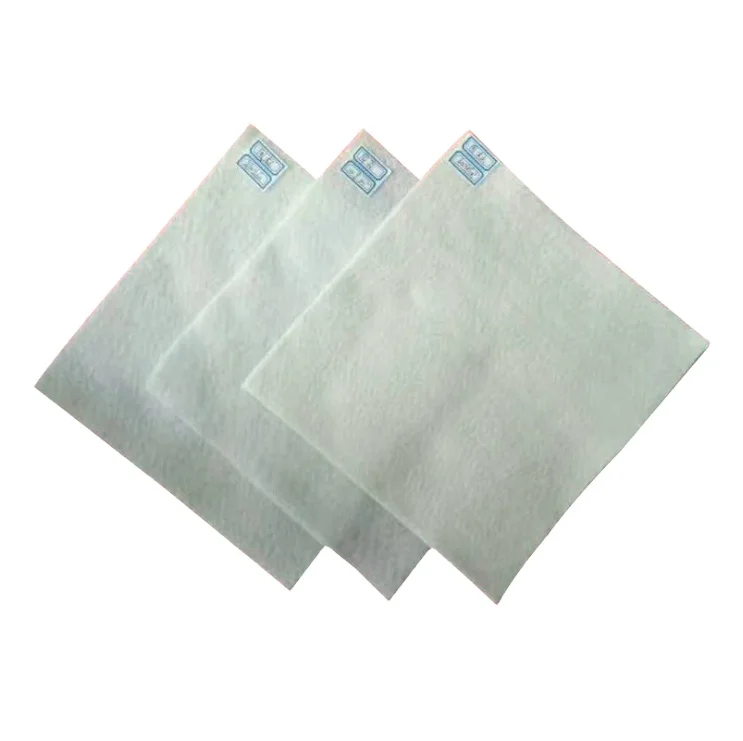

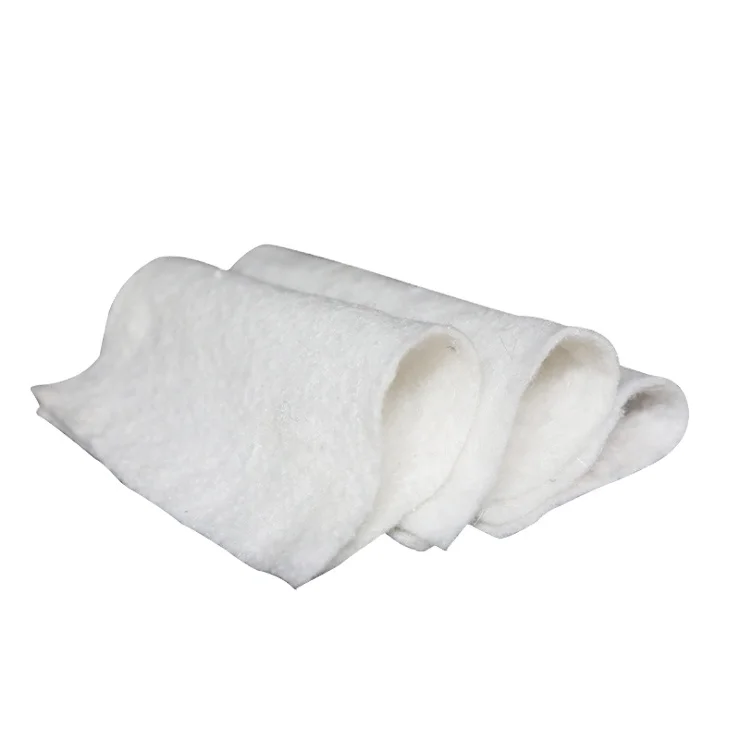

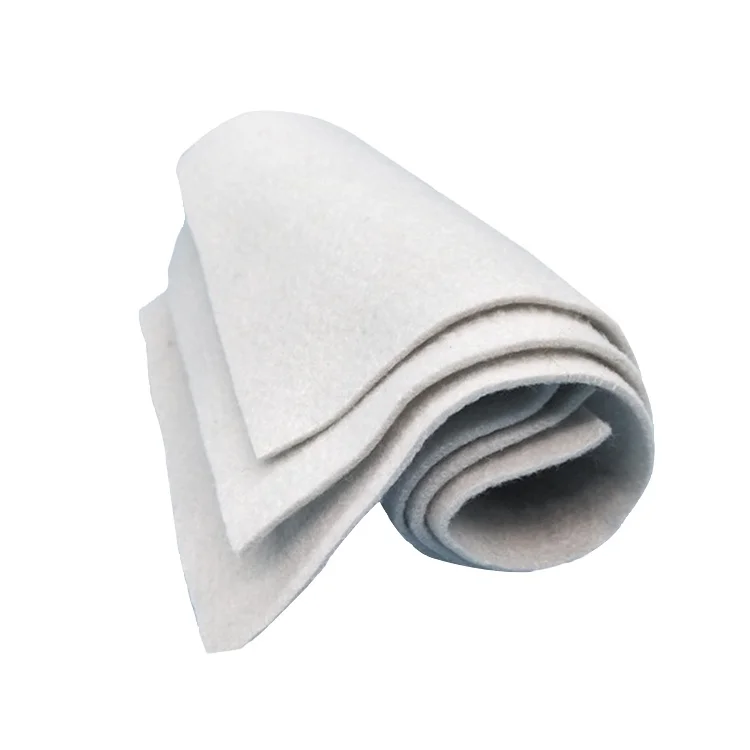

Road Reinforced Geotextile Fabric high strength PP Needle Punch Non Woven Geotextiles 200gr/m2
- Category: >>>
- Supplier: Taian Changxing Engineering Materials Co. Ltd.
Share on (1600534833409):
Product Overview
Description
Affordable PET Short Fibered Needle Punched Non Woven Geotextile
Product Description
Non woven geotextile is a kind of geosynthetic cloth material that are made of PET short fibered, which is by needle punched technology, its the most popular geosynthetic material, for its widely combined with other geosynthetic products to apply.
Gram weight |
Thickness(mm) |
Breaking strength(kN/m) |
CBR Mullen burst strength (kN) |
Elongation at break(%) |
Tear strength(kN) |
Sieve size O99(O35)mm |
100 | 0.9 | 2.5 | 0.3 | 25-100 | 0.08 | 0.07-2.0 |
150 | 1.3 | 4.5 | 0.6 | 25-100 | 0.12 | 0.07-2.0 |
200 | 1.7 | 6.5 | 0.9 | 25-100 | 0.16 | 0.07-2.0 |
250 | 2.1 | 8 | 1.2 | 25-100 | 0.2 | 0.07-2.0 |
300 | 2.4 | 9.5 | 1.5 | 25-100 | 0.24 | 0.07-2.0 |
350 | 2.7 | 11 | 1.8 | 25-100 | 0.28 | 0.07-2.0 |
400 | 3 | 12.5 | 2.1 | 25-100 | 0.33 | 0.07-2.0 |
450 | 3.3 | 14 | 2.4 | 25-100 | 0.38 | 0.07-2.0 |
500 | 3.6 | 16 | 2.7 | 25-100 | 0.42 | 0.07-2.0 |
600 | 4.1 | 19 | 3.2 | 25-100 | 0.46 | 0.07-2.0 |
800 | 5 | 25 | 4 | 25-100 | 0.6 | 0.07-2.0 |

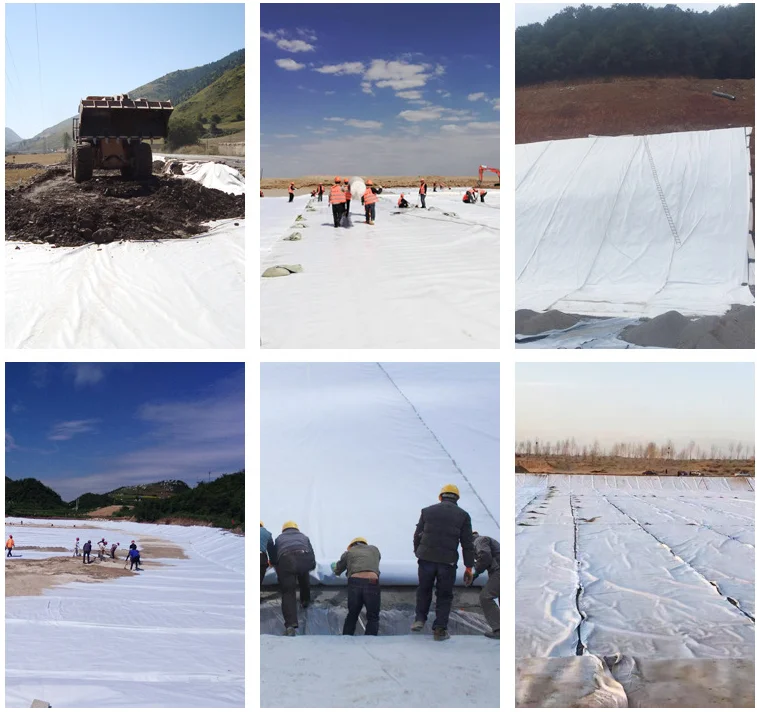

Applications
It is widely used in water conservancy, electric power, mine, highway and railway engineering
l. Filter material separated from soil layer;
2. Drainage materials for reservoir and mine mineral processing, and drainage materials for high-rise building foundation;
3. Anti scouring materials for river dykes and revetments;
4. Reinforcement materials for railway, highway and airport runways, and reinforcement materials for road construction in swamp areas;
5. Frost proof and antifreeze insulation materials;
6. Anti cracking materials for Asphalt Pavement
l. Filter material separated from soil layer;
2. Drainage materials for reservoir and mine mineral processing, and drainage materials for high-rise building foundation;
3. Anti scouring materials for river dykes and revetments;
4. Reinforcement materials for railway, highway and airport runways, and reinforcement materials for road construction in swamp areas;
5. Frost proof and antifreeze insulation materials;
6. Anti cracking materials for Asphalt Pavement
Typical usage of geotextile is also combined with geogrids, geomembrane, woven fabric and so on geosynthetic goods as combined functioned materials.

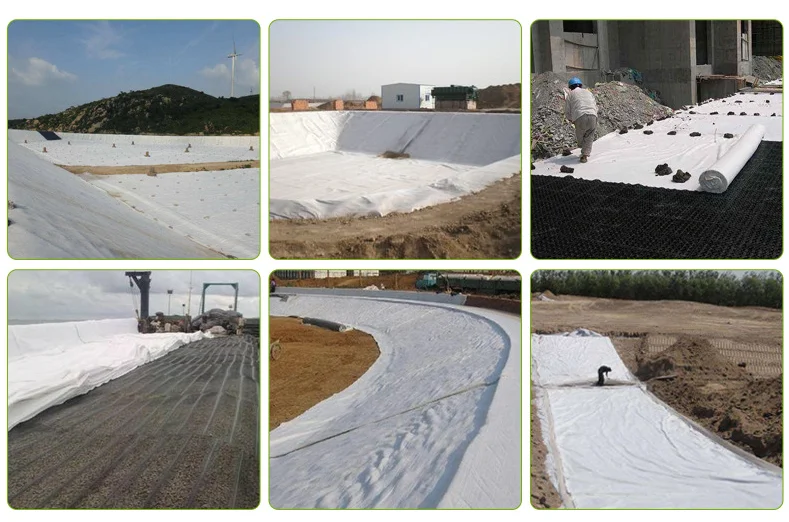

Its main functions are isolation, protection, filtering, strengthened, reinforced. Covering almost all functions of geosynthetic products. As shown below:

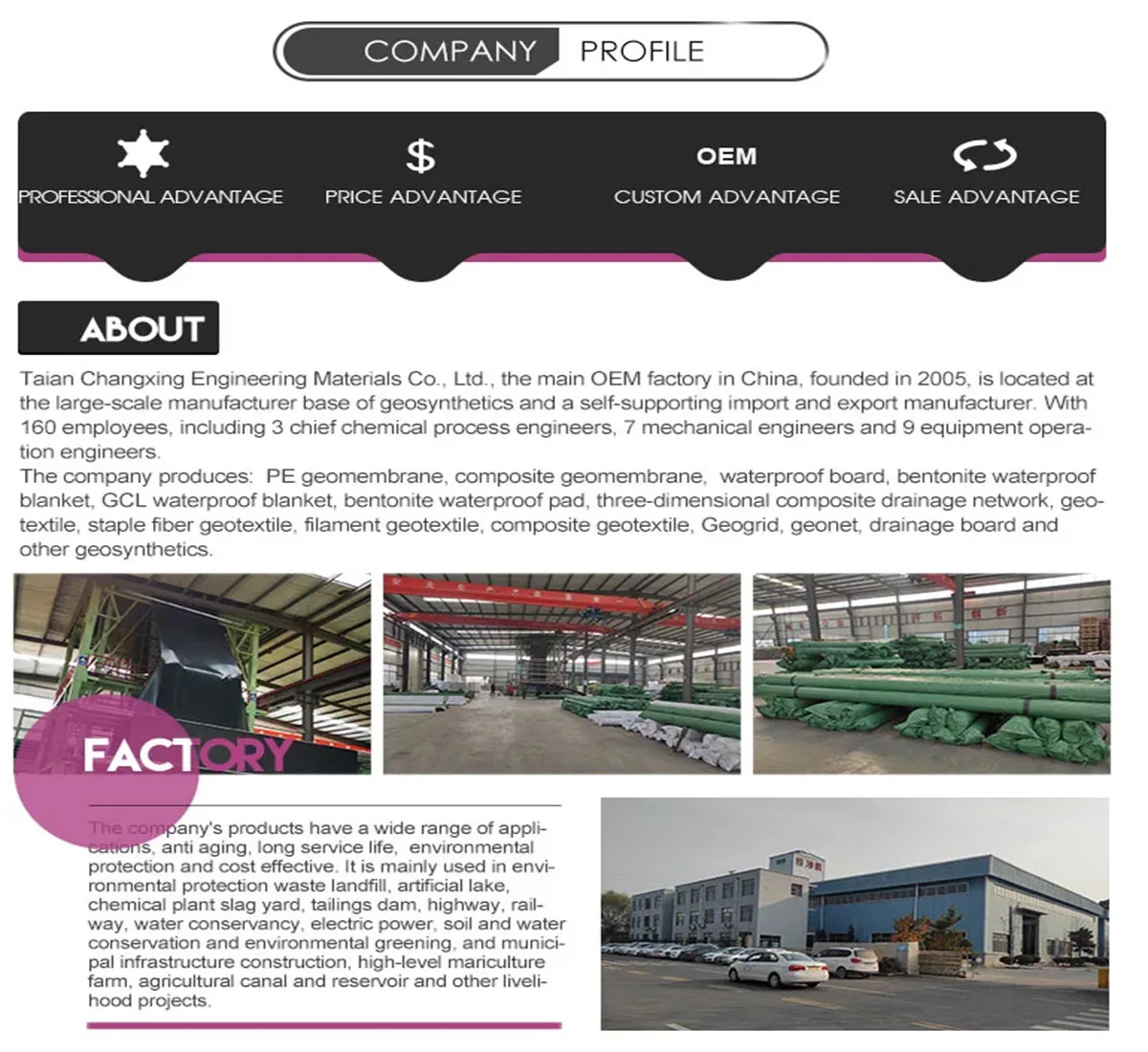

Company Information
Packaging & Shipping

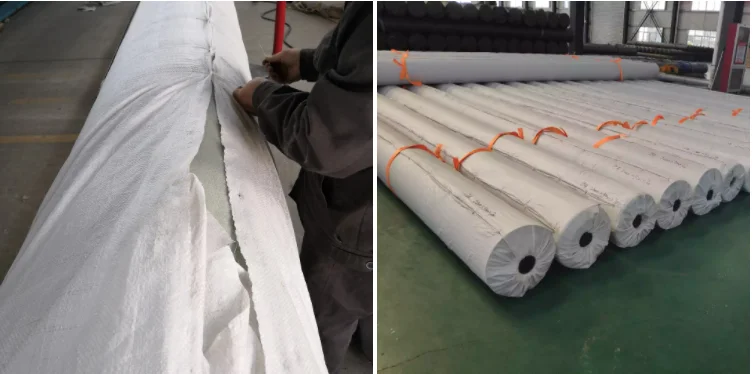

Non woven geotextile is bulk product, very light, but big volume, so to buy with quantity is always a better solution for lower unit cost. Its woven fabric packed like geomembrane, well protected of the products when shipping.
FAQ
1. Whats MOQ?
MOQ is advised 1cbm volume at least, about 3-4 rolls of 4m*50m size; But for geotextile, to buy in containers is highly advised;
2. How to make the quality workable?
We are over 18 years experiences of geosynthetic production, we have abundant production experiences of all cases, and mostly speaking, we value quality as the most important isse, and we are well known OEM factory in Taian, with over 100 countries manufacturing history.
3. How to make the price more competitive?
As the development of industry in China, the competation is very tense, we aim at lasting development, so we will give every qualified customer the same and best prices, so the only price differences lie in the shipping cost, land cost and quantity, and we are direct factory.
4. How is your service?
I am over 8 years exporting experiences, cherishing every customer, and if lucky enough, I would love to make friends with you, and I send many presents to oversea customers of mine; and I will be over 16 hours service per day, except for Spring Festival holiday, I will be alway online to help you purchase with my all exporting abilities and Alibaba TOP10 operatoring experiences.
