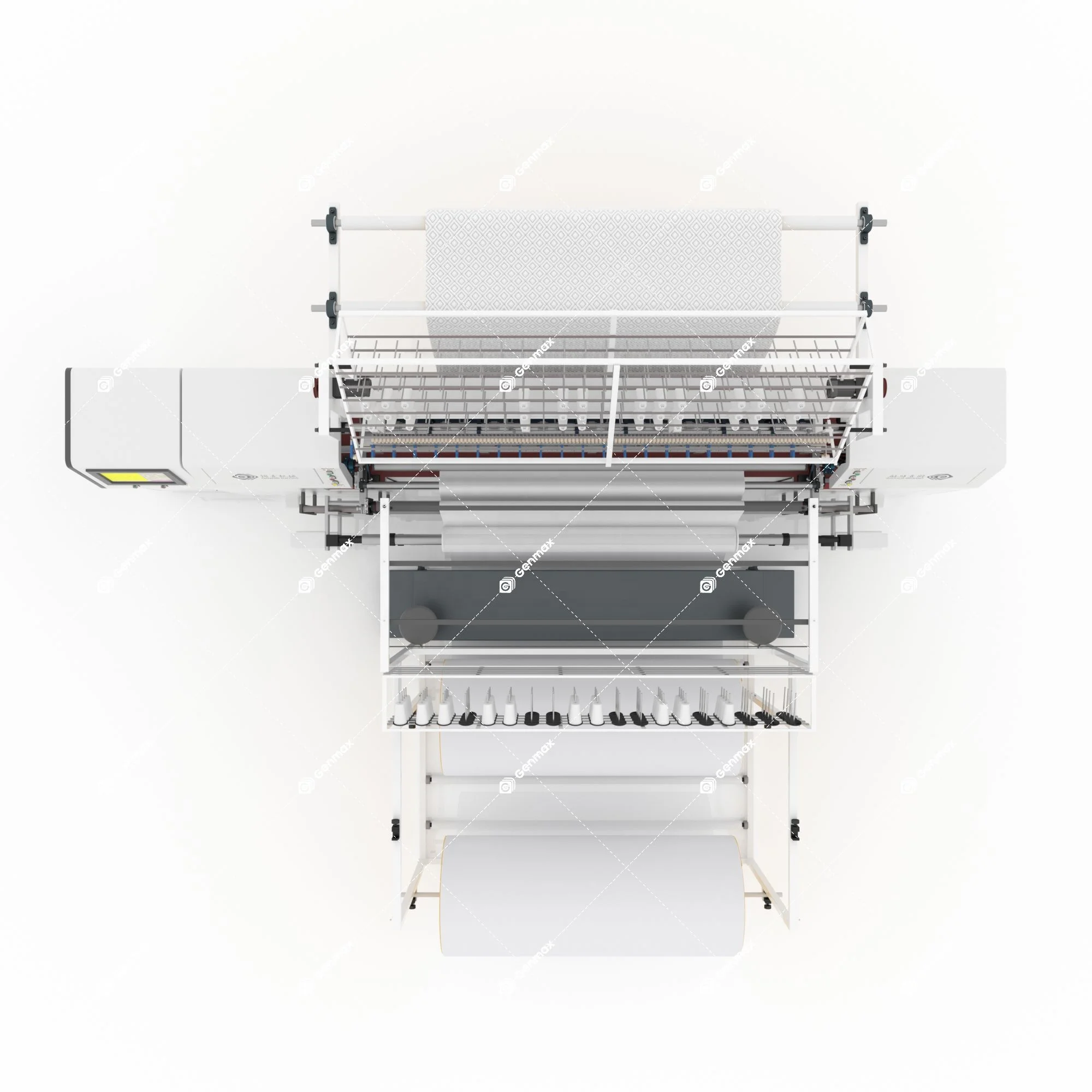

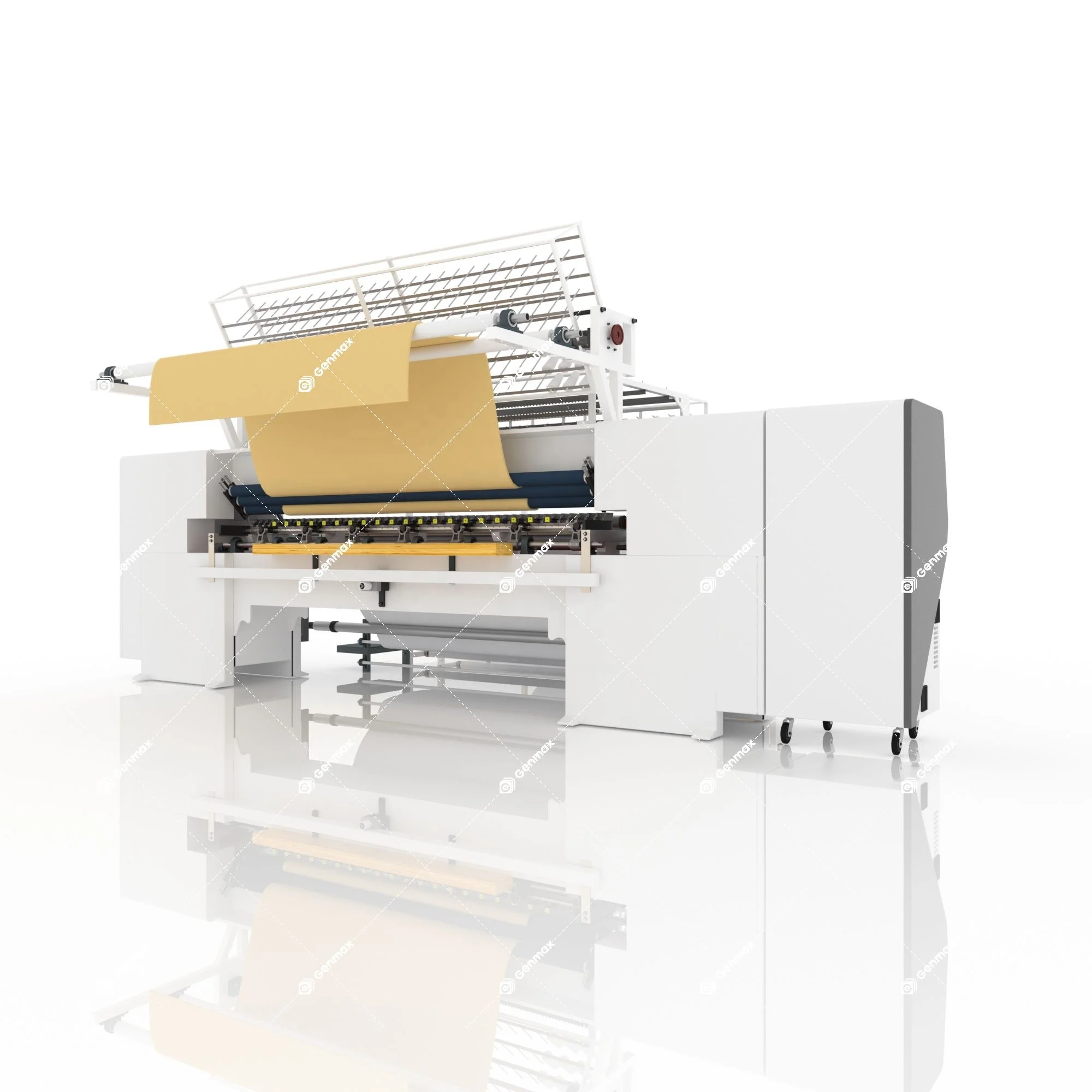

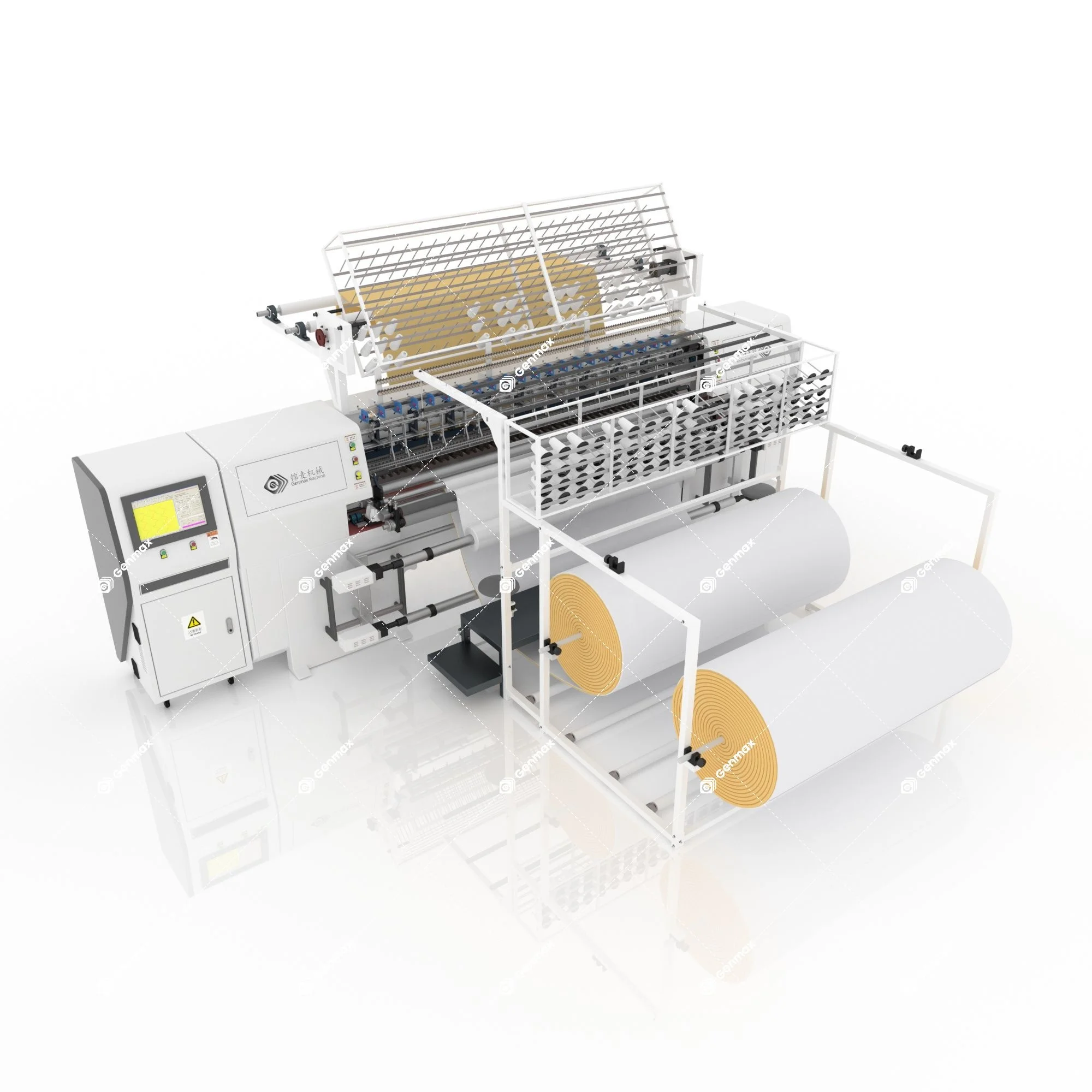

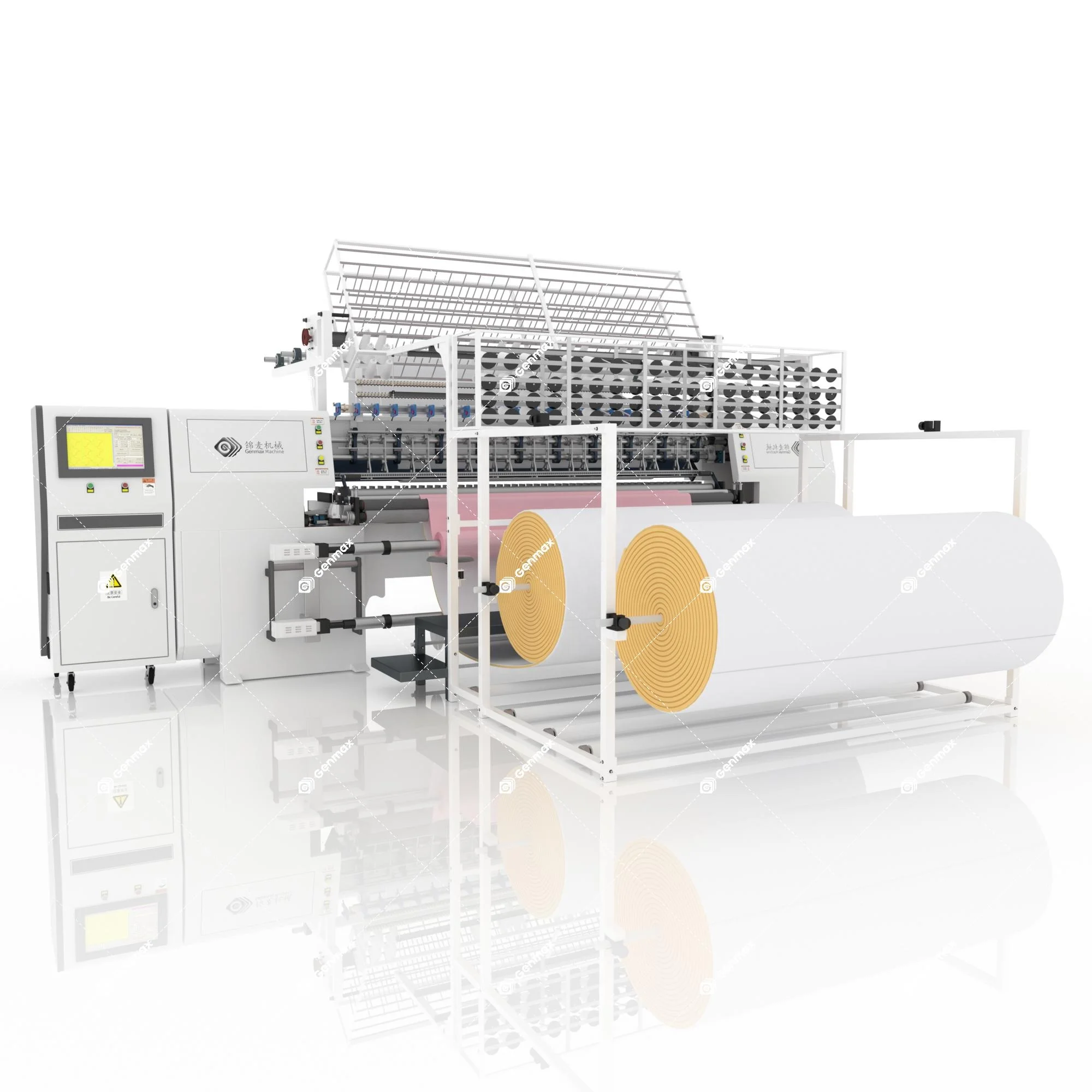

Edredones Making Lock Stitch Computerized Multi Needle Quilting Machine Mquina Para Coser Colchas

Model

GM-YS-94

Overall(Lx WxH)

4700*1370*1780mm

Over all weight

3500kg

Quiltwidth

2400mm

Needlearrangement

76.2+76.2

Needlespace

25.4mm

Max.horizontalmovement

304.8mm

Quiltwidt

≤30mm

Stitch

2-7mm

Output

60-130m/h

Pin type

14#-21#

Spindle speed

500-1100rpm

Voltage(A/C)

380V/220V 50HZ/60HZ

Power

4.5KW

Describe

1. The speed of needle is controlled by the computer and can reach 800rpm/min.
2. Needle row movement adopts aluminum alloy needle bar frame structure which doesn’t need to refuel, and will be strong and durable.
3. The saddle frame and roller adopt servo drive equipment, and the spindle adopts frequency conversion control;
4. Adopt high precision and high rigidity imported screw rod;
5. 360°arbitrary quilting and unlimited independent pattern step quilting;
6. Automatic stop function when the upper thread is broken;
7. Infrared induction makes the operation safer;
