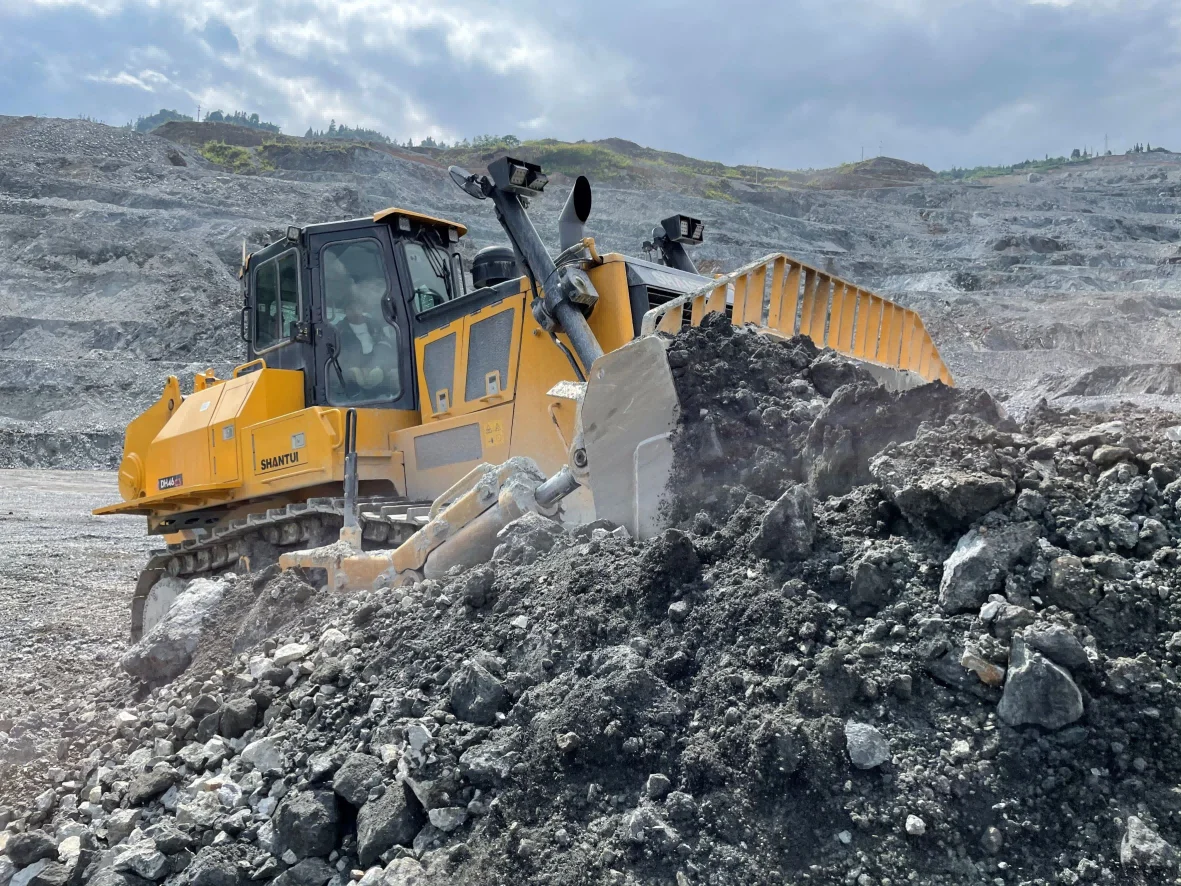

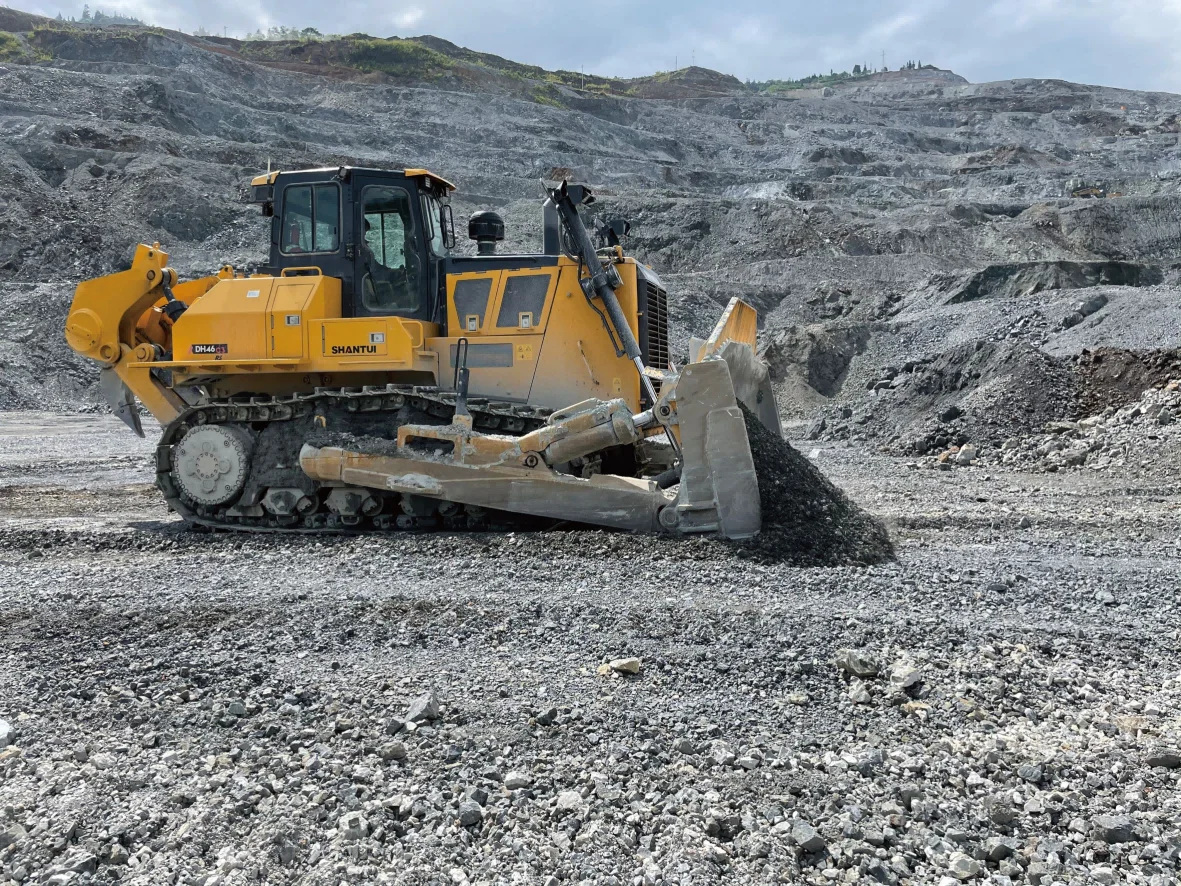

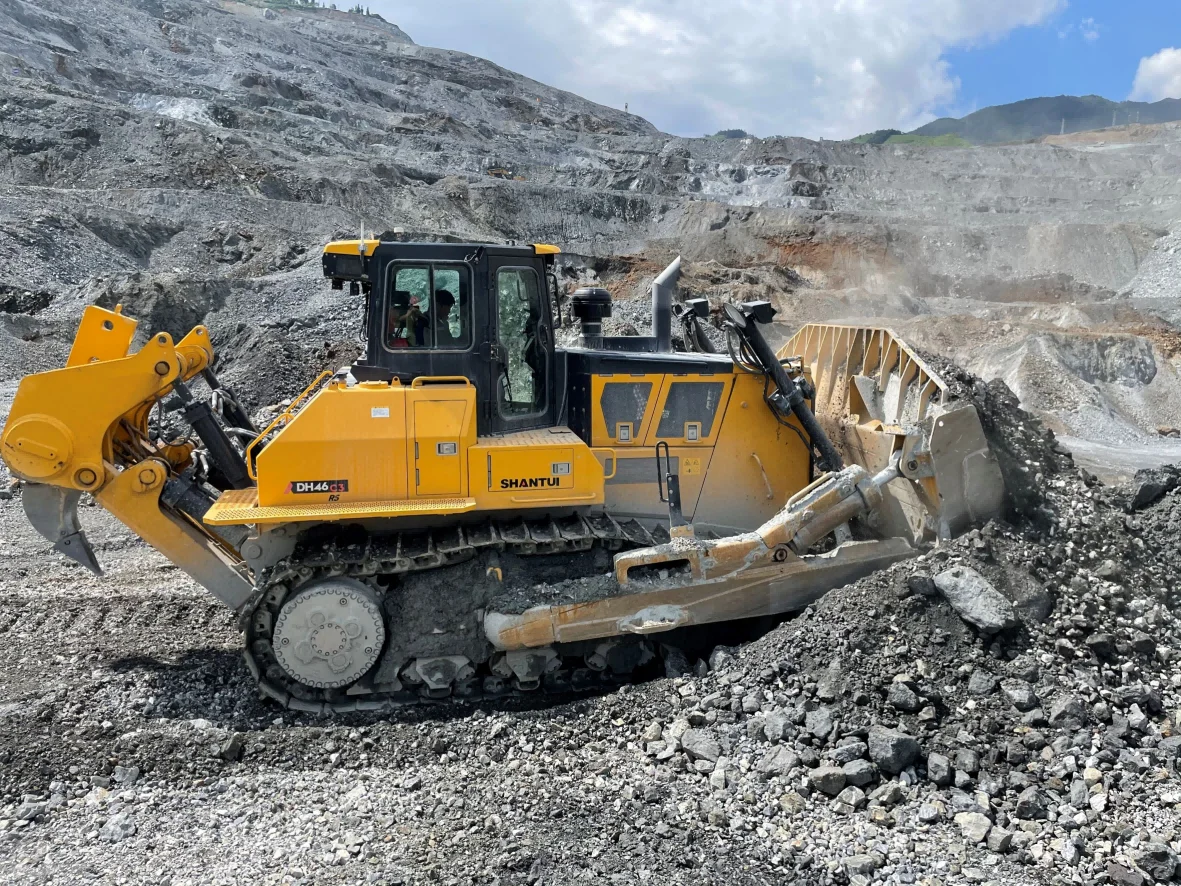

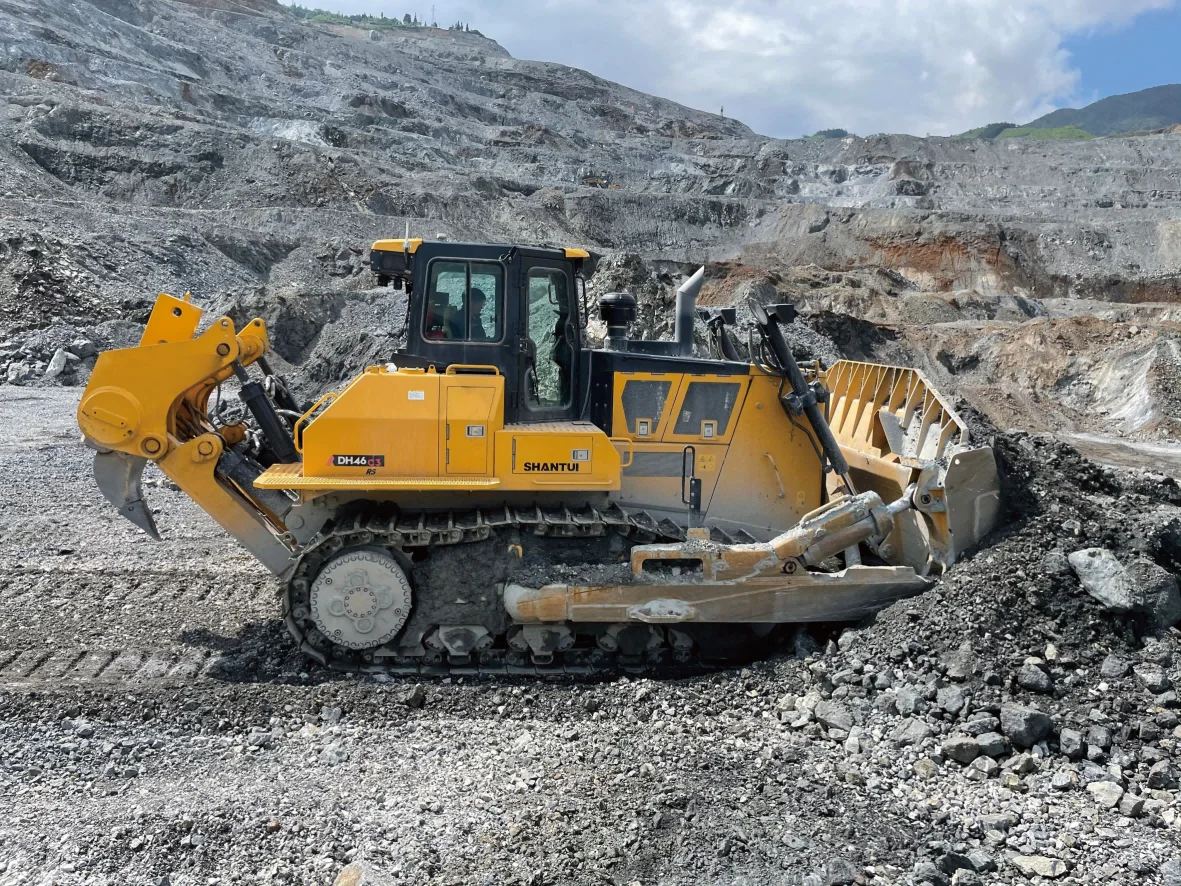

China Heavy Duty Shantui 380kw Crawler Bulldozer Dh46 c3 With Low Price
- Category: >>>
- Supplier: Qingzhou Changhui International Trade Co. Ltd.
Share on (1600534851456):
Product Overview
Description
Product Description
Power System
The imported Cummins QSX15 engine is equipped, featuring reliable quality and strong power. The engine features high thermal efficiency and good fuel economy. Its ECO mode in combination with the machine reduces the fuel consumption by approximately 15% compared with its Power mode.
Shantui’s proprietary patented power match technology combines with Linde’s high-efficiency hydraulic parts to promote the efficiency of machine drive system. The automatic load-adaptive function, the reverse gear acceleration function, and the pivot steering function further shorten the adjustment time of the machine and improve the comprehensive construction efficiency.
Control system
In terms of machine control function, the machine control program of multi-pump multi-motor hydrostatic system automatically adapts the machine speed to the load, requiring no manual adjustment of gears. The “Power mode” and the “ECO mode” can be switched over at any time to adapt to the working needs. The steering accuracy control, the trackslip rate control, the reverse gear accelerator control, the speed presetting, the pedal mode setting, and the automatic idling functions perfectly adapt to the operating habits of every operator.
The automatic control function of coolant temperature and hydraulic oil temperature automatically adjusts the heat dissipating power to maintain the system working at most appropriate temperature.
The automatic malfunction diagnosis, rating, and warning, the seat belt reminder, the body status indicator, the emergency stop switch, the reversing camera, and the access passage lamp improve the operating safety of the machine.
| Parameter name | DH46-C3 RS |
| Performance parameters | |
| Operating weight (Kg) | 56000 |
| Ground pressure (kPa) | 120 |
| Engine | |
| Engine model | QSX 15 |
| Rated power/rated speed (kW/rpm) | 380/1800 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 9325*4320*3990 |
| Driving performance | |
| Forward speed (km/h) | F1: 0-11 |
| Reversing speed (km/h) | R1: 0-11 |
| Chassis System | |
| Center distance of track (mm) | 2260 |
| Width of track shoes (mm) | 610 |
| Ground length(mm) | 3532 |
| Tank capacity | |
| Fuel tank (L) | 920 |
| Working device | |
| Blade type | Semi-U |
| Digging depth (mm) | 660 |
| Ripper type | Single-shank ripper |
| Ripping depth (mm) | 1245 |

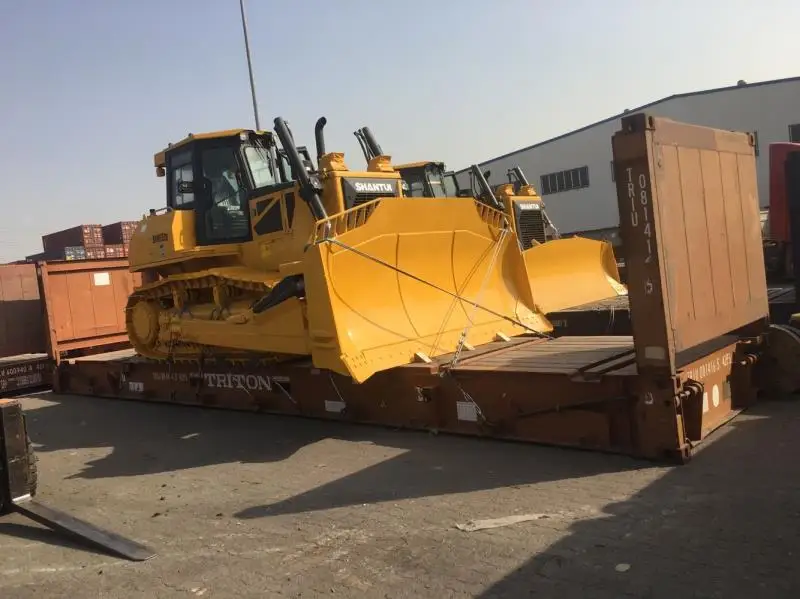

Packing & Shipping
