Product Overview
Description
Products Description
Applications
1, Automotive
2, Data Communication
3, Surveillance
Maximum Rating (Ta : 25℃)
Parameter | Symbol | Min. | Typical | Max. | Unit | |||||
DC Forward Current | IF | - | - | 1200 | mA | |||||
Reverse Voltage | VR | - | - | 5 | V | |||||
Reverse Current | IR | - | - | 10 | uA | |||||
Junction Temperature | Tj*2 | - | - | 150 | ℃ | |||||
Thermal Resistance Junction/ Solder Point | Rth | - | 12 | - | ℃/W | |||||
Operating Temperature Range | Top | -40 | - | 85 | ℃ | |||||
Storage Temperature Range | Tstg | -40 | - | 100 | ℃ | |||||
Soldering Temperature | Tsol | - | - | 260 | ℃ | |||||
Notes: 1, For other ambient, limited setting of current will depend on de-rating curves. 2, When drive on maximum current , Tj must be kept below 150℃ | ||||||||||
Typical Product Characteristics(Ta=25℃)
Parameter | Symbol | Values | ||
View angle | 2θ1/2 | typ. 120° | ||
Radiant power@1000mA | Φe | min. 600mW max. 900mW | ||
Radiant intensity@1000mA | IE | min.190mW/sr max. 270mW/sr | ||
Forward voltage@1000mA | VF | min. 1.6V max. 2.4V | ||
Peak wavelength | λd | 840-870nm | ||
Notes: 1, Forward voltage (VF ) ±0.1V；Radiant power (PO) ±7%；Peak wavelength (λp) ±1nm; Viewing angle(2θ1/2) ±10° 2, This is standard testing. | ||||

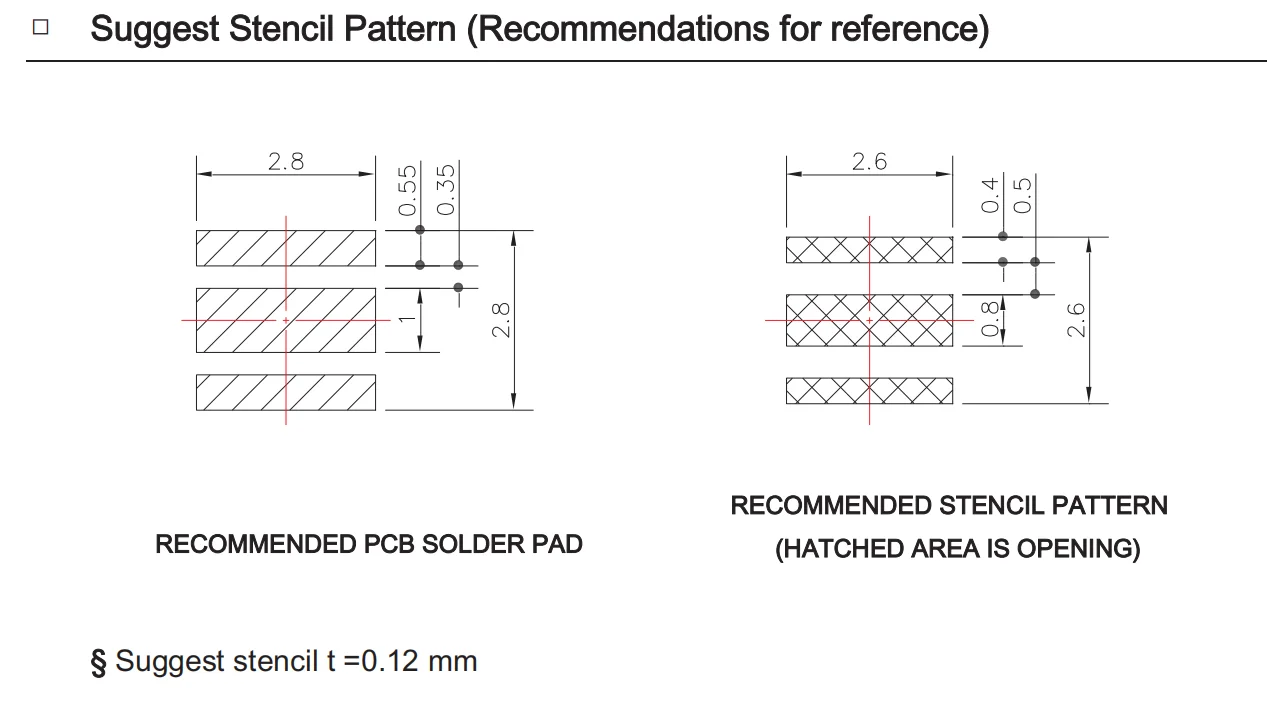

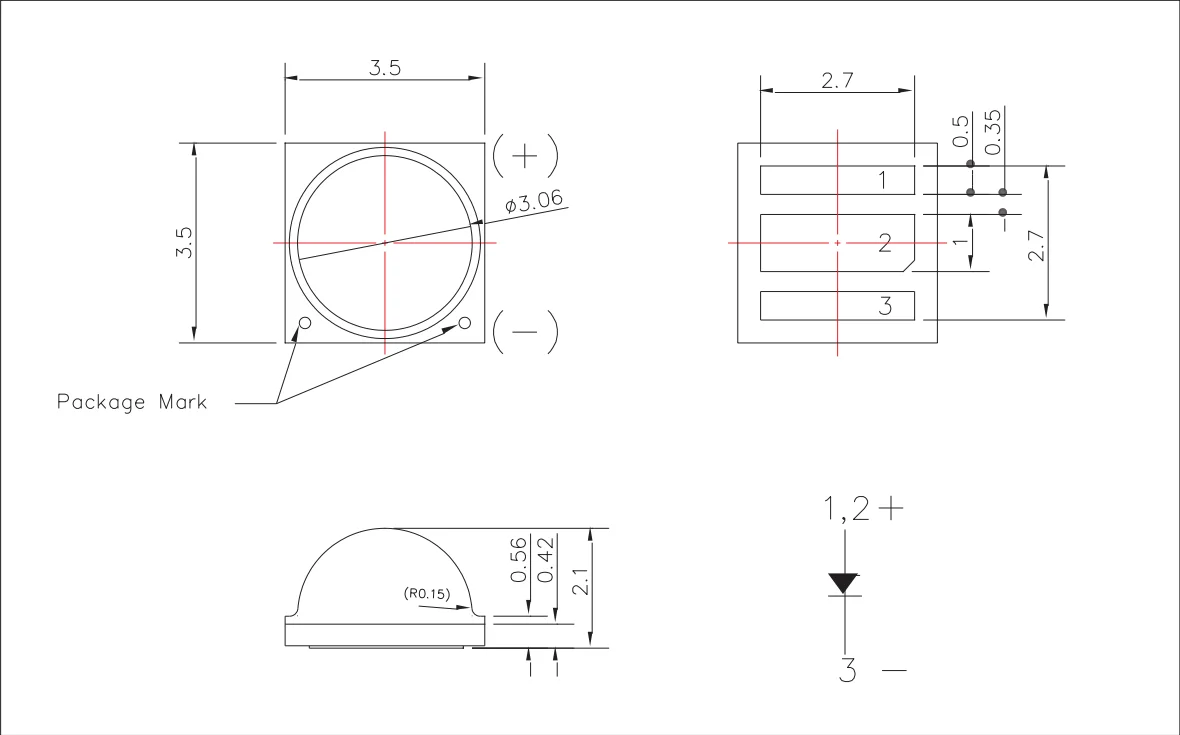

Dimensional Drawing
Remark:
1, All dimensions are in millimeters.
2, Tolerance is ±0.13mm unless other specified.
Our Advantages
FAQ
Q:How about the quality of the leds?
A:Please do not worry about the quality. Our company is the main manufacturer of LEDs in China. Our products have exported worldwide since the year 2010.
Q:Do you offer Custom-made ?
A:Yes , we offer this , but we will charge cost for the custom-made samples .
Q:Can I get free sample?
A:Yes, we can offer free sample for you to check before orderas long as you afford the express freight.
Q:What’s the lead time?
A:Samples delivery out in 3-7 working days.Lead time of mass production needs to negotiate, it depends on quantity.
Q:How about the payment terms?
A:Payment terms: TT in advance (30% of deposit before production and 70% balance before shipment). Please note we do EXW/FOB/CNF/CIF/DDU/DDP.
